Description
Kiloview N50 Overview
- 1Description
- 2Encoding/Decoding
- 3Pro Color Performance
- 4LCD Screen & Scroll Wheel
- 5USB Interfaces
- 6Audio & Intercom
- 7Serial PTZ Control
- 8SD Card Slot
- 9Power Options

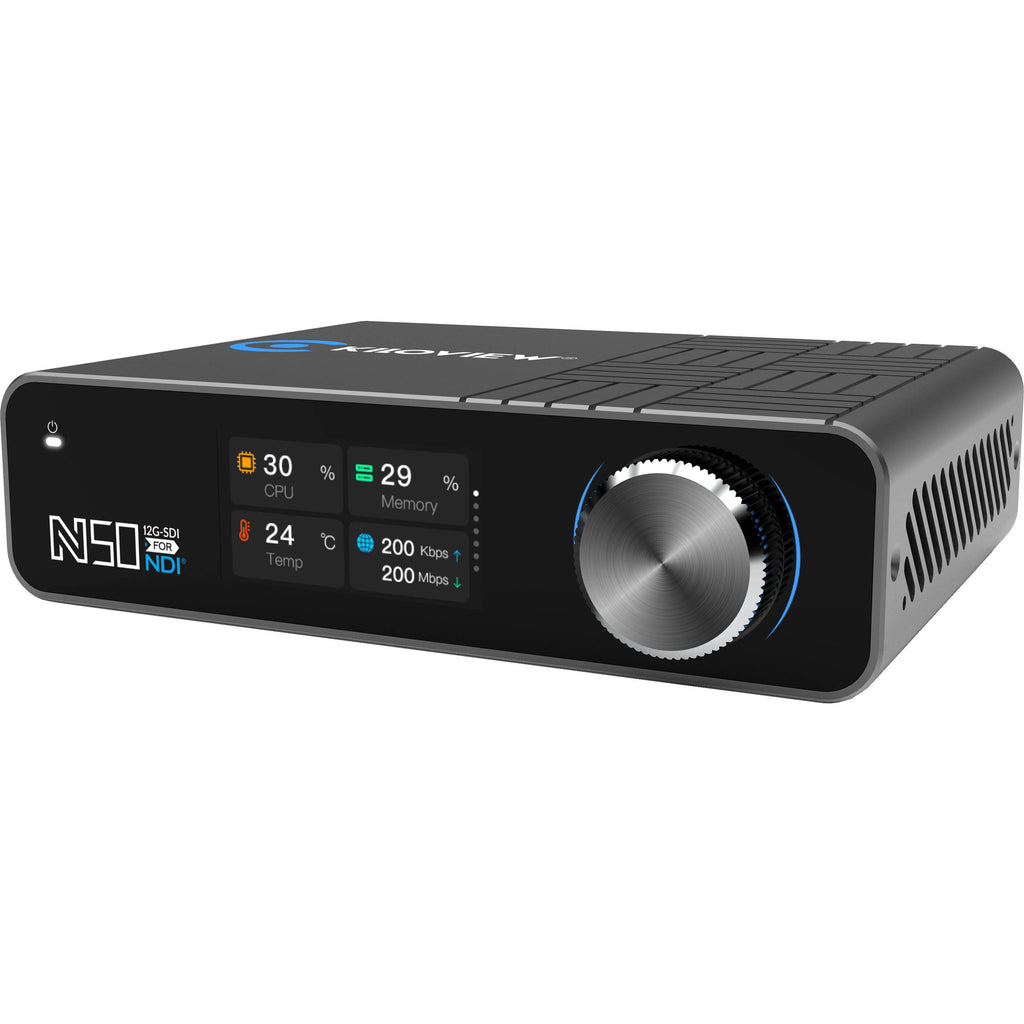

The Kiloview N50 12G-SDI/USB to NDI Bidirectional Converter supports NDI|HX and up to 12G-SDI encoding and decoding. A large scroll wheel and a color OLED screen enable you to easily view and adjust your parameters. Features like PoE and DC power, PTZ control, 3.5mm audio line in/out, multichannel audio, and intercom functions make the N50 Converter an excellent choice for professional IP-based video transmission.
Encoding/Decoding
When in the encoding mode, the N50 easily converts a 4K 12G-SDI video signal into an NDI and NDI|HX stream. In decoding mode, it automatically adapts the NDI and NDI|HX format as needed. The N50 encoder/decoder handles your NDI transmission easily with low latency of less than 80ms.
Pro Color Performance
The N50 supports the pro YCbCr 4:2:2 color space in both 8- and 10-bit color depth, providing higher color and image quality to match the high standards of the broadcast and medical industries.

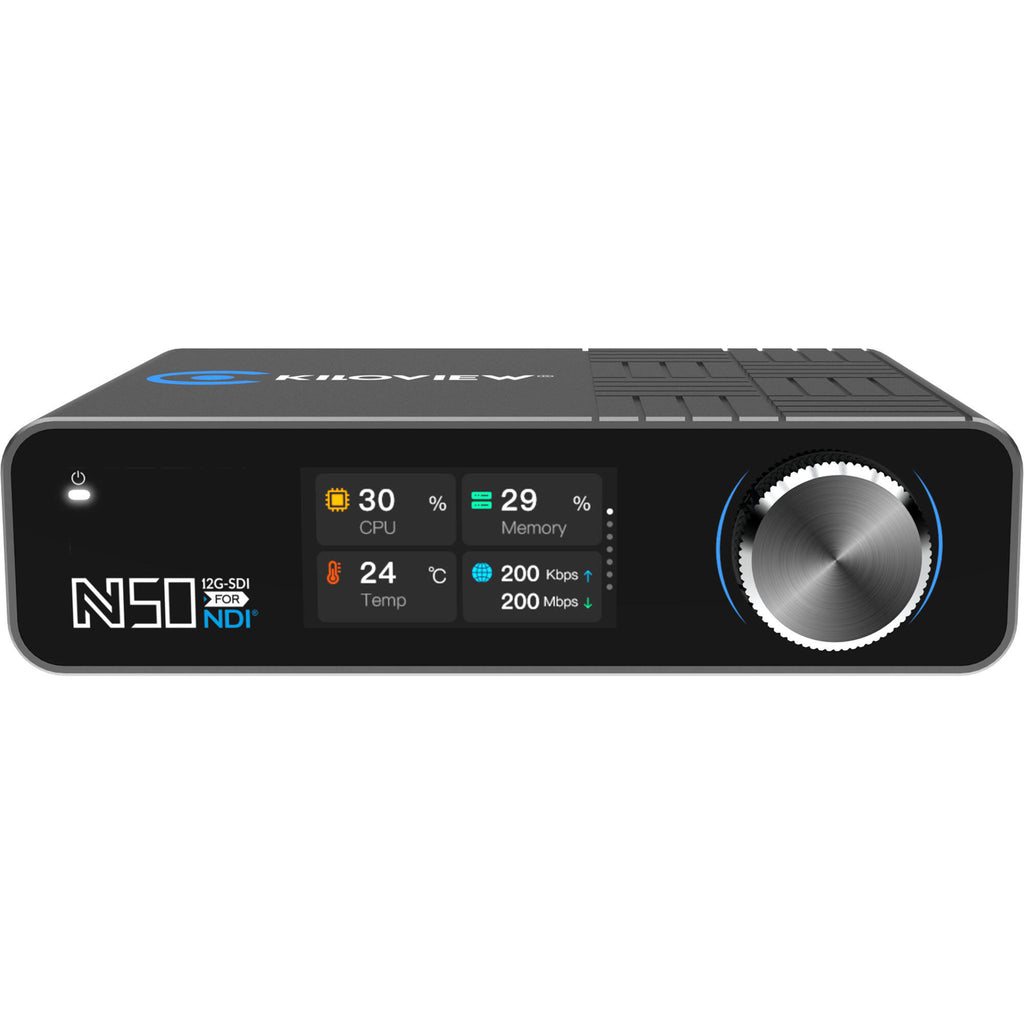

LCD Screen & Scroll Wheel
- A large, 1.96" LCD display enables you to check your status at any time and can be used as a large tally indicator.
- The scroll wheel provides source control, an on/off function, settings adjustments, and quick shortcuts.
USB Interfaces
USB-A and USB-C interfaces enable web camera input, PC USB video input, and control of a PTZ camera via a USB expansion.
Audio & Intercom
- The ND50 supports 12G-SDI embedded audio and analog encoding/decoding via a 3.5mm port.
- An intercom function is supported via USB for real-time communication between Kiloview device operators.
Serial PTZ Control
The N50 supports PTZ control through USB to serial RS-232/-485/-422 and adopts network control protocols (such as Sony VISCA/Pelco-D/Pelco-P) for external PTZ control.
SD Card Slot
Record your video directly to an SD card, preventing lost frames due to a network delay, interruption, or fluctuation.
Power Options
Power the N50 using the PoE function available on one of the two RJ45 Ethernet ports or via the 12 VDC barrel input.
In the Box
- Kiloview N50 12G-SDI/USB to NDI Bidirectional Converter
- Power Supply
- Limited 1-Year Manufacturer Warranty
Firmware Updates
v2.01.0007, Aug '23
Table of Contents
- Description
- Encoding/Decoding
- Pro Color Performance
- LCD Screen & Scroll Wheel
- USB Interfaces
- Audio & Intercom
- Serial PTZ Control
- SD Card Slot
- Power Options

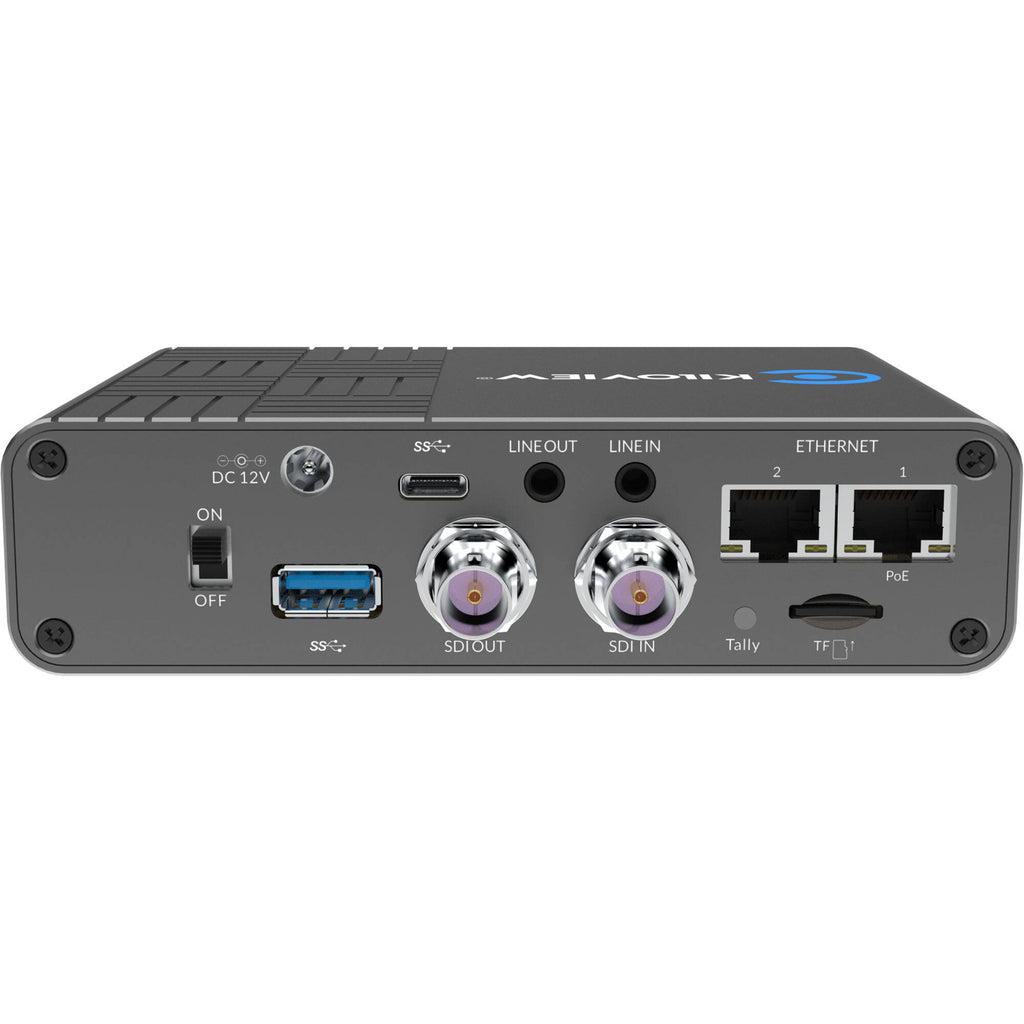

Kiloview N50 Specs
| Video Inputs |
1 x BNC (12G-SDI) Female
|
| Audio Inputs |
1 x 1/8" / 3.5 mm TRS Stereo Analog Female
|
| Video Outputs |
1 x BNC (12G-SDI) Female
|
| Audio Outputs |
1 x 1/8" / 3.5 mm TRS Stereo Analog Female
|
| Other I/O |
2 x RJ45 LAN, NDI, Tally Input/Output
1 x USB-A 3.0 / 3.1/3.2 Gen 1 Input 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Input |
| Expansion Slots |
No
|
| Input Video Format |
SDI (8/10-Bit 4:2:2 YCC)
UHD 4K up to 60 fps 1080p up to 60 fps 720p up to 60 fps |
| Input Audio Format |
Analog
LPCM (Linear Pulse-Code Modulation) |
| Output Video Format |
SDI (8/10-Bit 4:2:2 YCC)
UHD 4K up to 60 fps 1080p up to 60 fps 720p up to 60 fps |
| Output Audio Format |
Analog
LPCM (Linear Pulse-Code Modulation) |
| Embedded Audio |
SDI/LAN (RJ45)
|
Standards
| HDR Compatibility |
Not Specified by Manufacturer
|
IP Streaming
| Video IP Encoding |
NDI: 720 x 480 to 3840 x 2160 at 60p (62.5 to 250 Mb/s)
H.264: 1920 x 1080 to 3840 x 2160 at 60p (10 to 24 Mb/s) H.265: 1920 x 1080 to 3840 x 2160 at 60p (6 to 15 Mb/s) |
| Video IP Decoding |
NDI: 720 x 480 to 3740 x 2160 at 60p (62.5 to 250 Mb/s)
H.264: 1920 x 2160 to 3840 x 2160 at 60p (10 to 24 Mb/s) H.265: 1920 x 1080 to 3840 x 2160 at 60p (6 to 15 Mb/s) |
| Audio IP Encoding |
AAC-LC, G.711, NDI, Opus
|
| Audio IP Decoding |
AAC-LC, G.711, NDI, Opus
|
Hardware
| Display Size |
1.96"
|
| Tally Light |
Yes
|
| Media Card Reader |
1 x SD (Unspecified Type)
|
Power
| Power I/O |
1 x Barrel (12 VDC) Input
|
| PoE Support |
PoH 802.3at
|
| Power Consumption |
16 W
|
General
| Certifications |
CE, FCC, RoHS
*as per Manufacturer |
| Dimensions |
5.3 x 4.9 x 1.4" / 135 x 123.6 x 35 mm
|
Packaging Info
| Package Weight |
2.11 lb
|
| Box Dimensions (LxWxH) |
8.7 x 7.1 x 3.4"
|
