Description

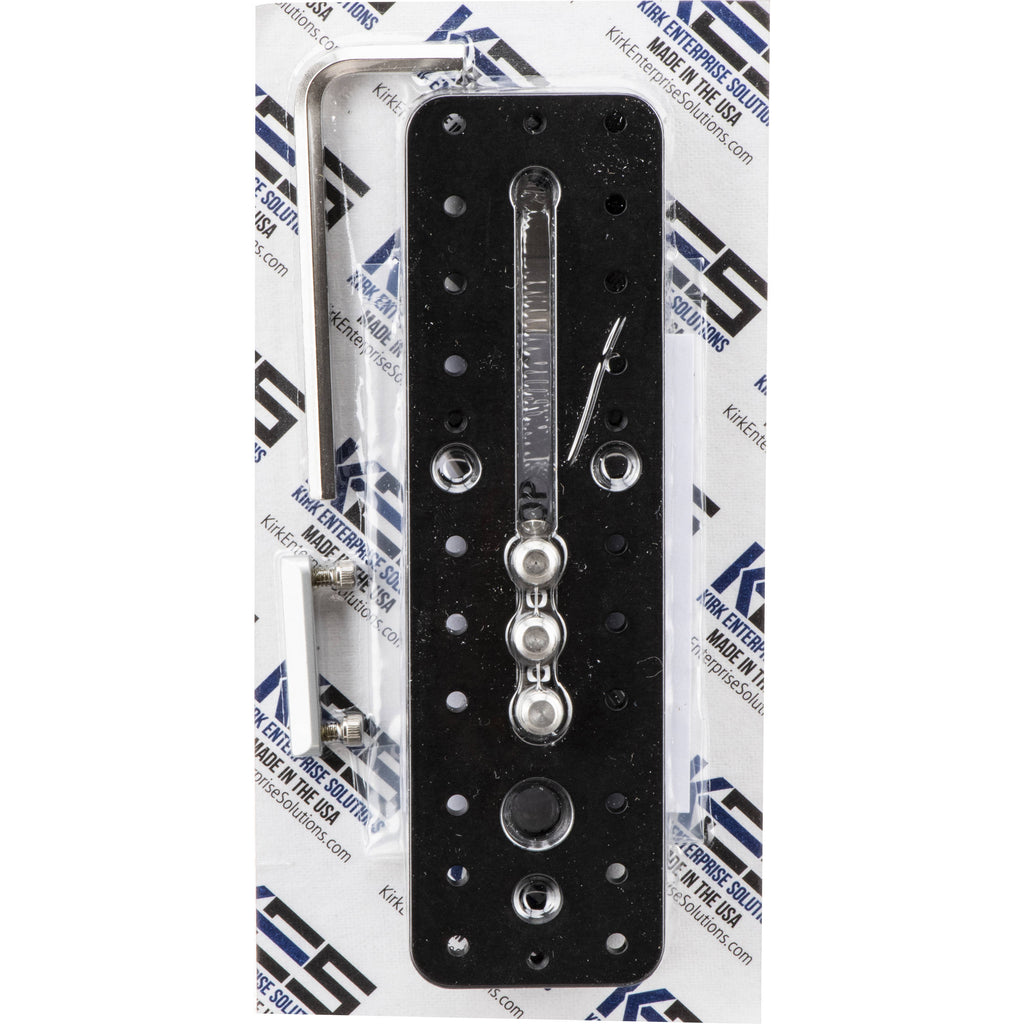

Kirk KLP-525-3NL Overview
This KLP-525-3NL Universal Lens Plate from Kirk Enterprises is designed to adapt any lens that utilizes a lens foot measuring up to 5.25" long, as well as select lenses with a lens foot that features three 1/4"-20 accessory threads, to an Arca-type compatible quick release clamp. That lens foot may be directly attached to the lens or instead connected to a lens foot collar.
Three movable 1/4"-20 mounts allow the plate to be connected to a compatible lens foot or lens foot collar. While in use, an anti-twist lip along the surface of the plate helps to prevent unwanted rotation of a lens while it is adapted to a clamp. The anti-twist lip is reversible and features surfaces that are angled at 90° or 30°. When the surface that most corresponds to the shape of the attached lens foot heel is used, contact between the lip and the heel is maximized, which minimizes lens movement. Dual retaining screws are included for use along the underside of the plate. These screws prevent the plate from accidentally sliding off when the clamp it is placed on is opened. For direct attachment to accessories such as a tripod or straps that feature 1/4"-20 or 3/8"-16 mounts, the surface of the plate is tapped with one 3/8"-16 female accessory thread and three 1/4"-20 female accessory threads.
Constructed from aluminum alloy, the KLP-525-3NL Universal Lens Plate is durable while remaining lightweight.
Use and Handling
- KLP-525-3NL is designed to adapt any lens that utilizes a lens foot measuring up to 5.25" long, as well as select lenses with a lens foot that features three 1/4"-20 accessory threads, to an Arca-type compatible quick release clamp
- Three 1/4"-20 mounts with movement along length of plate allow it to be connected to a compatible lens foot or lens foot collar
- Reversible anti-twist lip prevents unwanted rotation of adapted lens on clamp
- Anti-twist lip features surfaces that are angled at 90 or 30°
- When surface that most corresponds to the shape of the attached lens foot heel is used, contact between the lip and the heel is maximized, which minimizes lens movement
- Dual retaining screws for the underside of the plate help prevent it from accidentally sliding off a clamp
- One 3/8"-16 female accessory thread and three 1/4"-20 female accessory threads for direct connection to a 1/4"-20 or 3/8"-16 mount
- Two spare retaining screws can be used to prevent plate from accidentally sliding off a clamp, or for attachment of anti-twist lip
- Accessory threads for storage of spare retaining screws within plate
- 5/32 hex key to fasten the plate to a lens using its 1/4"-20 mount
- 3/32 hex key to fasten retaining screws
Lenses That Are Specifically Compatible with Lens Plate
- Nikon AF-S NIKKOR 400mm f/2.8D IF-ED
- Nikon AF-S NIKKOR 400mm f/2.8D IF-ED II
- Nikon AF-S NIKKOR 400mm f/2.8G ED VR
- Nikon AF-S NIKKOR 500mm f/4D ED-IF
- Nikon AF-S NIKKOR 500mm f/4D ED-IF II
- Nikon AF-S NIKKOR 500mm f/4G ED VR
- Nikon AF-S NIKKOR 600mm f/4D ED-IF II
- Nikon AF-S NIKKOR 600mm f/4G ED VR
In the Box
- Kirk KLP-525-3NL 5.25" Universal Lens Plate with Three Screws
- 3 x 1/4"-20 Mount
- 6 x Retaining Screws
- Anti-Twist Lip
- 5/32 Hex Key
- 3/32 Hex Key
- Limited 5-Year Warranty
Kirk KLP-525-3NL Specs
| Mounting Screw | 3 x 1/4"-20 Male |
| Tripod Mounting Thread | 3 x 1/4"-20 Female 1 x 3/8"-16 Female |
| Arca-Type | Yes |
| Material of Construction | Aluminum |
| Length | 5.25" / 13.34 cm |
| Weight | 2.9 oz / 82 g |
| Package Weight | 0.255 lb |
| Box Dimensions (LxWxH) | 6.1 x 3 x 0.8" |
