Description

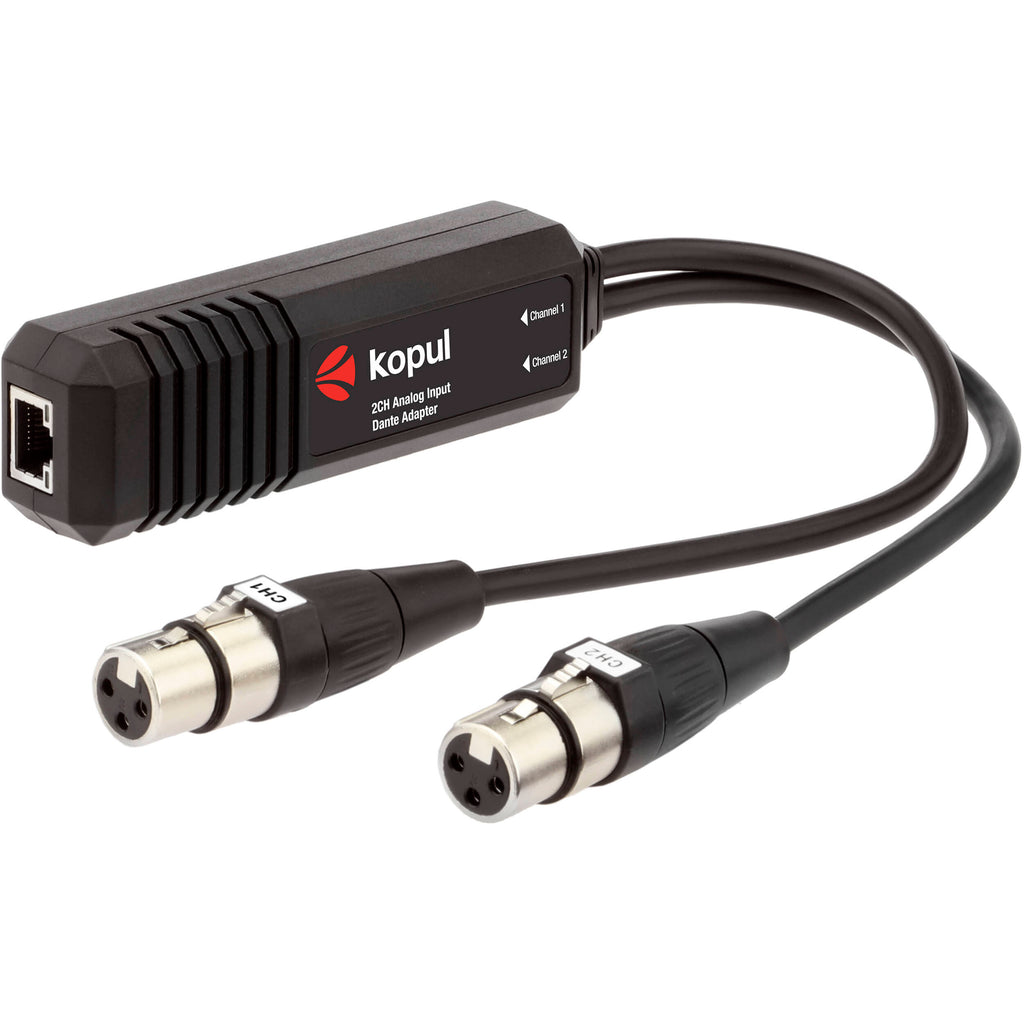

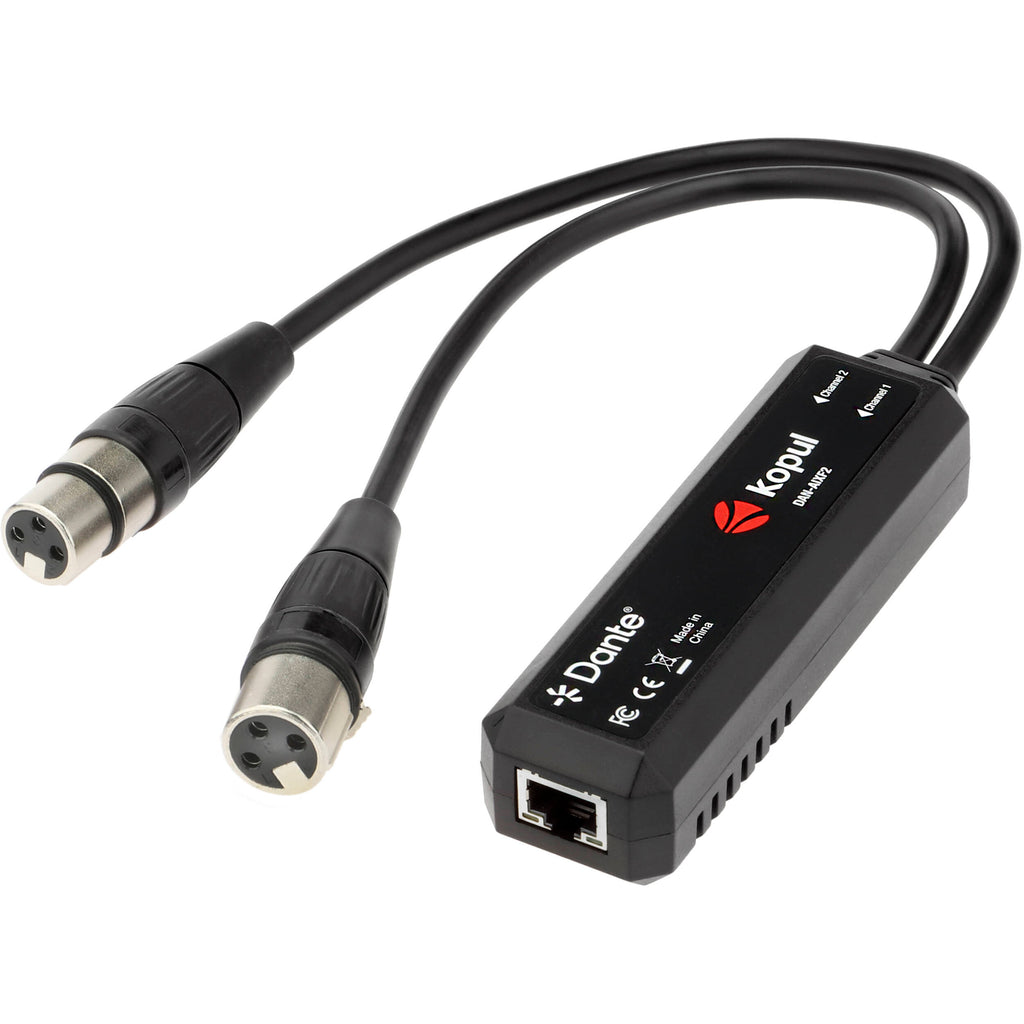

Kopul DAN-AIXF2 Overview

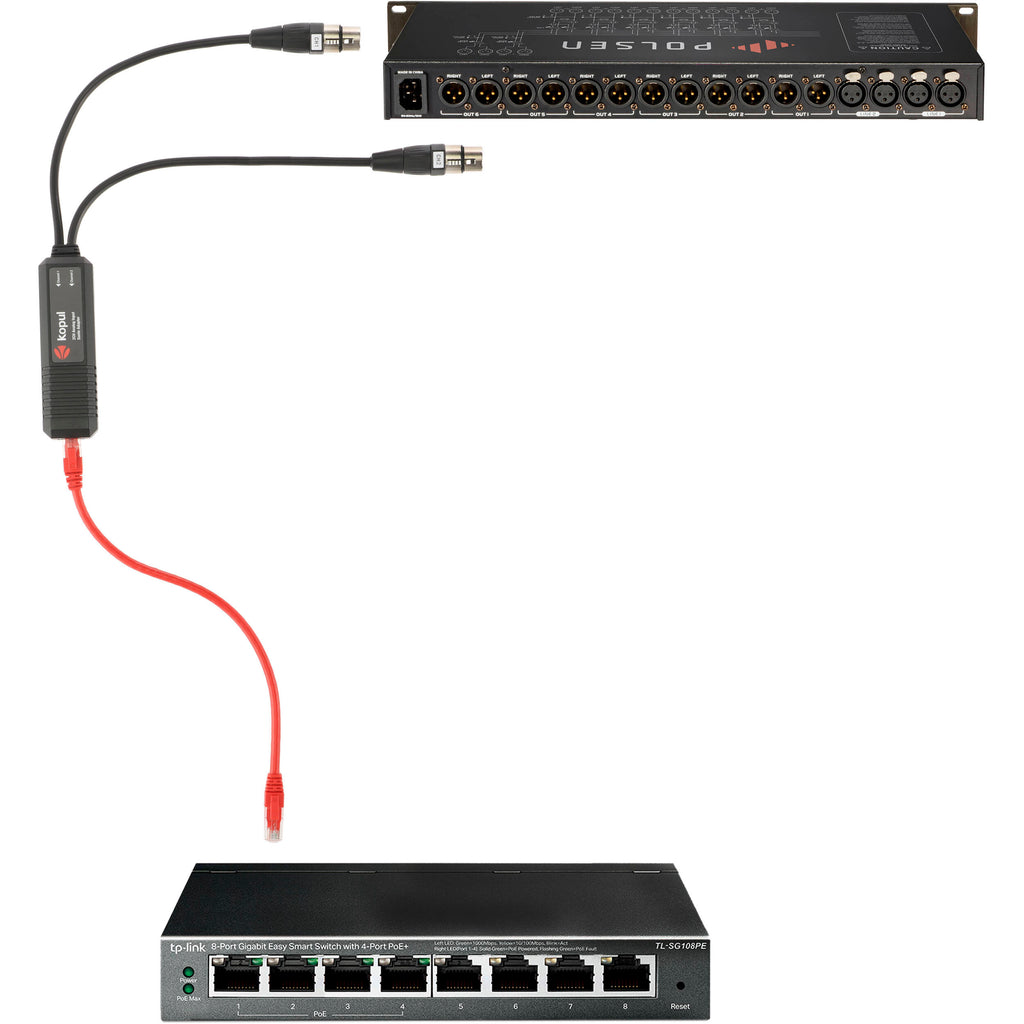

The Kopul DAN-AIXF2 Two-Channel XLR Analog Input Adapter for Dante Network enables you to incorporate analog audio gear you already own into your Dante network. With plug-and-play operation, the DAN-AIXF2 is automatically discovered by the network and ready to use once connected, making it easy to send highly detailed and clock-accurate audio to an analog mixing board, power amplifier, or powered speakers over Dante.
The DAN-AIXF2 connects to the network via its RJ45 Ethernet port. You can input two balanced, line-level analog audio signals from a keyboard, DI box, or mixing board via its two 3-pin, XLR-F connectors. The adapter delivers two channels of high-quality audio with configurable gain and attenuation, up to 24-bit / 96 kHz A/D conversion, high SNR, low THD, and a wide frequency response of 20 Hz to 20 kHz.
The DAN-AIXF2 is PoE powered. It supports Dante Audio over IP and AES67 RTP transport formats and is compatible with Dante Domain Manager (DDM).
- Cost-effective solution for adapting analog gear to your Dante network
- Convert two channels of analog audio into Dante audio
- 2 balanced, line-level analog audio signals on 3-pin, XLR-F connectors
- Plug-and-play operation
- Rugged ABS construction
- A/D conversion up to 24-bit / 96 kHz
- Wide dynamic range
- High Signal-to-Noise Ratio (SNR)
- Low Total Harmonic Distortion (THD)
- Configurable gain and attenuation
- Dante Audio over IP and AES67 RTP transport formats
- Powered via Power-over-Ethernet (PoE)
- Compatible with Dante Domain Manager (DDM)
- Simply connect the DAN-AIXF2, and it�s instantly discovered by the network.
- Let the Dante Controller do the rest of the work like signal routing, configuring gain, attenuation, and enabling channels.
- The DAN-AIXF2 features a rugged ABS shell designed to withstand repeated transport in a toolbox or gear bag, and the stress of constant touring.
- The XLR cables feature molded strain relief that minimizes cable strain at the point where the cable connects with the adapter.
- Send analog audio from a keyboard, DI box, microphone, and mixing board to your Dante network
- Patch DSPs, analog compressors, and equalizers into a Dante system using a combination of Kopul Dante input and output adapters
- Create easy drop points for connecting overflow areas to a Dante network
- Send audio to multiple rooms in houses of worship, conference centers, theaters, and studios via Dante network
- Connect hearing-aid loop amplifiers to your Dante audio network
Items Included
- Kopul DAN-AIXF2 Two-Channel XLR Analog Input Adapter for Dante Network
- Limited 1-Year Manufacturer Warranty
Additional Resources
Kopul DAN-AIXF2 Specs
| Maximum Signal Level |
+24 dBu, Balanced
|
| Frequency Response |
20 Hz to 20 kHz (±0.5 dB)
|
| Impedance |
20 Kilohms (Balanced)
10 Kilohms (Unbalanced) |
| Dynamic Range |
>100 dB
|
| Signal-to-Noise Ratio |
>100 dB
|
| Total Harmonic Distortion |
<0.01% at +4 dBu
|
| Connectors |
RJ45
2 x XLR Female |
| Power |
802.3af PoE
|
| Power Consumption |
3.15 W (Max)
|
| Sample Rates |
44.1, 48, 96 kHz
|
| Bit Depth |
24-Bit
|
| Latency |
1, 2, or 5 ms (Configurable with Dante Controller)
|
| Network Transport Protocol |
Dante Audio over IP
AES67 RTP |
| Construction |
ABS
|
| Dimensions |
4.5 × 1.1 × 1.1" / 11.4 × 2.8 × 2.8 cm
|
| Weight |
5.6 oz / 159 g
|
| Package Weight |
0.46 lb
|
| Box Dimensions (LxWxH) |
7.7 x 3.7 x 1.4"
|
