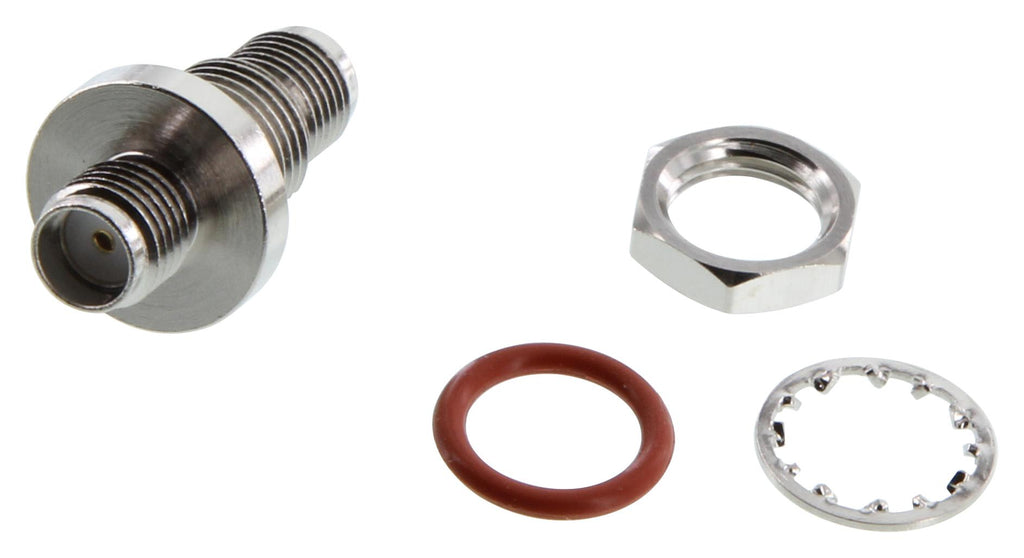

BA21 is a SMA female /female bulkhead - D-hole coaxial adapter. This SMA female to female feed thru bulkhead coupler provides the ability to pass a coaxial connection through a panel or bulkhead utilizing a standard 0.300" single D mounting hole. A common use for this device is to create a connection point on either side of a wall or other obstruction. Typical applications include coax retrofit applications, coaxial extension, OEM coax applications and coaxial interface conversion.
- Complete with nut, gasket and lock washer mounting hardware
- Gold plated centre contact for reduced signal loss
- Nickel plated body for enhanced corrosion resistance
- Provides 50 ohm signal feed-thru for two SMA male interface devices
- Single D bulkhead design for panel mounting
Other details
| Brand |
L-COM |
| Part Number |
BA21 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| CAD Multiple Formats EN |
|
