| ₹ 7287.36 includes GST and import duties. | |
| B2B customers can avail ₹ 1111.32 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

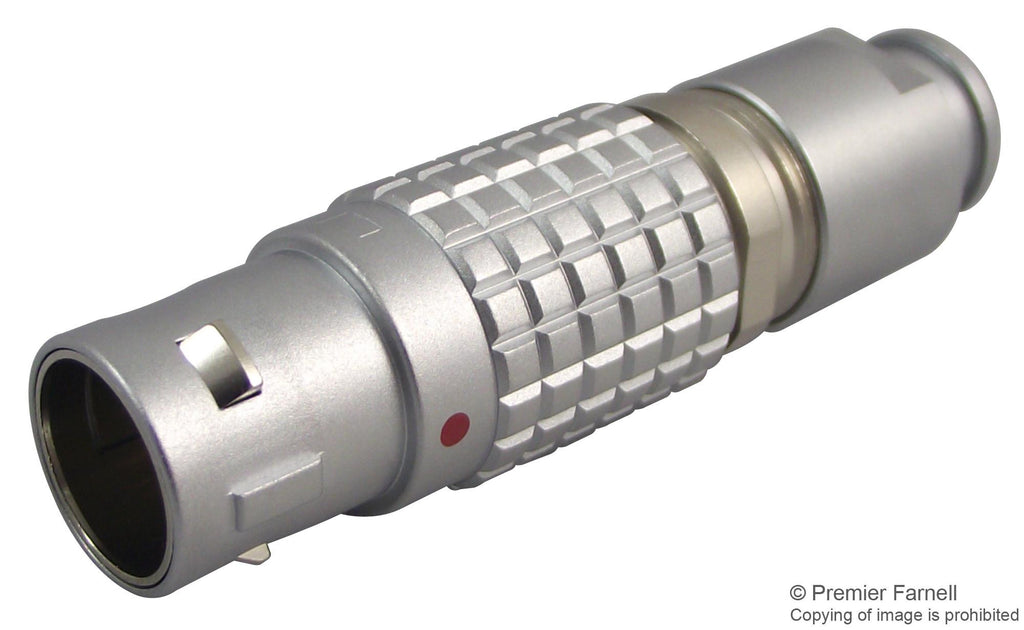

The FGG.2B.304.CLAD92Z is a 4-way Circular Connector, 2B series, straight plug with cable collet and nut for fitting a bend relief. Single key, male (plug) contacts and female (socket) contacts. Push-pull self-latching system with four solder contacts. Chrome-plated brass shell and collet nut, nickel plated brass latch sleeve and mid pieces. The modular design of the 2B series connector offers a solution for most applications. The push pull latching mechanism provides a secure connection whilst the density of the contacts provides for considerable panel space savings. Multi key options prevent cross mating of similar connectors within a panel. The ruggedized design combined with precision manufacturing offers excellent durability, reliability and quality.
- 15A Current rating
- PEEK insulator
- G Key standard
- IP50 Protection rating
- 5000 Maximum matings
- 3.6mR Maximum resistance
- 1.3mm (0.051") Contact diameter
- 360� Screening for full EMC shielding
- 4 Low voltage insert configuration
Applications
Industrial, Automotive, Communications & Networking, Medical, Test & Measurement, Aerospace, Defence, Military
Product details
| Connector Body Plating | Chrome |
| No. of Contacts | 4Contacts |
| Contact Plating | Gold |
| Coupling Style | Push-Pull |
| Circular Connector Shell Style | Cable Mount Plug |
| Product Range | 2B Series |
| Contact Material | Brass |
| Circular Contact Type | Solder Pin |
| Connector Body Material | Brass Body |
Other details
| Brand | LEMO |
| Part Number | FGG.2B.304.CLAD92Z |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 7141.61 |
| 3-5 | ₹ 7068.74 |
| 5-10 | ₹ 6922.99 |
| 10+ | ₹ 6777.24 |
Bulk discount will be automatically applied during checkout based on quantity.
