Description
Libec NH Series Video Head Overview

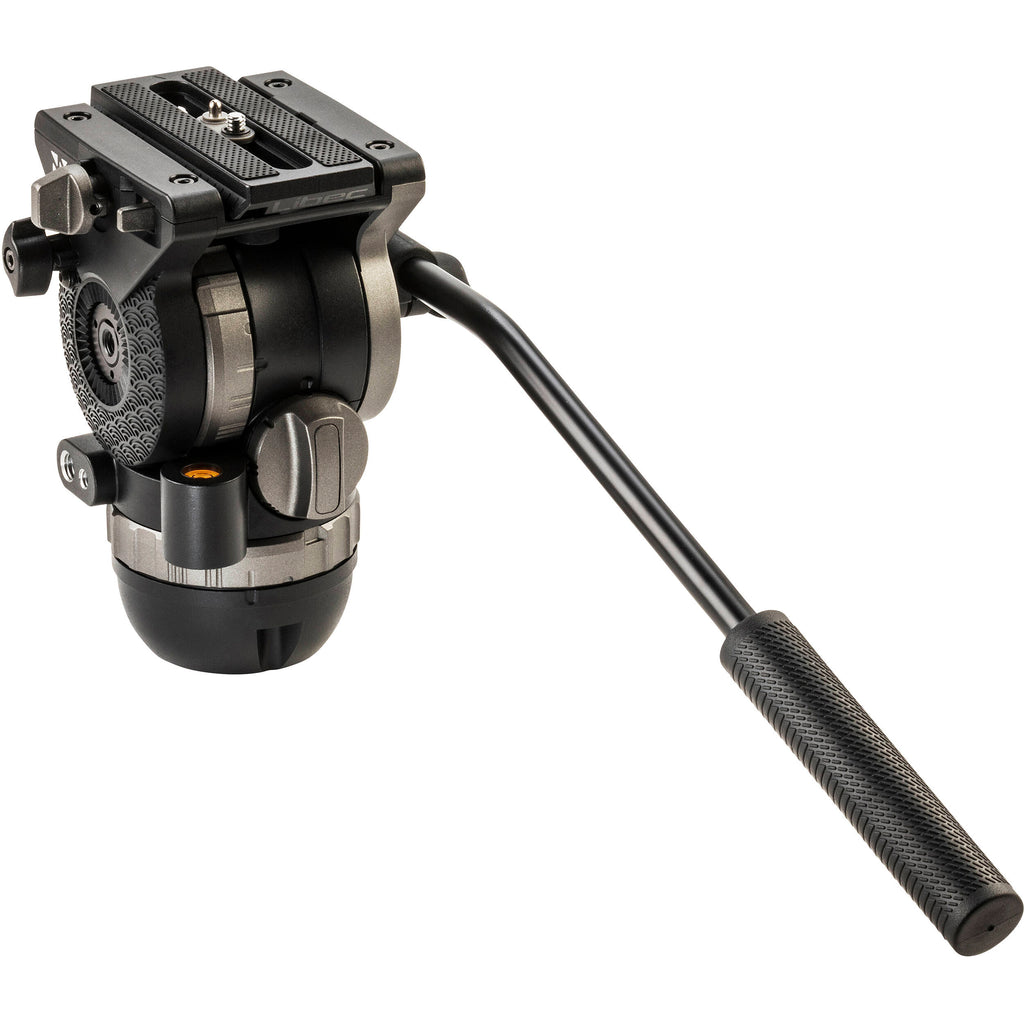

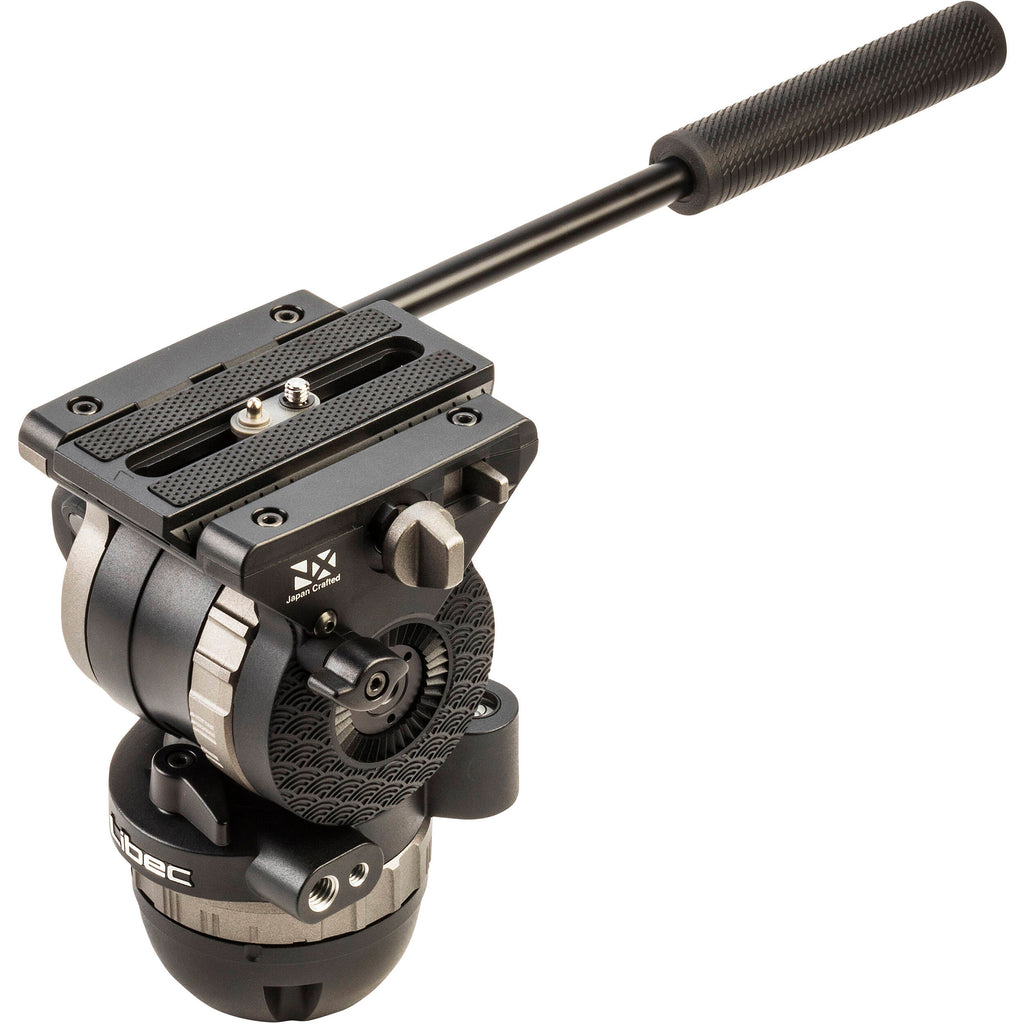

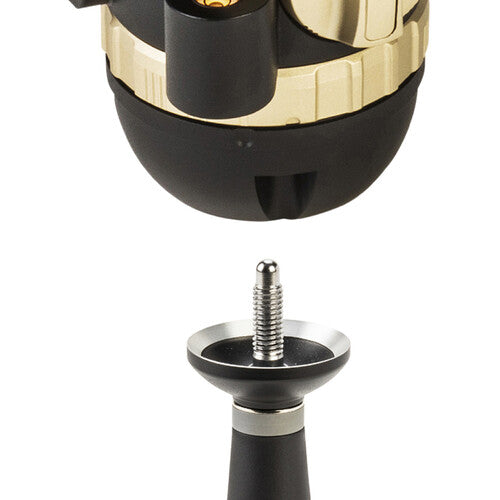

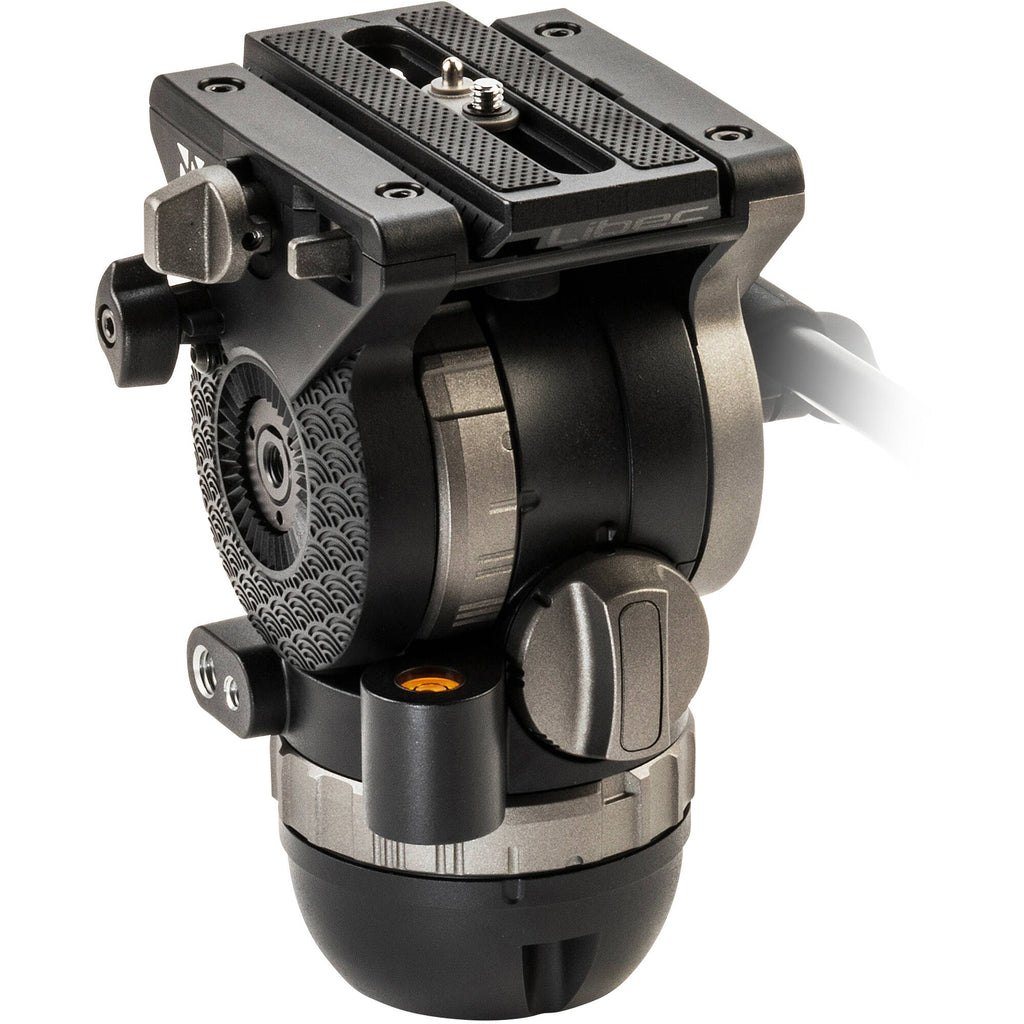

Designed to support small camera rigs weighing up to 22 lb, the NH30 75mm Ball/Flat Base Video Head with Pan Handle from Libec features a unified ball/flat mount design. The base of the tripod can fit either in a standard 75mm bowl or on a flat mount with a 3/8"-16 screw. Having both options available means you can transfer the head from a tripod with a bowl mount to a flat mount slider.

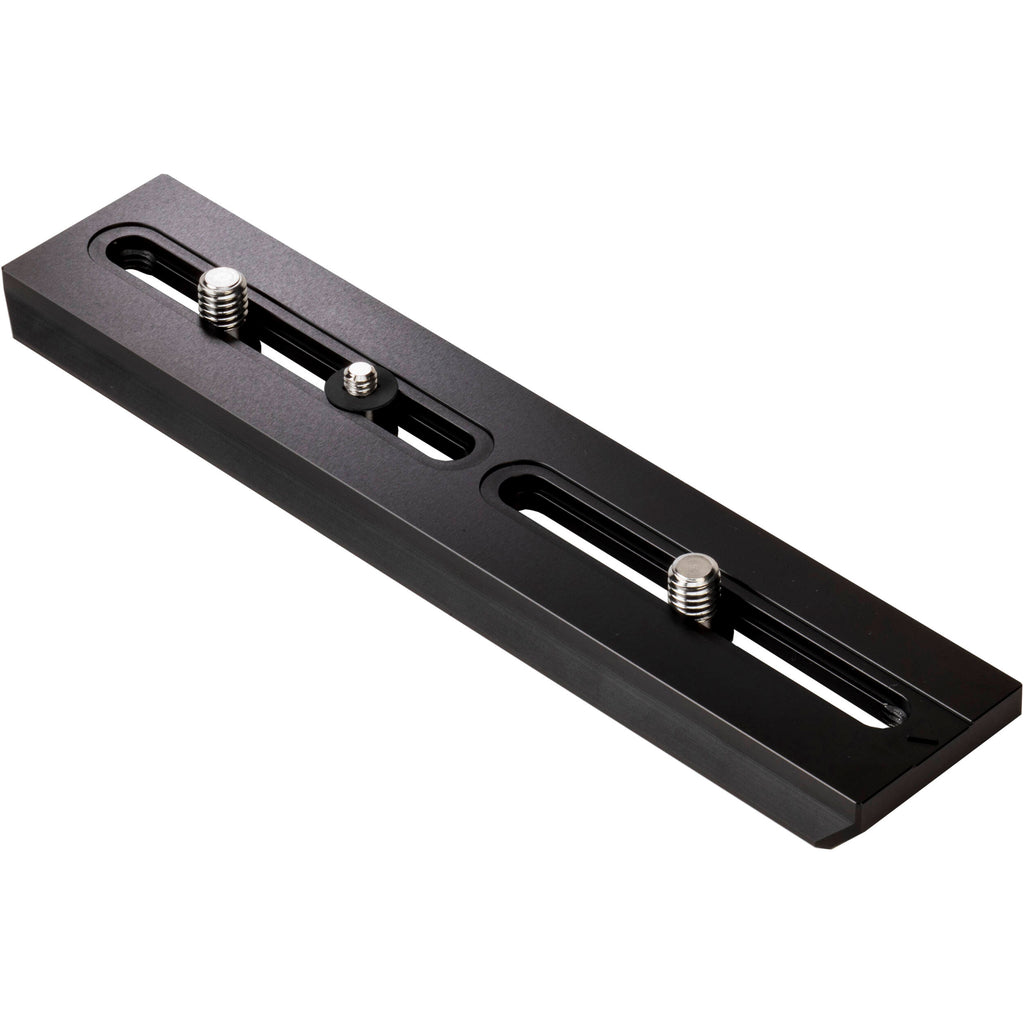

To achieve proper balance, the NH30 head includes a snap-on/off camera plate that can slide up to 1.2" of fore/aft adjustment, and it features 1/4"-20 and 3/8"-16 camera mounting screw options. The screw and locating pin are moveable to orient the plate on the camera to achieve the best possible balance. Once the camera is balanced, the continuous counterbalance and pan/tilt drag controls provide smooth movement. On the side, there are 1/4"-20 and 3/8"-16 threads to mount a variety of accessories such as a light, monitor, or extension arm.
Included with the NH30 is a pan handle that can be placed on the right or left side of the head by screwing it onto one of the mounts. The LED-illuminated bubble level helps to level the camera on uneven surfaces, even in low light.
In the Box
- Libec NH30 75mm Ball/Flat Base Video Head with Pan Handle (22 lb Payload)
- Pan Handle
- Quick Release Plate
- 1/4"-20 Screw
- 3/8"-16 Screw
Libec NH Series Video Head Specs
| Camera Plate Features | Sideload, Sliding Balance Plate |
| Camera Mounting Screw | 1 x 1/4"-20 Male with Locating Pin 1 x 3/8"-16 Male with Locating Pin |
| Balance Plate Sliding Range | 1.2" / 30.5 mm |
| Safety Lock | Yes |
| Base Mount | 3/8"-16 Female 75 mm Half Ball Flat Base |
| Counter Balance | Continuous 5-Step (0 to 22 lb / 0 to 10 kg) |
| Pan Handle Fittings | 2 |
| Bubble Level | 1 x Illuminated |
| Accessory Mounting | 1 x 1/4"-20 Female Thread 1 x 3/8"-16 Female Thread |
| Base Diameter | 2.95" / 75 mm |
| Drag Control | Tilt: Continuous 3-Step Pan: Continuous 3-Step |
| Drag Type | Friction |
| Vertical Tilt | +90° to -70° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
| Load Capacity | 22 lb / 10 kg |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Weight | 4 lb / 1.8 kg |
| Package Weight | 5.895 lb |
| Box Dimensions (LxWxH) | 15.5 x 8.6 x 6.1" |
