Description
Lilliput PVM220S Overview
- 1Description
- 2Versatile Video Input and Output
- 3Quad-Split Multiview
- 4USB Vertical Display
- 5Workflow
- 6Audio
- 7Imaging Tools
- 8Function Buttons
- 9Versatile Mounting

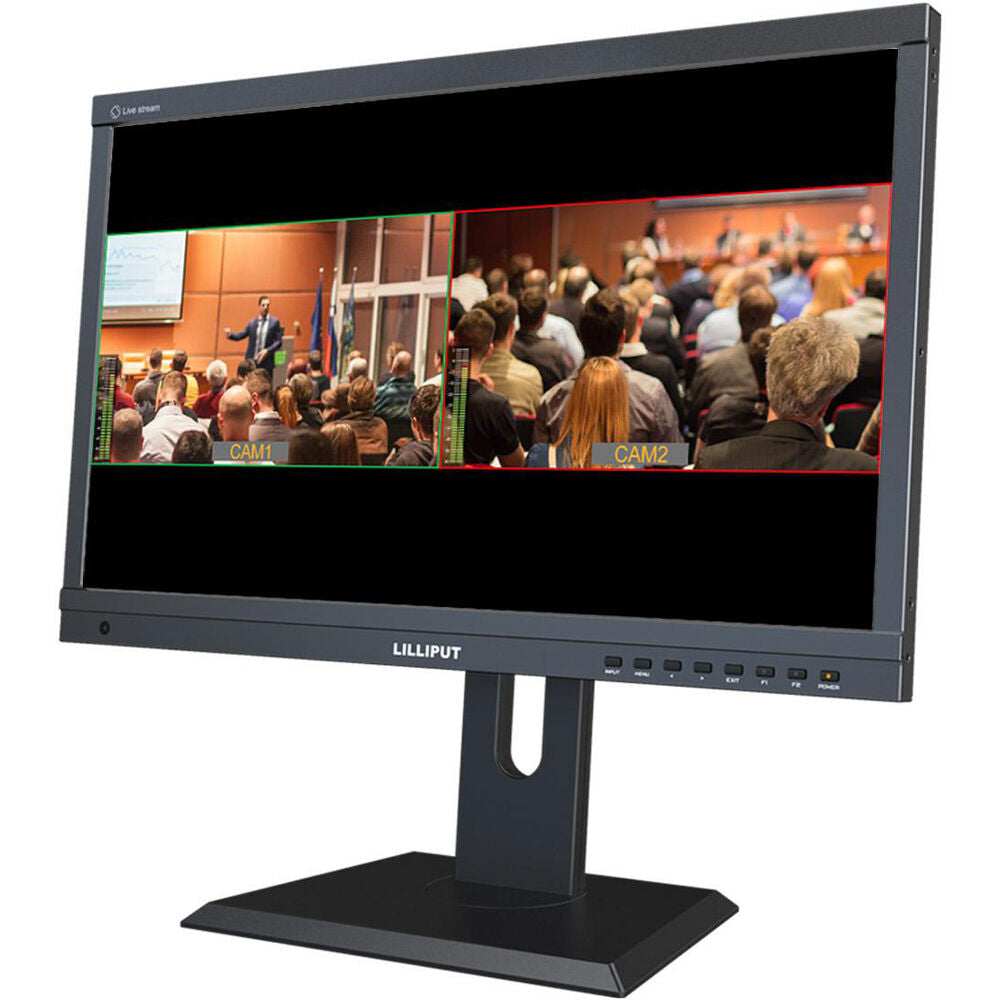

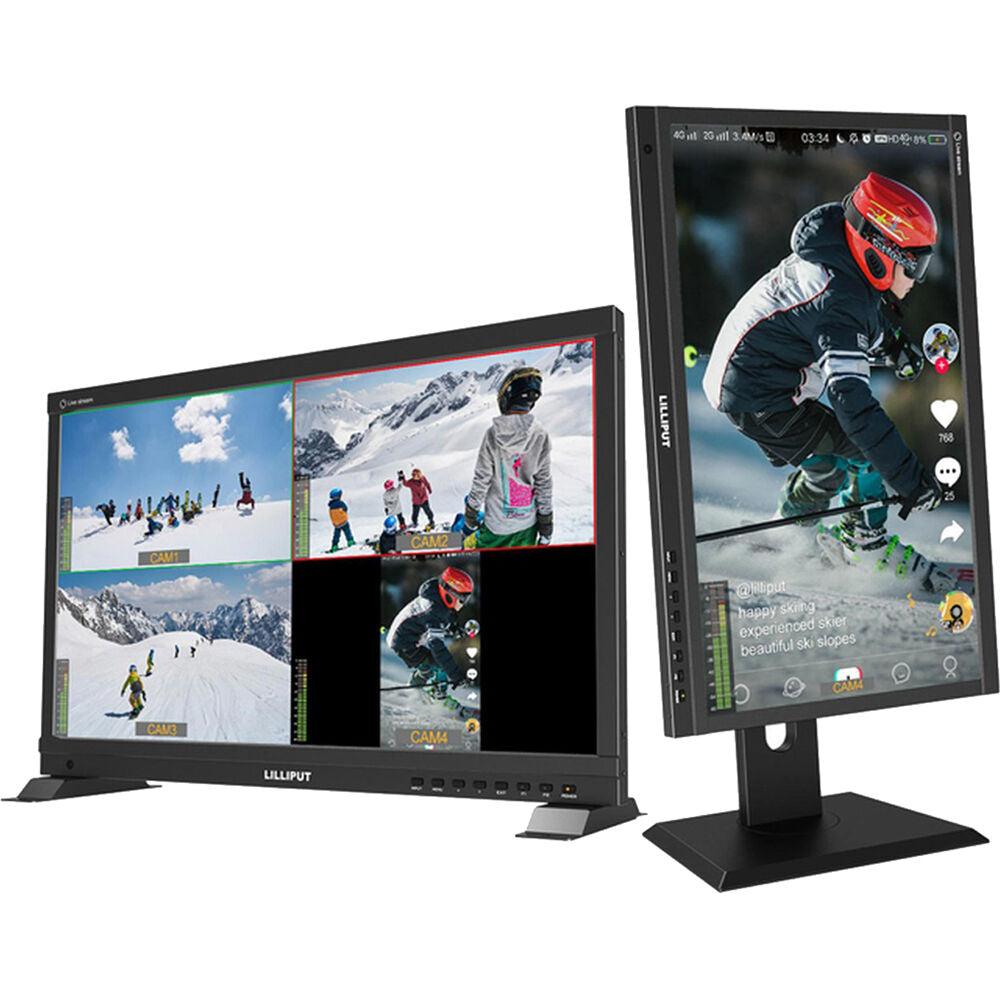

The PVM220S 21.5" 3G-SDI/HDMI Broadcast Monitor from Lilliput features a quad-split display, preview and program output, and both horizontal and vertical display modes suitable for social media content. This 1920 x 1080 resolution monitor provides 3G-SDI, HDMI, and USB Type-C audio input and 3G-SDI and HDMI outputs. It offers 500 cd/m2 brightness, 1500:1 contrast, 2-channel on-screen audio monitoring, and multiple imaging tools for creating an accurate display.
Versatile Video Input and Output
- Dual 3G-SDI inputs, dual 3G-SDI outputs
- Dual HDMI inputs, single HDMI program output
- Single USB Type-C input

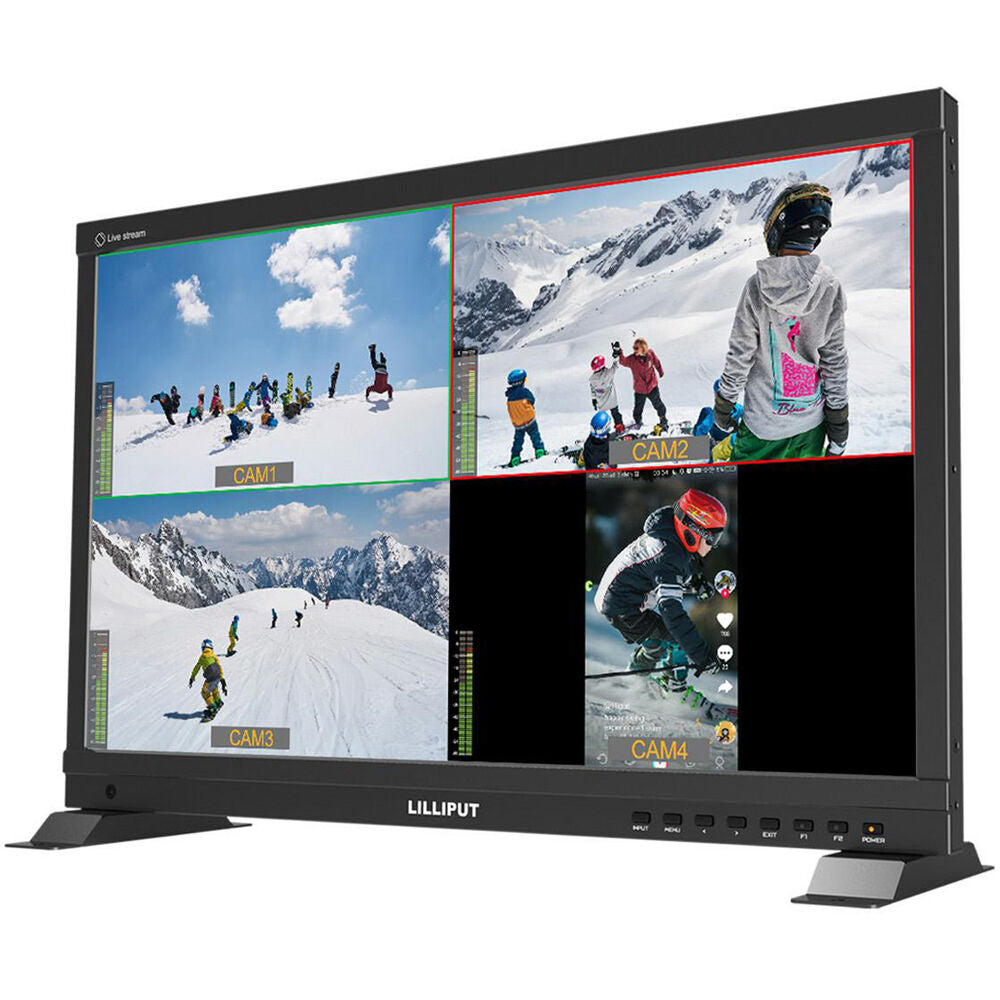

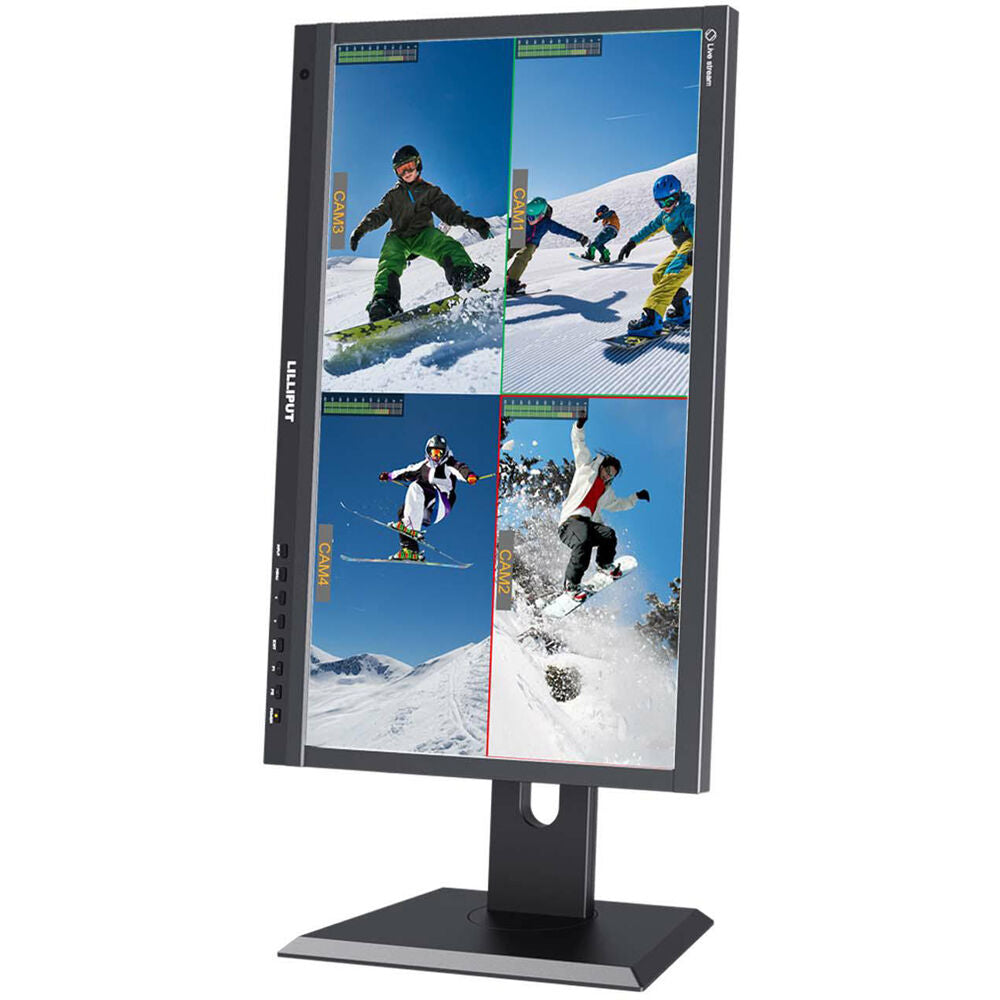

Quad-Split Multiview
Input and view up to four 1080p60 signals

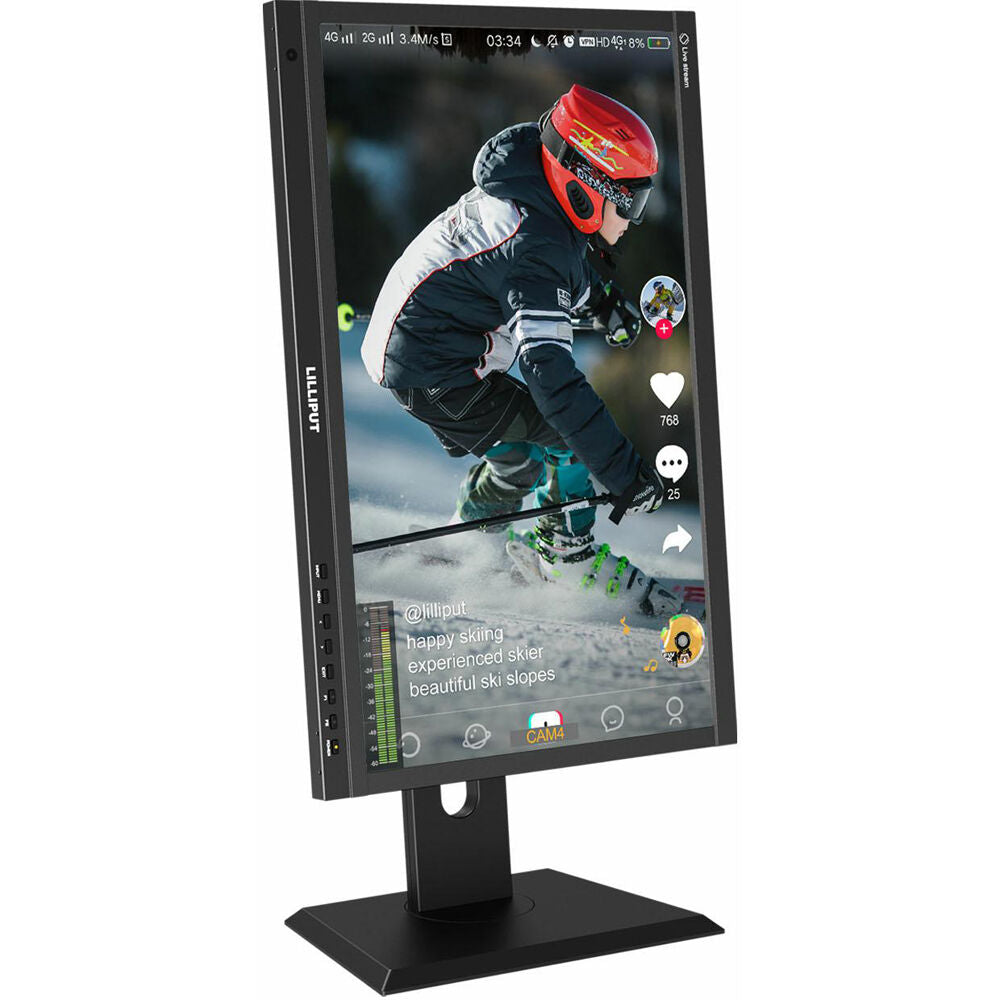

USB Vertical Display
USB Type-C input can be displayed vertically for social media-oriented content
Workflow
- Cut between preview and program for live mixing
- Pair with a router and your computer or phone for streaming
Audio
- Selectable audio monitoring enables you to keep an eye on your audio levels
- Supports 2-channel embedded audio
Imaging Tools
Multiple tools for creating an accurate display include:
- Center and safety markers
- Focus peaking
- Histogram, zebra, and false color
- Color temperature selection
- Check field and freeze frame
Function Buttons
Two front-panel buttons can be assigned to your most-used functions
Versatile Mounting
- Wall mountable using its 75 x 100mm VESA pattern
- Tabletop support using the included feet
In the Box
- Lilliput PVM220S 21.5" 3G-SDI/HDMI Quad-Split Broadcast Monitor
- 15 VDC Power Adapter
- USB Type-C Cable
- 2 x Base Foot
- Limited 1-Year Warranty
Table of Contents
- Description
- Versatile Video Input and Output
- Quad-Split Multiview
- USB Vertical Display
- Workflow
- Audio
- Imaging Tools
- Function Buttons
- Versatile Mounting
Lilliput PVM220S Specs
Display
| Panel Type | LCD |
| Display Size | 21.5" / 54.6 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 170° (85/85) Vertical: 170° (85/85) |
| Touchscreen | No |
| Maximum Brightness | 500 cd/m2 |
| Contrast Ratio | 1500:1 |
| HDR Compatibility | None |
| Pixels Per Inch (ppi) | 102 ppi |
| Color Gamut | 101% Rec. 709 |
| Image Controls | Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Zebra |
I/O
| Video | 2 x BNC (3G-SDI/HD-SDI) Input 2 x HDMI Type A Input 1 x USB Type-C Input 2 x BNC (3G-SDI/HD-SDI) Output 1 x BNC (3G-SDI) Monitor Output |
| Embedded Audio | SDI: 2-Channel HDMI: 2-Channel |
| Audio | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | 1 |
| Power I/O | 1 x Barrel (24 VDC) Input |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
Format Support
| Video Format | HDMI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
Power
| DC Input Power | 12 to 24 VDC |
| Power Consumption | 33 W |
Mounting
| Mounting-Hole Pattern | 75 x 100 mm |
Environmental
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
General
| Dimensions | 20 x 12.6 x 1.9" / 508 x 321 x 47 mm |
| Weight | 11.88 lb / 5.39 kg |
| Warranty Length | Limited 1-Year Warranty |
Packaging Info
| Package Weight | 18 lb |
| Box Dimensions (LxWxH) | 25.2 x 19.5 x 5.6" |
Lilliput PVM220S Reviews
Great monitor for the price!
By Burke
Rated 4 out of 5
Date: 2021-08-20
I like everything about this monitor, but oddly enough, the D-Tap cable it comes with doesn't fit. The wall plug fits into the monitor fine, but the barrel connection on the D-tap doesn't. Now I'm having to search for an adapter so I can use a d-tap battery with it.
