Description
Lilliput Q28 Overview
- 1Description
- 2Customizable Color Temperature
- 3Natural Gamma Values
- 4Vast Array of Log Support
- 5User-Friendly Buttons with Auxiliary Functions
- 6Powered by Battery for Flexible Mobility

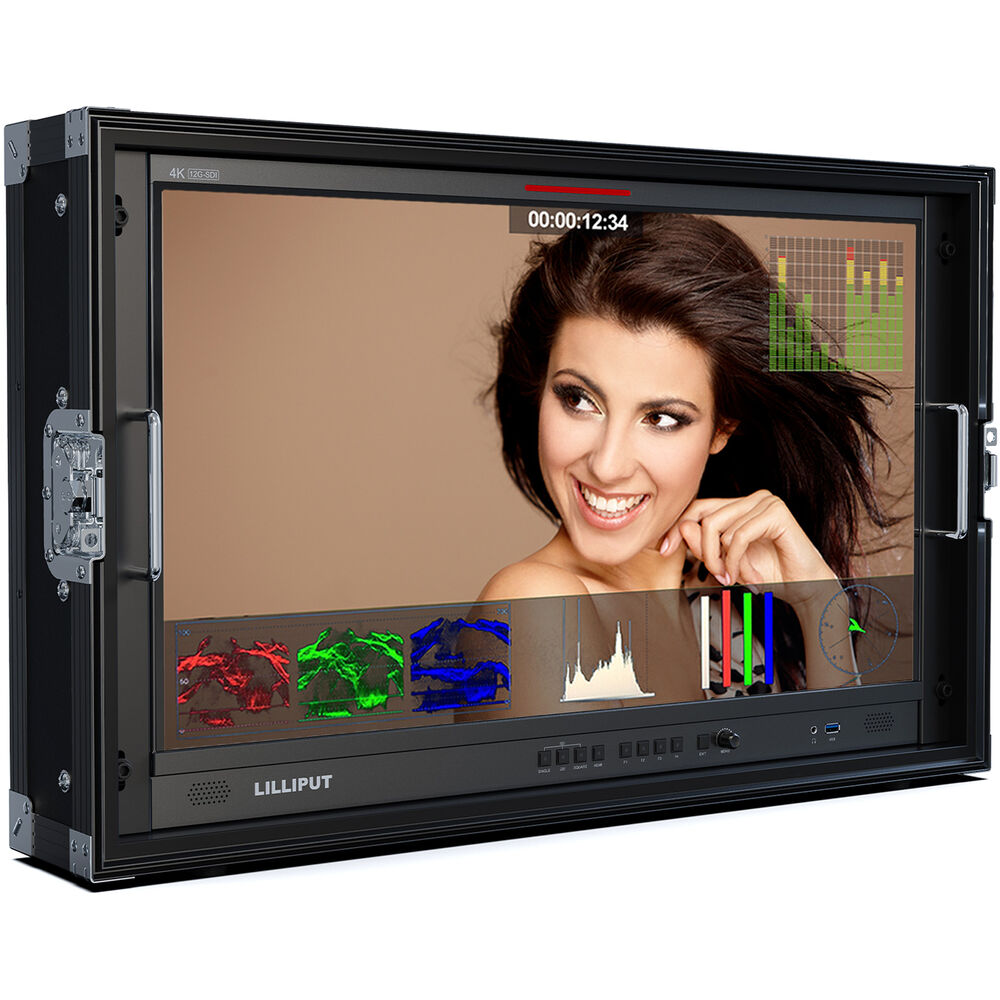

The Gold mount Q28 28" 12G-SDI Professional Production Studio Monitor with Carrying Case from Lilliput is a professional studio display with 3840 x 2160 screen resolution that can also receive up to DCI 4K60 signals, which will play as letterboxed content within the appropriate aspect ratio. There are four 12G-SDI inputs, one HDMI input with respective loop outputs, and a 12G-SFP port for optional fiber-optic connectivity, all supporting 4K and embedded, multichannel digital audio.

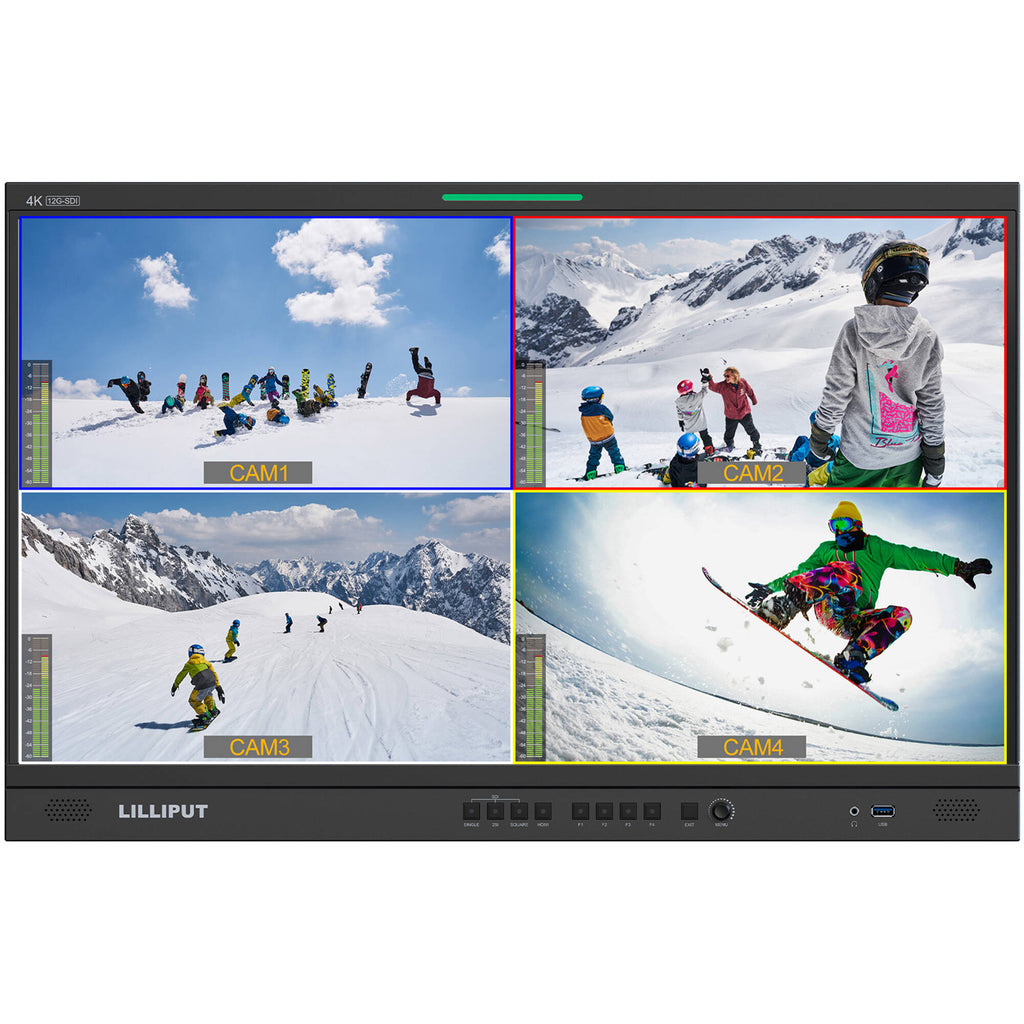

Four different signals can be monitored via the unit's quad-split multiview display, and RS-422, LAN, and GPI connectivity allow for remote control application support. Many diagnostic tools, such as audio vector, histogram, and waveform, are accessible from the feature-rich menu, and HDR and 3D-LUTs are also supported. The front panel of the Q28 has two built-in speakers, a 3.5mm headphone jack, and a tally light for studio broadcast applications integrated into the front panel design. The included carrying case protects your monitor and makes it easy to carry when shooting on location.
In the Box
- Lilliput Q28 28" 12G-SDI Professional Production Studio Monitor with Carrying Case (Gold Mount)
- Carrying Case
- 15 VDC Power Adapter
- VESA Mount Plate
- 2 x Base Bracket
- Gold Mount Battery Plate
- USB Flash Drive
- Description
- Customizable Color Temperature
- Natural Gamma Values
- Vast Array of Log Support
- User-Friendly Buttons with Auxiliary Functions
- Powered by Battery for Flexible Mobility
Lilliput Q28 Specs
| Display Size | 28.00" / 71.1 cm |
| Resolution | 3840 x 2160 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Touchscreen | No |
| Maximum Brightness | 300 cd/m2 |
| Contrast Ratio | 1000:1 |
| HDR Compatibility | Hybrid Log Gamma |
| Pixels Per Inch (ppi) | 157 ppi |
| Image Controls | Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Marker Color, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Screen Split - Quarter, Vectorscope, Waveform |
| Video I/O | 2 x BNC (12G-SDI) Input 2 x BNC (3G-SDI) Input 1 x SFP Input 1 x HDMI 2.0 Input 2 x BNC (12G-SDI) Loop Output 2 x BNC (3G-SDI) Loop Output 1 x HDMI 2.0 Loop Output |
| Embedded Audio | SDI: 16-Channel HDMI: 8-Channel Fiber |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | 2 |
| Power I/O | 1 x XLR 4-Pin (24 VDC) Input |
| Other I/O | 1 x RJ45 (RS-422) Input 1 x RJ45 (RS-422) Output 1 x RJ45 (LAN) Input 1 x RJ45 (GPI) Input 1 x USB-A 2.0 Input |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
| Video Format | Fiber/SDI DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50/30/25/24 HDMI DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50/30/25/24 |
| Gamma Curve | ARRI Log C, Canon Log, HDR-HLG, JVC J-Log, Panasonic V-Log, Rec709, Sony S-Log 2, Sony S-Log 3 |
| DC Input Power | 12 to 24 VDC |
| Battery Type | 1 x Gold Mount (Interchangeable Mount) |
| Power Consumption | 60 W |
| Mounting-Hole Pattern | 100 x 100 mm, 75 x 75 mm |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Dimensions | 25.1 x 16.3 x 2.1" / 638 x 414.3 x 54.4 mm |
| Weight | 19.0 lb / 8.6 kg |
| Package Weight | 46.54 lb |
| Box Dimensions (LxWxH) | 31.9 x 21.4 x 9.9" |
