SP4044 series SPA® TVS diode array. It integrates low capacitance diodes with an additional zener diode to protect each I/O pin against ESD and high surge events. This robust device can safely absorb up to 24A per IEC 61000-4-5 2nd edition (tp=8/20µs) without performance degradation and a minimum ±30kV ESD per IEC 61000-4-2 International Standard. Its low loading capacitance also makes it ideal for protecting high speed signal pins. It is also suitable for use in HDBaseT protector, 10/100/1000 Ethernet, 2.5 and 5 Gigabit Ethernet, T1/E1 secondary protection, T3/E3 secondary protection, A/V equipment.
- Signal-integrity-preservingl straight through routing
- Signal-integrity-preserving straight through routing
- Lightning, IEC 61000-4-5 2nd edition, 24A (8/20µs)
- Low capacitance of 1.5pF (TYP) per I/O
- AEC-Q101 qualified
Other details
| Brand |
LITTELFUSE |
| Part Number |
SP4044-04ATG |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

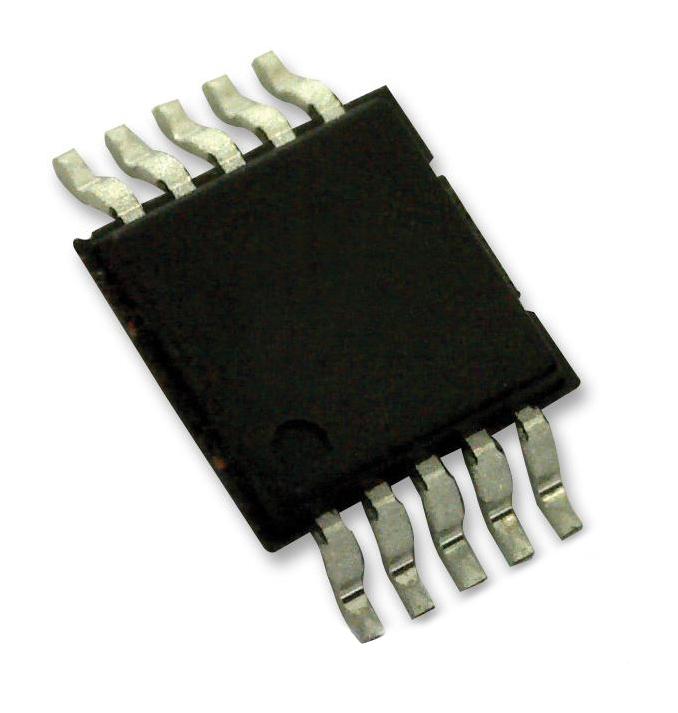

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
