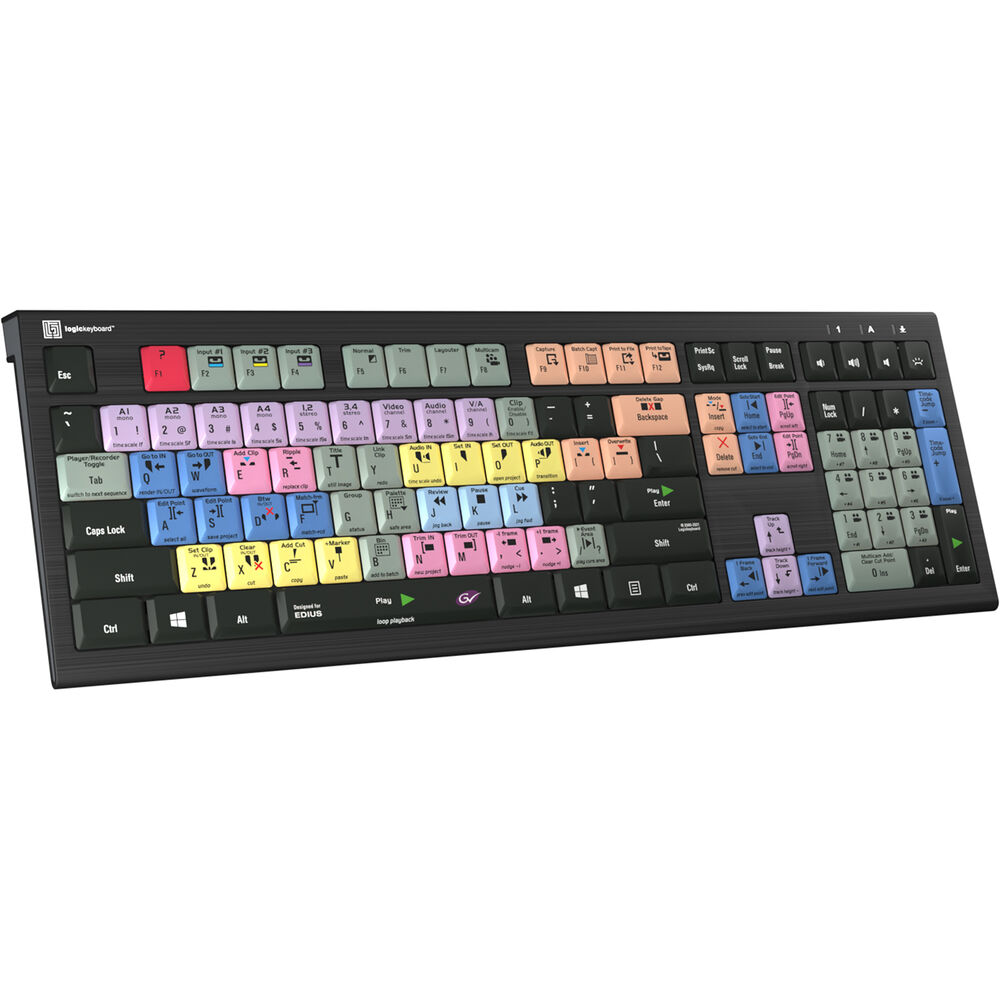

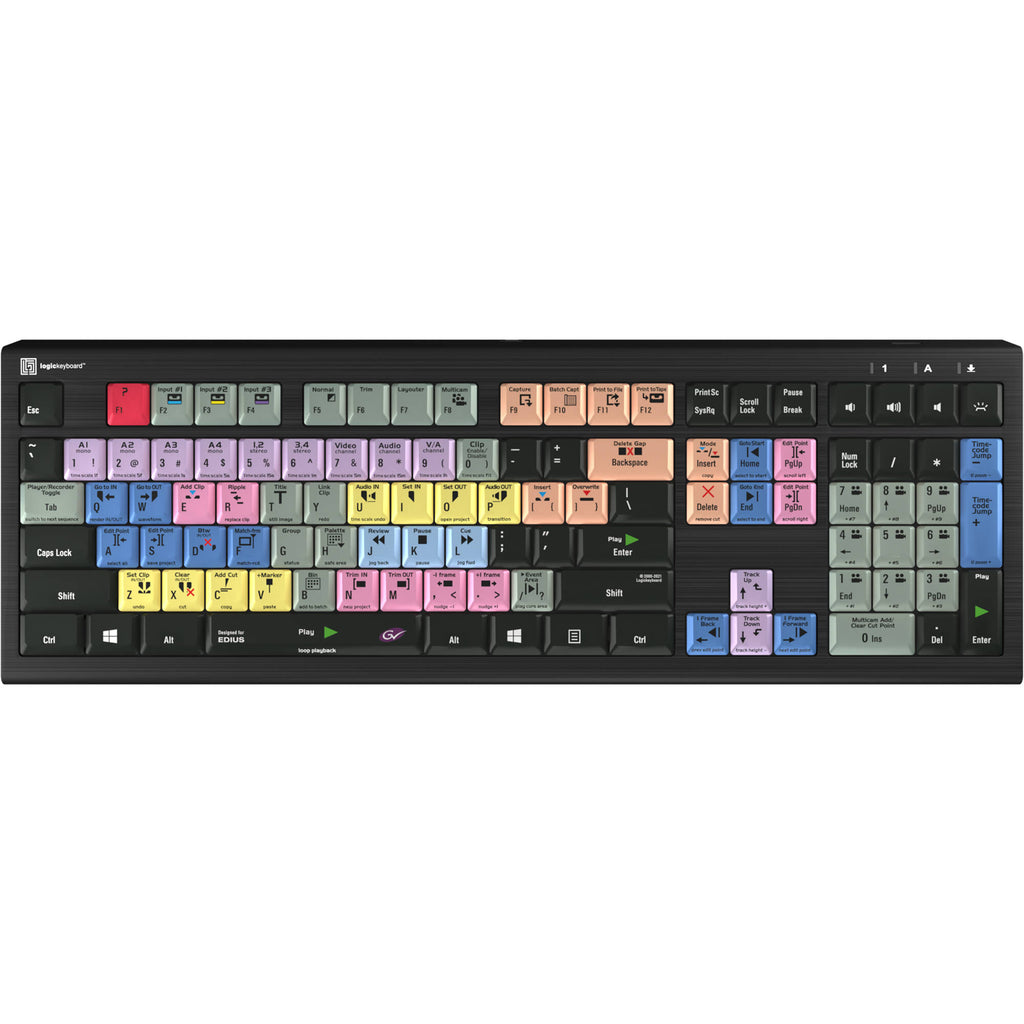

Logickeyboard Astra 2 Overview
Designed for Grass Valley Edius X, the ASTRA 2 Backlit Keyboard from LogicKeyboard features a 108-key US English layout that includes a full-sized F-row and multimedia keys, as well as color-coded and labeled shortcut keys with graphical commands. Thanks to five levels of dimmable backlighting, the ASTRA 2 may be used in a variety of lighting conditions, from bright to dark and day to night. Also featured is one USB 3.0 Type-A port, which may be used to connect a mouse, contour shuttle, or a USB dongle. Connectivity with your host system is achieved using a 5.9' cable with two separate USB Type-A connections. Use the gray connector to power the keyboard and use the black connector for the USB hub.
LogicKeyboard built the ASTRA 2 with plug-and-play connectivity, meaning that no additional drivers are required for use. It also draws power from the USB bus, so no additional power is needed. In the event that you need this to serve as a replacement keyboard for another system, all letters, numbers, and symbols can be found just as they would be on a standard keyboard.
Designed for Grass Valley Edius X
Compatible with Windows 7-10

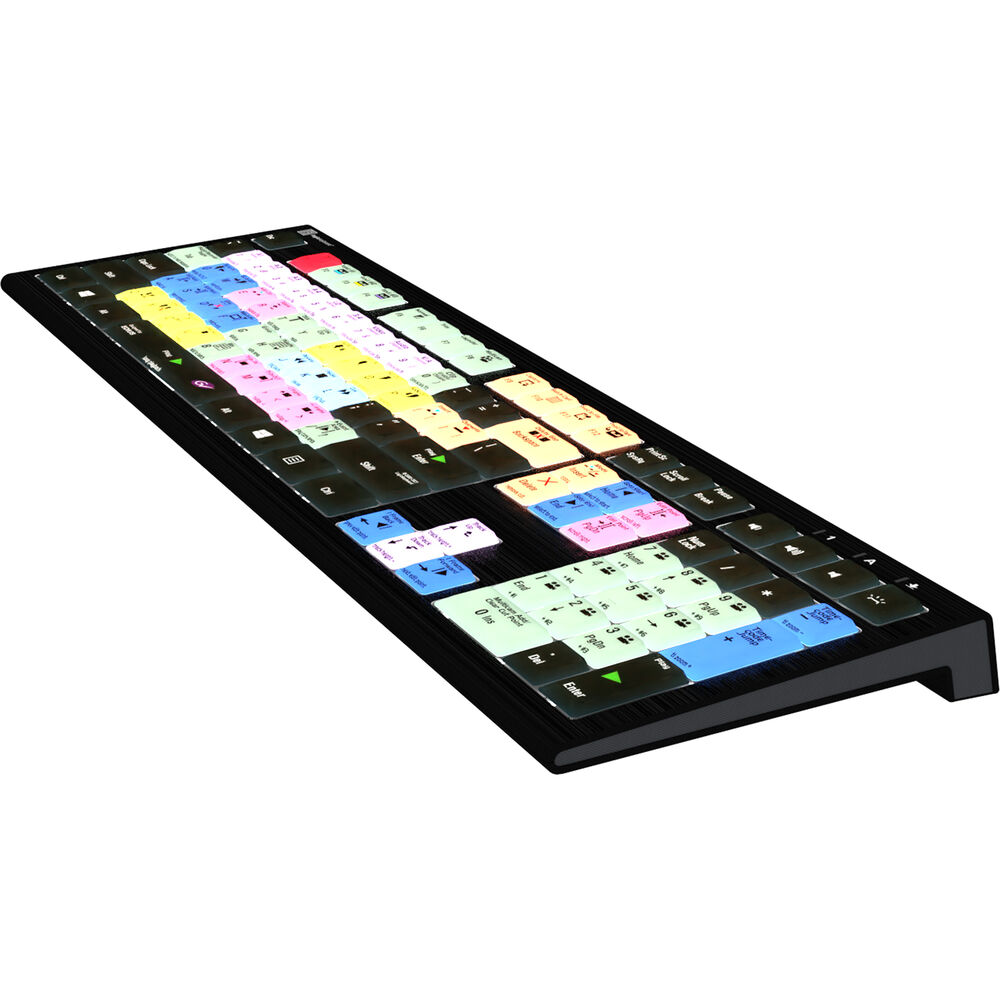

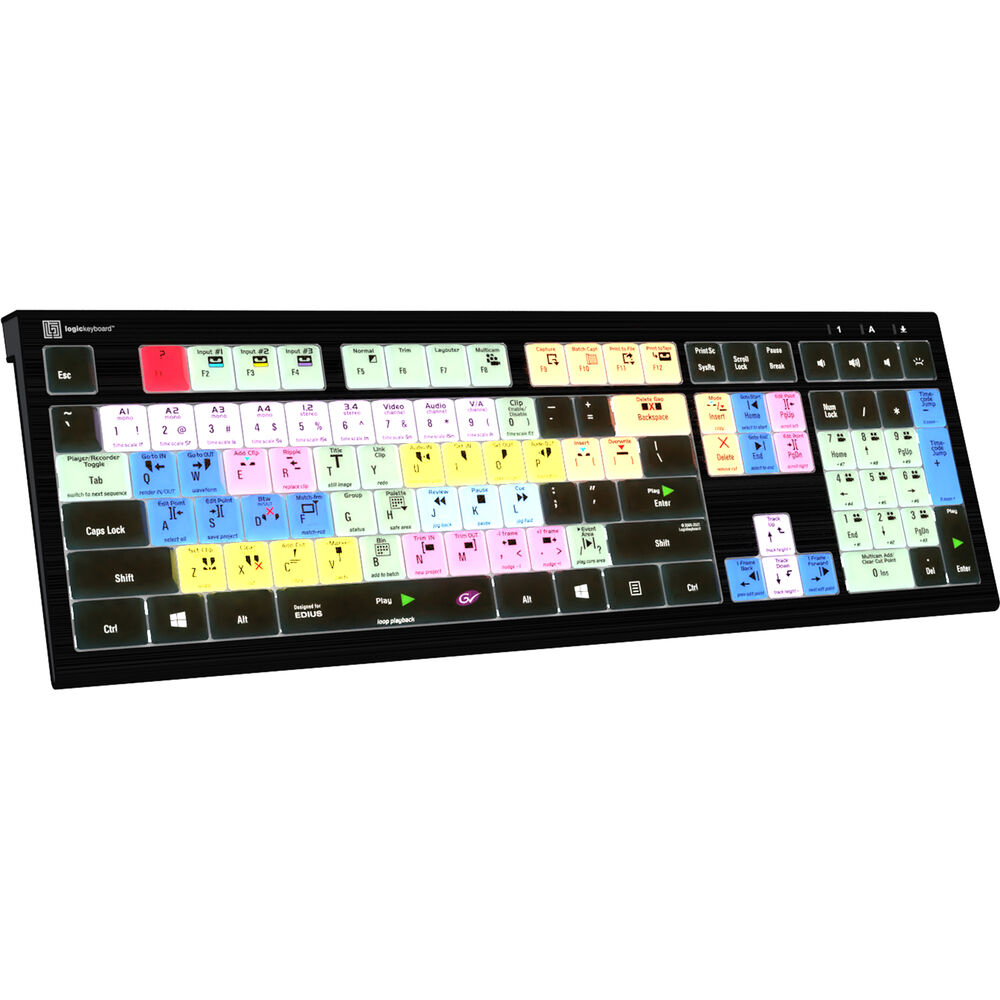

Backlit keys with five levels of dimmable backlighting
One built-in USB 3.0 Type-A port
Color-coded and labeled shortcut keys with graphical commands
Manufactured for over 10 million keystrokes per key
5.9' cable with separate keyboard and hub connections (to avoid interference with USB extenders)
In the Box
- Logickeyboard ASTRA 2 Backlit Keyboard for Grass Valley Edius X (Windows, US English)
- Limited 1-Year Manufacturer Warranty
Logickeyboard Astra 2 Specs
Keys
| Number of Keys |
108 |
| Switch Type |
Scissor |
| Dedicated Multimedia Keys |
Yes |
| Keystroke Life Span |
10 Million |
Connectivity
| Connection Type |
Wired |
| Host Connection |
USB-A |
| USB |
1 x USB-A |
| Full-Functionality OS Support |
Windows |
General
| Backlighting |
Yes |
| Brightness Adjustment Levels |
5 |
| Built-In Control Device |
None |
Physical
| Cable Length |
5.9' / 1.8 m |
| Cable Type |
Straight |
| Dimensions (L x W x H) |
17.6 x 5.9 x 1.2" / 44.7 x 15.0 x 3.0 cm |
| Weight |
2.1 lb / 1 kg |
Packaging Info
| Package Weight |
2.635 lb |
| Box Dimensions (LxWxH) |
18.9 x 7.8 x 1.5" |
