Lowel 40" C-Stand Sliding Leg Kit with 2.5" Grip Head & 40" Grip Arm (Chrome)

Load Capacity: 22 lb

Maximum Height: 10.58 ft

Minimum Height: 4.48 ft

Folded Height: 4.48 ft

Lowel C-Stand Introduction

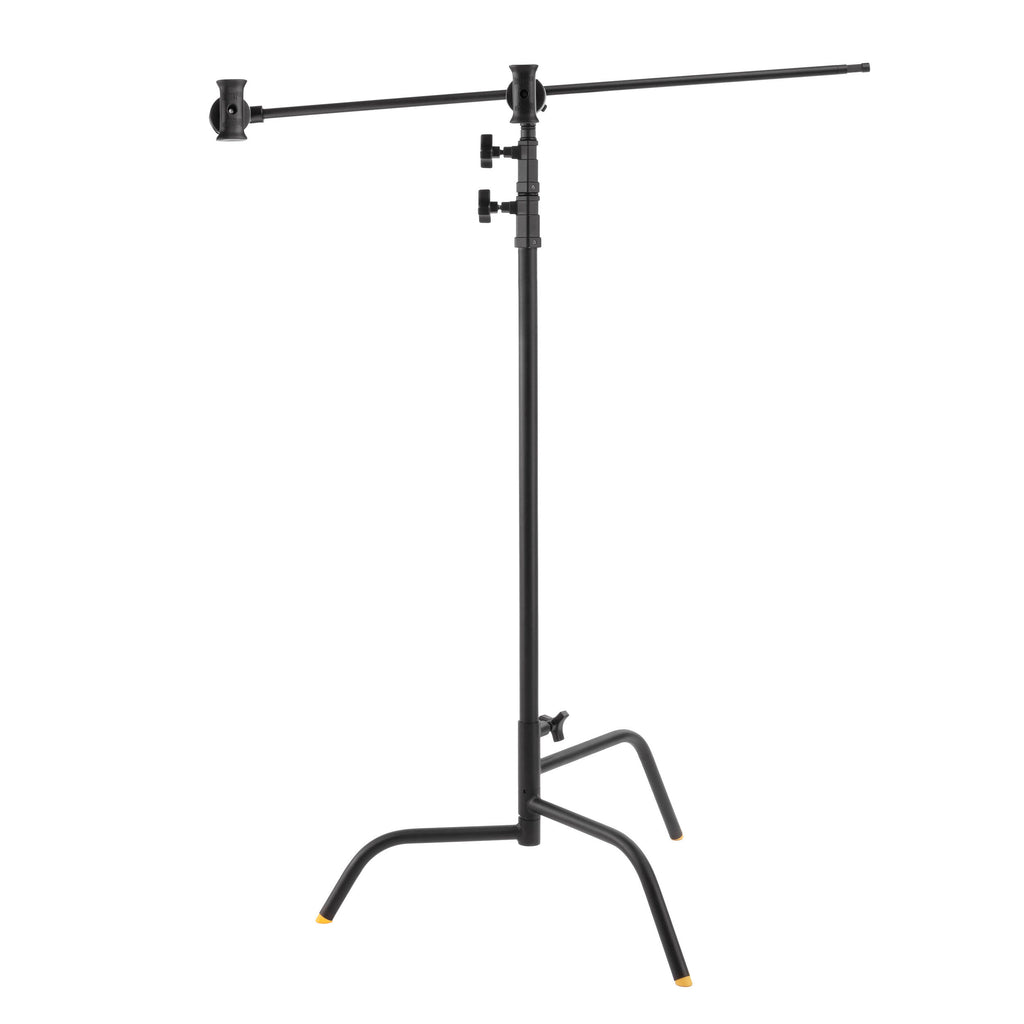

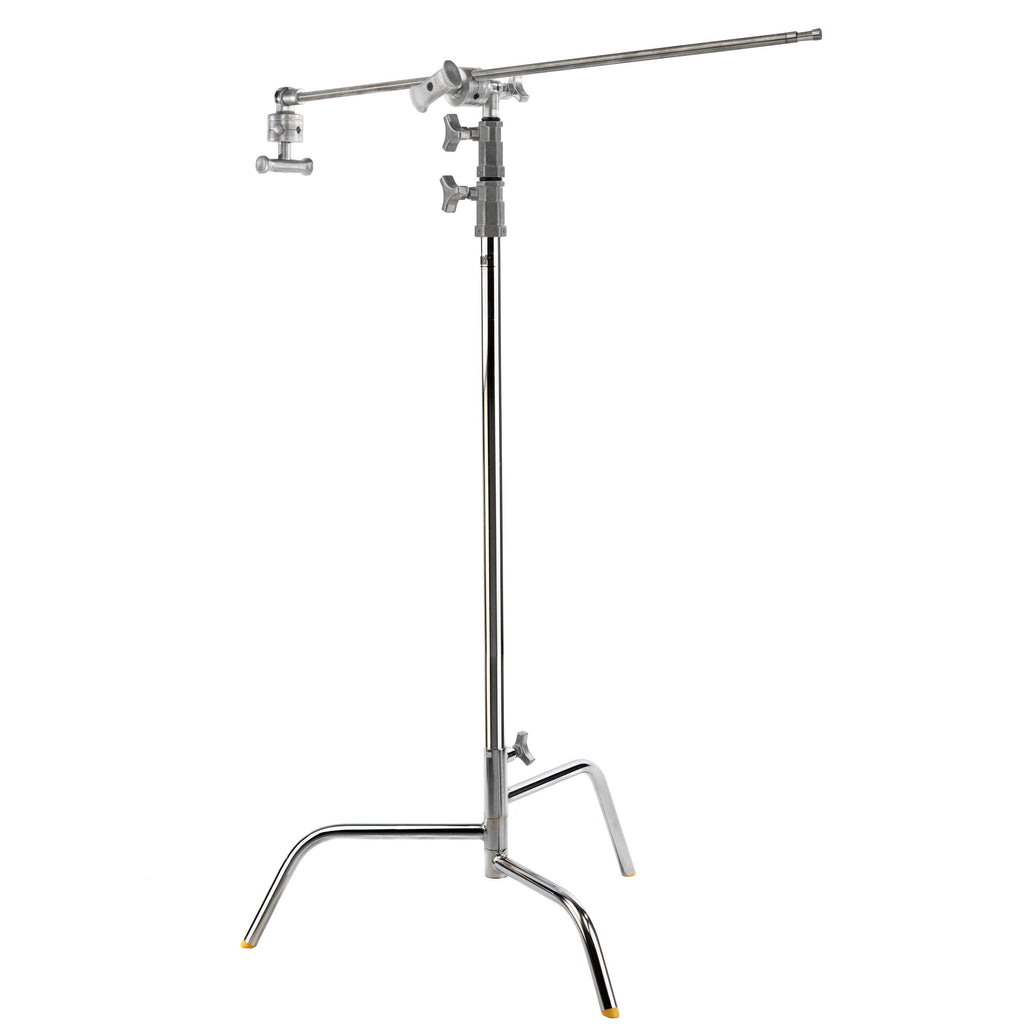

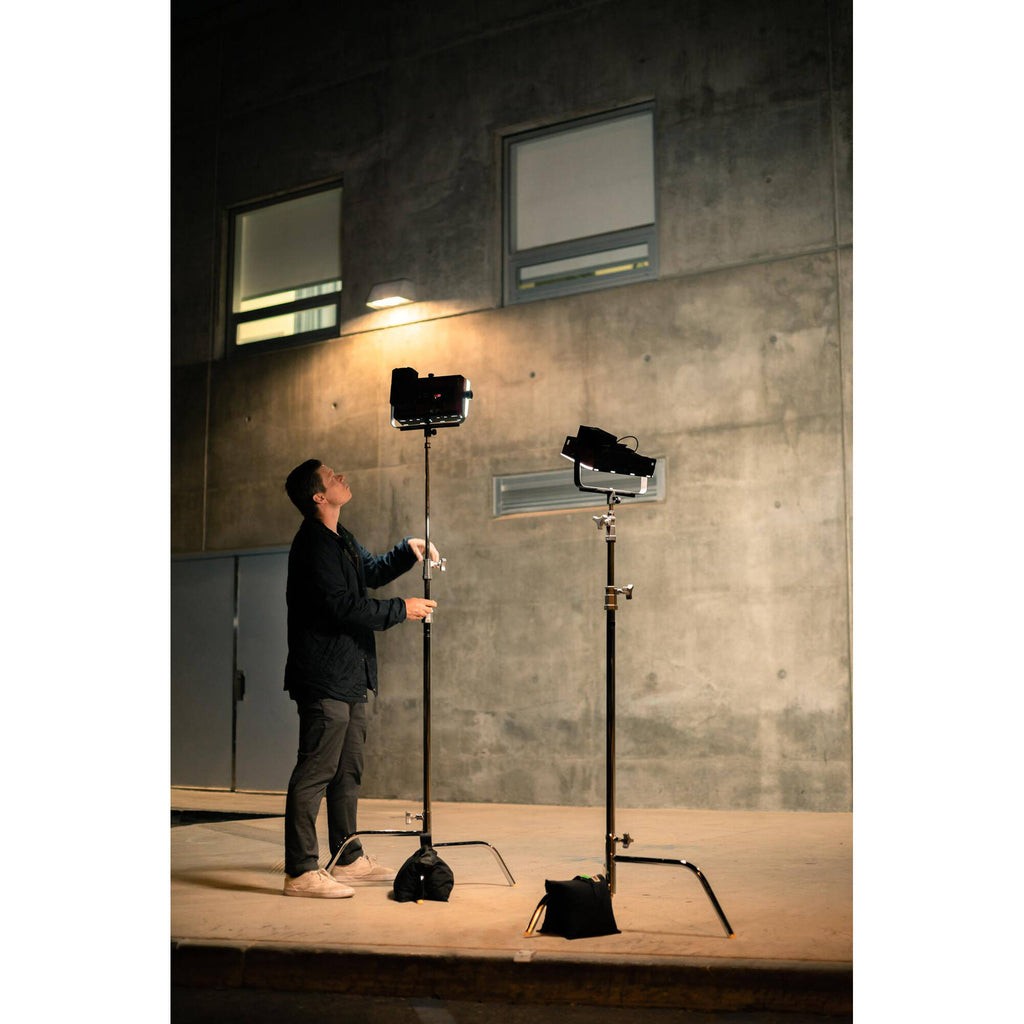

This 40" C-Stand Sliding Leg Kit with 2.5" Grip Head & 40" Grip Arm from Lowel , in a chrome finish, incorporates lighting industry-standard features and build quality that will perfectly fit grip trucks or C-stand hangers for convenient setup, transport, and storage. The staggered leg height design allows nesting several stands closely in tight spaces, without taking up much floor space. The sliding top leg is designed to level the stand on uneven surfaces like stairs, hills, and curbs.

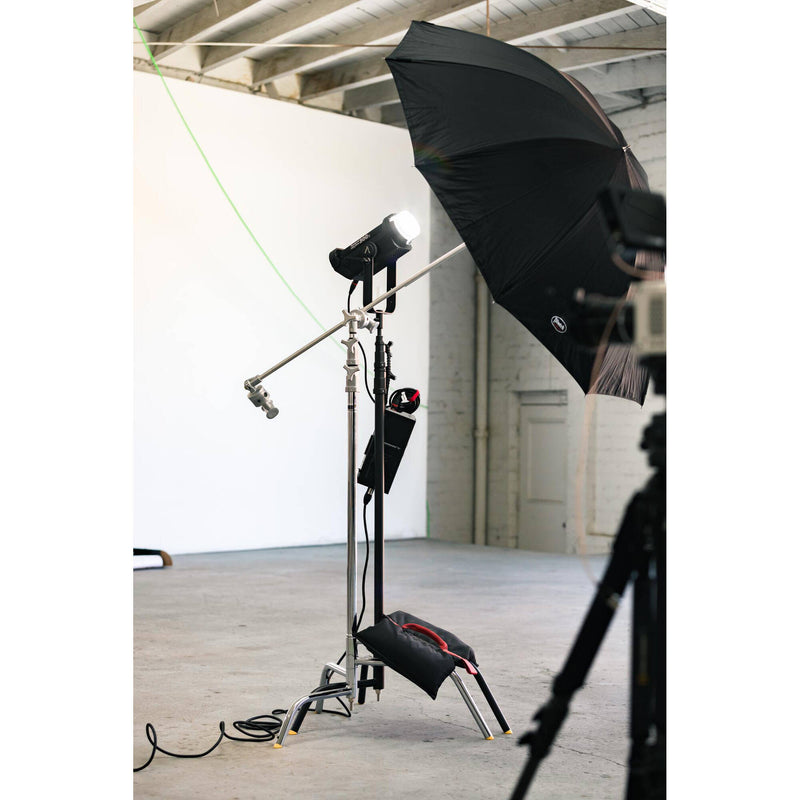

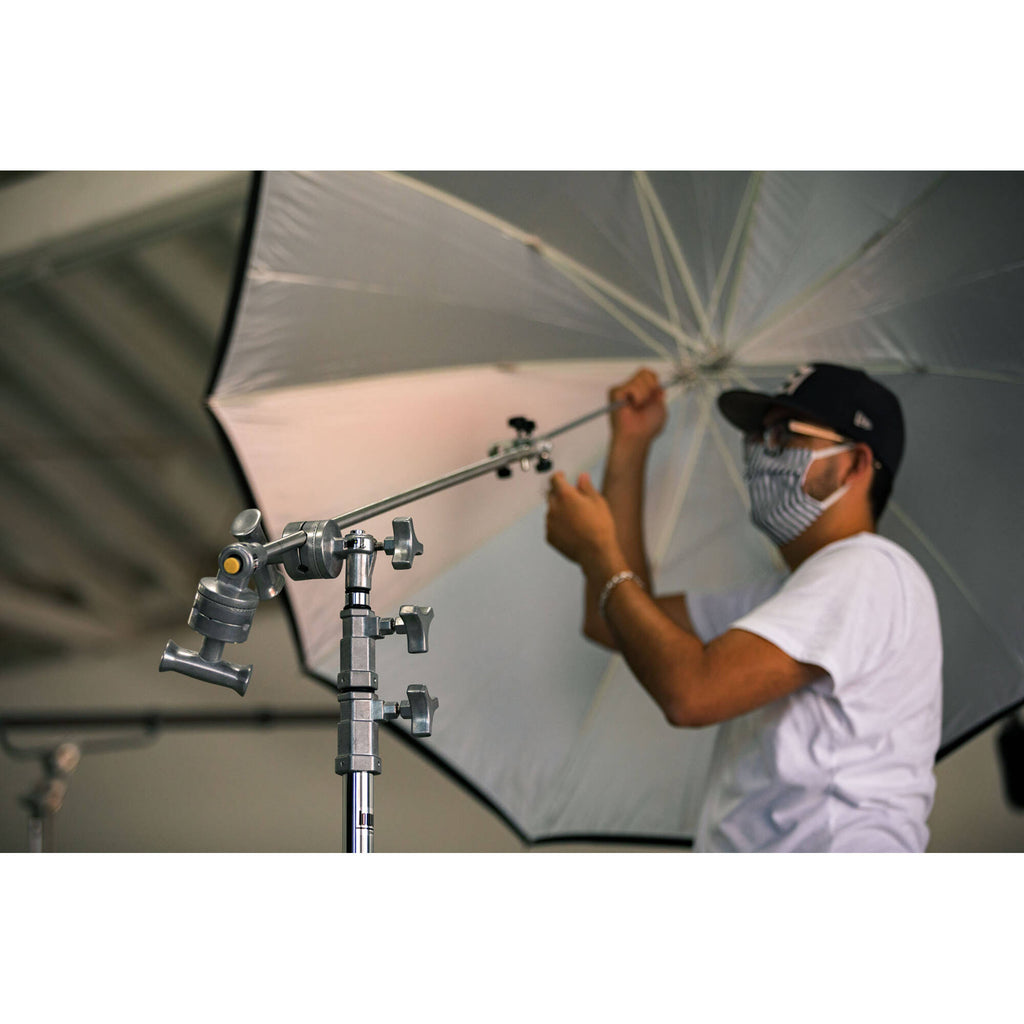

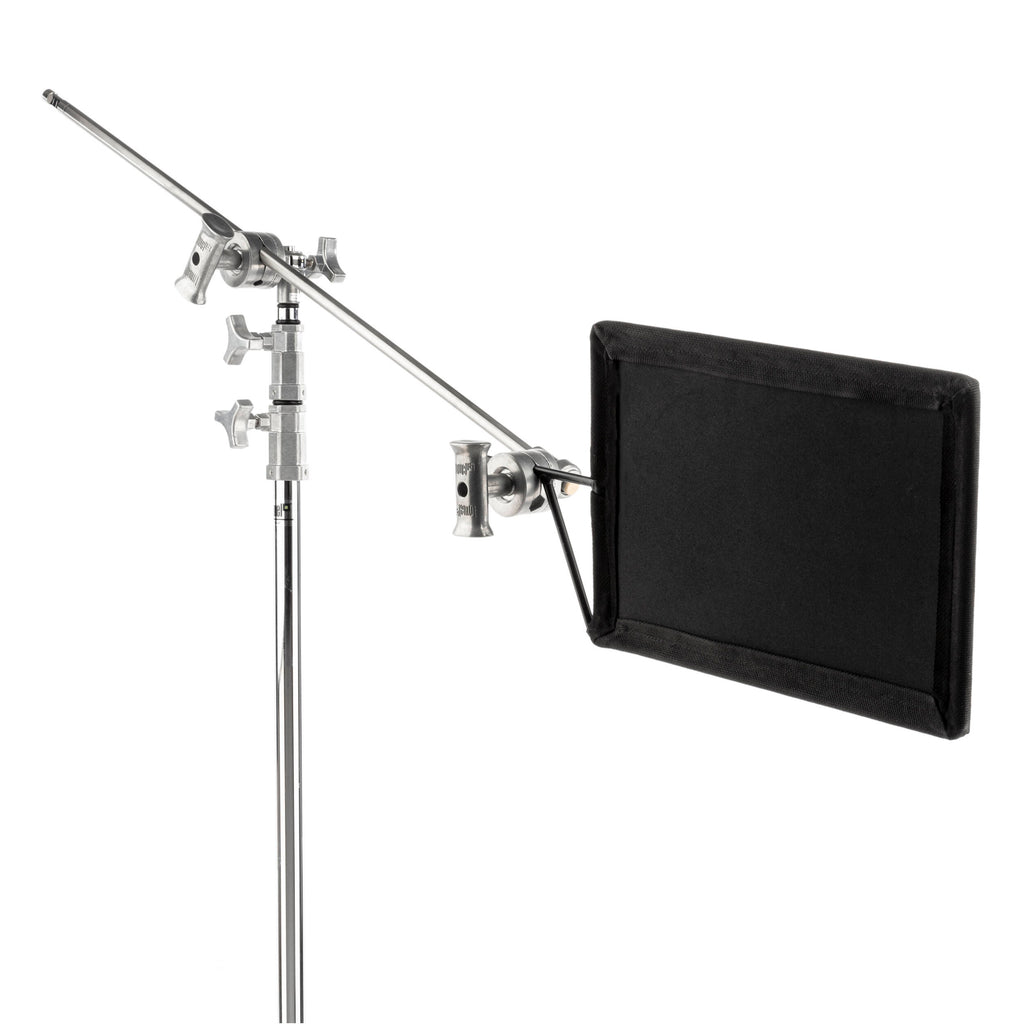

This kit pairs the stand with a 40" grip arm for supporting light fixtures and light modifying gobos like flags, silks, and scrims. In addition, there is a 2.5" grip head which provides 5/8" and 3/8" holes for mounting grip arms and other lighting fixtures or grip equipment.

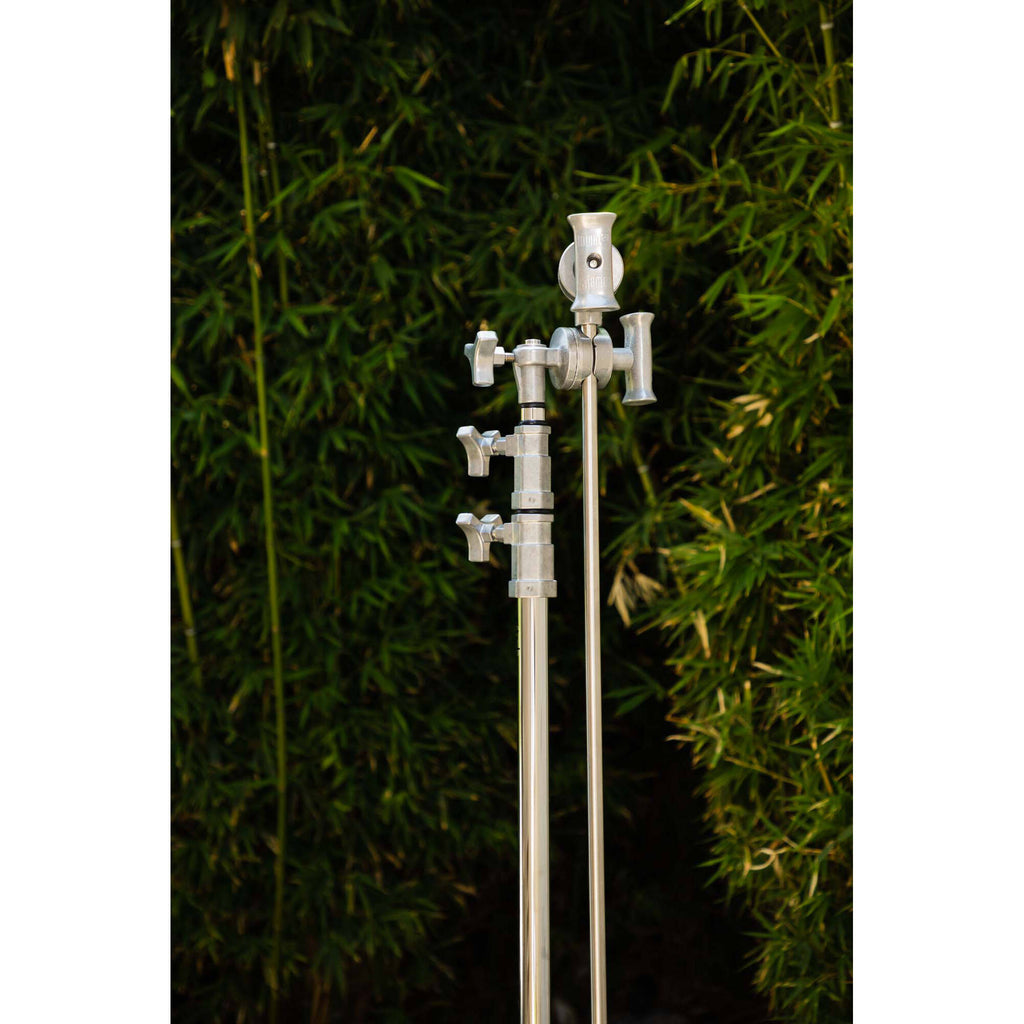

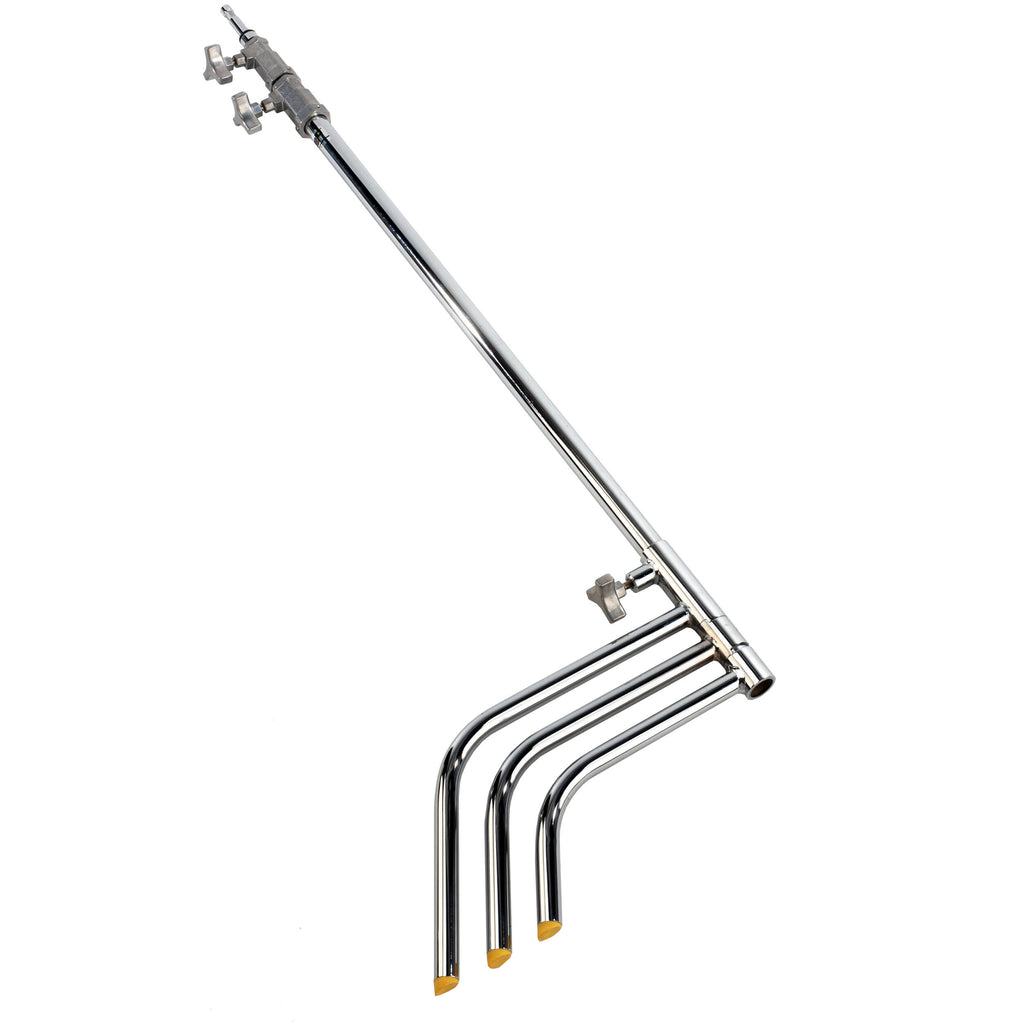

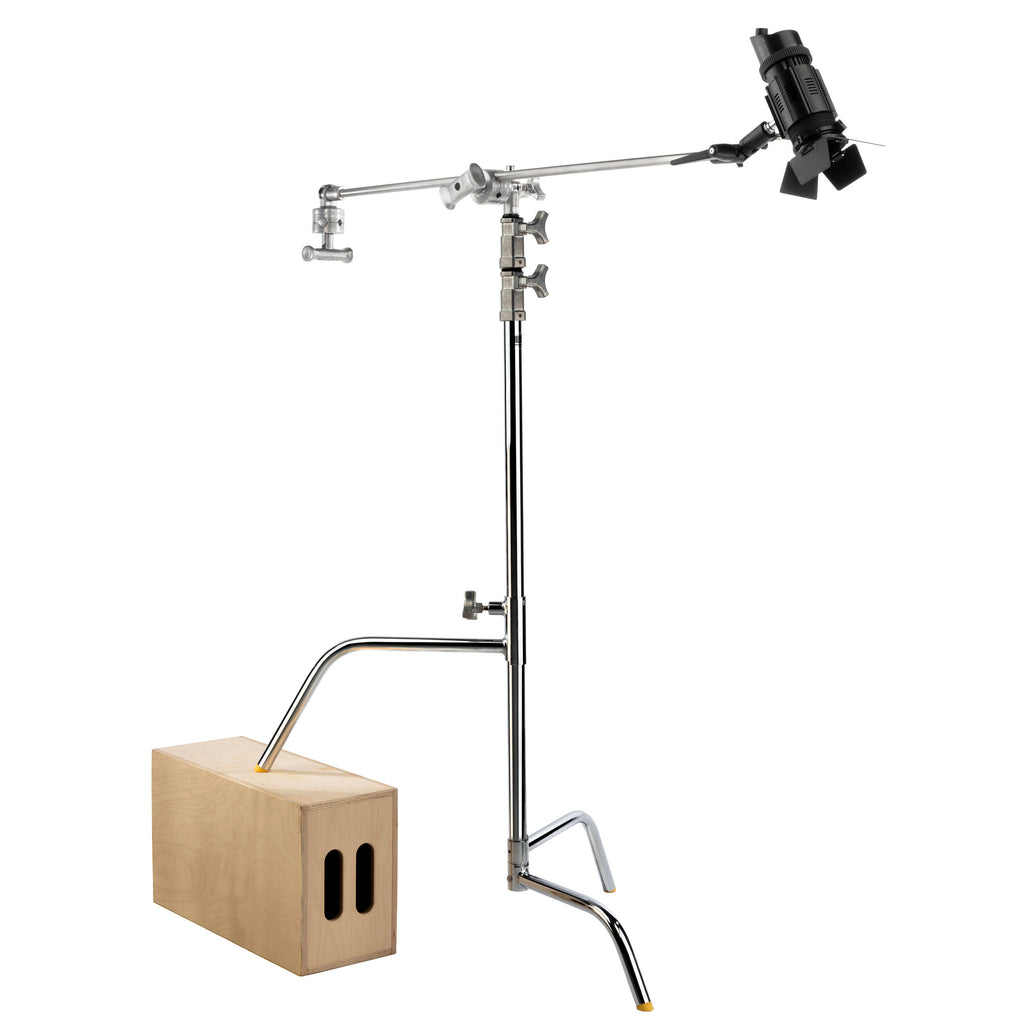

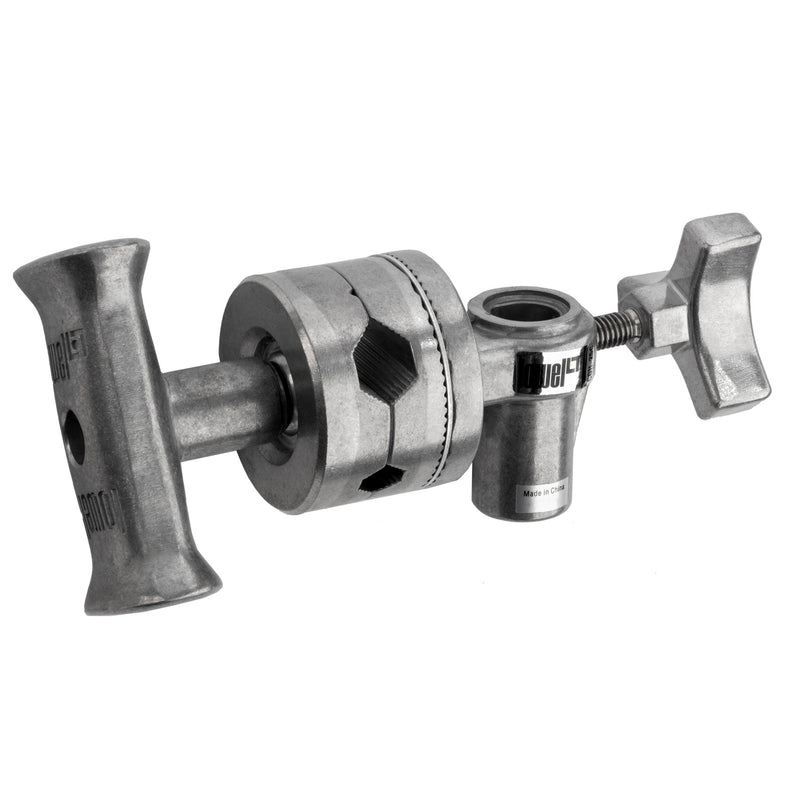

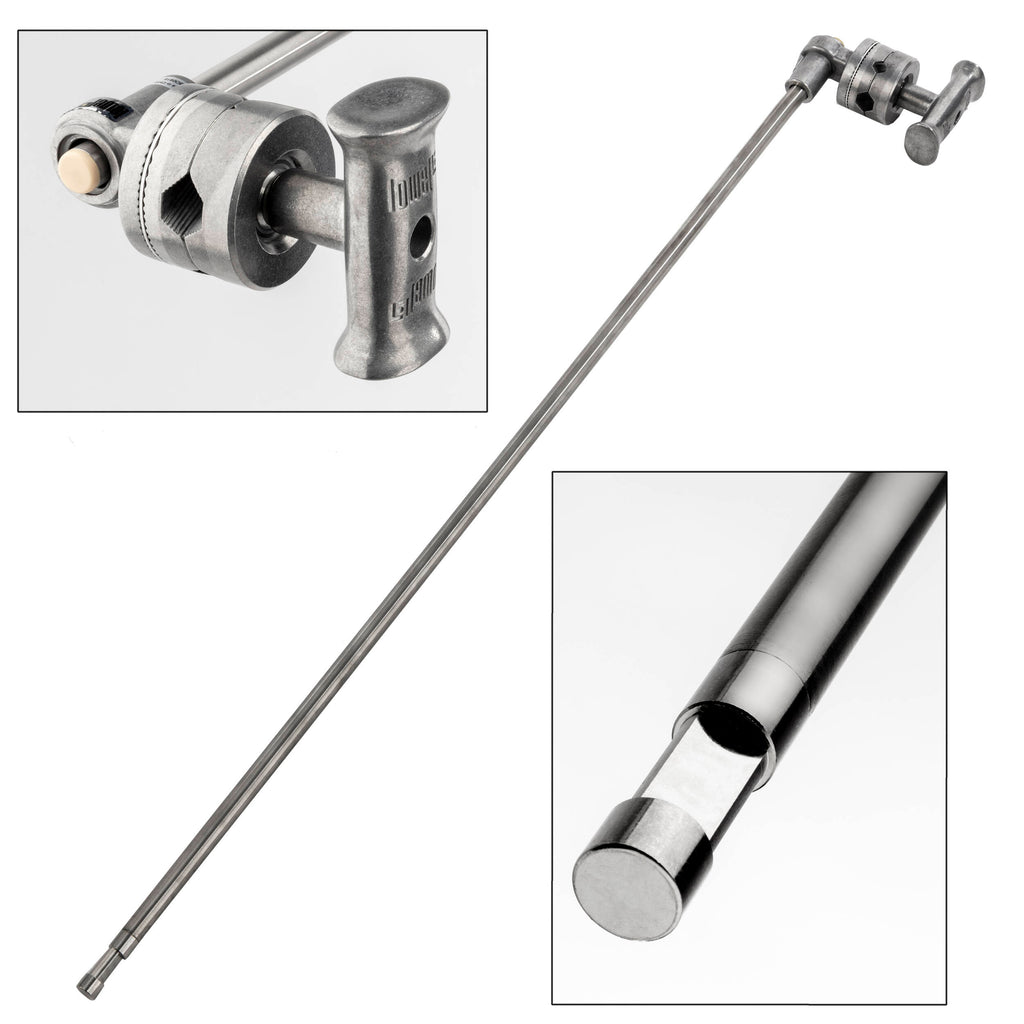

Sliding Leg The incorporated movable top leg is designed for leveling the stand on uneven surfaces like stairs, hills, and curbs. It is secured by using an easy-to-grasp three-sided knob. Large T-Handles The large, ergonomic T-handles are easy to grip and offer maximum torque for securing heavy payloads. Knurled Top Pin The 5/8" top pin is knurled to provide superior hold and prevent a light or accessory from rotating out of position due to a poor grip on a smooth pin. 2.5" Grip Head The sturdy all-metal grip head provides a 5/8" hole for grip arms and other Baby pin-type attachments, and a 3/8" hole for gobos and flags. The incorporated large T-handle provides a secure grip for maximum torque to hold lights and accessories in place. 40" Grip Arm with Milled Flat End The included 40" grip arm is engineered to securely hold most lights, light modifiers, and grip gear weighing up to 10 pounds. The arm features a 5/8" pin with a milled flat surface that prevents attached fixtures from rotating out of position, as often happens with round pins. Chrome Finish Chrome plated finish. UPC: 855193007455

Stand Type	1 x C-Stand with Grip Arm / Grip Head
Maximum Working Height	126.9" / 322.4 cm
Minimum Working Height	53.5" / 136 cm
Load Capacity	22.05 lb / 10 kg
Collapsed Height	53.5" / 136 cm

Arm Mount (to Light/Accessory)	5/8" Stud, 2.5" Grip Head
Arm Mount (to Stand)	2.5" Grip Head
Stand/Column Top Mount	5/8" Stud

Accepts Second Riser	No
Wheels	Not Compatible
Air Cushioned	No
Detachable Base	No
Leveling Leg	Yes
Reverse Legs	No

Arm Length	40" / 101.60 cm
Number of Sections	2
Footprint Diameter	37.01" / 94 cm
Leg Shape	Round
Finish	Chrome
Material	Aluminum, Steel
Weight	12 lb / 5.44 kg
Warranty Length	Limited 1-Year Warranty

Package Weight	22 lb
Box Dimensions (LxWxH)	54.38 x 22 x 3.5"
