Description

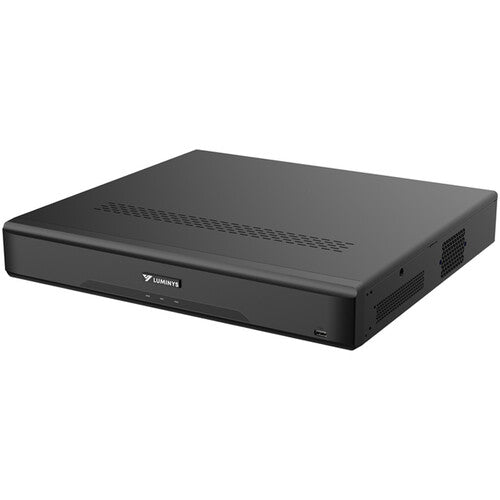

Luminys R54-32PA Overview
Record from and manage up to 32 cameras with the R54-32PA 32-Channel 8K NVR (No HDD) from Luminys. This NVR supports IP cameras up to 32MP. It is equipped with four SATA ports that each support an HDD up to 16TB for a maximum capacity of 64TB (HDDs available separately). H.265+/H.264+, H.265/H.264, and MJPEG video compressions keep file sizes manageable while maintaining the best quality possible. LumiPower technology extends PoE power and data transmission by up to 3000' (ports 1 to 8).
This NVR supports two-way audio. Dual HDMI and VGA ports enable video output to external monitors.
Supported Analytics
- Intelligent motion detection for (16 channels for camera, 8 channels for NVR)
- Video content analytics (16 channels for camera, 4 channels for NVR, 10 rules per channel) Face capture and recognition for 2 channels
- Face picture comparison alarm from camera for 16 channels
- Up to 20 face picture libraries (maximum 20,000 pictures total)
- LumiSearch+ for 16 channels (must be supported by camera)
- LumiSearch+ enables users to find, track, and identify targets in security footage using a reference image
- Video metadata for 8 channels (analytics by camera)
- License plate recognition for 8 channels (LPR camera required)
- LPR features include two block list, two allow list, and a database of up to 20,000 plate numbers
Additional Details
- LumiPower technology allows for long-distance PoE transmission that extend power and data delivery by up to 3000' (ports 1 to 8)
- Dual HDMI video output resolution up to UHD 4K each
- Dual VGA video output resolution up to 1080p each
- Live view window division for up to 36 views
- Auxiliary port window division for up to 16 views
- Synchronous playback for up to 16 views
- LumiViewer for desktop and mobile devices enable monitoring and remote management
- Can be mounted on a desk or in a rack
UPC: 810161160143
Items Included
- Luminys R54-32PA 32-Channel 8K NVR (No HDD)
- Limited 7-Year Manufacturer Warranty
Not Included
-
Internal Hard DrivesEssential
Additional Resources
No additional resources available
Luminys R54-32PA Specs
Key Specs
| Number of Channels |
32
|
| Playback Resolution |
1080p, 720p, CIF, D1, 8K, VGA, 16 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP
|
| Recording Resolution |
1080p, 720p, CIF, D1, VGA, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 16 MP, 32 MP
|
| PTZ Support |
Yes
|
| Throughput |
400 Mb/s (Incoming)
400 Mb/s (Outgoing) |
| A/V I/O |
1x RCA Audio Input
2x RCA Audio Output 2x HDMI Output 2x VGA Output |
| Communication I/O |
24x RJ45 10/100 Mb/s Ethernet PoE+
1x RJ45 Gigabit Ethernet 1x USB-A 2.0 (Front) 2x USB-A 3.0 / 3.1/3.2 Gen 1 (Rear) 1x RS-232 |
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Installed Drive |
No
|
| PoE Power Budget |
210 W
|
General
| Number of Channels |
32
|
| Playback Resolution |
1080p, 720p, CIF, D1, 8K, VGA, 16 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP
|
| Recording Resolution |
1080p, 720p, CIF, D1, VGA, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 16 MP, 32 MP
|
| PTZ Support |
Yes
|
| Throughput |
400 Mb/s (Incoming)
400 Mb/s (Outgoing) |
| IP Camera Support |
32
|
| Decoding Resolution |
1 Channel:
32 MP at 30 fps 2 Channels: 32 MP at 30 fps 2 Channels: 16 MP at 30 fps 4 Channels: 16 MP at 30 fps 4 Channels: 8 MP at 30 fps 8 Channels: 8 MP at 30 fps 12 Channels: 4 MP at 30 fps 16 Channels: 4 MP at 30 fps 24 Channels: 1080p at 30 fps 32 Channels: 1080p at 30 fps |
| 2-Way Audio |
Yes
|
Connectivity
| A/V I/O |
1x RCA Audio Input
2x RCA Audio Output 2x HDMI Output 2x VGA Output |
| Communication I/O |
24x RJ45 10/100 Mb/s Ethernet PoE+
1x RJ45 Gigabit Ethernet 1x USB-A 2.0 (Front) 2x USB-A 3.0 / 3.1/3.2 Gen 1 (Rear) 1x RS-232 |
| Audio I/O |
1x Input
2x Output |
| System Connection |
4x SATA
1x eSATA |
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Network Protocols |
DDNS, DHCP, DNS, HTTP, HTTPS, IPv4, IPv6, NTP, ONVIF, RTSP, SMTP, SNMP, TCP/IP, UDP, UPnP
|
Compatibility
| Supported Video Codecs |
H.264, H.264+, H.265, H.265+, MJPEG
|
| Supported IEEE Standards |
802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W)
|
System
| Installed Drive |
No
|
| Max Capacity Supported |
16 TB (Each Drive)
64 TB (Total) |
| Number of Bays |
4
|
Software System Requirements
| OS Compatibility |
Android/iOS
|
Notifications
| Alarm I/O |
16x Input
6x Output |
| Event Trigger |
Analytics
|
System Functions
| Fisheye Dewarping |
No
|
Electrical
| Power Consumption |
13 W (Without HDD)
|
| Power Supply Type |
External
|
| PoE Power Budget |
210 W
|
| PoE per Port |
25.5 W
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
Physical
| Built-In Display |
No
|
| Operating Conditions |
14 to 131?F / -10 to 55?C at 10 to 93% Humidity
|
| Certifications |
FCC, NDAA
|
| LED Indicators |
Yes
|
| Rack Form Factor |
1.5 U
|
| Dimensions (W x D x H) |
17.4 x 16.3 x 2.7" / 442.0 x 414.1 x 68.0 mm
|
| Weight |
10.4 lb / 4.7 kg (Without HDD)
|
