Extension via a Single CAT6 Cable

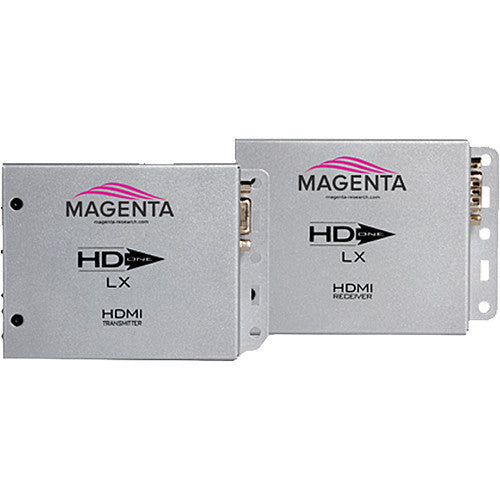

The Magenta Research HD-One LX HDMI, IR, and RS-232 Extender Kit delivers reliable, uncompressed, high-definition video over a single CAT5e/6/6e/7 cable to a distance of up to 328ï¿½ (100m). It consists of a transmitter and an extender unit.

This LX series extender offers additional support for bi-directional RS-232 and 2-way IR signals. For ease of use, the LX kit comes with a set of IR emitter/receiver cables. The LX receiver is also tunable to 3 different IR bands (36.7, 38.0, or 58.8 kHz). This extender kit is fully HDCP compliant and features plug-and-play functionality.

HDMI cables are difficult to terminate. UTP cables, meanwhile, are both cost-effective and easy to terminate in the field, making it easy for extending and HDMI or DVI source to almost any display.

Note: This equipment is not intended for, nor does it support, distribution through an Ethernet network. Do not connect these devices to any sort of networking or telecommunications equipment.

The transmitter and receiver units do not feature daisy chain capability. The extender also supports other category cables, but CAT6 is recommended. For the types of supported cables, please refer to the specifications.

Includes one IR emitter/receiver pair

Extends HDMI or DVI, serial, and IR signals over Category 5e/6/6a/6e/7 UTP, STP, or FTP cable

Single UTP cable (sold separately) transfers video, audio, and HDCP signals

An external switch lets you easily select from the following IR operating modes: 36.7, 38, or 56.8 kHz

Extends uncompressed HD video (1920x1200 @ 60Hz) up to 328' (100m)

Audio transmission supports Dolby TrueHD and DTS-HD Master Audio

HDMI 1.4 and HDCP compliant

No adjustments or tuning required

Bi-directional RS-232 interface

Two-way IR support (two IR dongles included)

Integrated mounting flange

Tolerances designed for commercial environments

Typical applications include museums; large retail environments; high-end security, education, and residential environments; digital signage, wayfinding installations; and home theater

In the Box

Magenta Voyager HD-One LX HDMI, IR, and RS-232 Extender Kit

Transmitter/Emitter
Receiver Unit
2 x IR Dongle
2 x Universal Power Supply Unit
Limited 3-Year Warranty

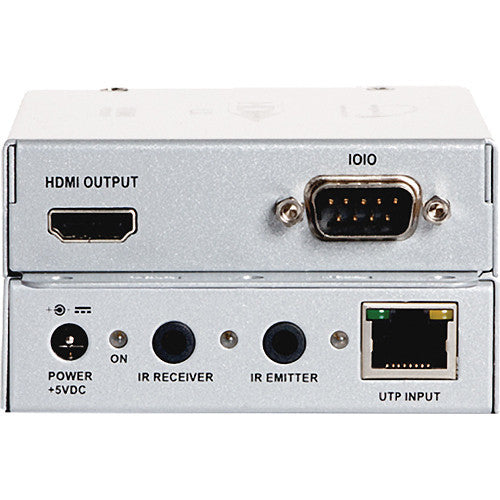

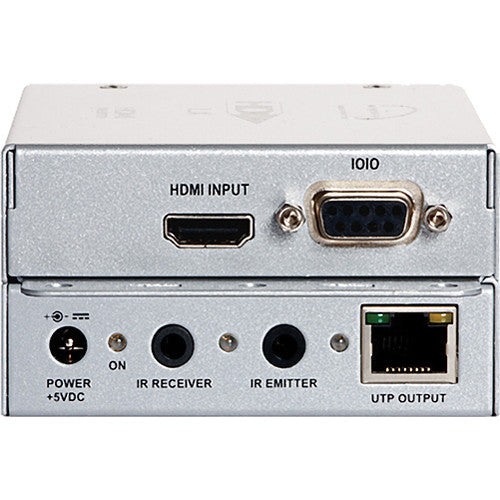

Connectors	Transmitter & Receiver 1 x HDMI Type A 1 x RJ45 (UPT in/out) 1 x DC power 1 x RS-232 (DB9 female) 2 x 3.5 mm jack
Audio In/Out	Embedded with video signal
Video Supported	HDMI 1.4, HDCP compliant DVI video modes Standard formats @ 60 Hz: 640 x 480, 800 x 600, 1024 x 768, 1152 x 864, 1280 x 768, 1280 x 960, 1280 x 1024, 1360 x 760, 1366 x 768, 1600 x 1200,1680 x 1050, 1920 x 1080, 1920 x 1200 HDTV: 480p, 720p, 1080i, and 1080p
Resolution	WUXGA 1920 x 1200 @ 60 Hz Note: To achieve maximum resolution and/or distance, it is strongly recommended that you use standard network CAT6 or better cable with a solid 24 AWG copper wire. The use of lower quality cables will lower overall performance. Please contact Magenta for cable recommendations.
Audio Support	HDMI 1.4 Audio: SPDIF 2-channel PCM or 5.1, 6.1 Dolby Digital or DTS
Transmission Distance	328' (100 m) Note: To achieve maximum resolution and/or distance, it is strongly recommended that you use standard network CAT6 or better cable with a solid 24 AWG copper wire. The use of lower quality cables will lower overall performance. Please contact Magenta for cable recommendations.
Cables Supported	CAT5e, CAT6, CAT6a, CAT6e, CAT7 UTP, STP, or FTP (CAT6 or better is recommended) Note: For best performance, use one continuous UTP / STP or FTP cable with as few breaks as possible (i.e., patch bays, wall plates, or floor boxes). Magenta recommends mounting and connecting all cables to the HD-One DX500 Series components before applying power. Make sure that the Category cable you intend to use has been tested to comply with the T568B wiring specification. Magenta recommends that all Category cables be pre-terminated and tested. Cables terminated on-site or in an existing infrastructure should be tested before use to ensure compliance with the TIA-EIA T568B specification. Using incorrectly terminated category cables can damage the extender units.
Bandwidth	3.4 Gb/s
Baud Rate (RS-232)	Up to 115,200 bps, full duplex
IR Carrier	36.7, 38, 56.8 kHz modulated emitter output, bi-directional
Enclosure	Metal
Indicators	Video status, data link, power
Compliance	RoHS, CE, FCC Class A
Power Requirements	Each Unit: 5 VDC @ 2.6 A maximum
Power Consumption	Transmitter: 5 V @ 400 mA Receiver: 5 V @ 850 mA These are average values. The AC/DC power-adapter rating must be a bit higher to accommodate the initial inrush-current at turn-on, which is typical of most devices.
Temperature Tolerance	Operating: 32 to 131ï¿½F (0 to 55ï¿½C) Storage: -4 to 185ï¿½F (-20 to 85ï¿½C)
Humidity Tolerance	Up to 95% non-condensing
Dimensions	Each Unit: 5.1 x 3.5 x 1.2" (13.0 x 8.8 x 3.0 cm)
Weight	Each Unit: 0.60 lb (0.27 kg)

Packaging Info
Package Weight	2.95 lb
Box Dimensions (LxWxH)	13.0 x 8.0 x 2.7"
