- Fluid Drag Head with 29.8 lb Capacity
- 509PLONG Sliding Quick Release Plate
- Four-Step Counterbalance System
- Fluid Drag System for Pan & Tilt Axes
- Manfrotto Bridging Technology
- 100mm Ball
- Two-Stage Legs, Ground-Level Spreader
- Height Range from 18.9 to 67.7"
- Illuminated Leveling Bubble
- Padded Carrying Bag Included

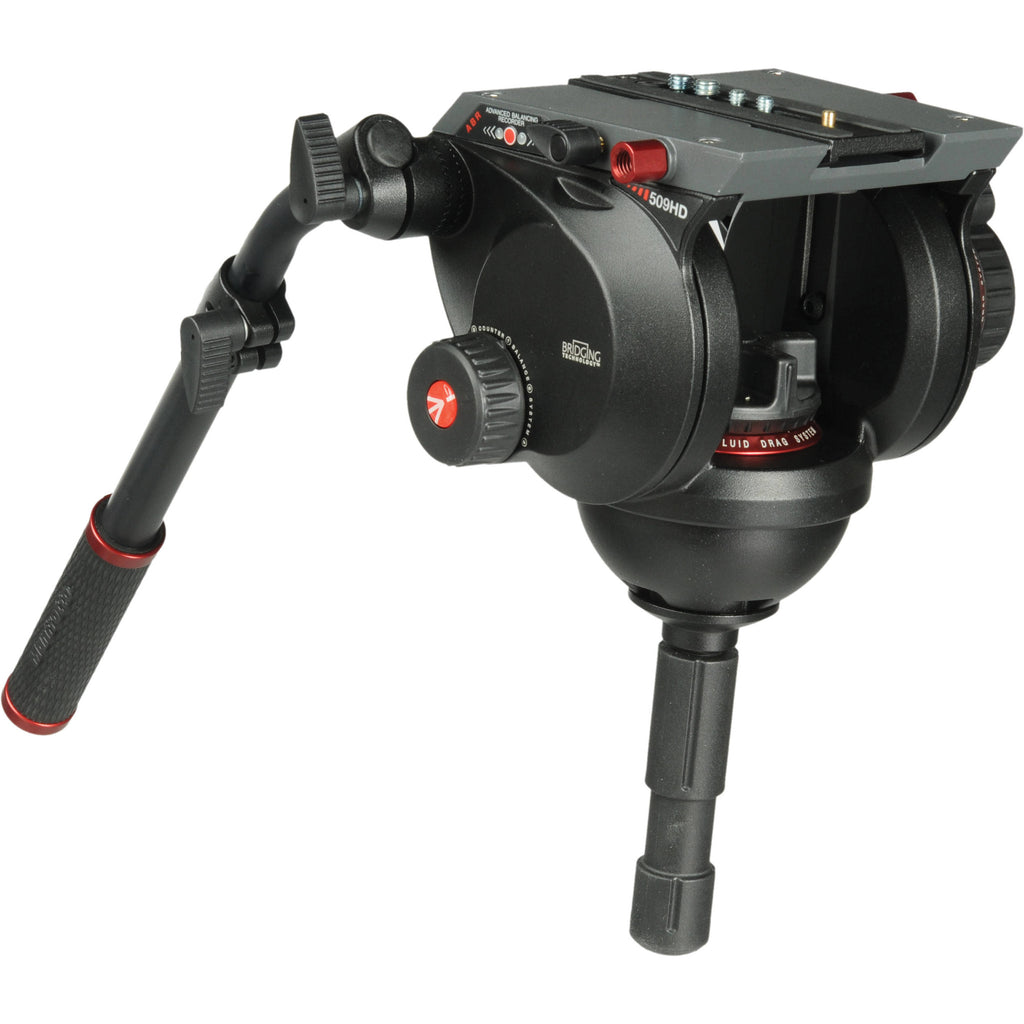

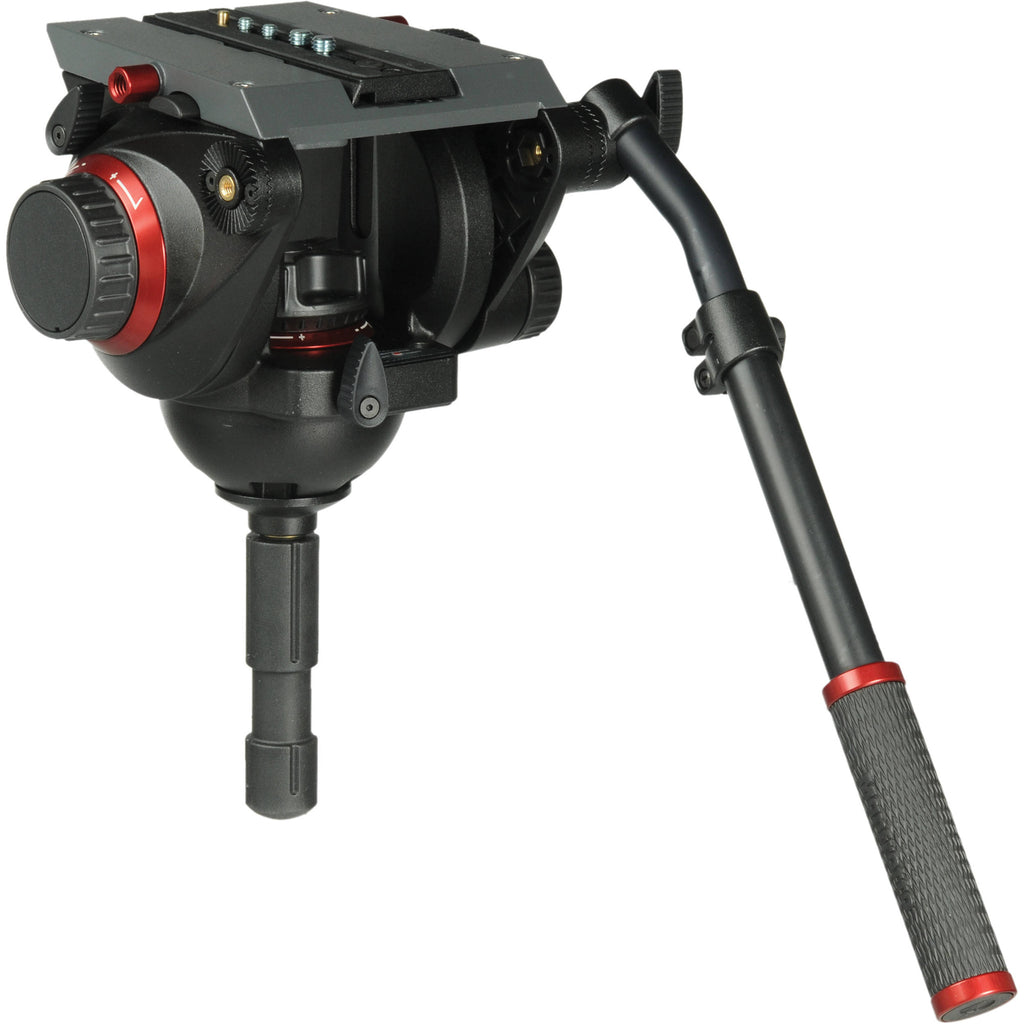

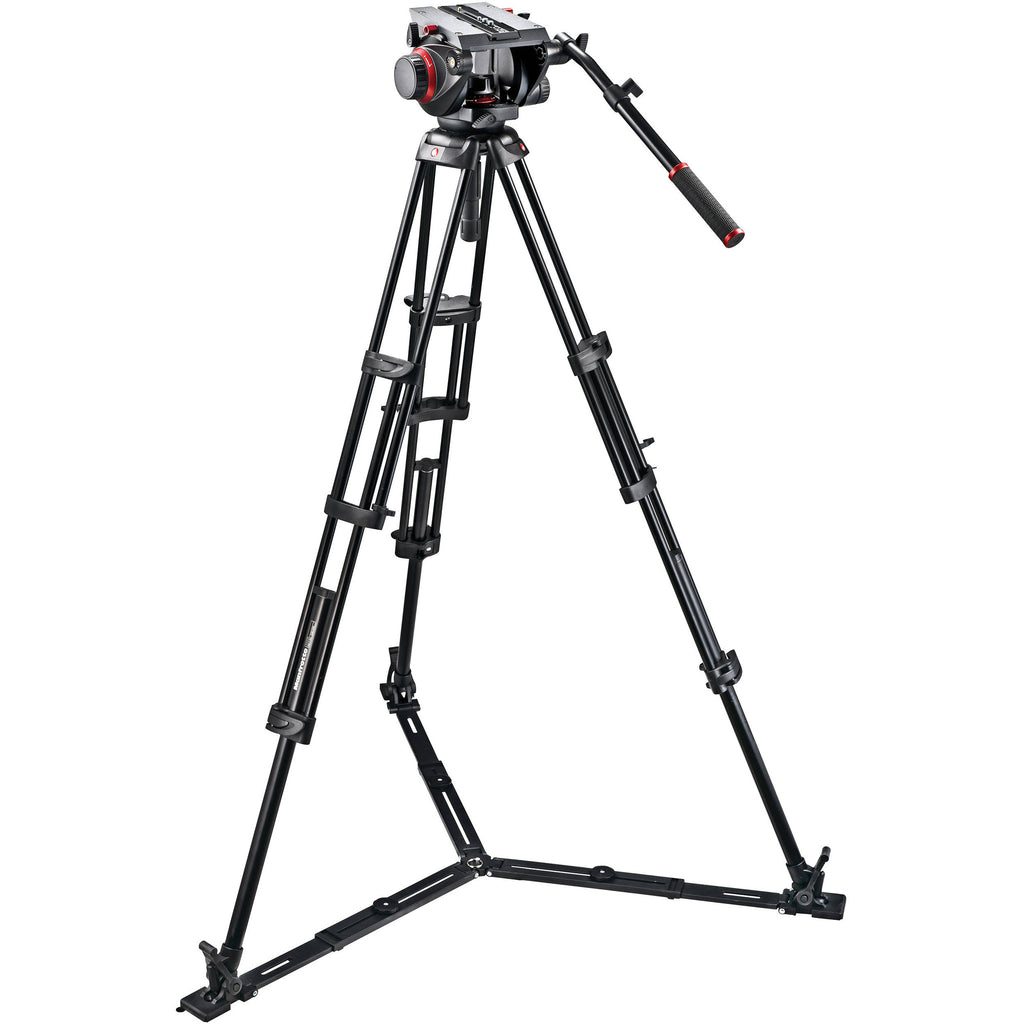

Steady your professional video system with this 509HD Video Head & 545GB Aluminum Tripod Pro Ground-Twin Kit 100 from Manfrotto . Able to hold up to 29.8 lb on the fluid head, users will have excellent stability and security for their shots. The 509HD head offers a sliding 509PLONG quick release plate and a four-step counterbalance system for a quick setup. The head also features easily accessed adjustments, easy-link connectors, and is lightweight. Also, it has Manfrotto Bridging Technology with a ball bearing drag system for smooth, precise movements well suited to stills and video. An Advanced Balancing Recorder feature can save the balancing position of your camera to help expedite your next setup.
The 545GB aluminum legs feature a two-stage design along with a ground-level spreader for maximum stability and control. The system can be adjusted from 18.9 to 67.7" and has an illuminated leveling bubble for checking your alignment under any lighting condition. It also has a 100mm bowl head and comes with a padded bag to keep everything safe.
UPC: 719821330745
| General |
| Load Capacity | 29.8 lb / 13.5 kg |
| Maximum Height | 67.7" / 172 cm |
| Minimum Height | 18.9" / 48 cm |
| Folded Length | 33.1" / 84 cm |
| Leveling Bubble/Illuminated | Yes, illuminated |
| Weight | 21.6 lb / 9.8 kg |
| Head |
| Counter Balance System | Yes |
| Quick Release/Wedge Plate | Yes |
| Tilt Drag | Yes |
| Tilt Range | -60 to +90° |
| Tilt Lock | Yes |
| Pan Range | 360° |
| Pan Lock | Yes |
| Legs |
| Material | Aluminum |
| Head Attachment Fitting | 100 mm bowl |
| Leg Stages/Sections | 2/3 |
| Leg Lock Type | Flip |
| Center Brace | Ground-level spreader |
| Packaging Info |
| Package Weight | 22.2 lb |
| Box Dimensions (LxWxH) | 41.0 x 10.5 x 10.5" |
In the Box
Manfrotto 509HD Video Head & 545GB Aluminum Tripod Pro Ground-Twin Kit 100
