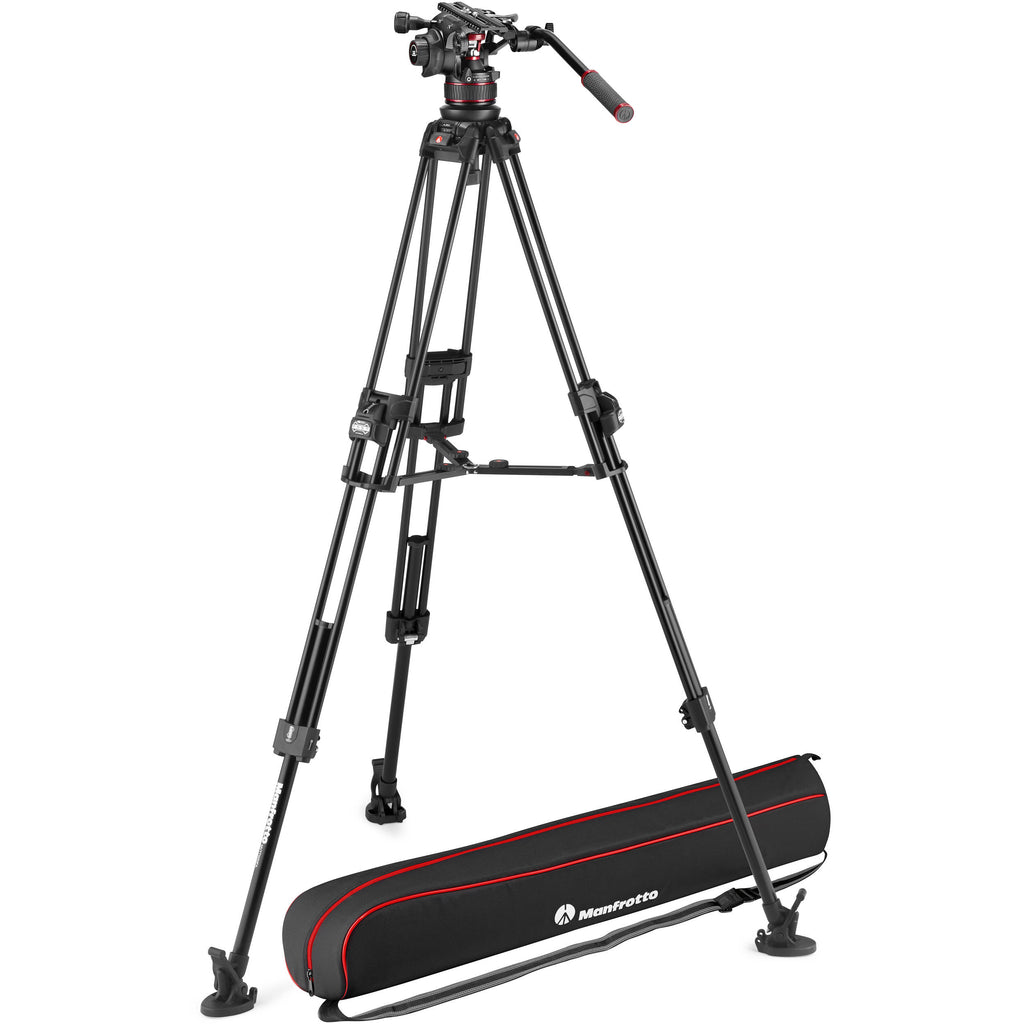

Manfrotto 612 Nitrotech Fluid Head with 645 FAST Twin Carbon Fiber Tripod System and Bag

Nitrotech 612 Fluid Head

Nitrogen Piston Counterbalance Mechanism

8.8-26.4 lb Continuous Counterbalance

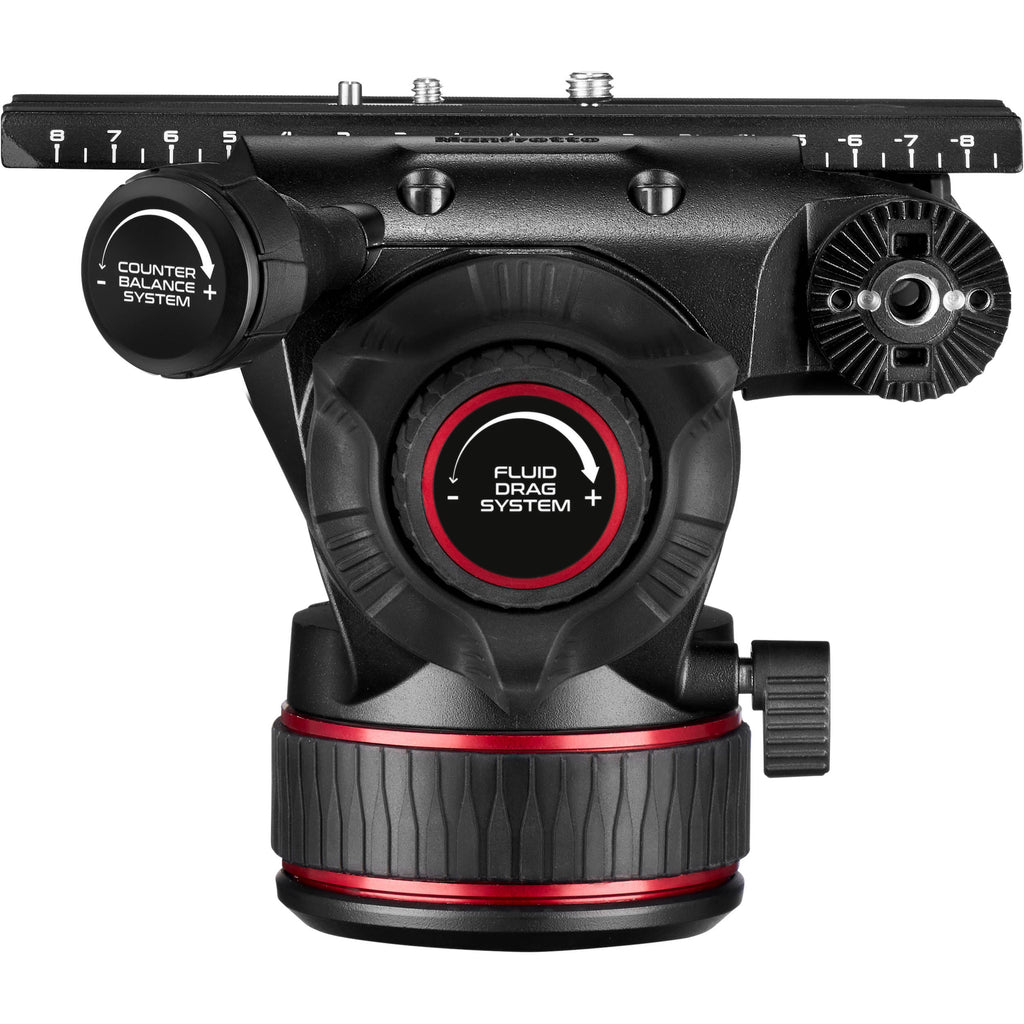

Continuously Variable Pan and Tilt Drag

FAST Tripods - Lifestyle FAST TRIPODS - 645 Tutorial Video Nitrotech 600 series � Tutorial video

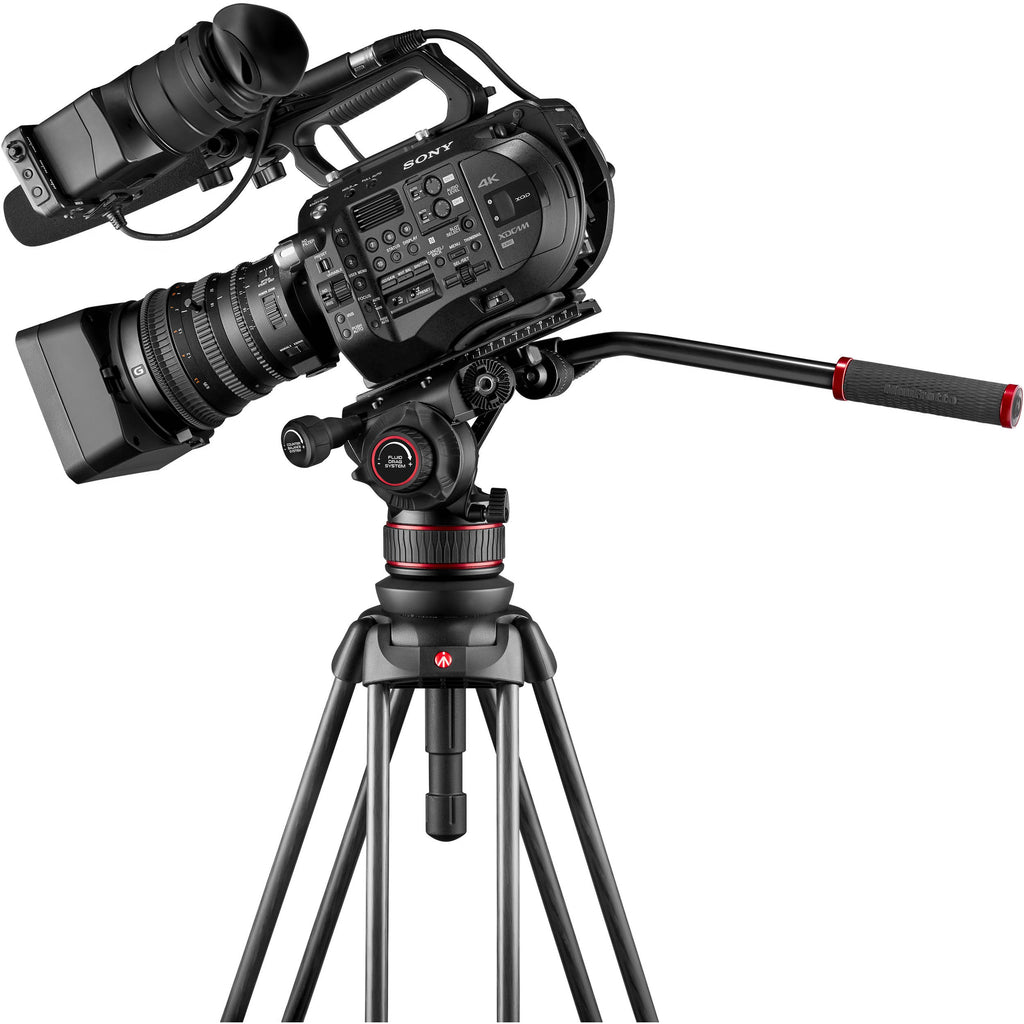

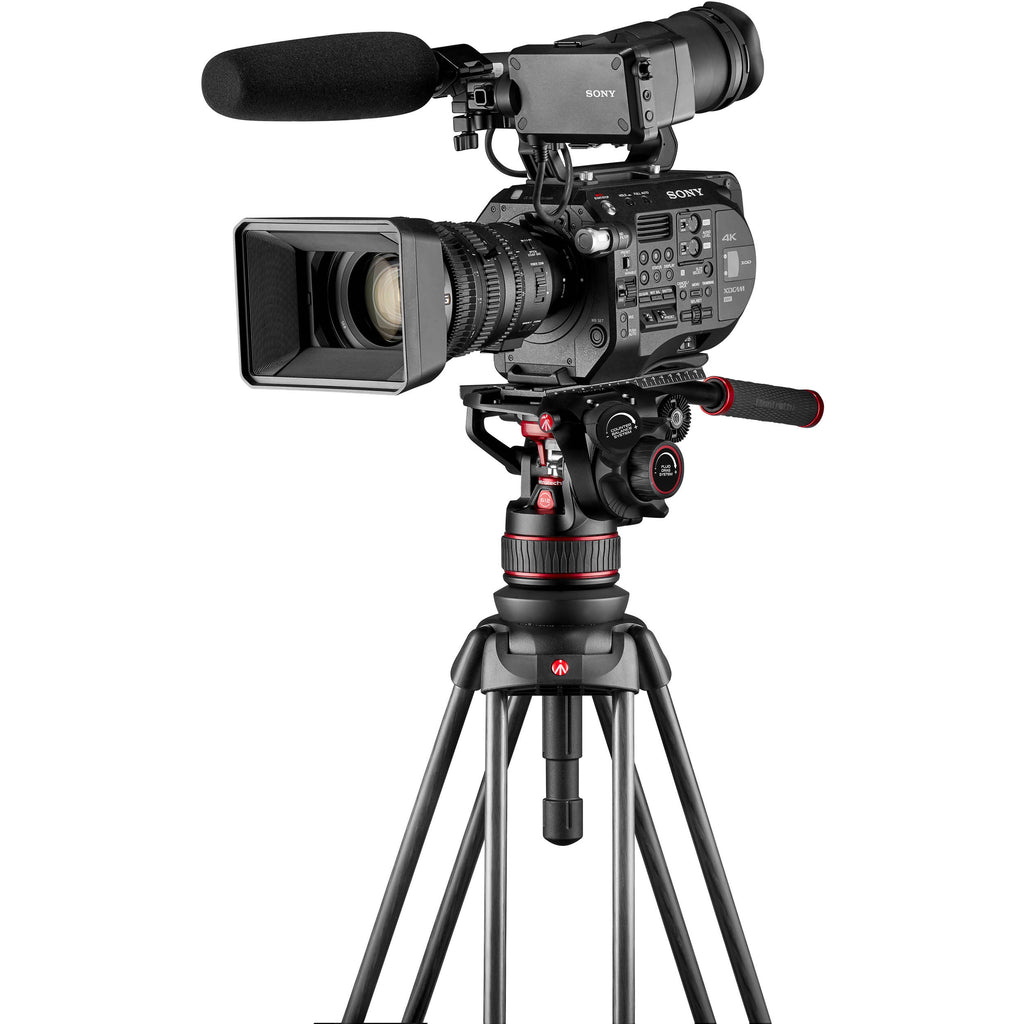

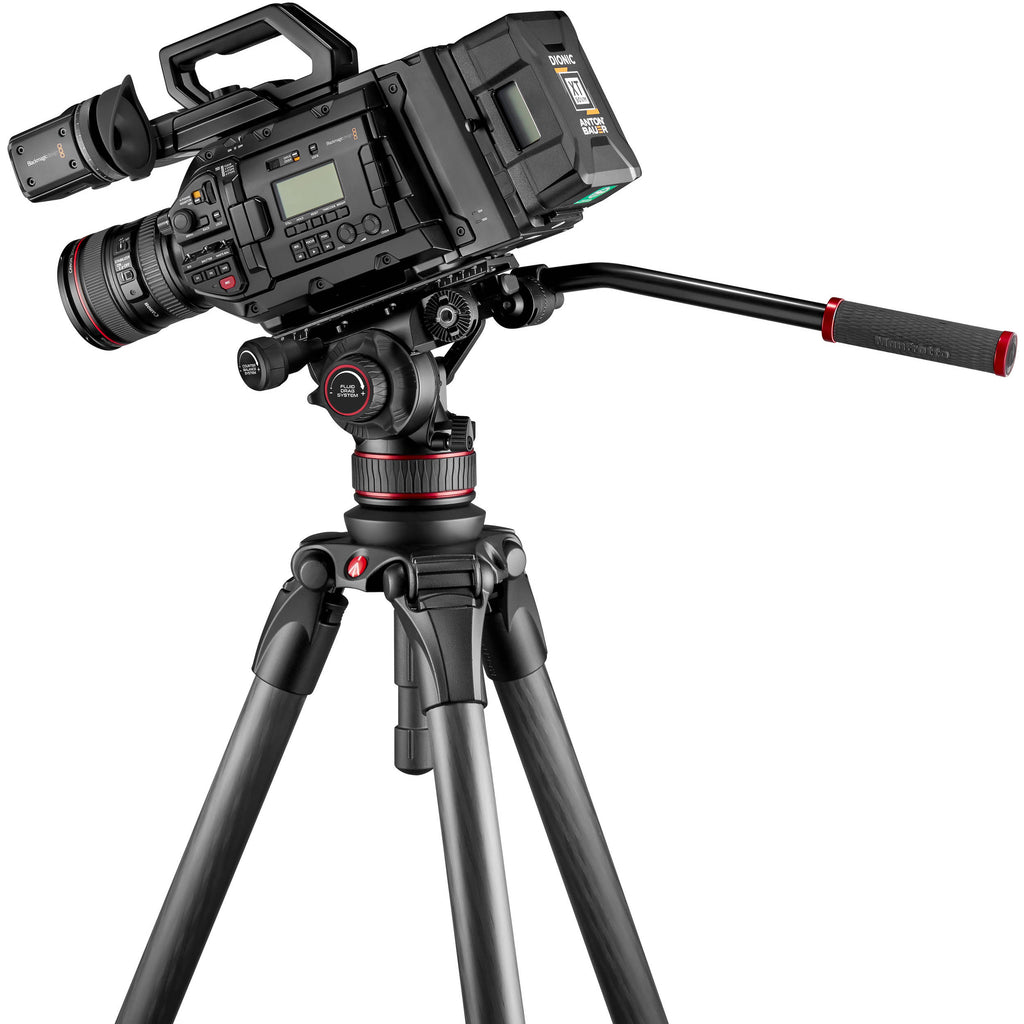

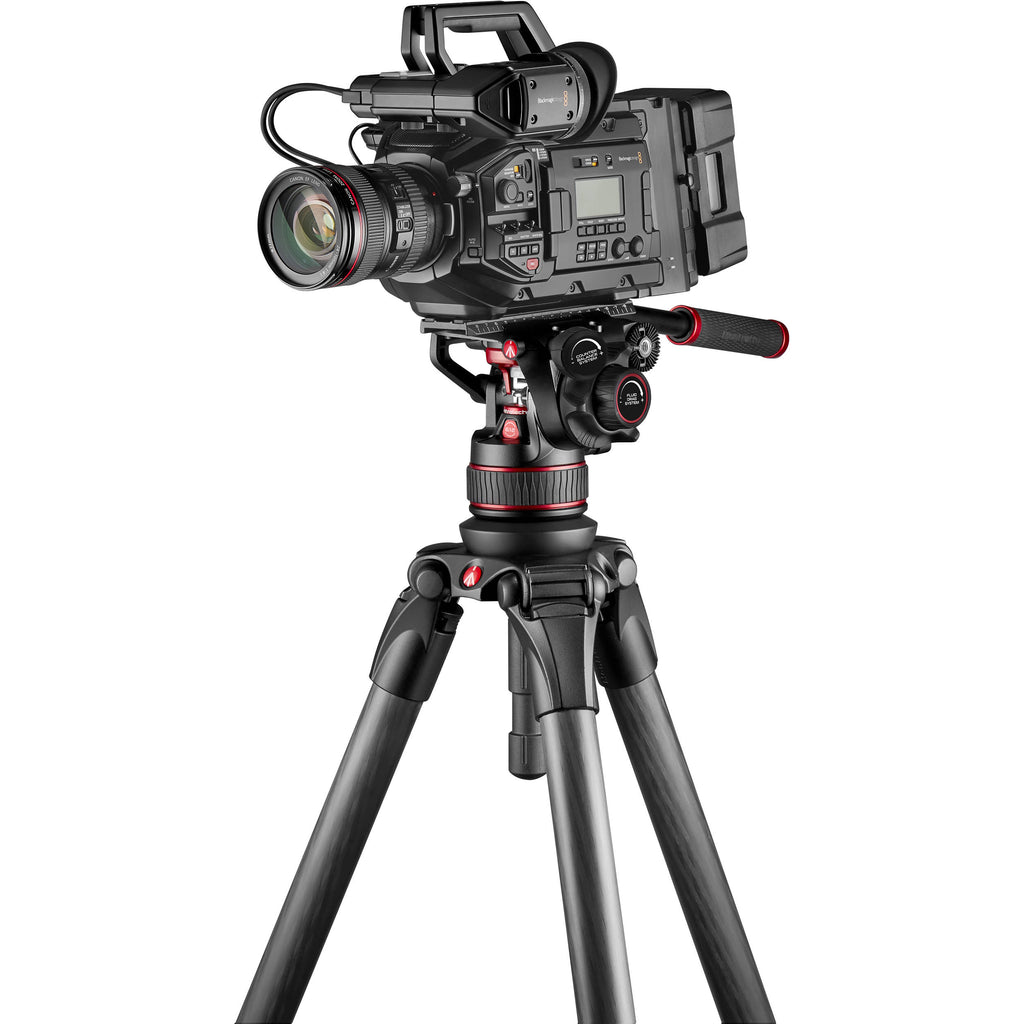

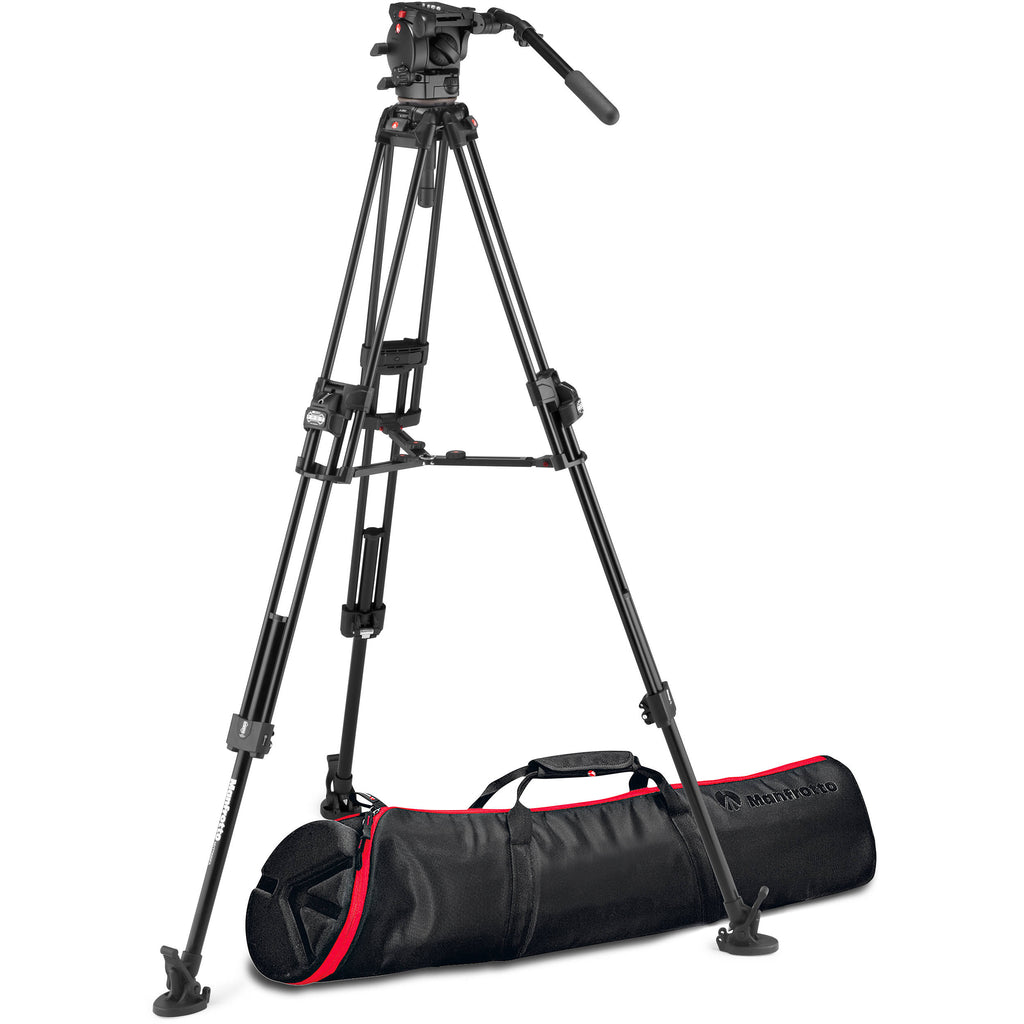

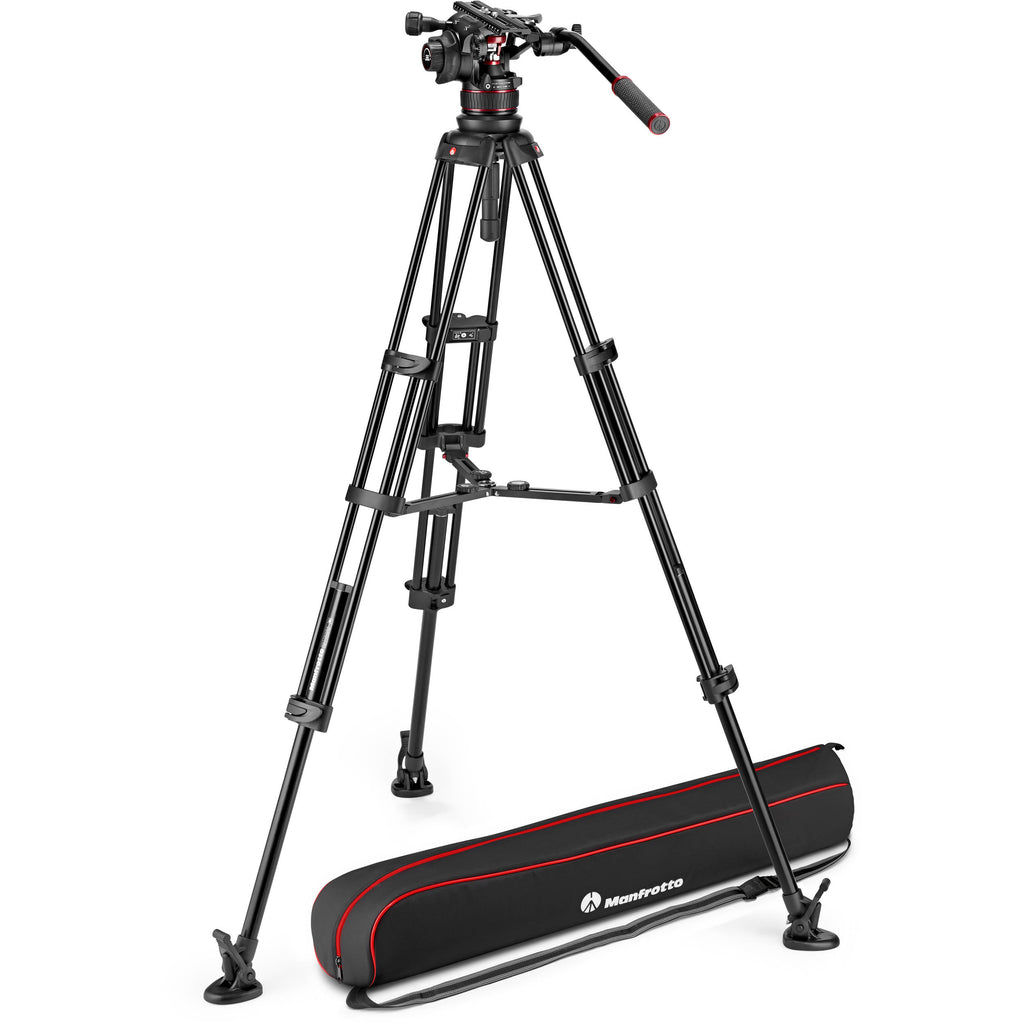

The Manfrotto 612 Nitrotech Fluid Head with 645 FAST Twin Carbon Fiber Tripod System and Bag combines the innovative Nitrotech 612 fluid head with the two-stage carbon fiber FAST Twin tripod legs and mid-level spreader, creating an effective combination of stability and smooth, precise control. The legs feature a 100mm half ball with a removable 75mm adapter that permits the mounting of the 608 head. The head features variable pan and tilt drag with independent locks and continuous counterbalance from 8.8 to 26.4 pounds.

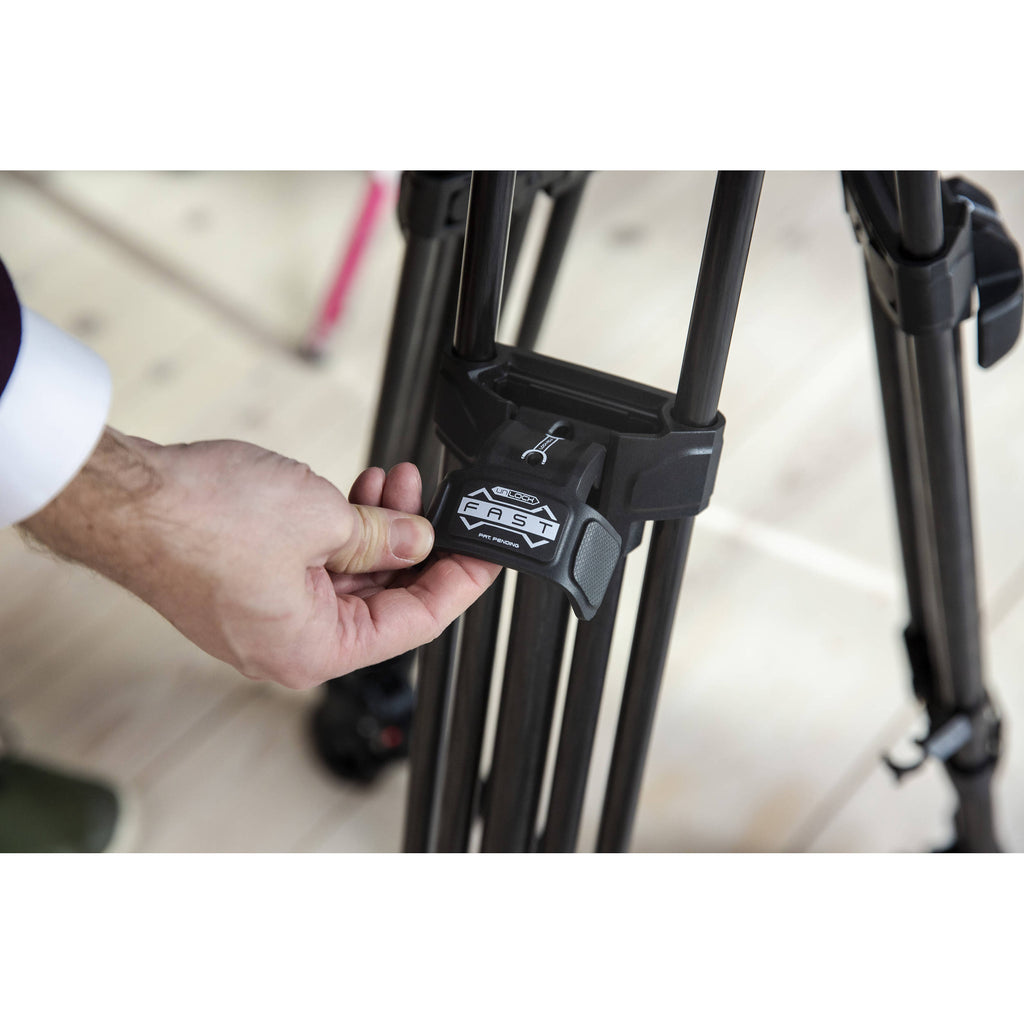

The carbon fiber legs are durable, strong, salt water corrosion resistant, and feature the Ultra L-Lock that enables you to lock and unlock the legs using only one locking lever located at the top of each leg, so you don't have to bend down to unlock the legs. The legs feature three locking positions for spreader-less operation, or you can use the included mid-level spreader with the legs set to free movement. Included with this system is a padded carrying bag for storage and transport.

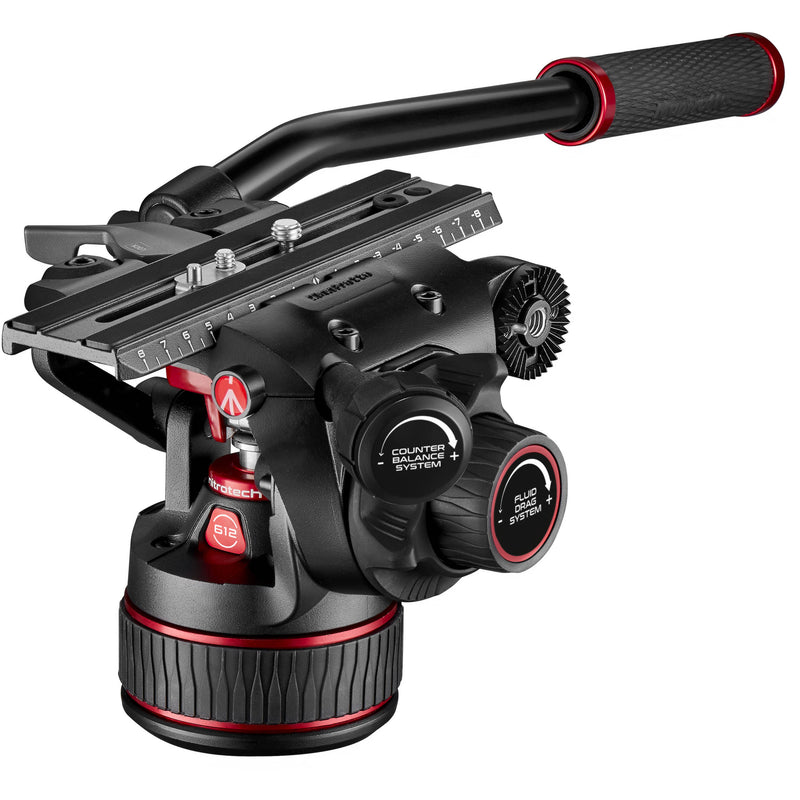

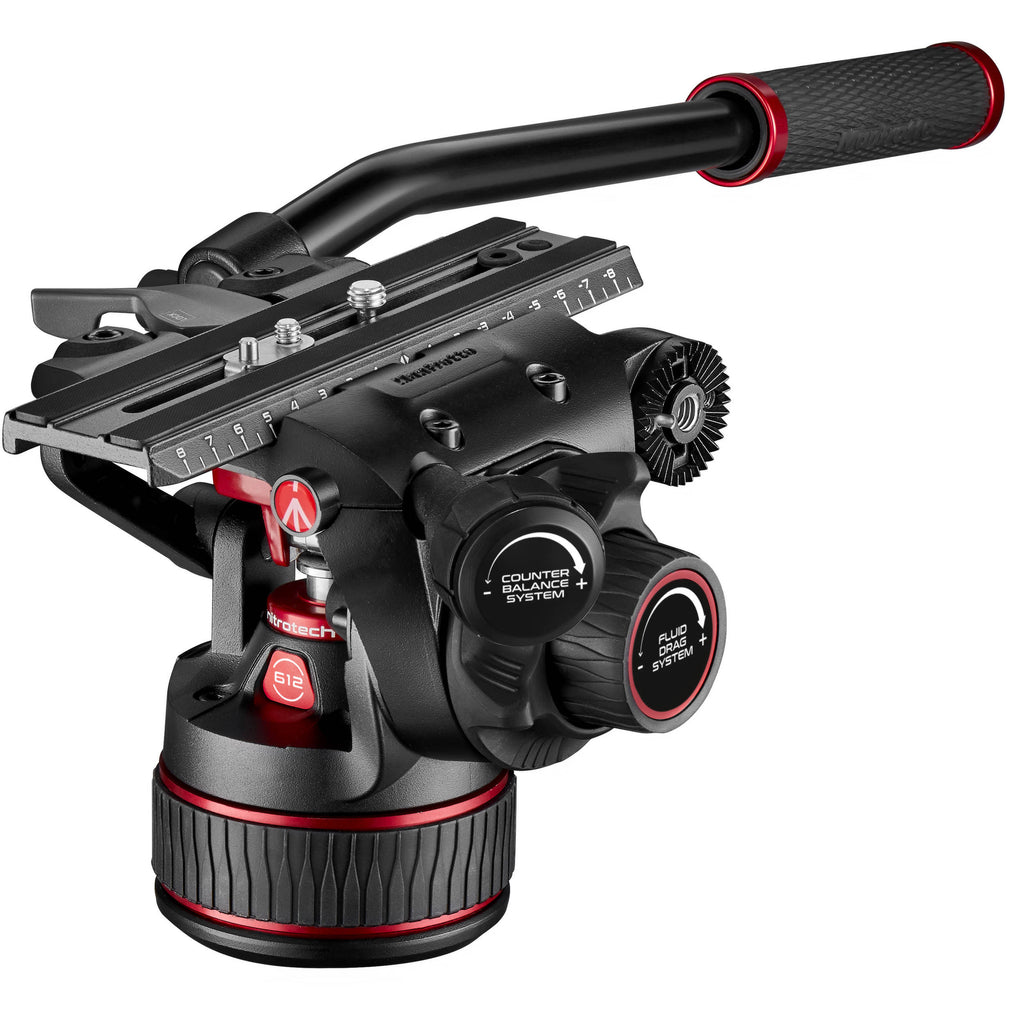

Manfrotto 612 Nitrotech Fluid Video Head

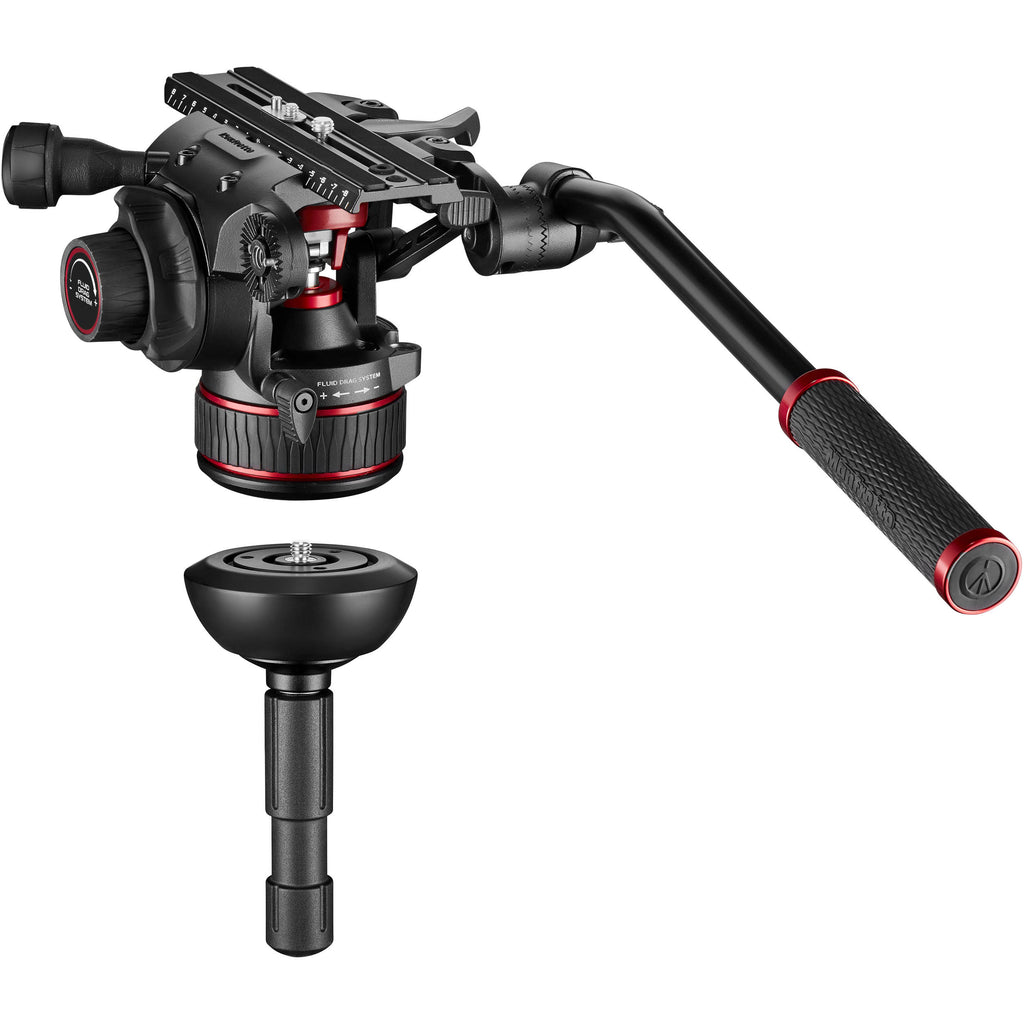

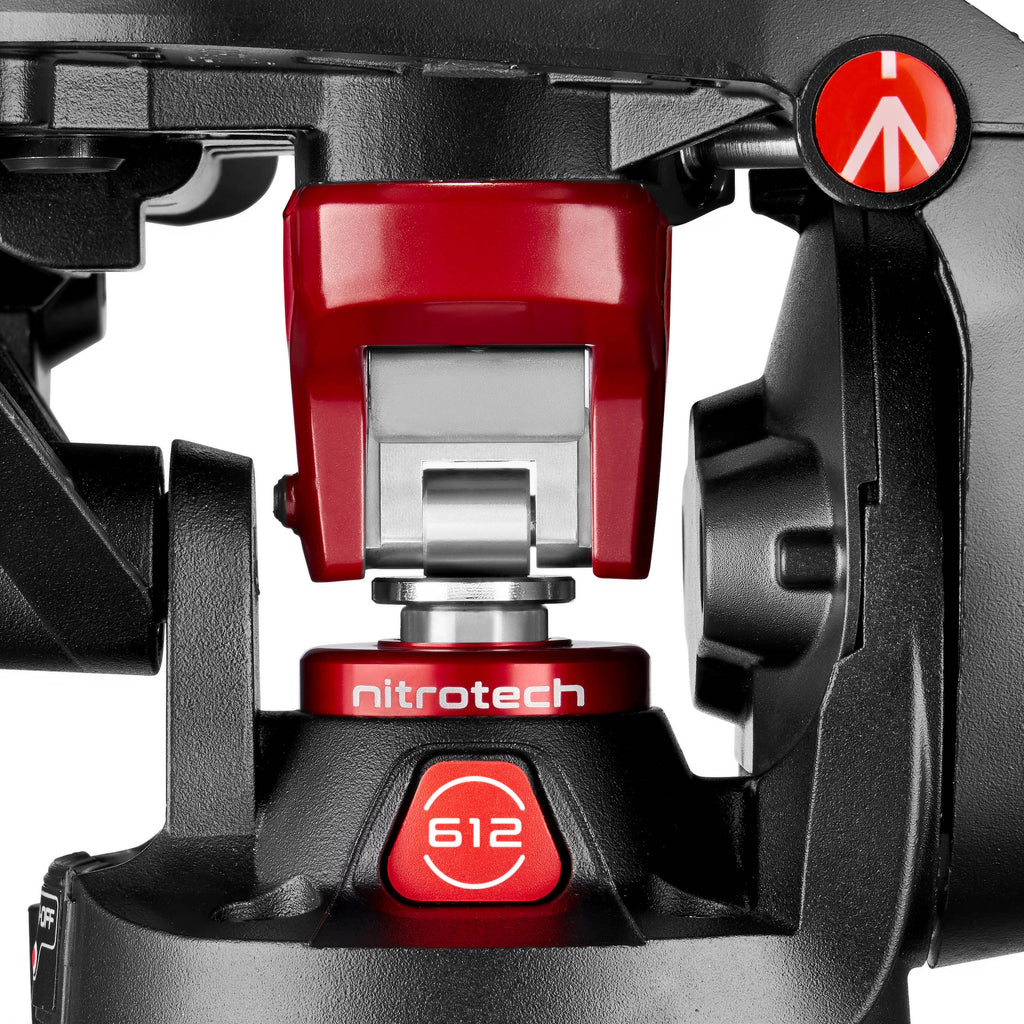

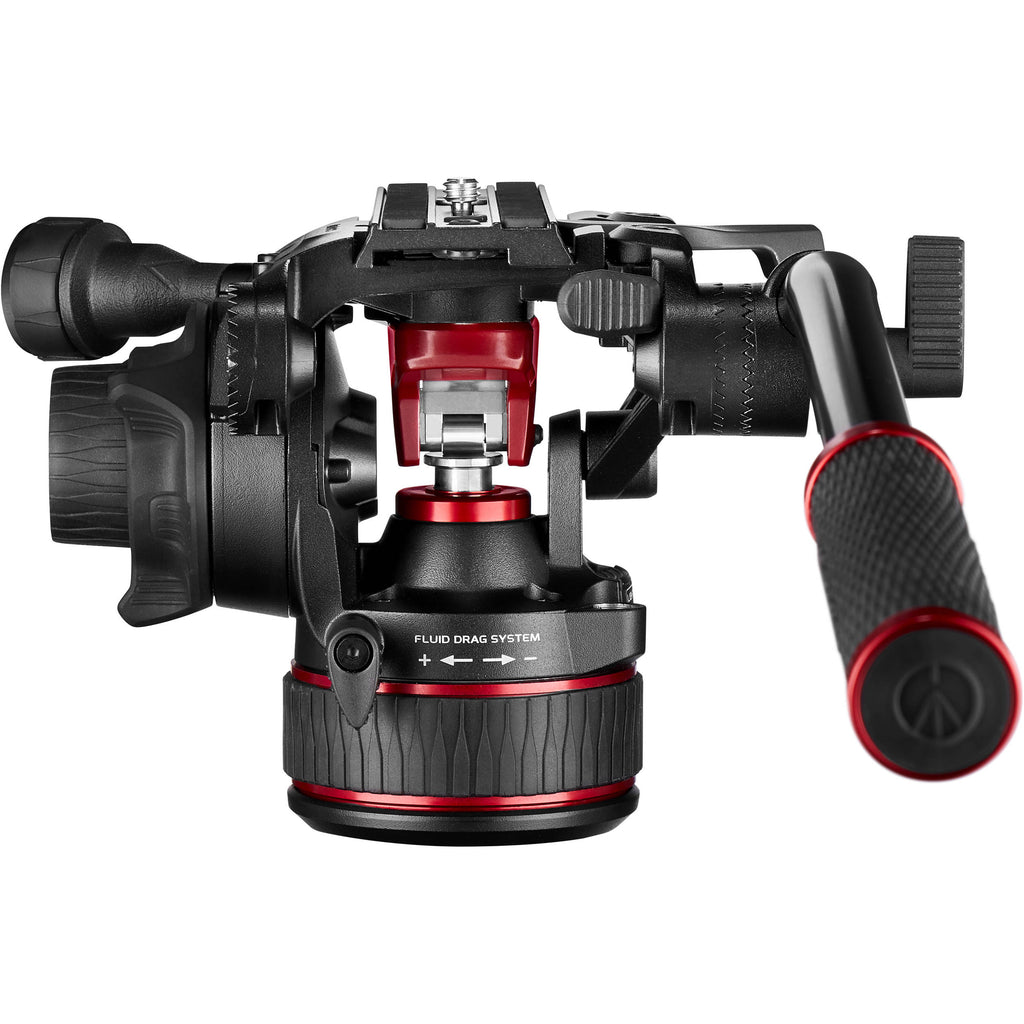

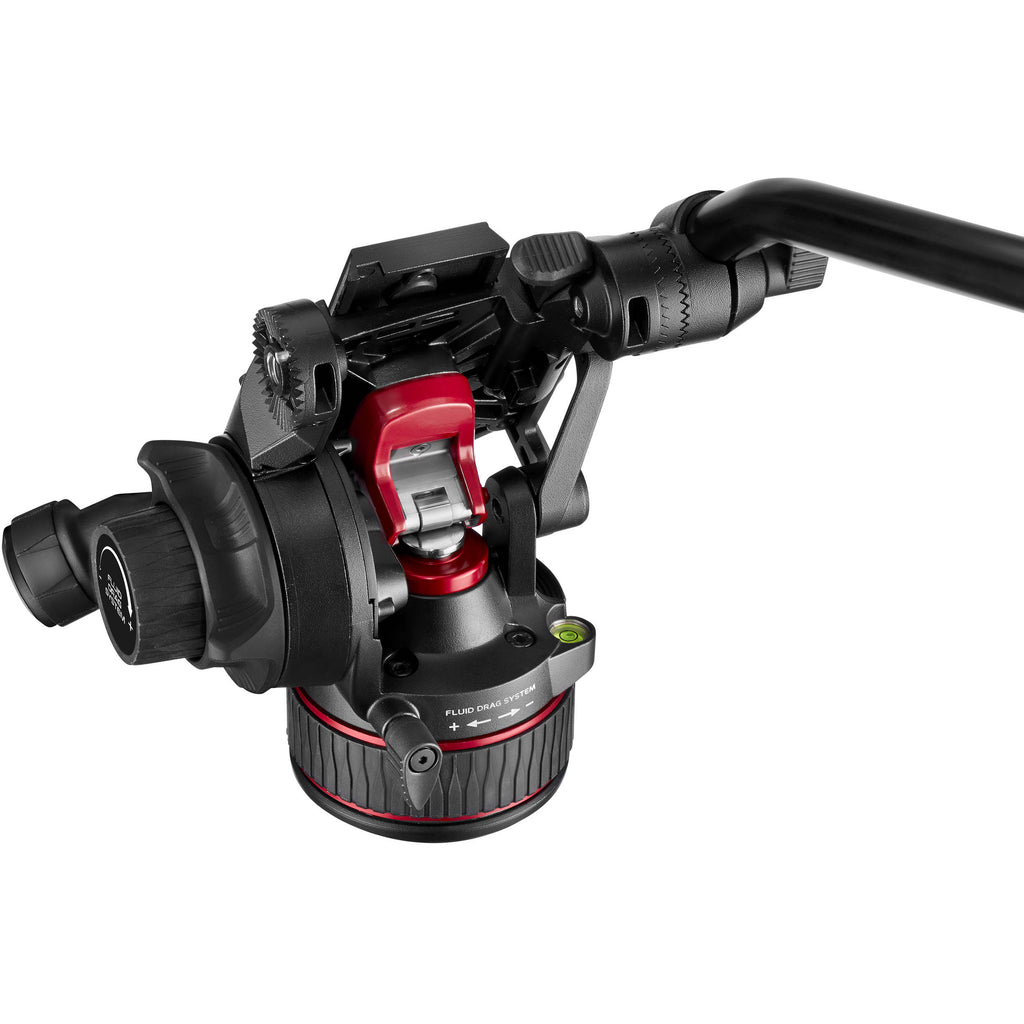

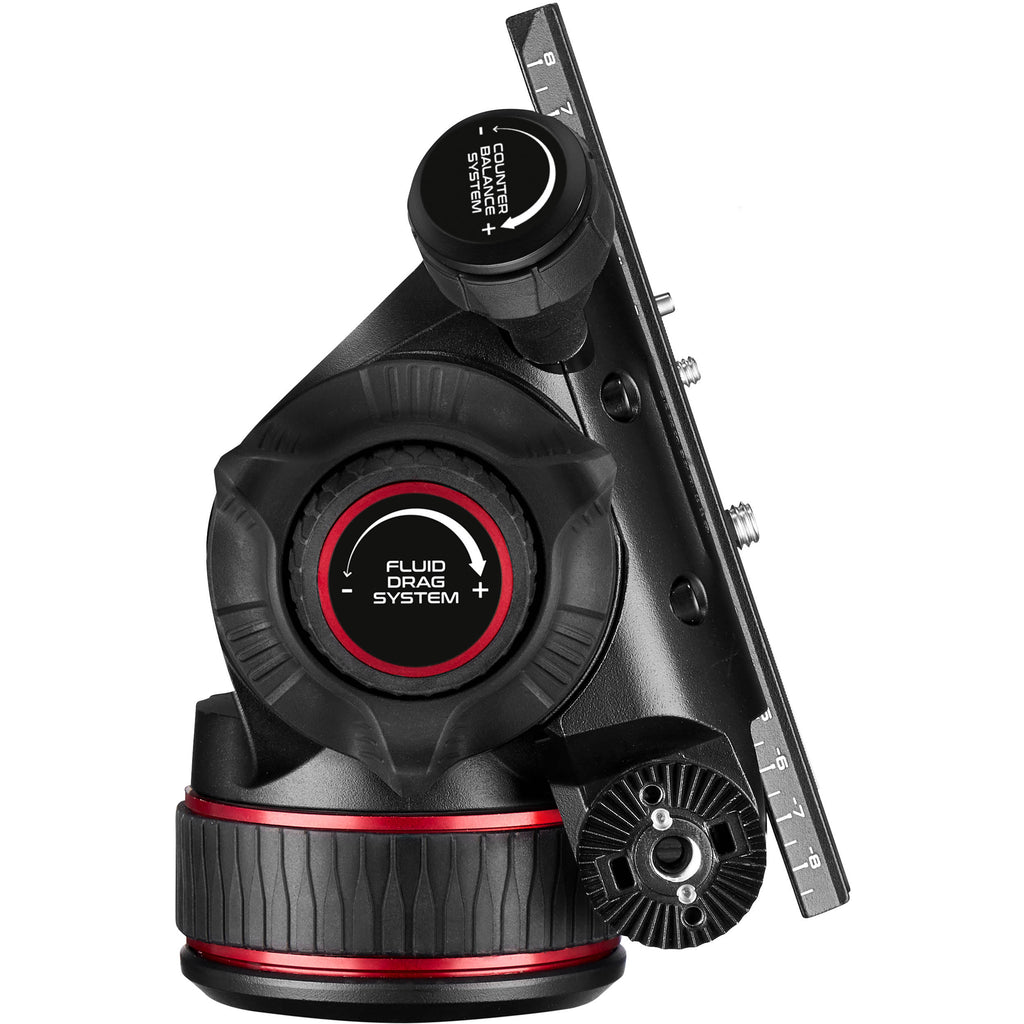

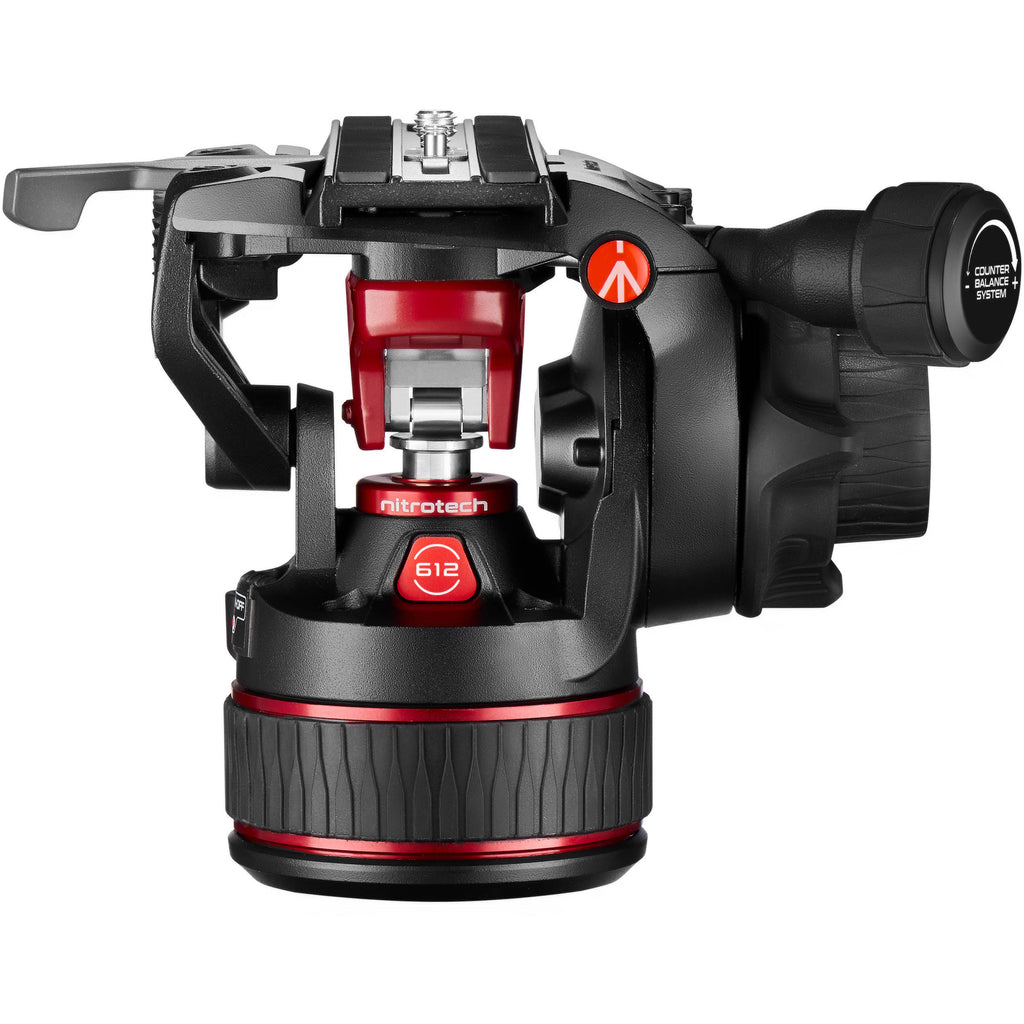

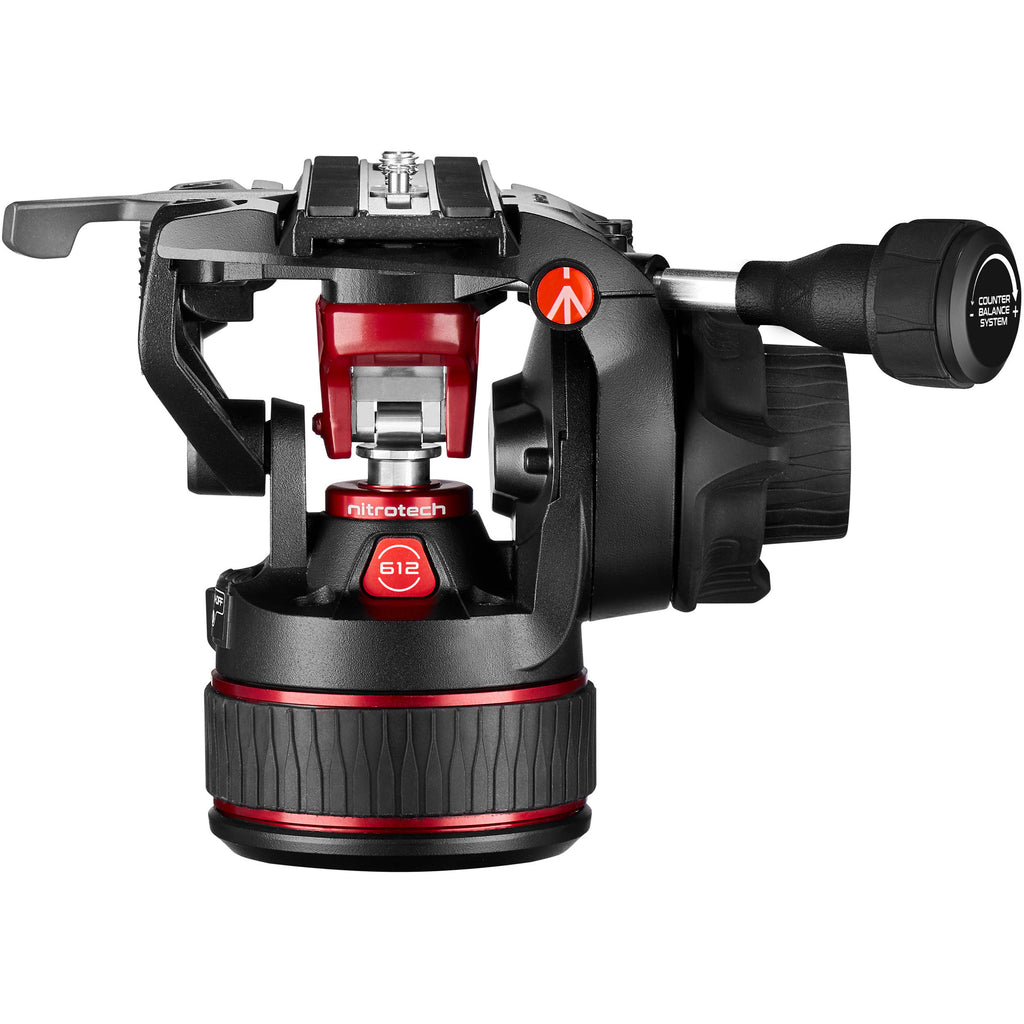

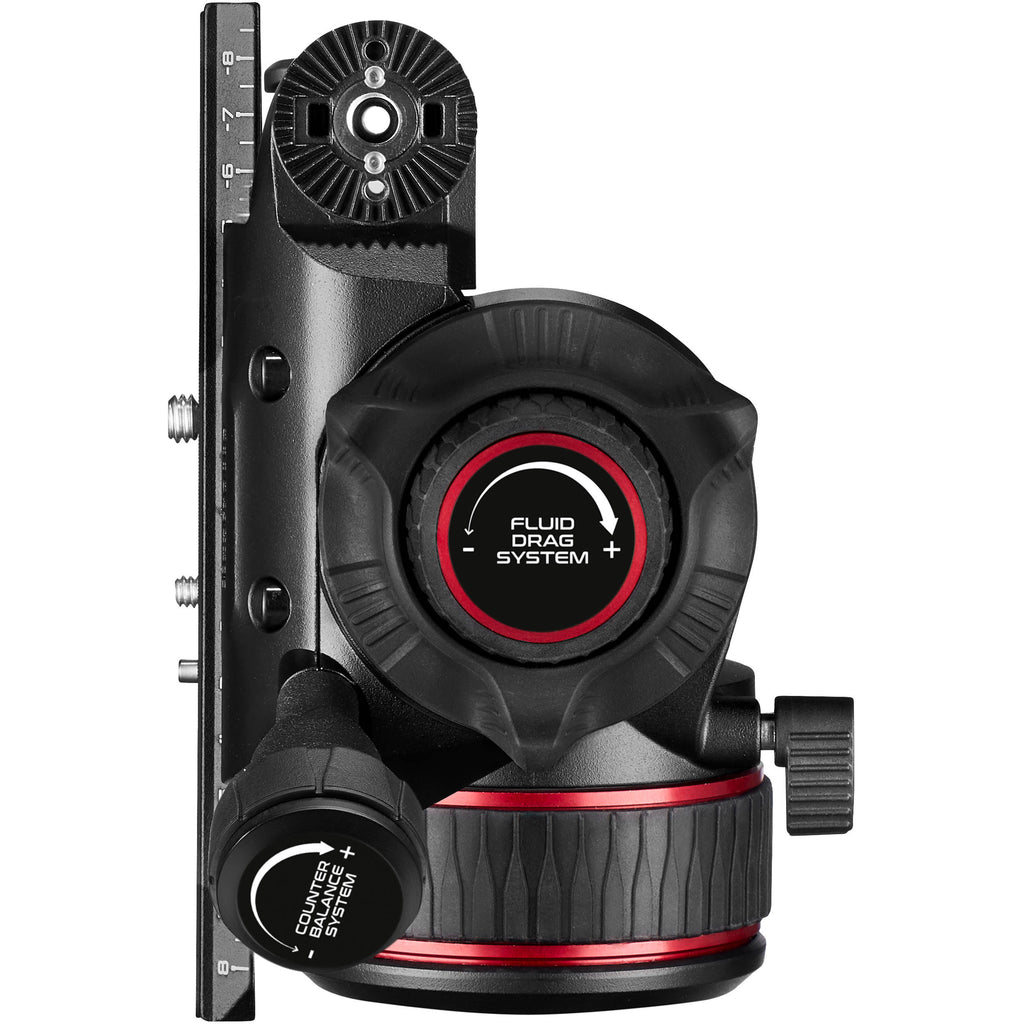

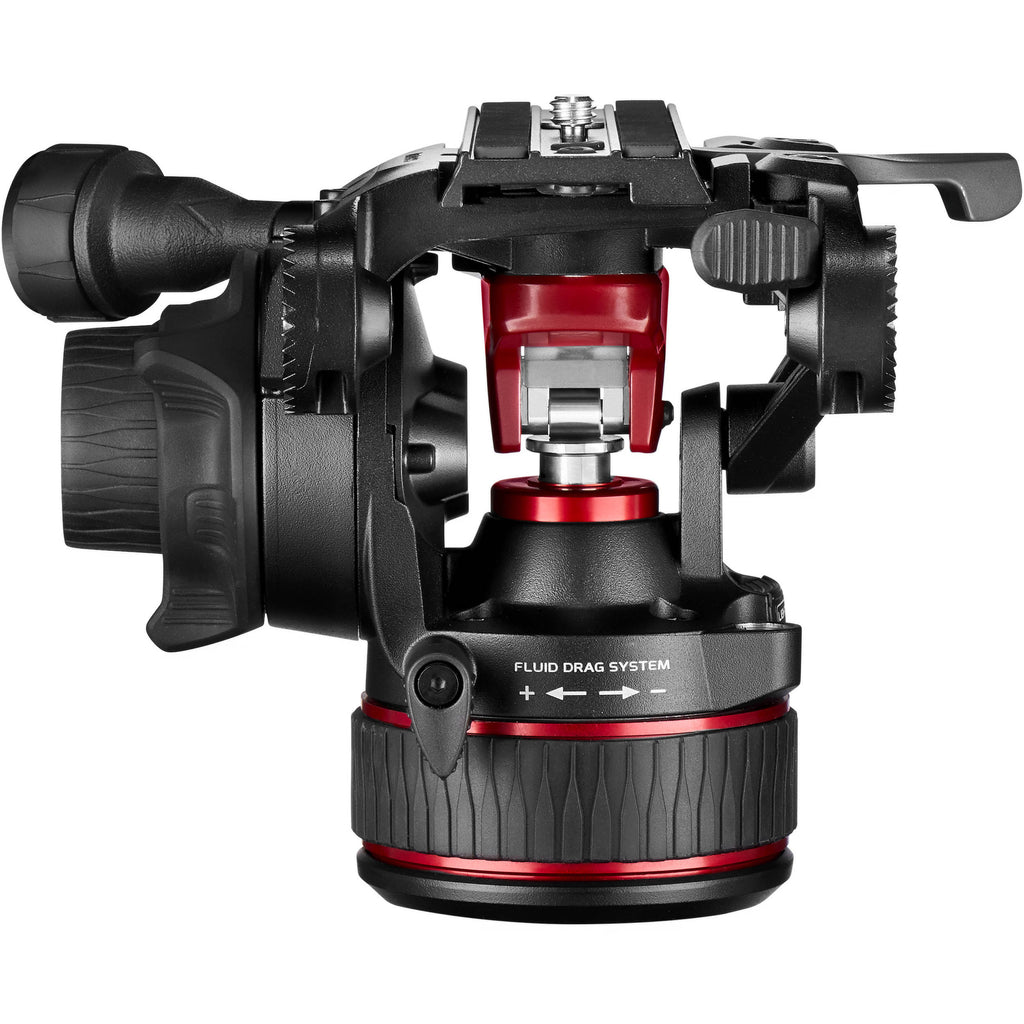

The Manfrotto 612 Nitrotech is a flat base fluid video head designed for the versatility needs of the independent content creator who's engaged in different types of projects. Thanks to its flat base with a 3/8"-16 mounting thread, as well as its relatively compact and lightweight design, the head can easily be moved between a compatible tripod and a slider, jib, monopod, and various other gear. One of the key features of the 612 Nitrotech is its Nitrogen gas piston counterbalance mechanism (hence, Nitrotech), which allows continuous counterbalance adjustment�as opposed to stepped or fixed�for the head's full payload range of 8.8 - 26.4 lb. Additionally, an upgraded fluid technology significantly improves continuously variable drag performance and enables smooth and judder-free pan and tilt movements.

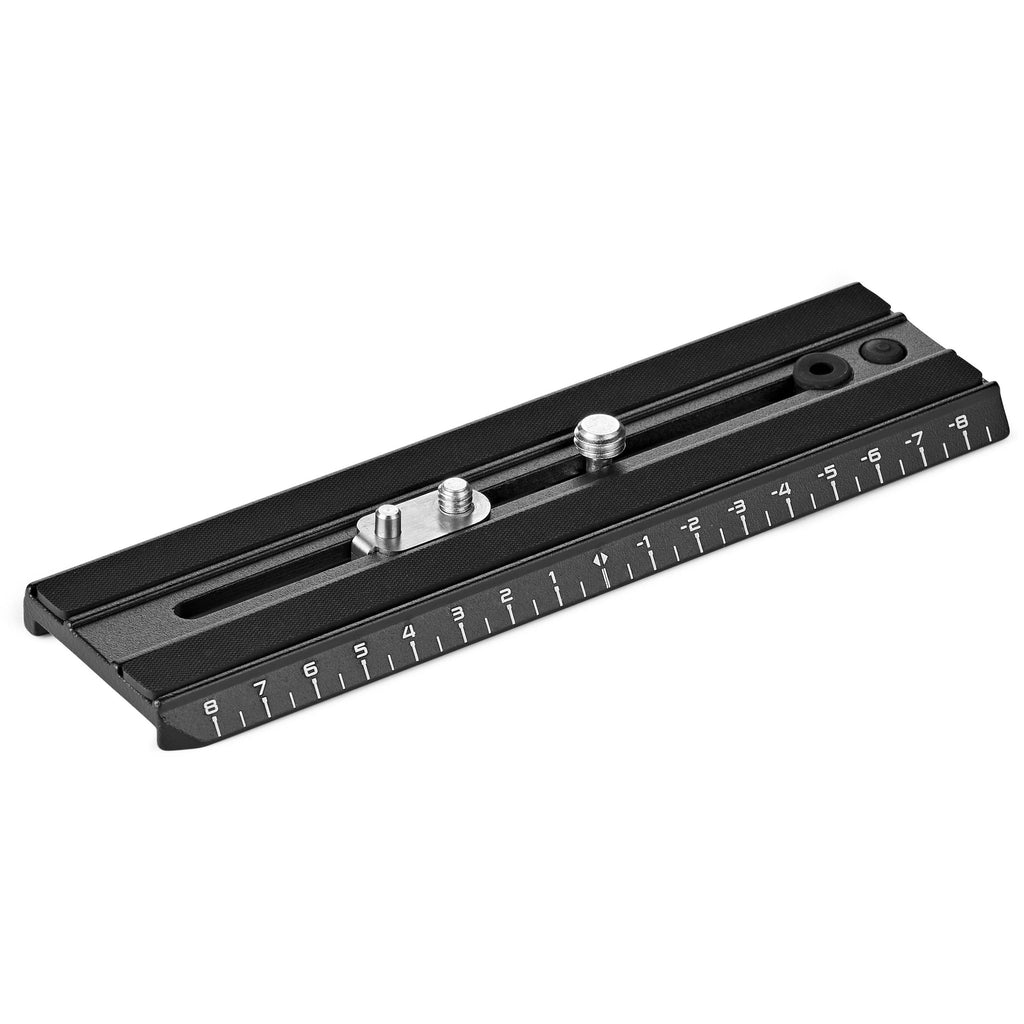

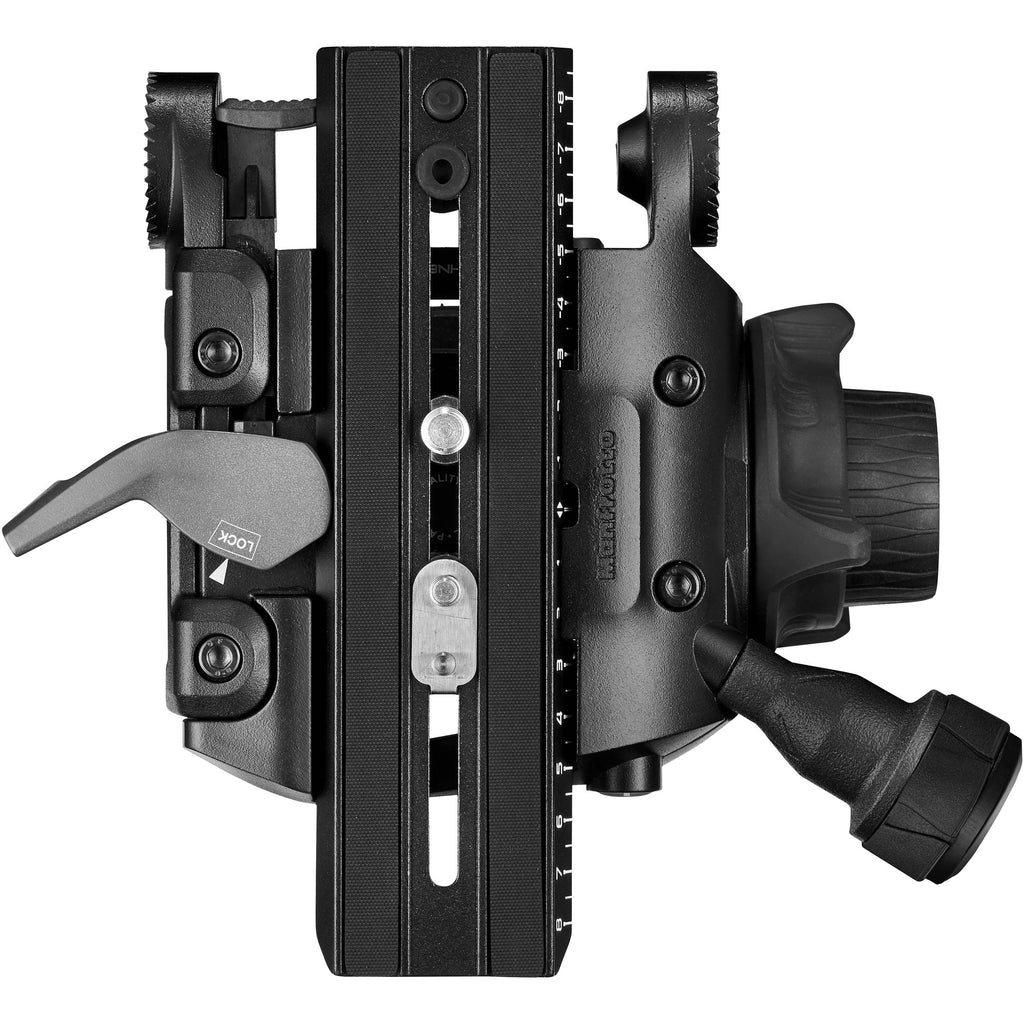

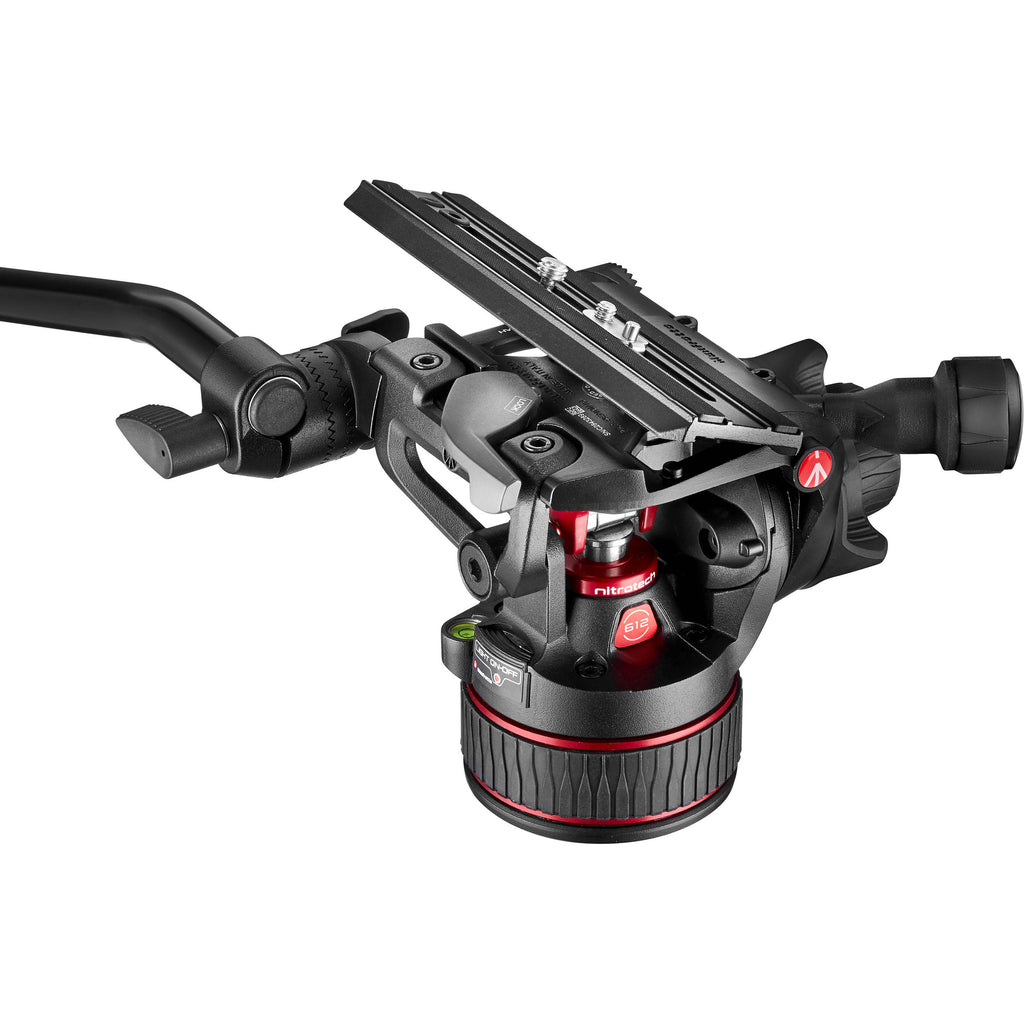

Providing further flexibility, the head's camera plate system features a side lock mechanism that allows for quicker and safer mounting of your camera plate and camera load. Instead of having to align and slide in your camera plate from the rear, you're able to conveniently tuck in one side of the plate from the top and then push and click in the other side.

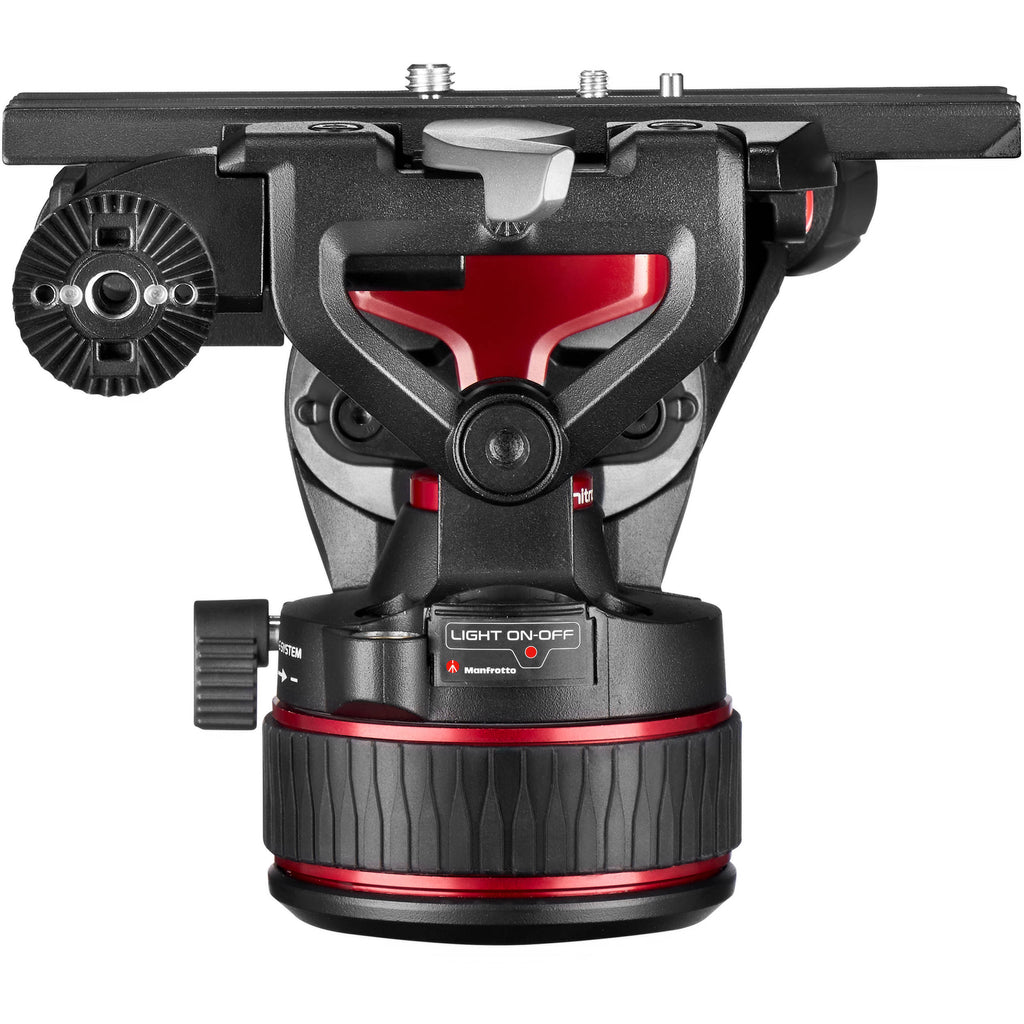

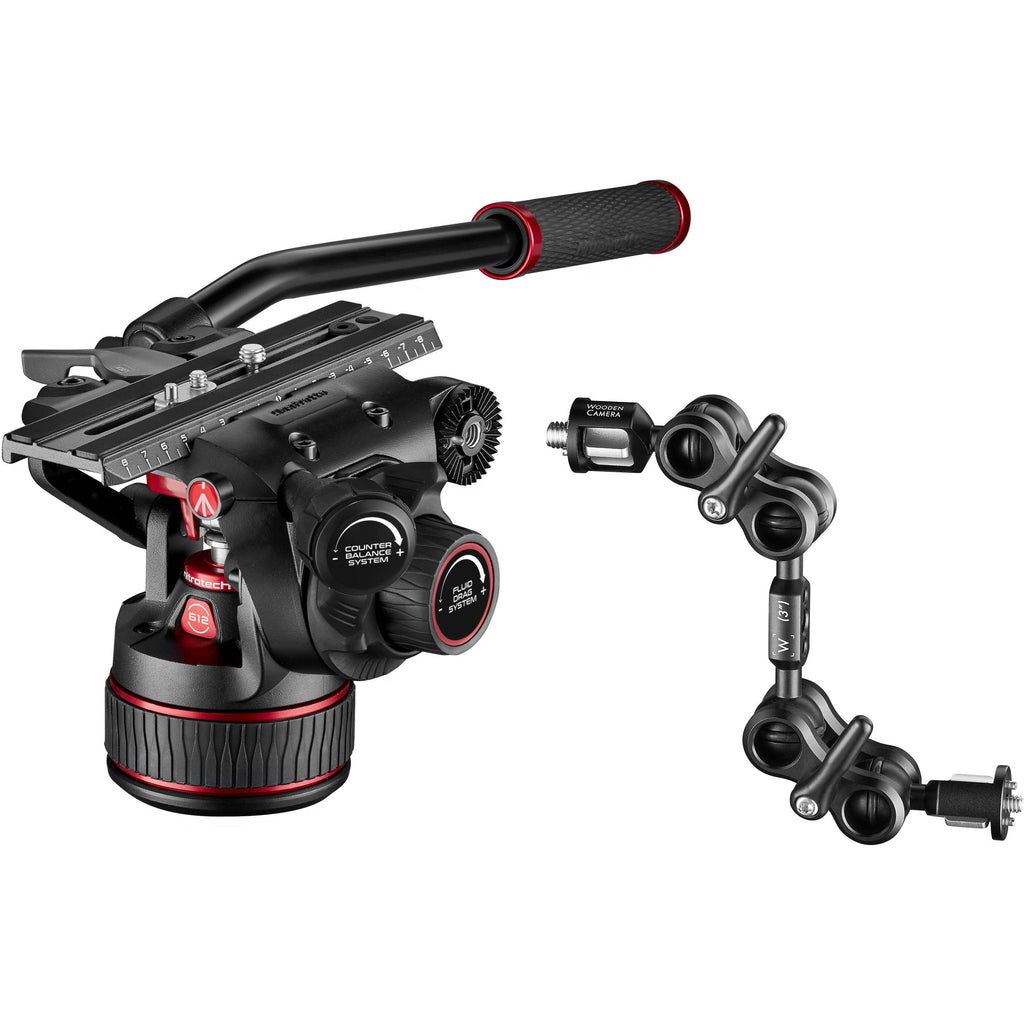

The 612 Nitrotech offers two rosette mounts for attaching the included pan bar on either the left or right side. These rosettes also feature Manfrotto's Easy Link system for mounting accessories via an articulating arm. Each rosette has a 3/8"-16 port in the center and both Manfrotto and ARRI anti-rotation slots surrounding the mounting port. The Easy Link system is designed to support Manfrotto articulating arms equipped with anti-rotation pins or those with ARRI locating pins in order to prevent twisting. At the same time, standard articulating arms can also be attached.

Other features of the 612 Nitrotech include improved resistance to lower operating temperatures in comparison to previous Nitrotech models and improved ergonomics and materials used for the different knobs.

Key Features

• Flat base with 3/8"-16 mounting thread allowing for use on tripods, sliders, jibs, monopods, and other support gear
• Nitrogen gas piston counterbalance mechanism allowing for continuous counterbalance adjustment for the full payload range of 8.8 - 26.4 lb
• Upgraded fluid technology enabling smooth and judder-free pan and tilt movements via continuously variable drag performance
• Easier, safer side lock camera plate mechanism
• Two rosette mounts with a 3/8"-16 port and Manfrotto and ARRI anti-rotation slots for attaching the included pan bar and a standard or anti-twist articulating arm
• 5.9" height

UPC: 719821443087 Manfrotto 645 FAST Twin Leg Video Tripod with Ultra L-Lock Mechanism (Carbon Fiber)

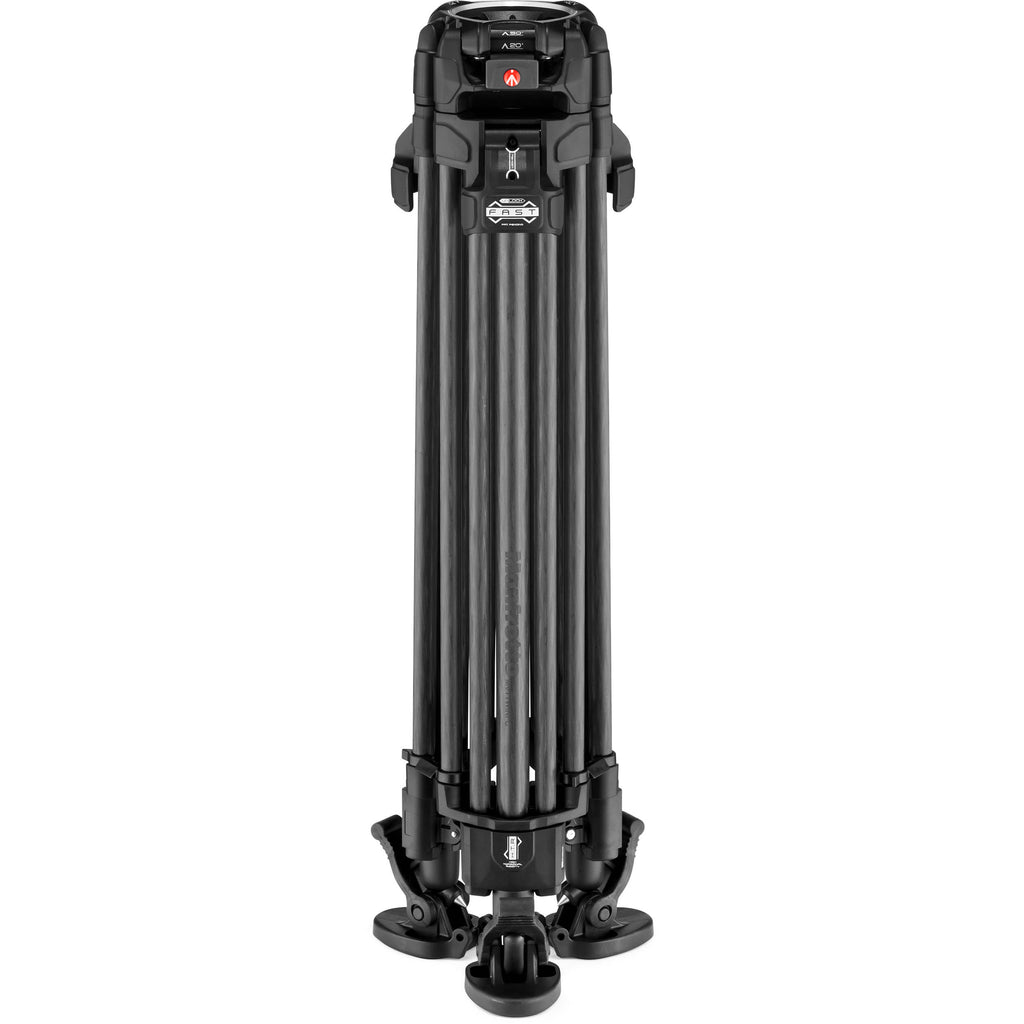

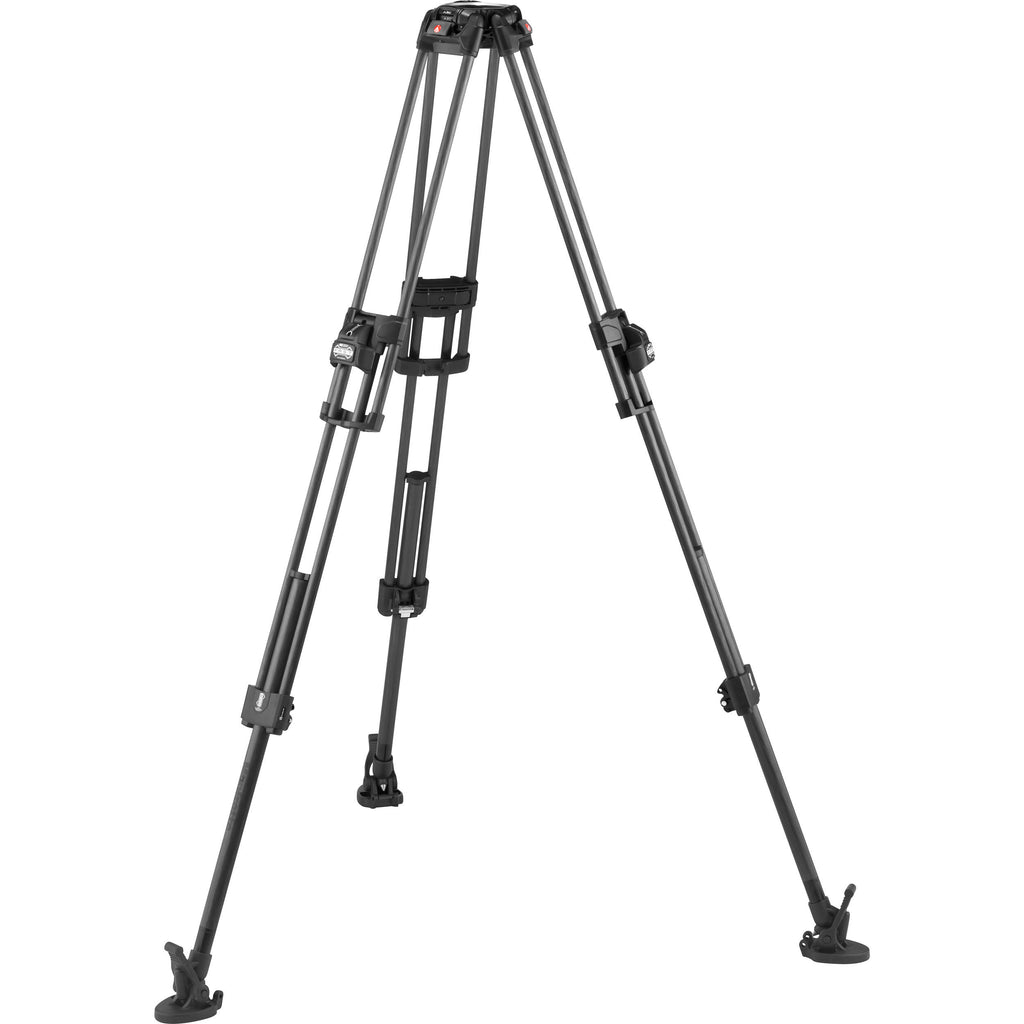

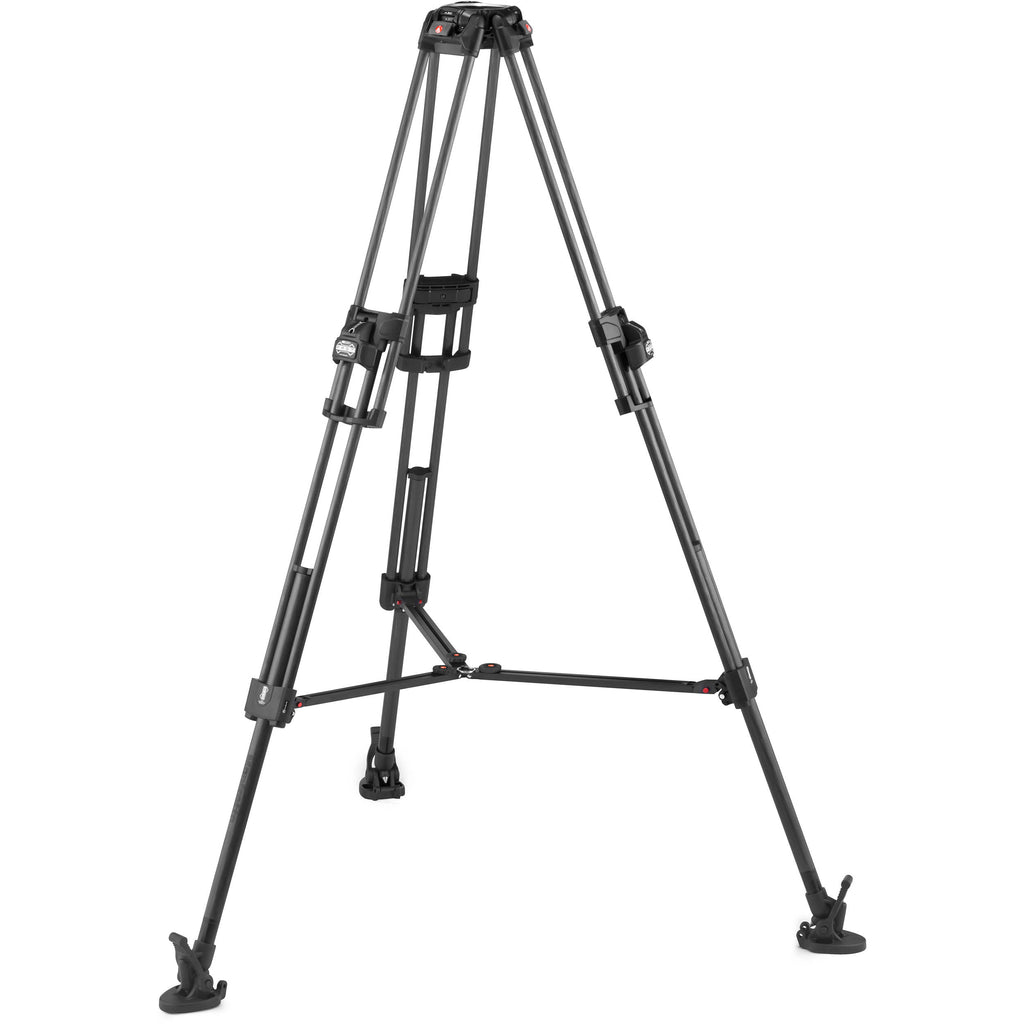

The Manfrotto 645 FAST Twin Leg Video Tripod with Ultra L-Lock Mechanism is a two-stage carbon fiber tripod with a 100mm bowl and a single leg lock mechanism for each leg. A 100 to 75mm bowl adapter is included, so you get the flexibility to use 100 or 75mm video heads. The tripod features twin spiked feet with removable rubber overshoes, allowing for use on various terrain as well as on flat, smooth surfaces. It supports up to 55 pounds and has a maximum working height of 61.8", a minimum height of 10.6", and a folded length of 28.7".

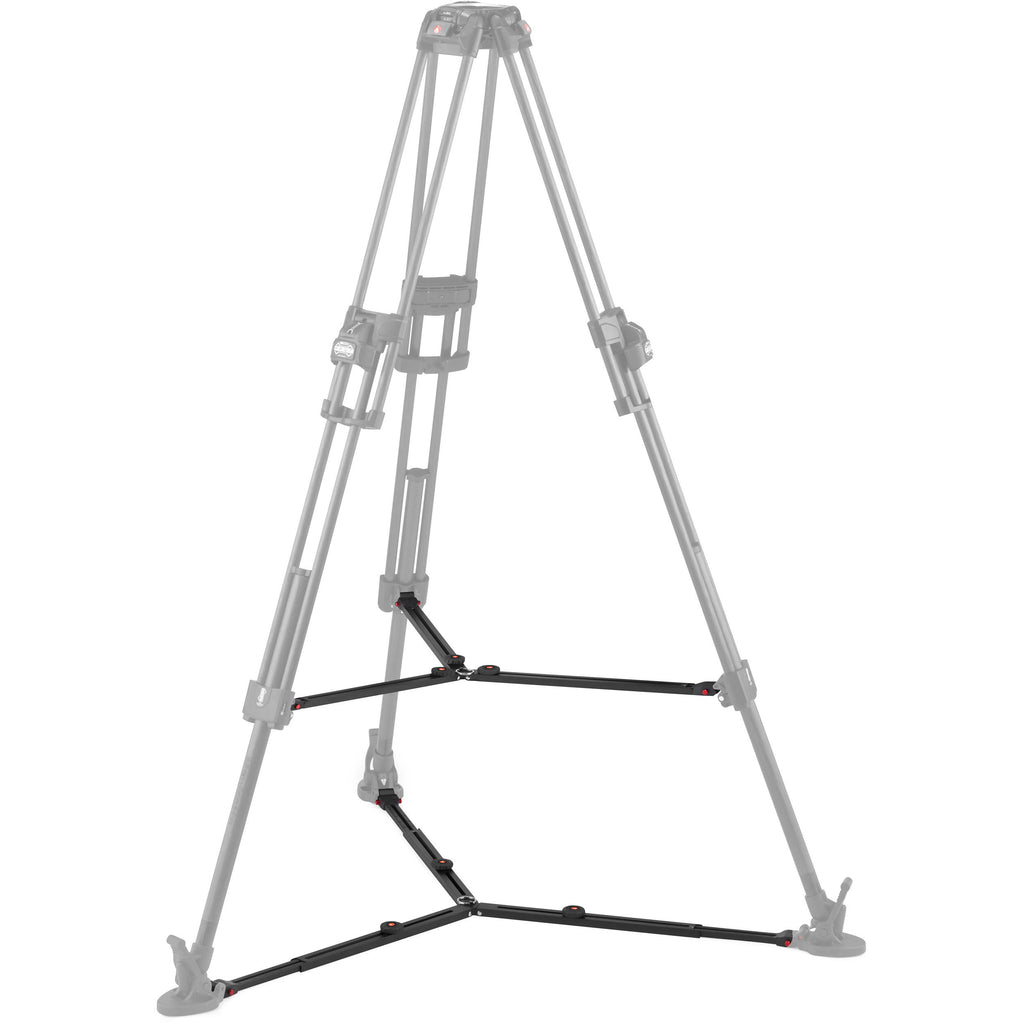

The tripod legs are selectable between free movement or having three locking leg positions so you can use the legs without a spreader. The optional Manfrotto MVASPR2N1 2-in-1 spreader can be attached if desired.

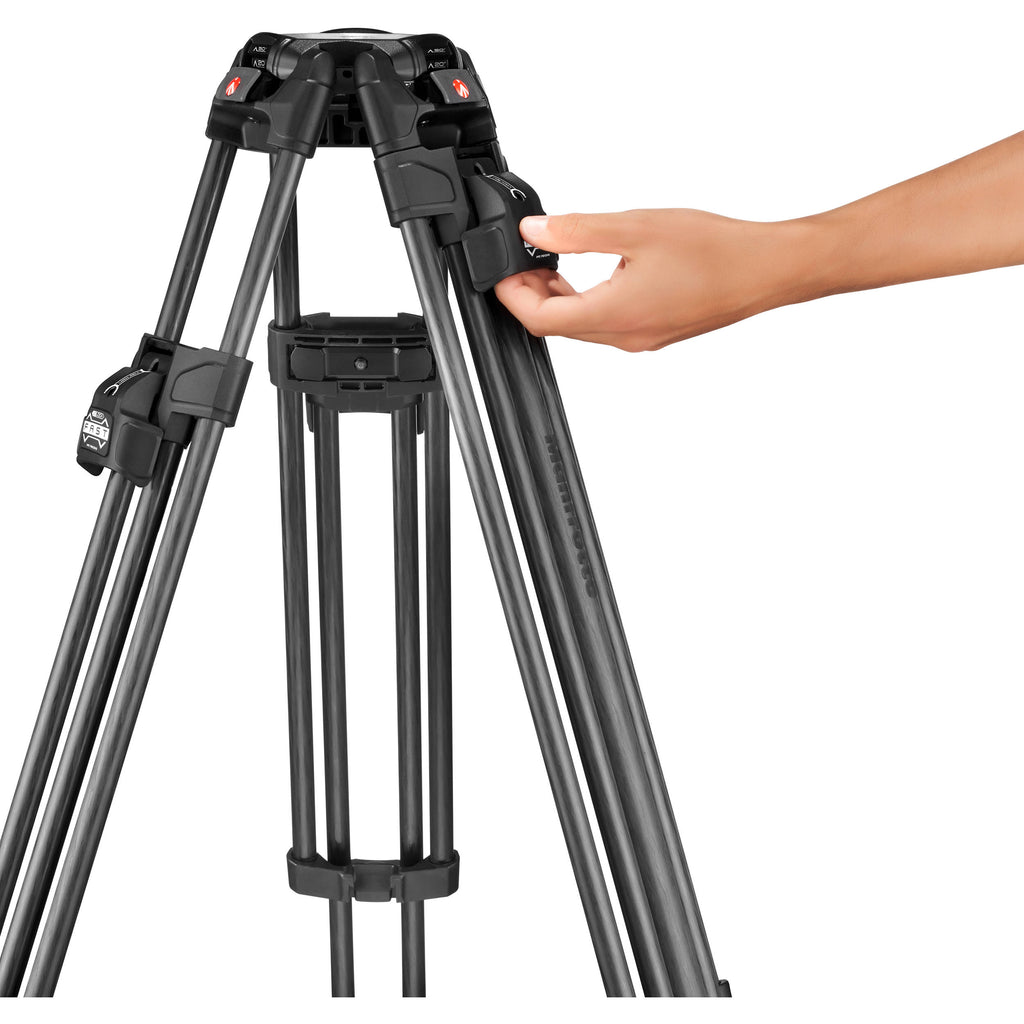

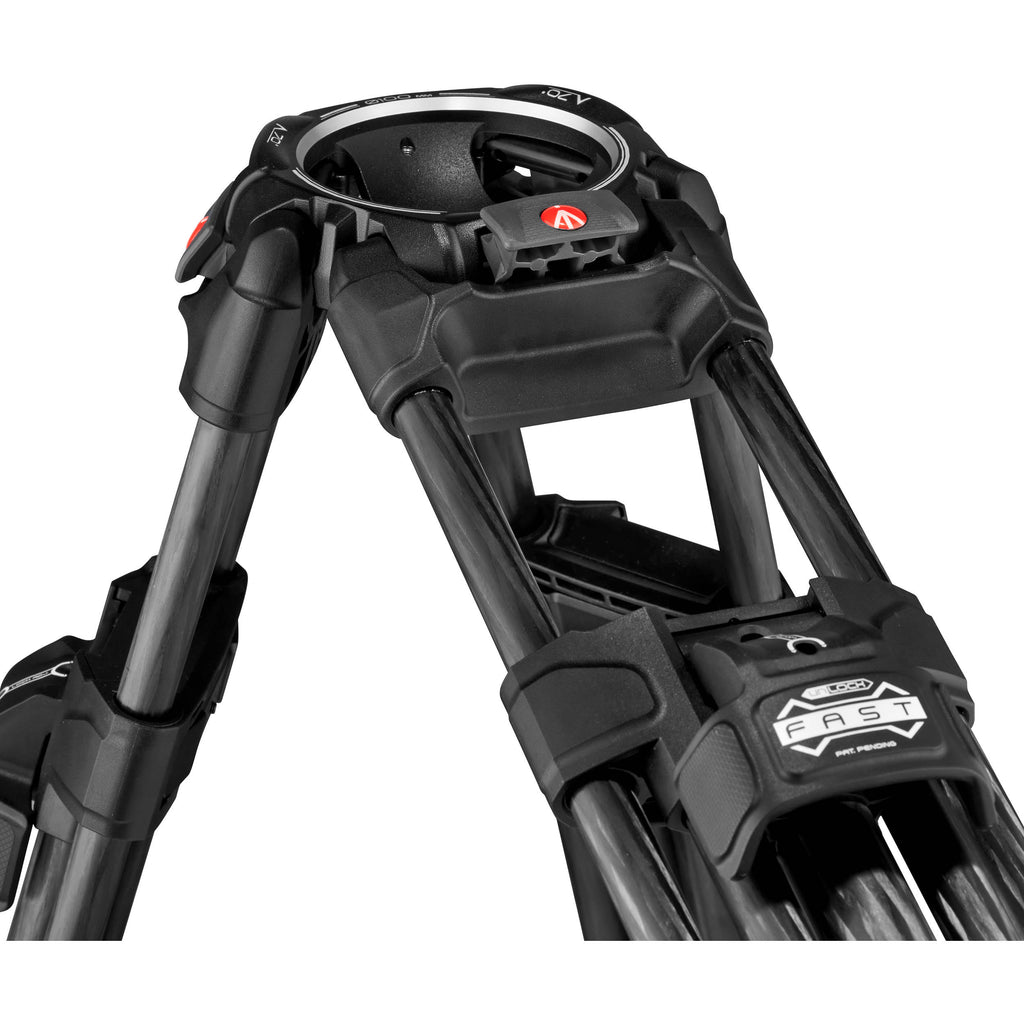

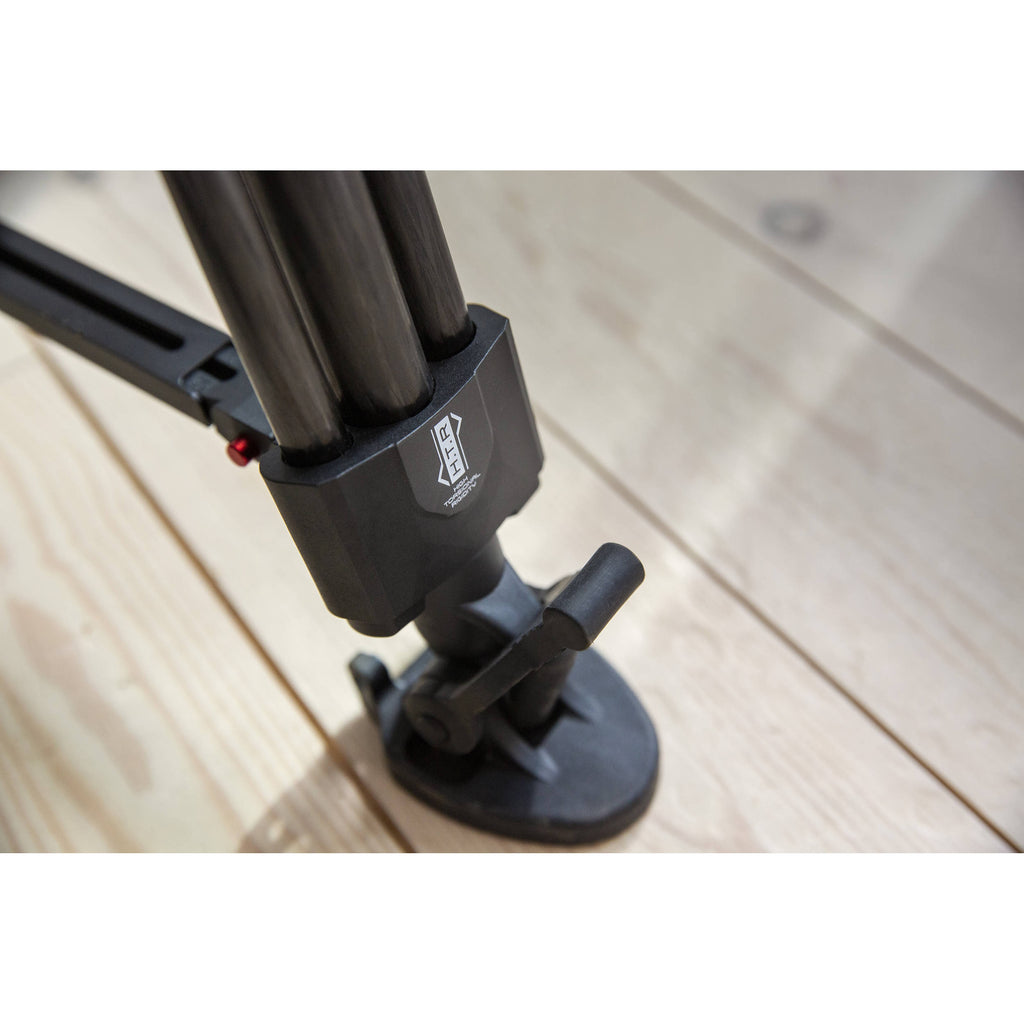

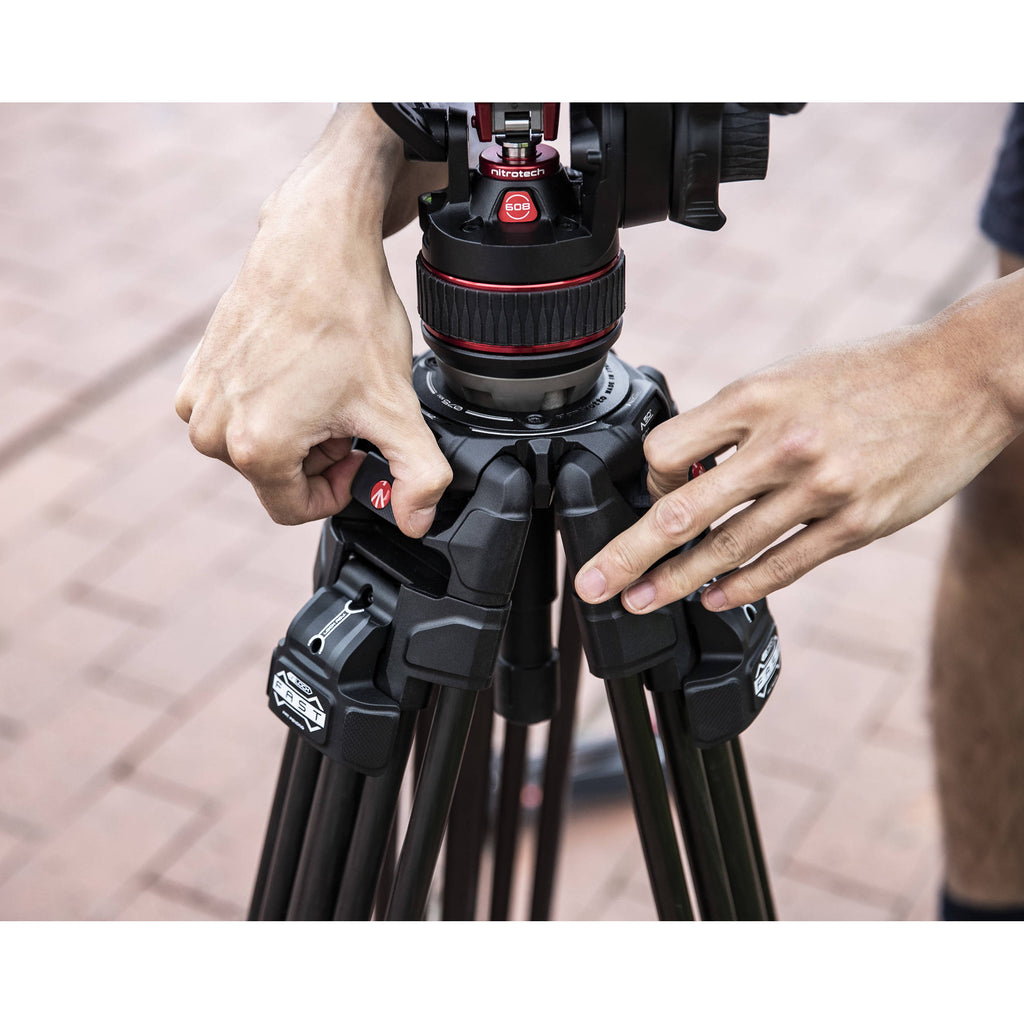

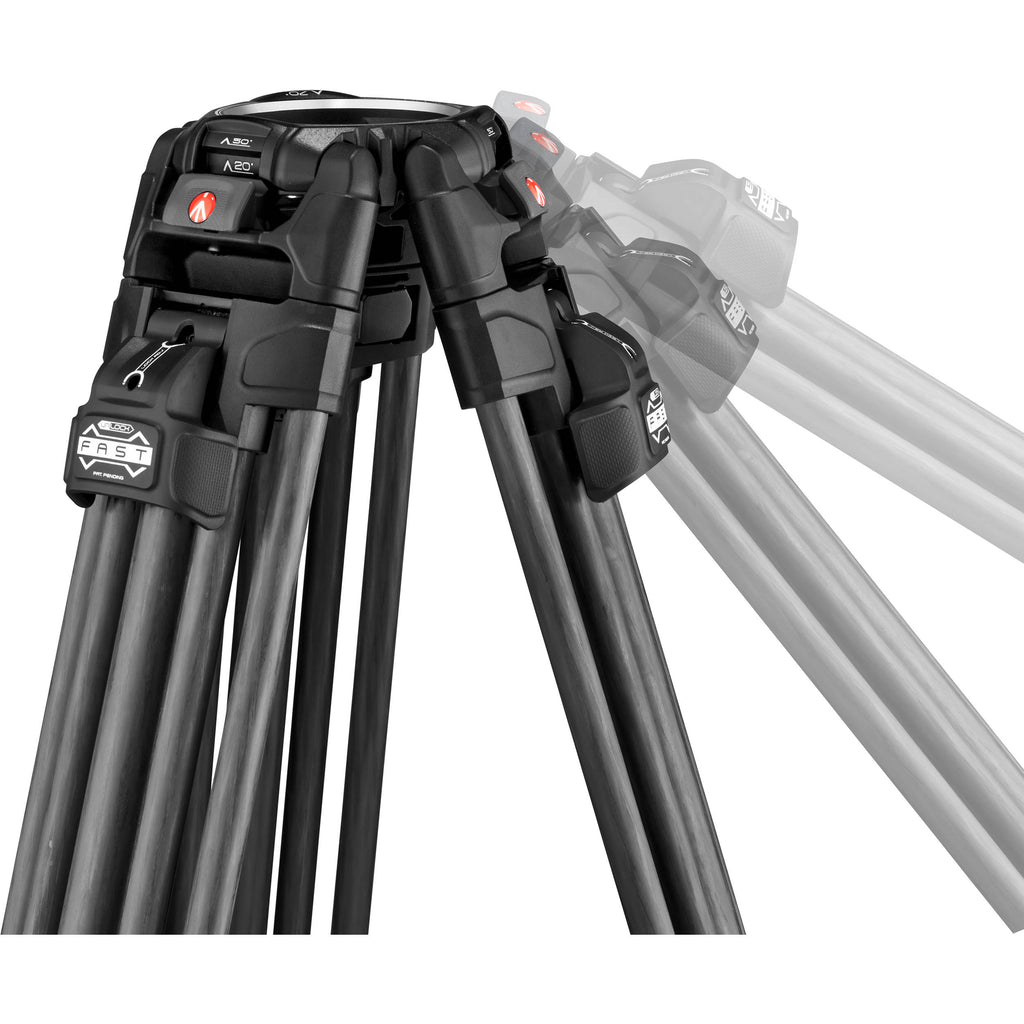

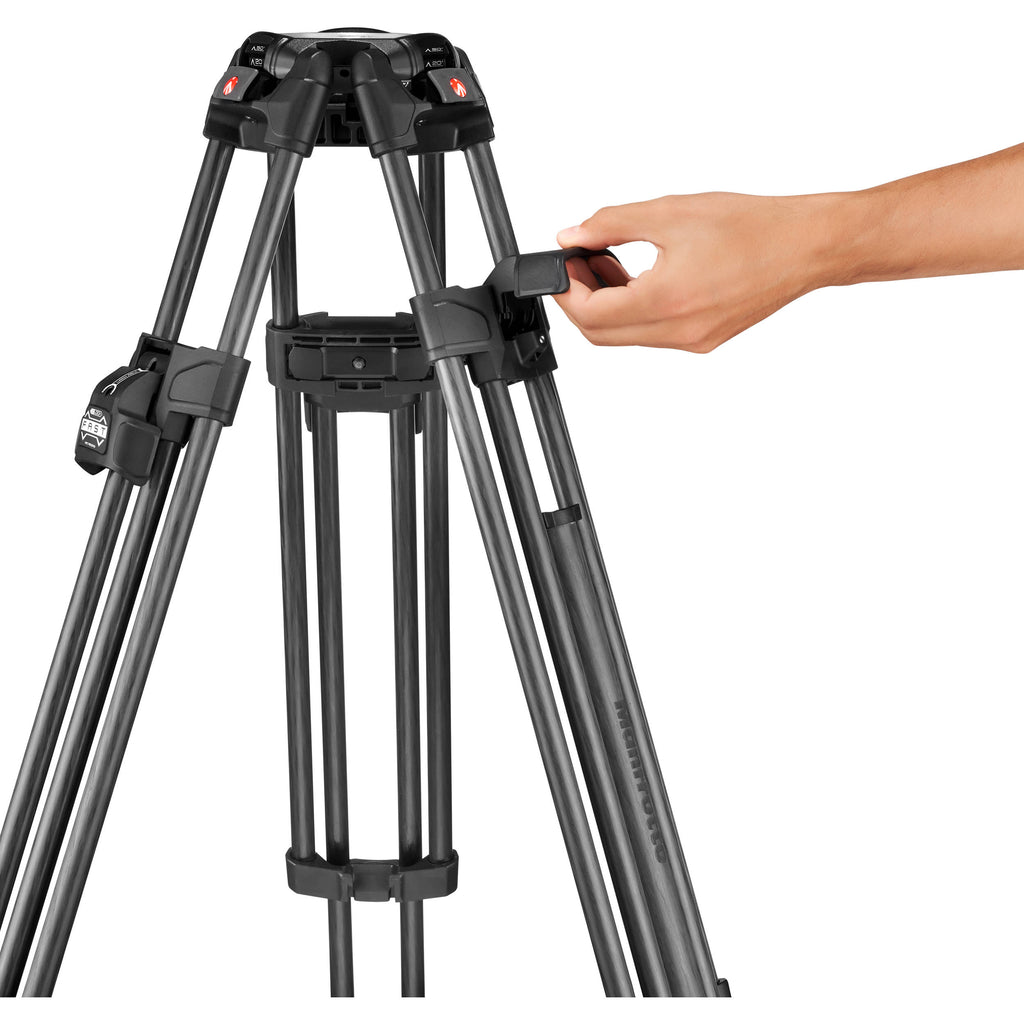

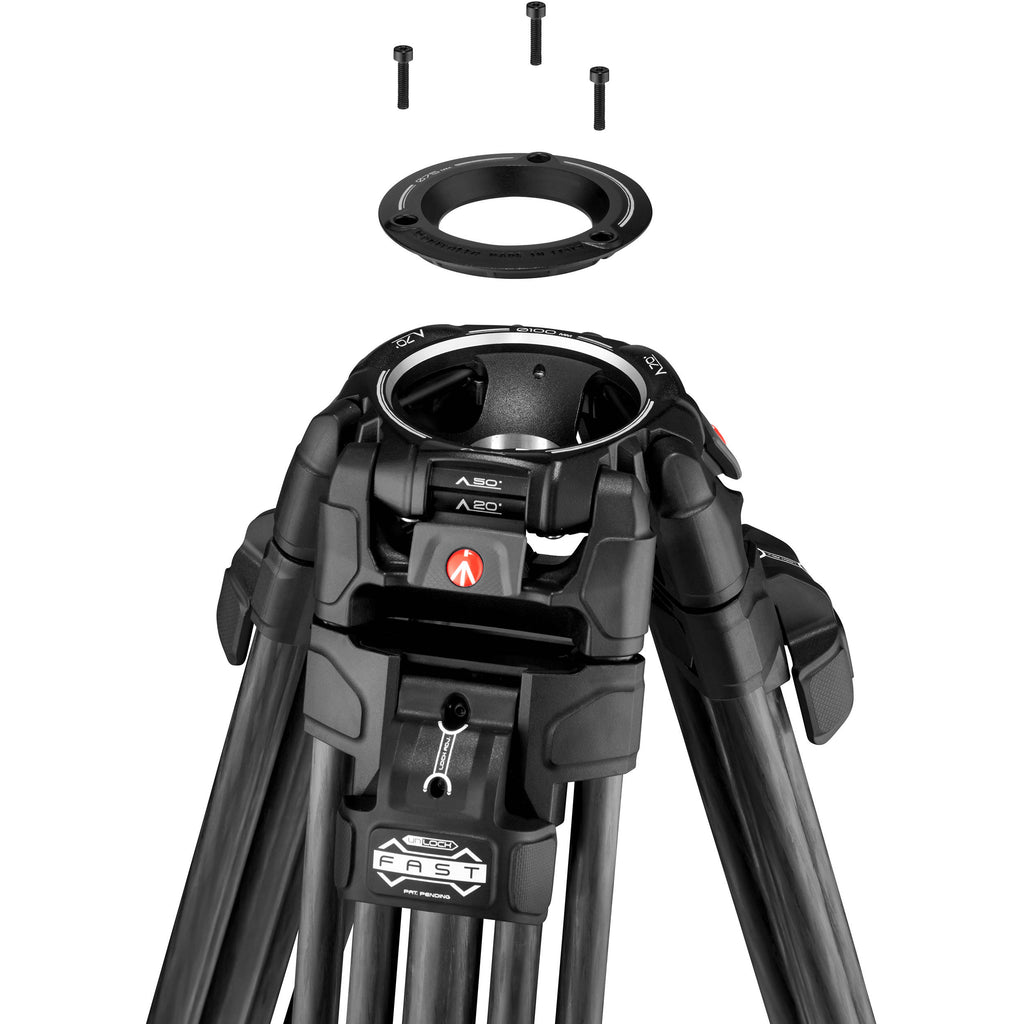

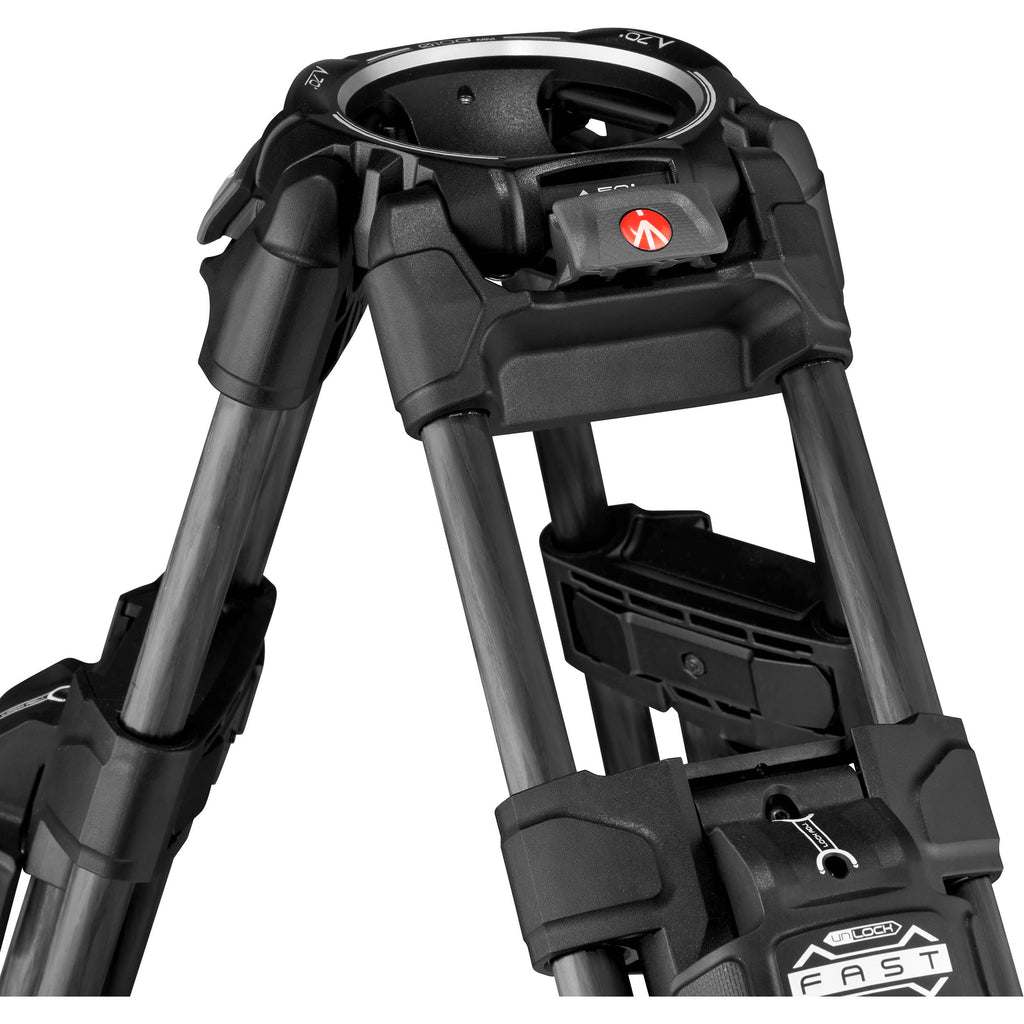

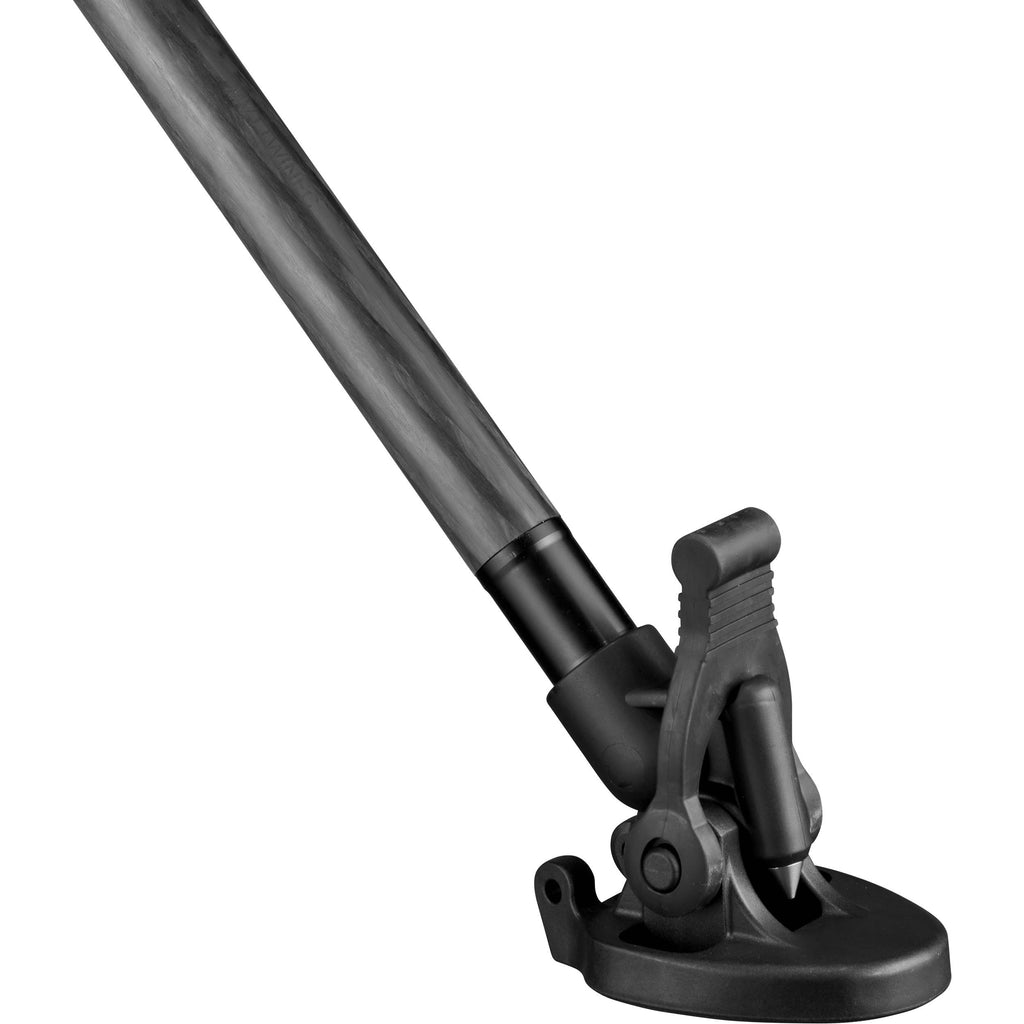

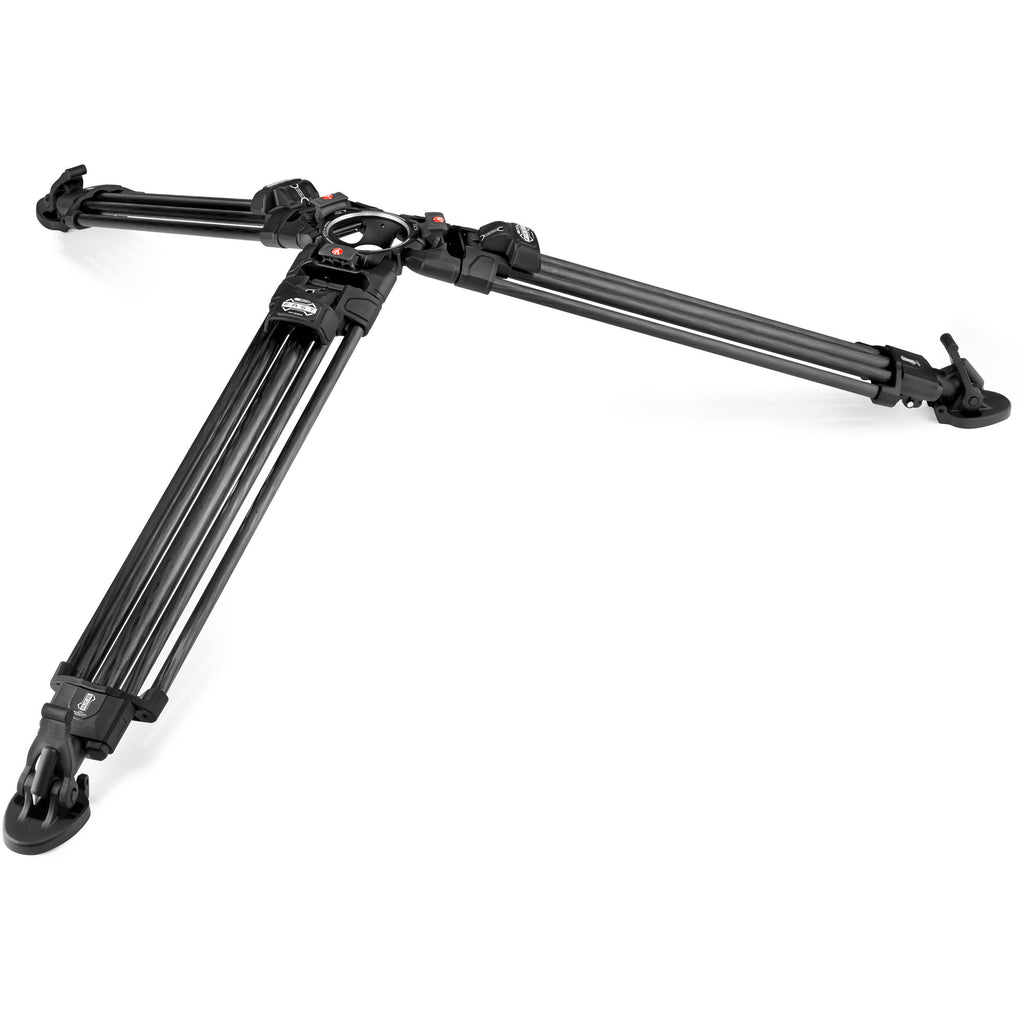

Leg Locks The legs feature Manfrotto's Ultra-L Lock for the Twin FAST tripod legs. This allows you to lock and unlock both leg stages using only one locking lever located at the top of each leg, so you don't have to bend down to unlock the legs. Spreader or Spreaderless The legs incorporate a locking mechanism that enables the legs to move completely freely, suitable when working with a spreader, or to lock at one of three angles, 70, 50, and 20°, which is suitable for use when working without a spreader. Rubber Feet You can use the included rubber feet to protect delicate surfaces from the tripod's foot spikes. 100 to 75mm Bowl Adapter The legs feature a 100mm bowl and include a 100 to 75mm bowl adapter. This provides the flexibility to use a video head with either a 100 or 75mm leveling ball. UPC: 719821446484

Camera Plate Features	Quick Release
Camera Mounting Screw	1 x 1/4"-20 Male with Locating Pin

Base Mount

3/8"-16 Female

Drag Control	Pan: Continuous Tilt: Continuous
Drag Type	Fluid
Vertical Tilt	+90° to -70°
Panning Range	360°

Load Capacity	8.8 to 26.4 lb / 3.99 to 11.97 kg at CoG 2.17" / 55 mm
Counter Balance	Continuous (8.8 to 26.4 lb / 3.99 to 11.97 kg)
Pan Handle Fittings	2 x Rosette

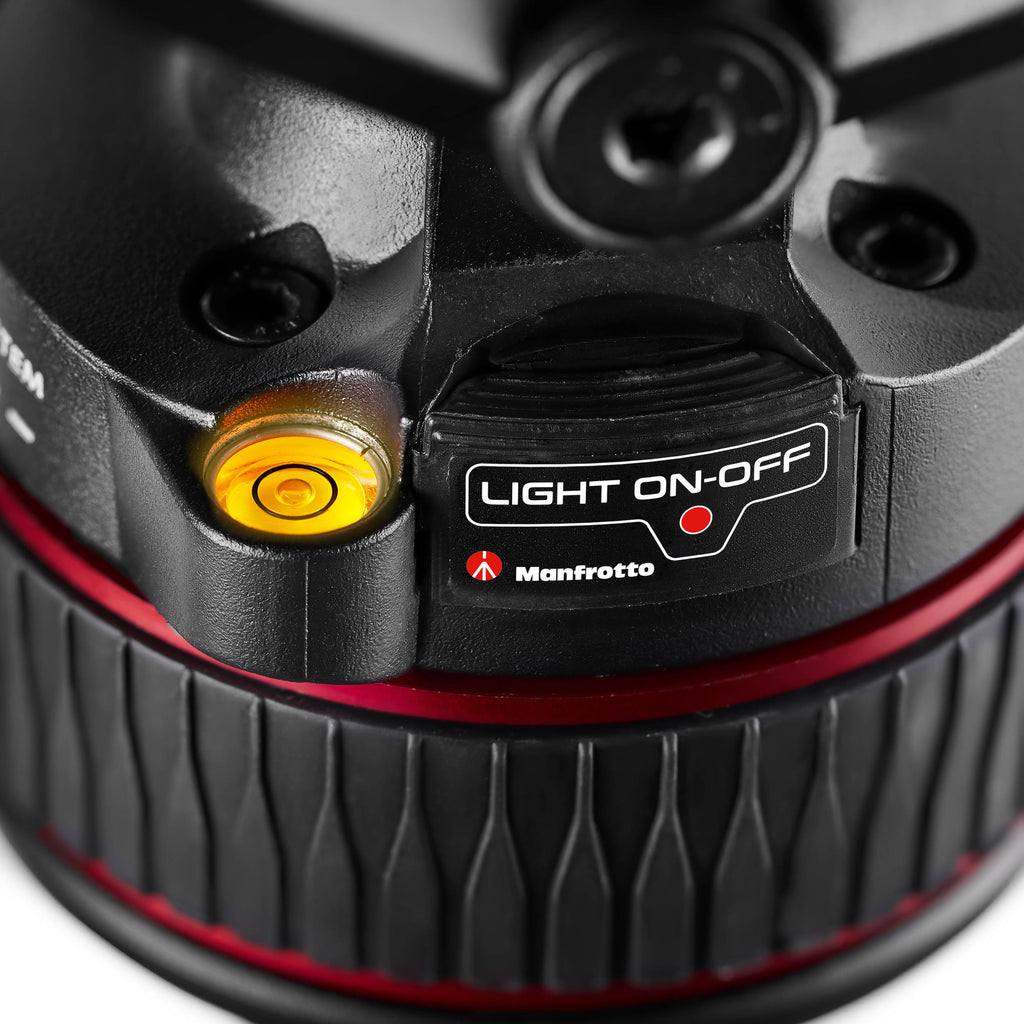

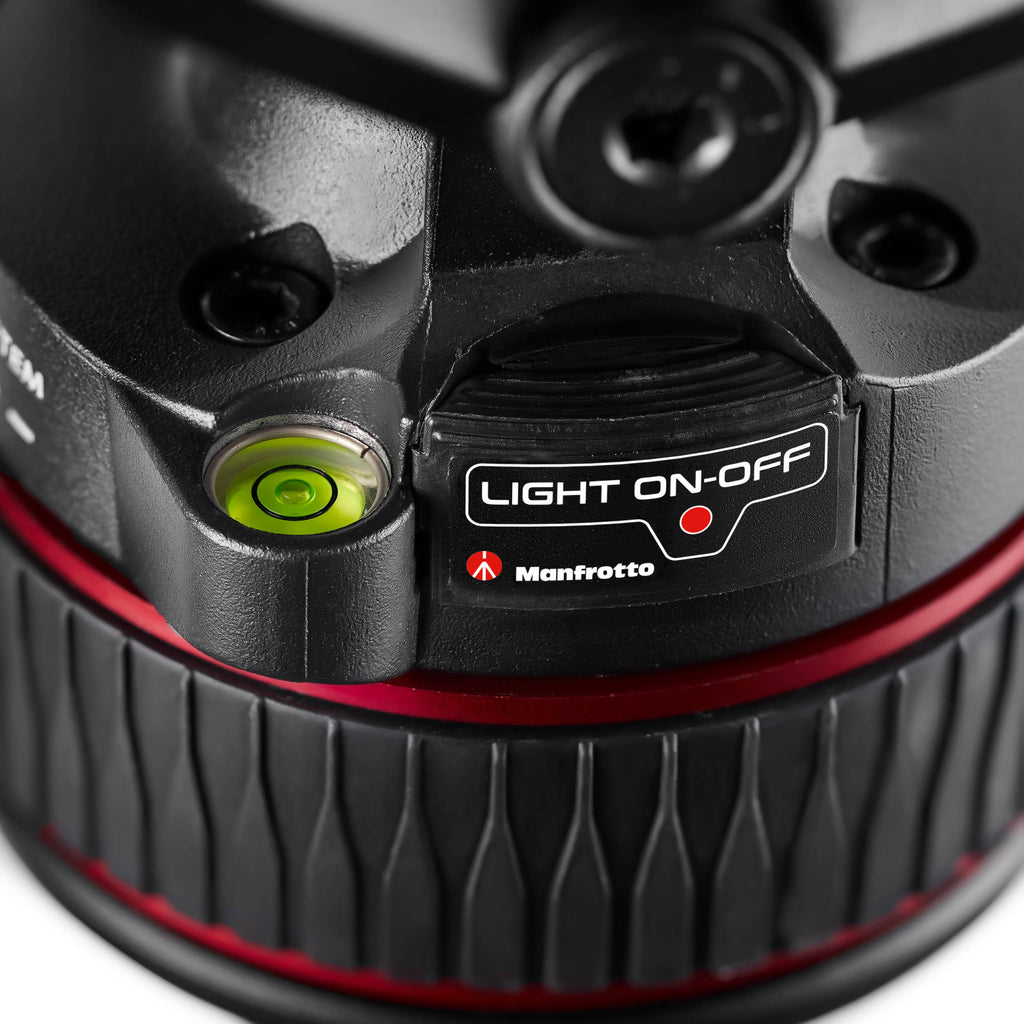

Bubble Level	1 x Illuminated
Accessory Mounting	2 x 3/8"-16 Female Thread
Operating Temperature	-4 to 122°F / -20 to 50°C
Weight	5 lb / 2.27 kg

Package Weight	6.5 lb
Box Dimensions (LxWxH)	30 x 20 x 9"

Head Mount Type	100 mm Bowl
Load Capacity	55 lb / 24.95 kg
Maximum Working Height	61.8" / 156.97 cm
Minimum Working Height	10.6" / 26.92 cm
Folded Length	28.7" / 72.90 cm
Materials	Carbon Fiber
Weight	7.9 lb / 3.58 kg

Leg Lock Type	Lever Lock
Leg Positions	Locking 3 Positions and Continuously Adjustable
Independent Leg Spread	Yes
Leg Sections	3
Leg Diameter	0.63" / 16 mm 0.98" / 25 mm
Feet Features	Rubber, Dual Spiked
Spreader	Mid-Level, Ground (Not Included)

Package Weight	10.33 lb
Box Dimensions (LxWxH)	31.1 x 8.9 x 7.9"
