Manfrotto Nitrotech 608 Fluid Head with 635 FAST Single Leg Carbon Fiber Tripod

Nitrotech 608 Fluid Head

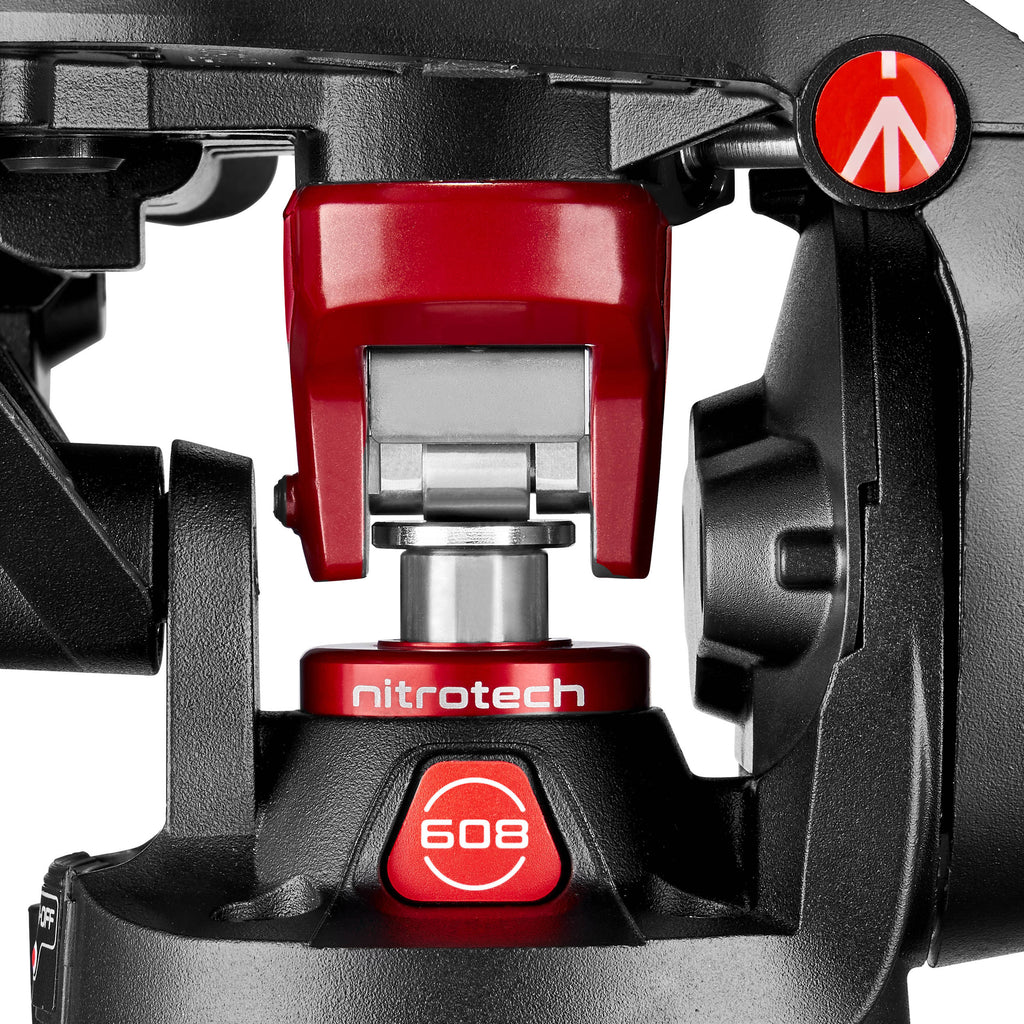

Nitrogen Piston Counterbalance Mechanism

FAST Single Tube Carbon Fiber Legs

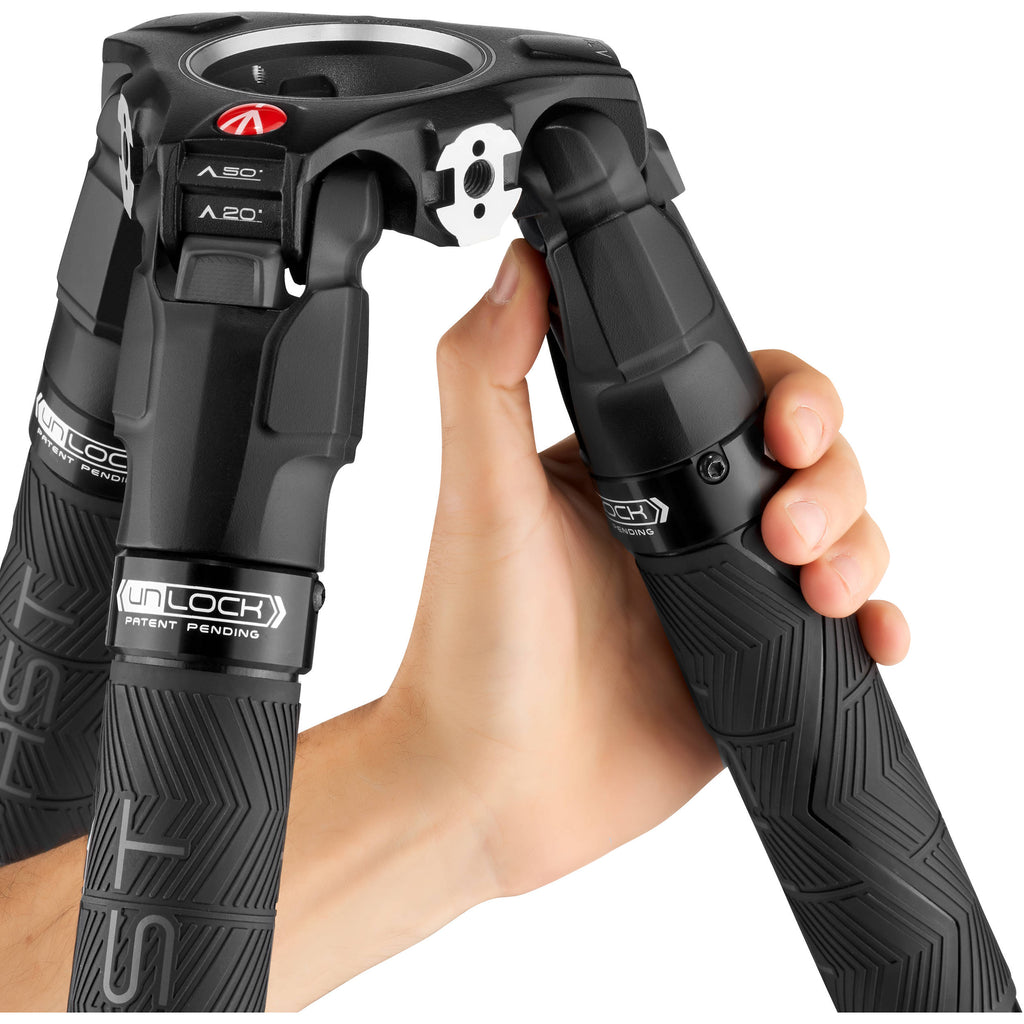

Synchronized Twist-Lock Leg Locks

FAST Tripods - Lifestyle FAST TRIPODS - 635 Tutorial Video Nitrotech 600 series � Tutorial video

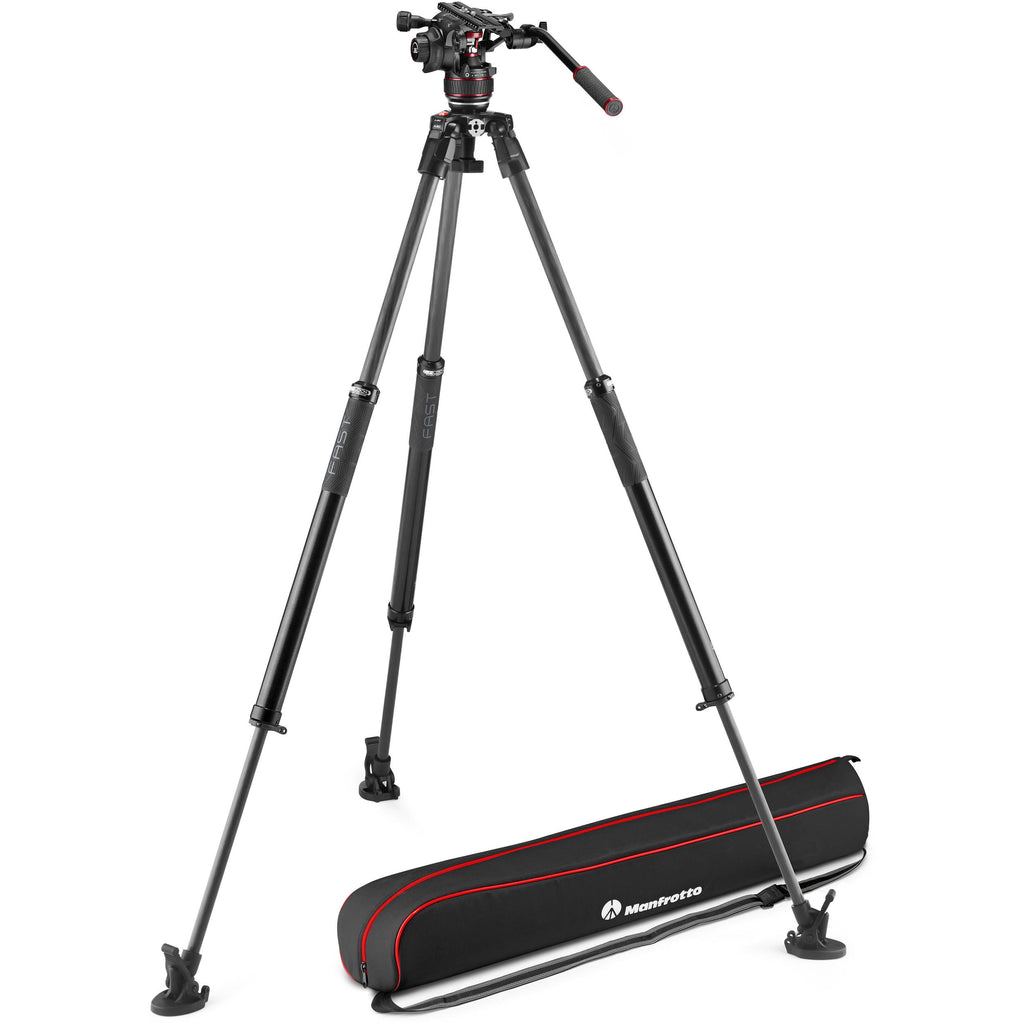

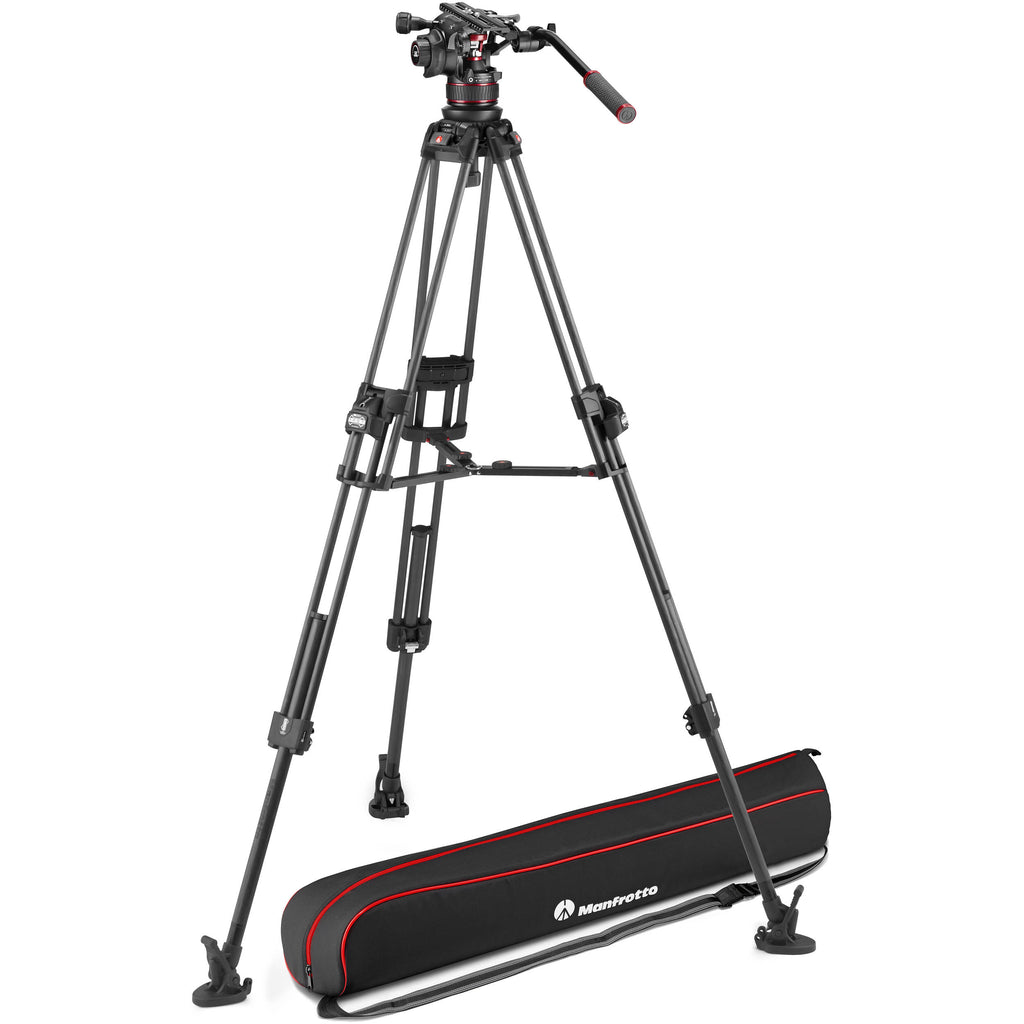

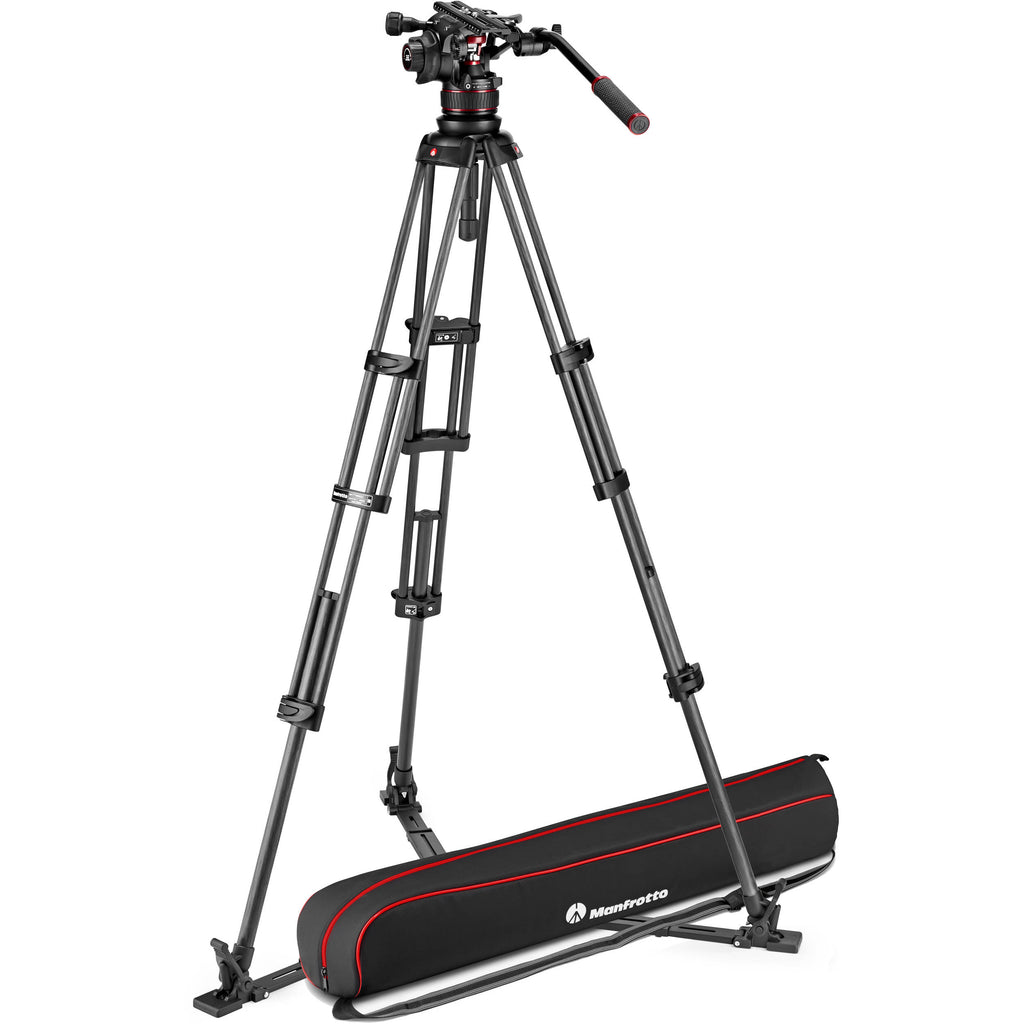

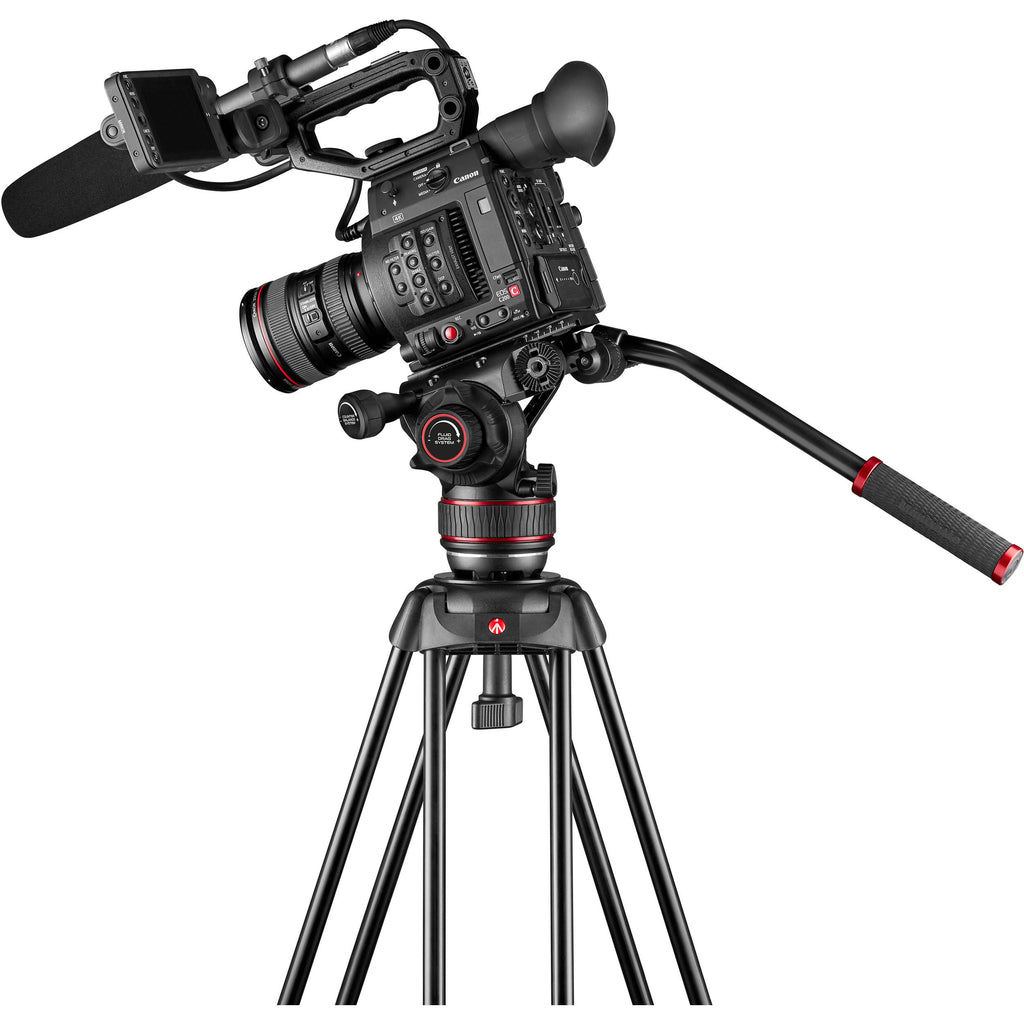

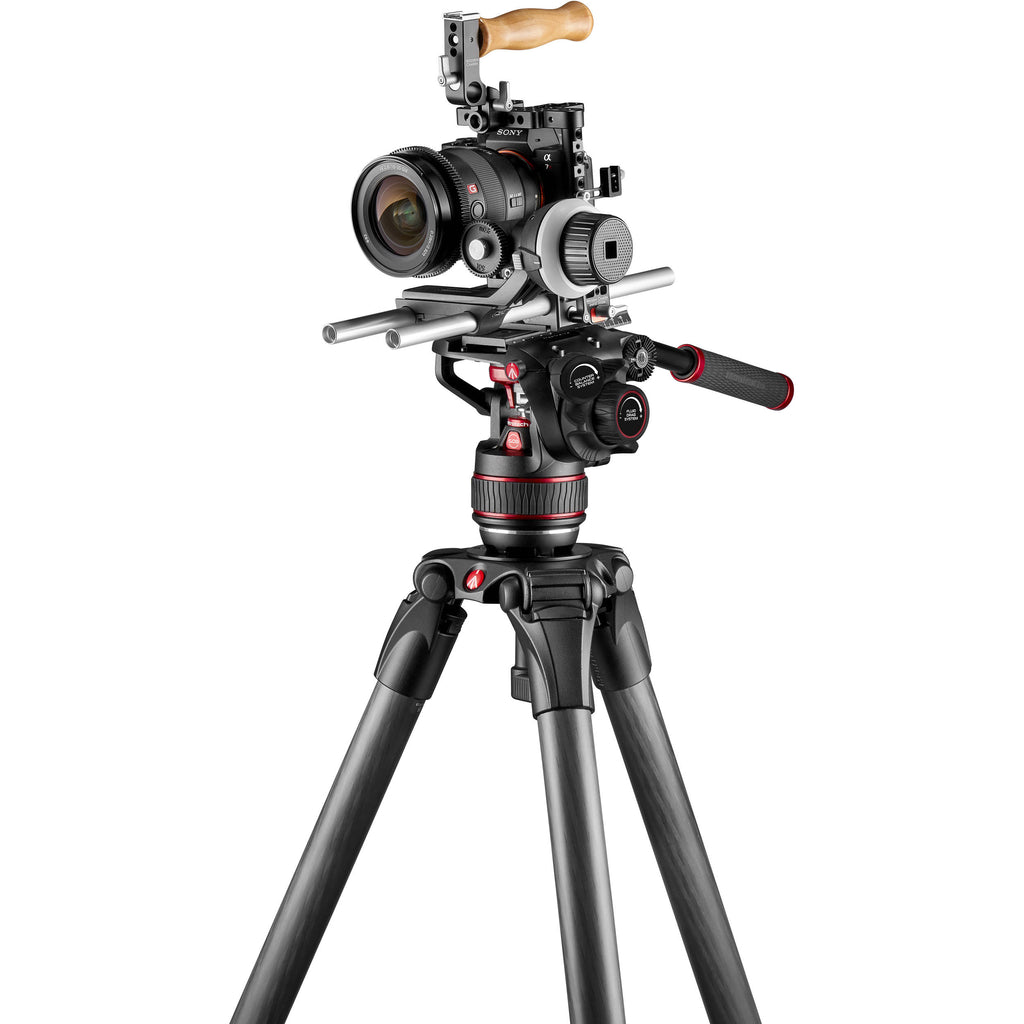

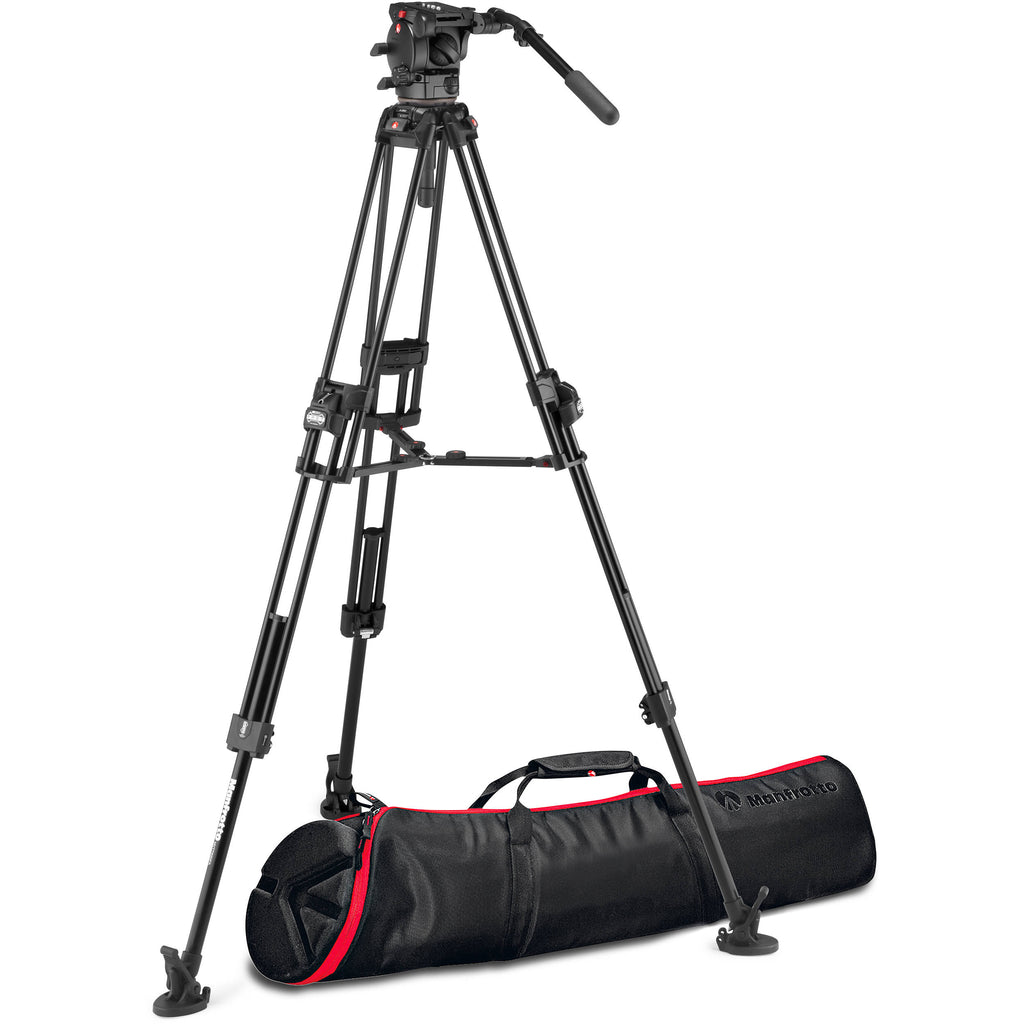

The Manfrotto Nitrotech 608 Fluid Head with 635 FAST Single Leg Carbon Fiber Tripod is a tripod system that includes a Nitrotech 608 head, single-tube carbon fiber tripod legs, and a carry bag. This flat-base fluid head can mount on either a flat-fitting or a 100mm bowl, and the innovative design elements of the Nitrotech head make for a smooth operating fluid head with control surfaces that don't take you out of operating the shot.

The included legs are made from strong, yet lightweight and corrosion-resistant carbon fiber. The single-tube legs feature synchronized twist-lock leg locks that allow you to release the locks on the top and bottom leg sections with only a single twist. This makes for fast setup and breakdown. The legs feature independent leg spread, with three preset locking positions, spiked feet, and included rubber feet. The legs don't require the use of a spreader to create a stable shooting platform, but they are compatible with optional mid-level and ground spreaders. Rounding out the system is the included carry bag for storing and transporting the head and legs.

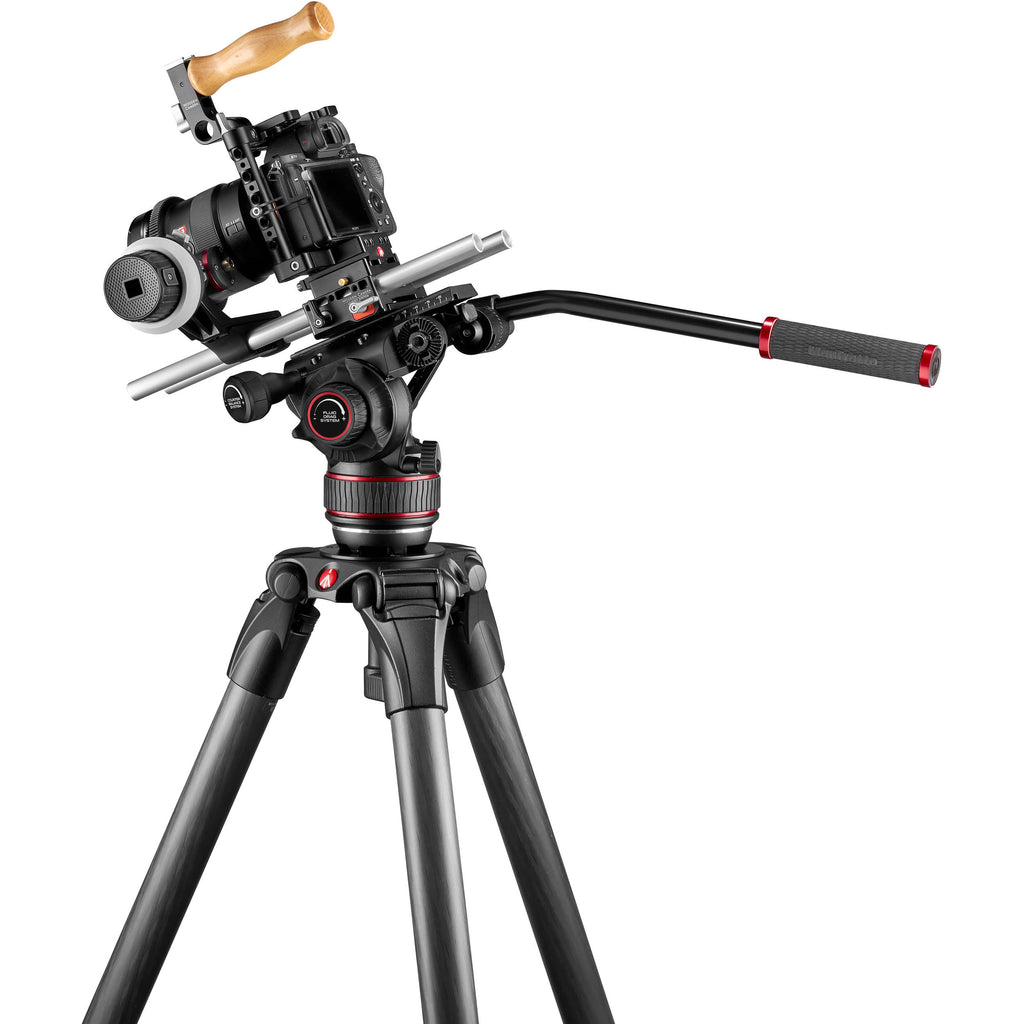

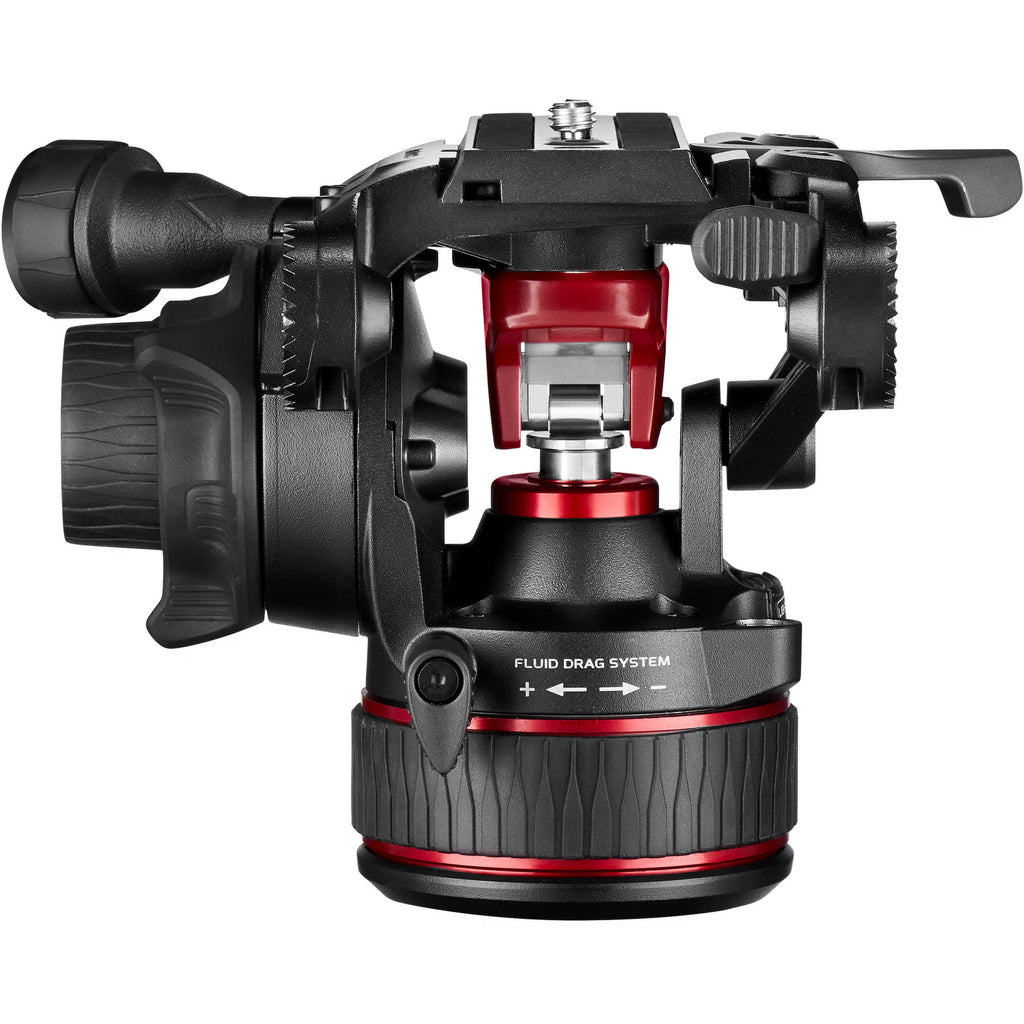

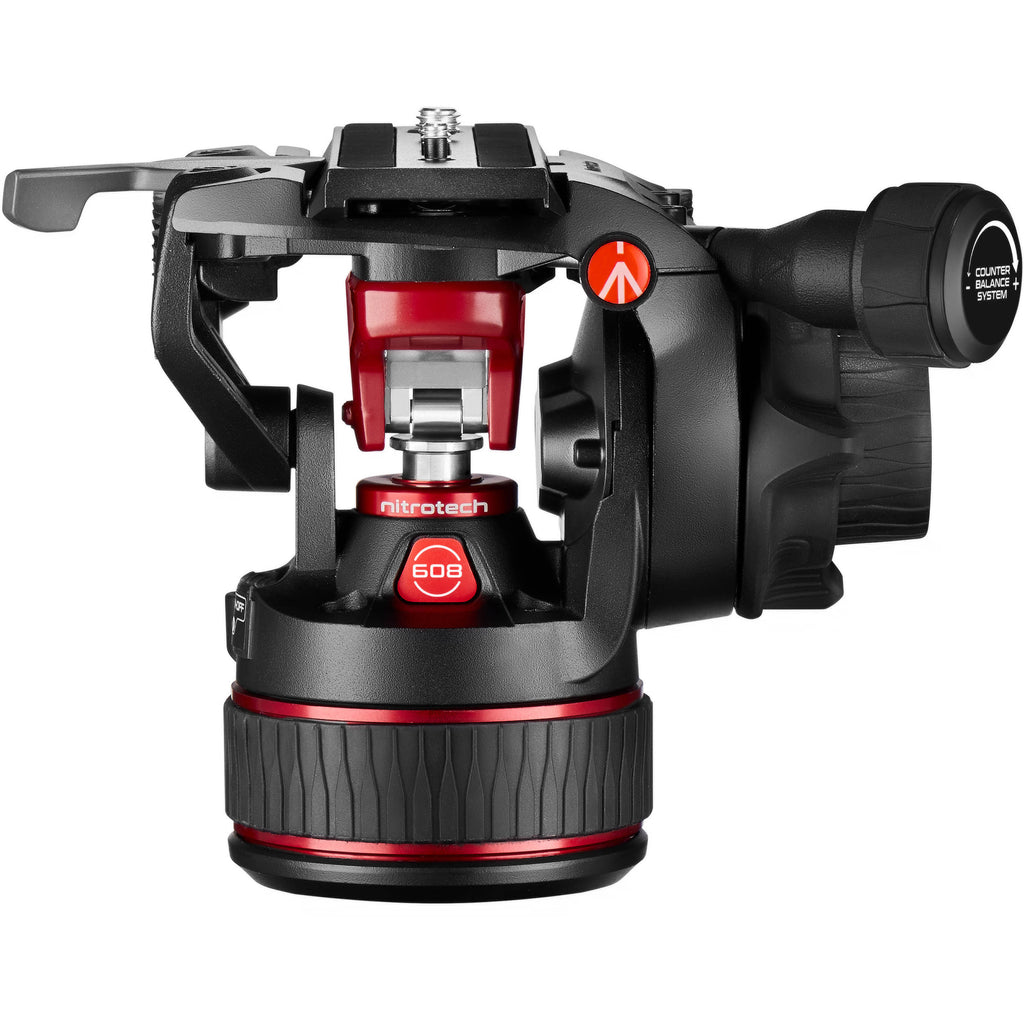

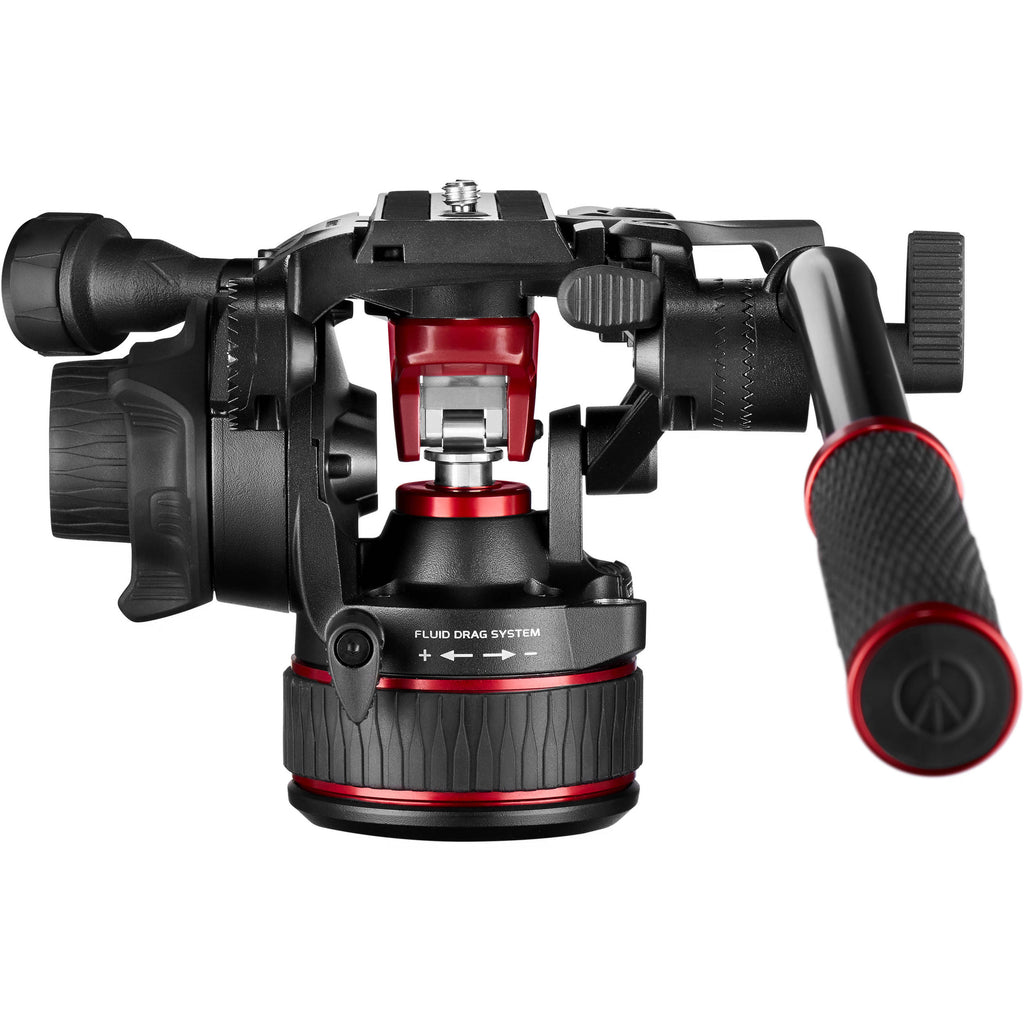

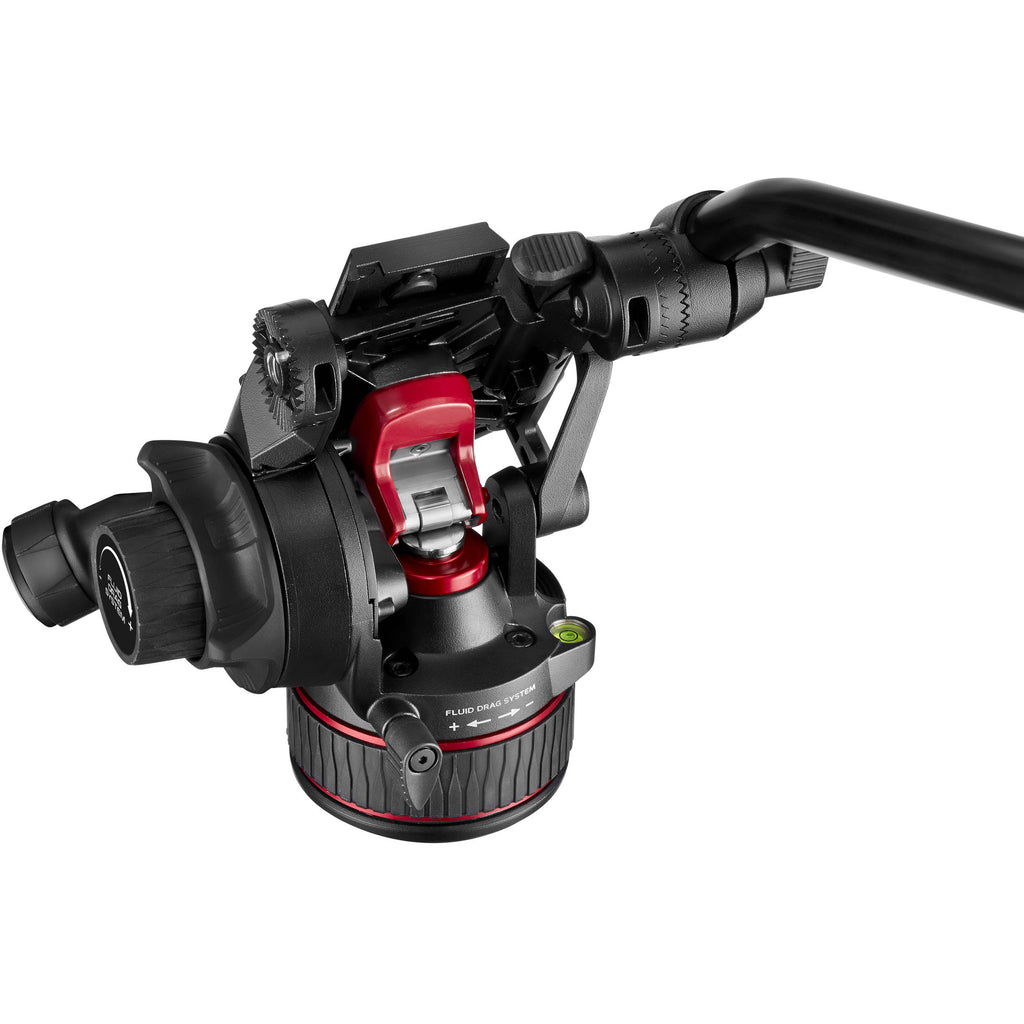

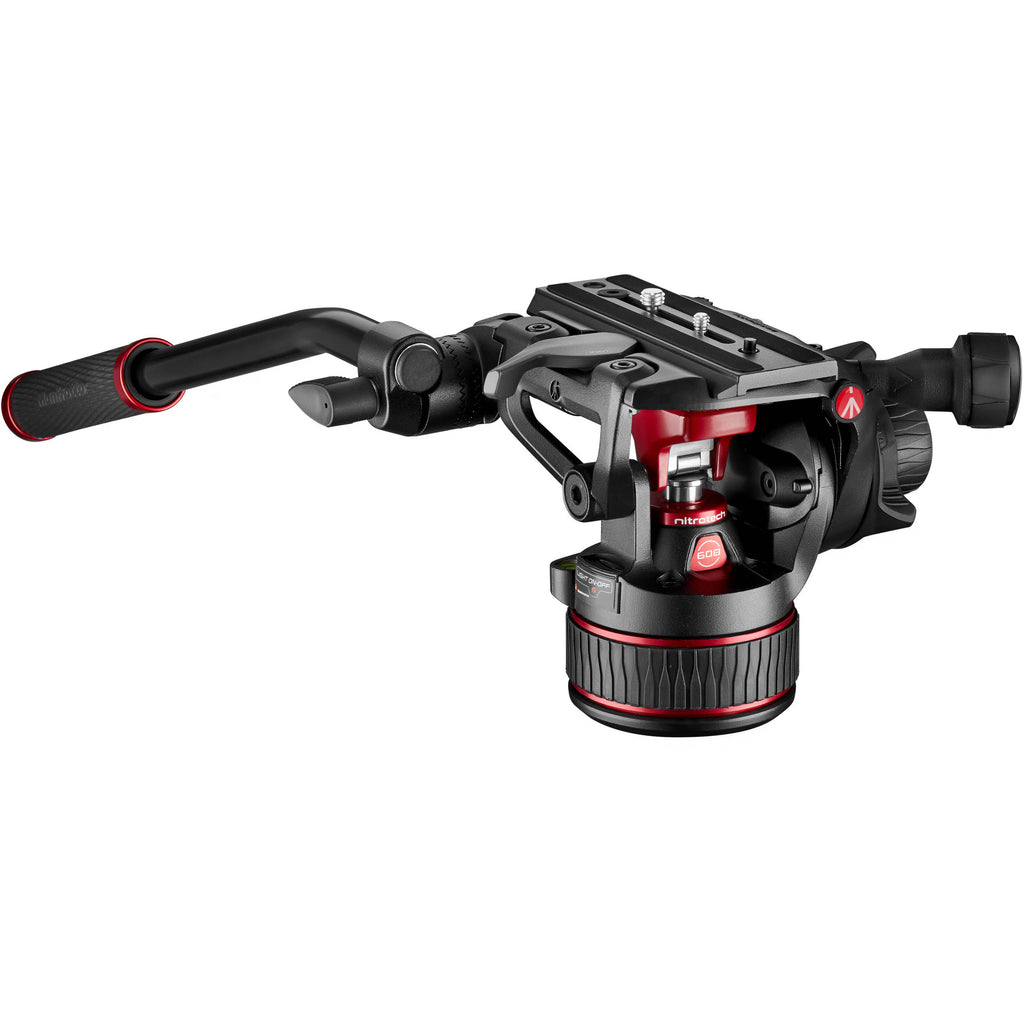

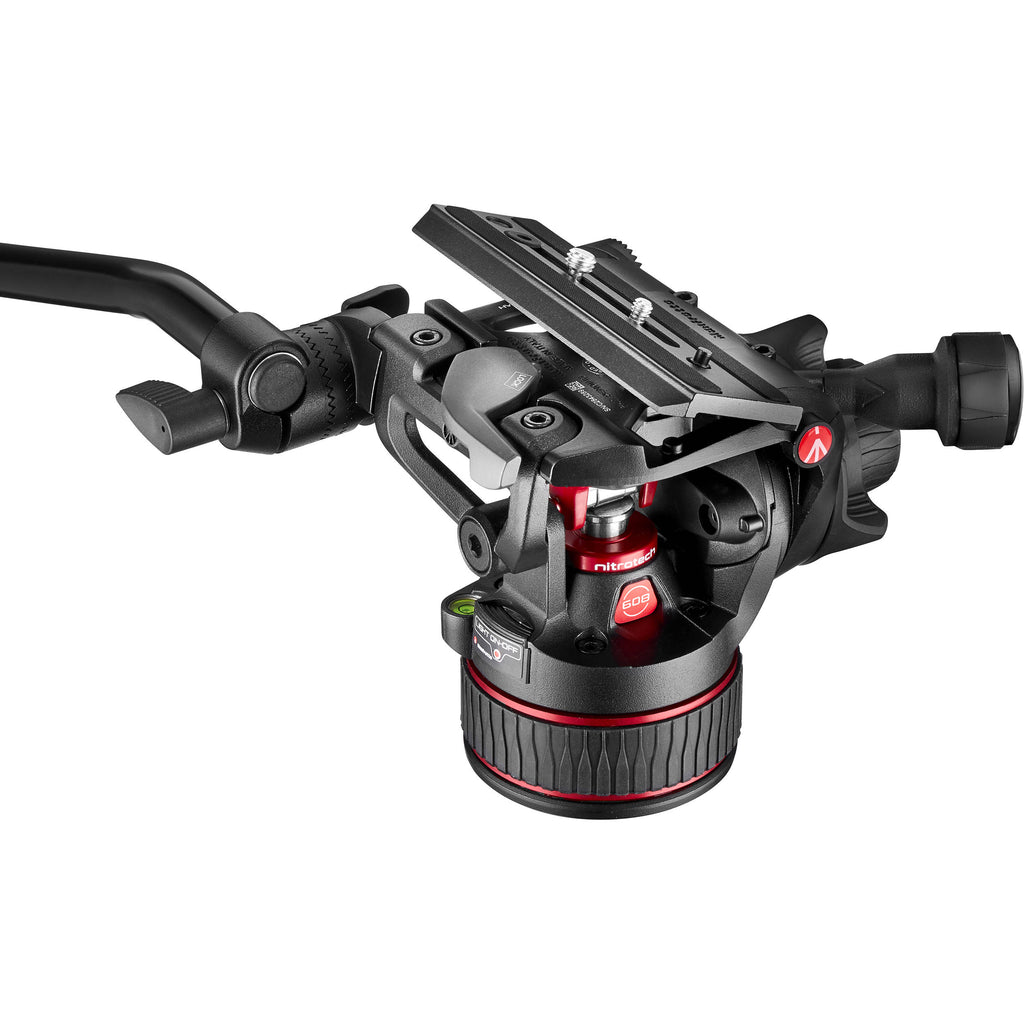

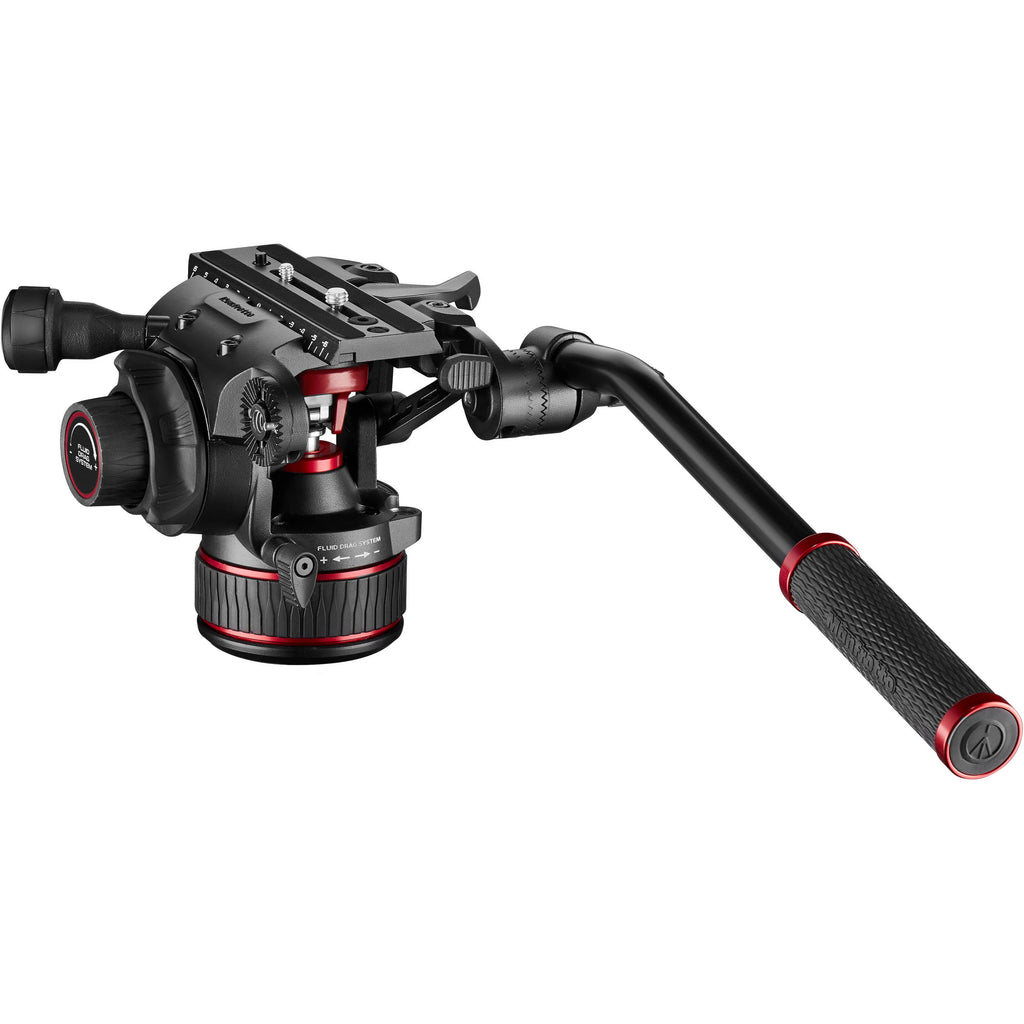

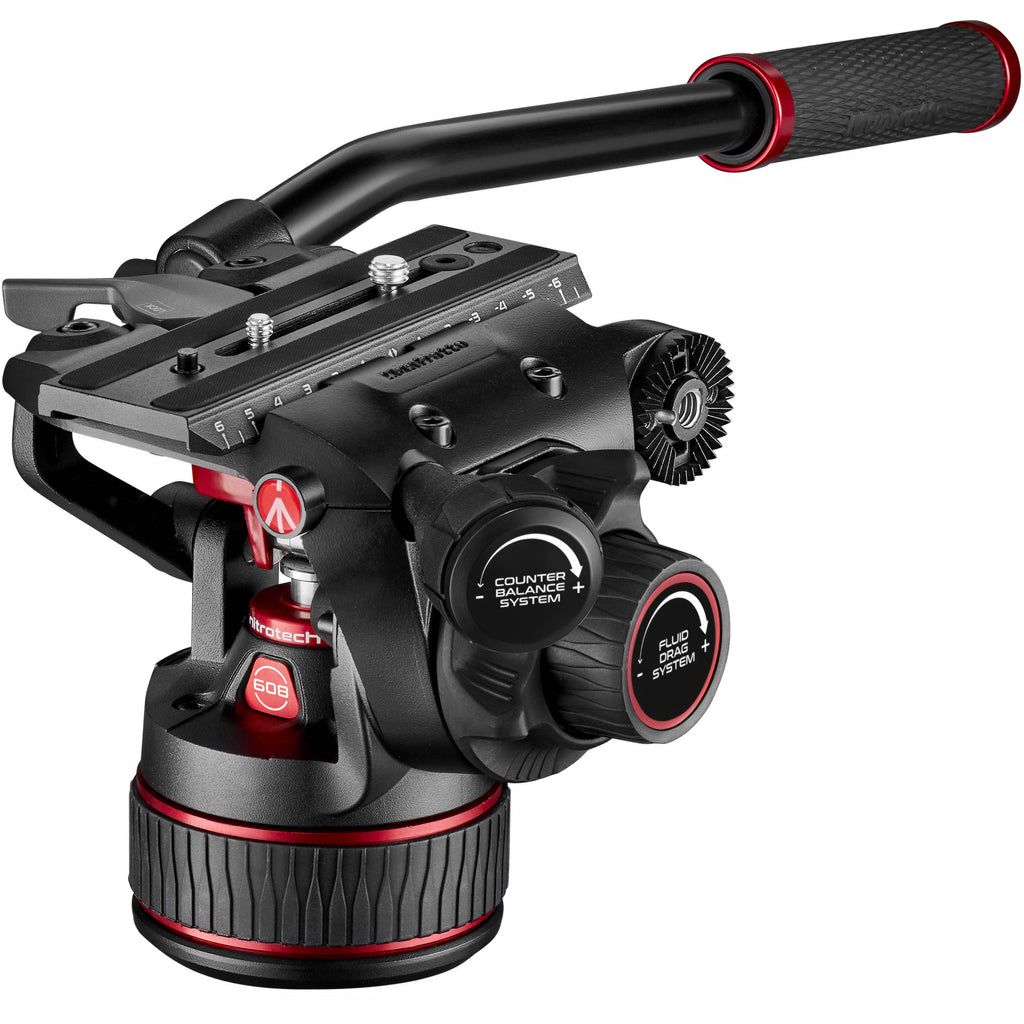

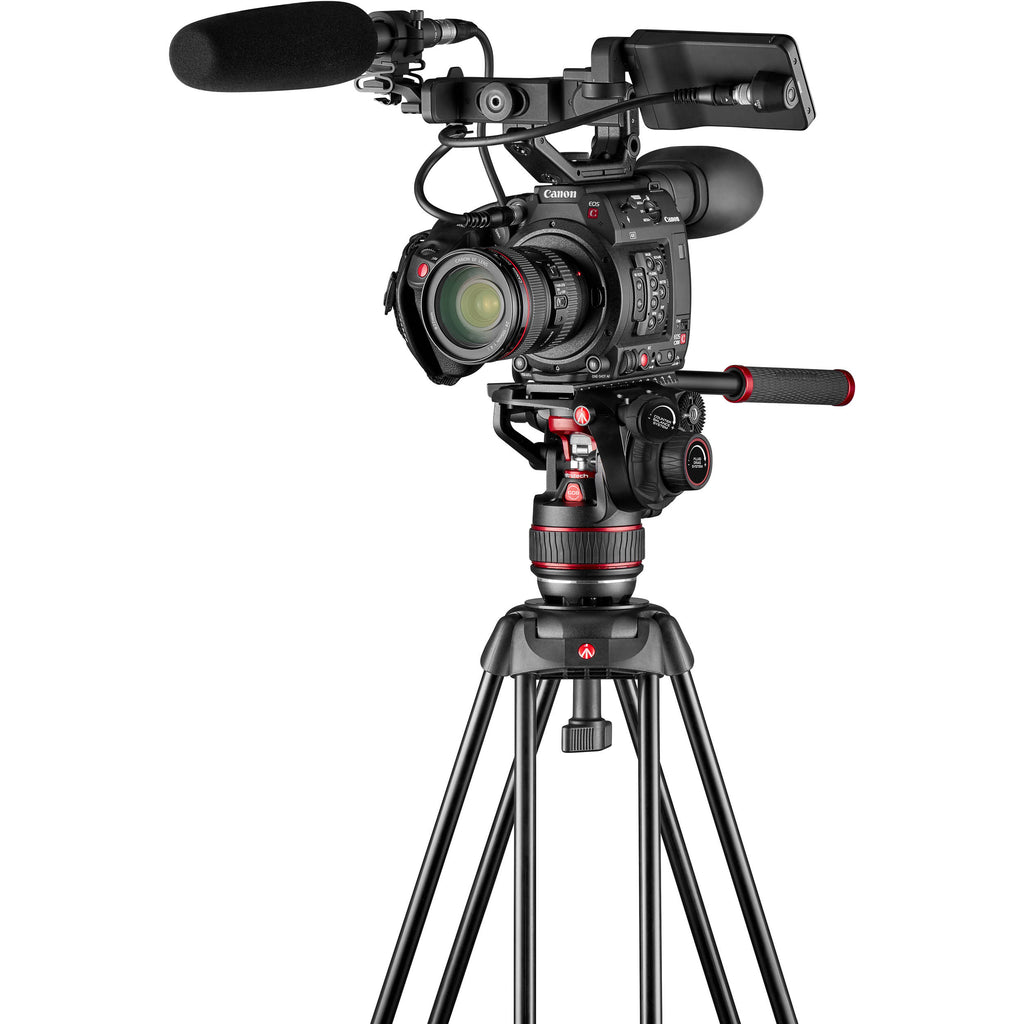

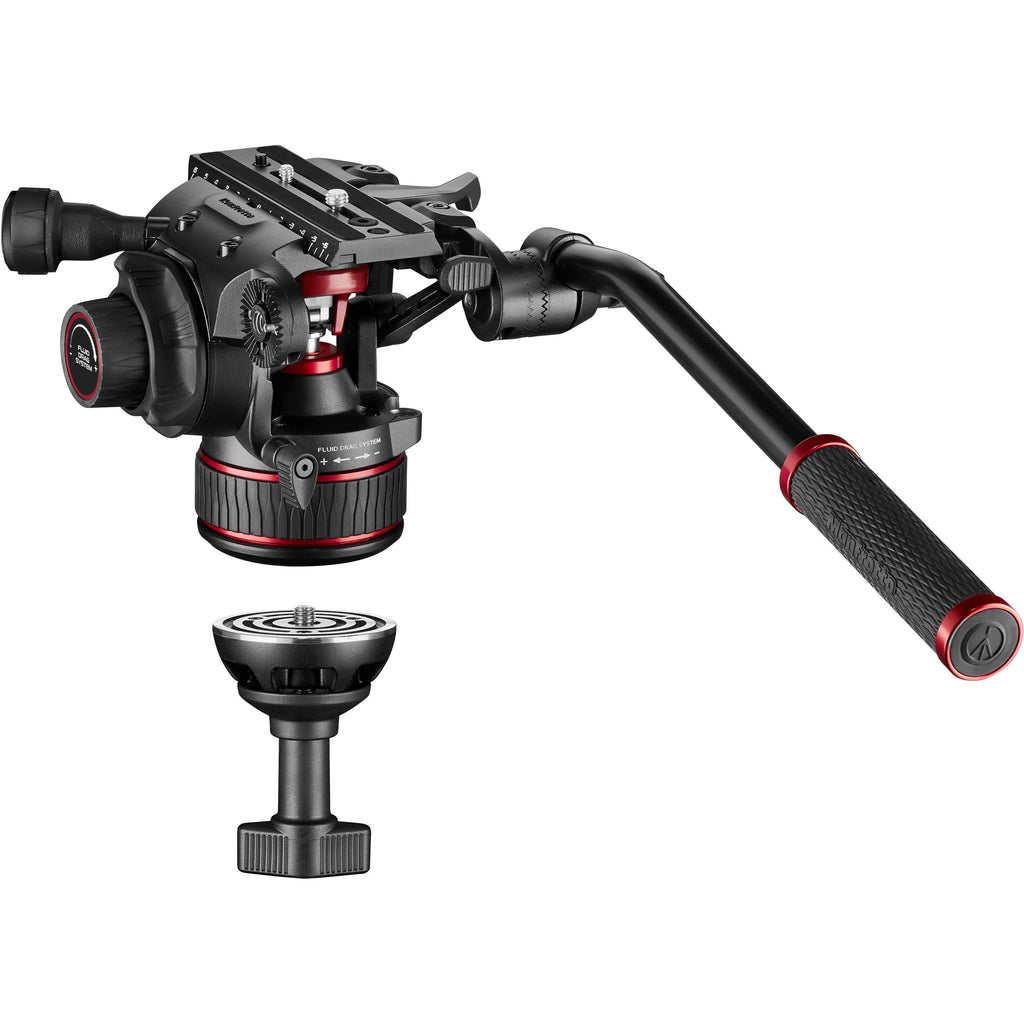

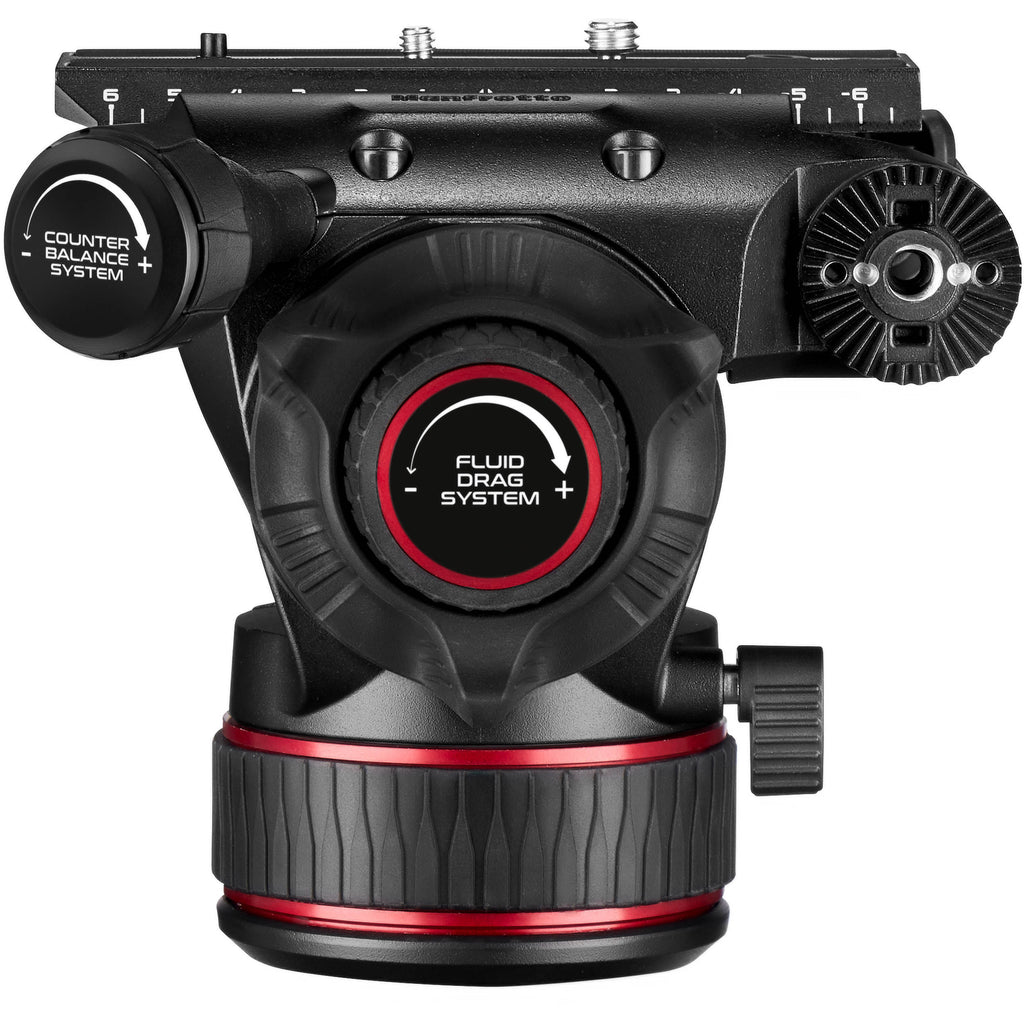

Manfrotto 608 Nitrotech Fluid Video Head

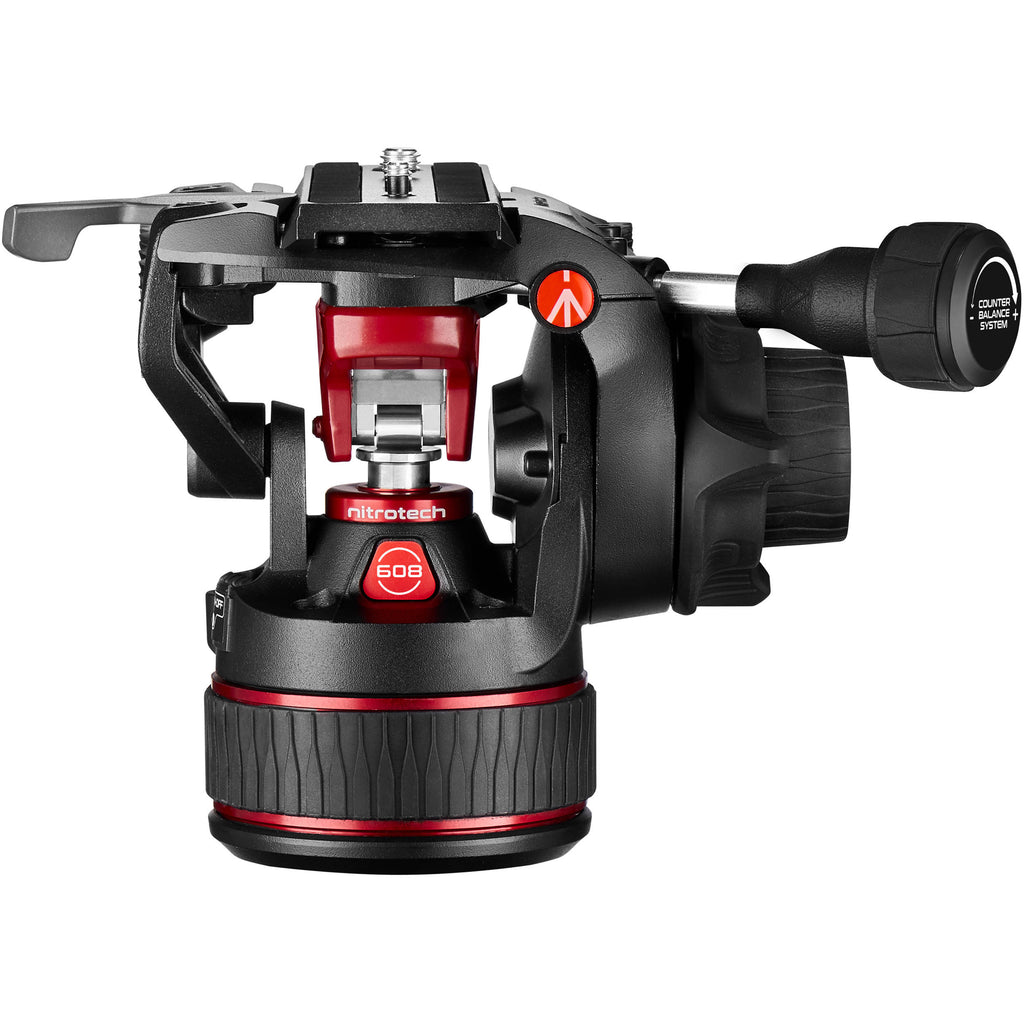

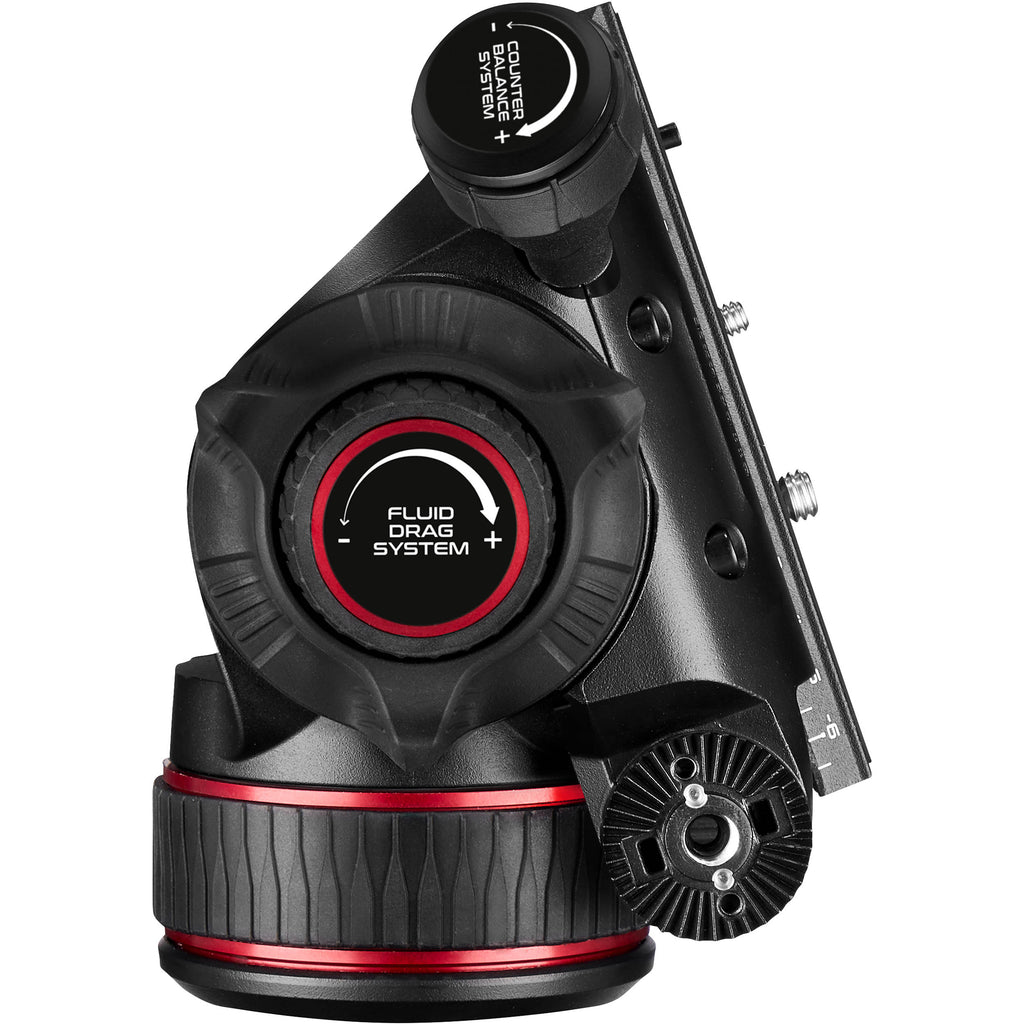

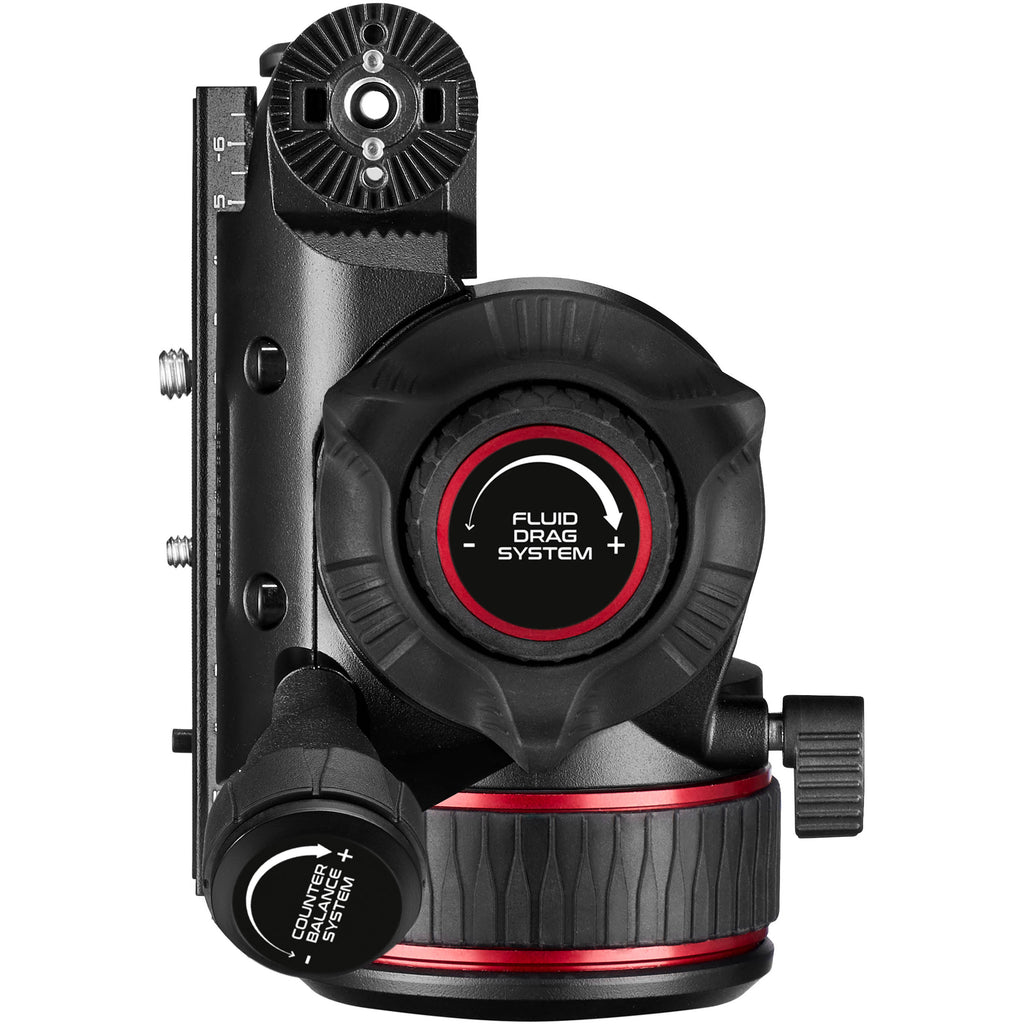

The Manfrotto 608 Nitrotech is a flat base fluid video head designed for the versatility needs of the independent content creator who's engaged in different types of projects. Thanks to its flat base with a 3/8"-16 mounting thread, as well as its relatively compact and lightweight design, the head can easily be moved between a compatible tripod and a slider, jib, monopod, and various other gear. One of the key features of the 608 Nitrotech is its Nitrogen gas piston counterbalance mechanism (hence, Nitrotech), which allows continuous counterbalance adjustment�as opposed to stepped or fixed�for the head's full payload range of 0 - 17.6 lb. Additionally, an upgraded fluid technology significantly improves continuously variable drag performance and enables smooth and judder-free pan and tilt movements.

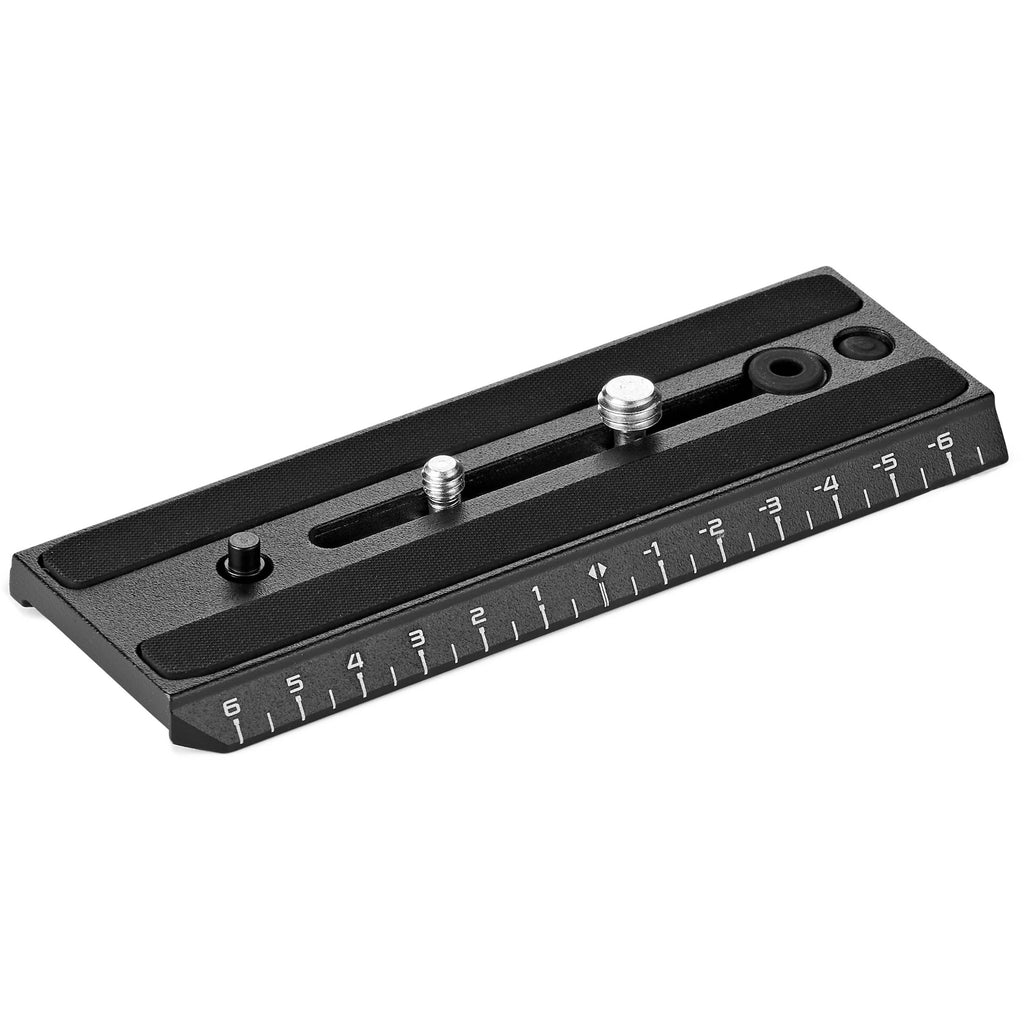

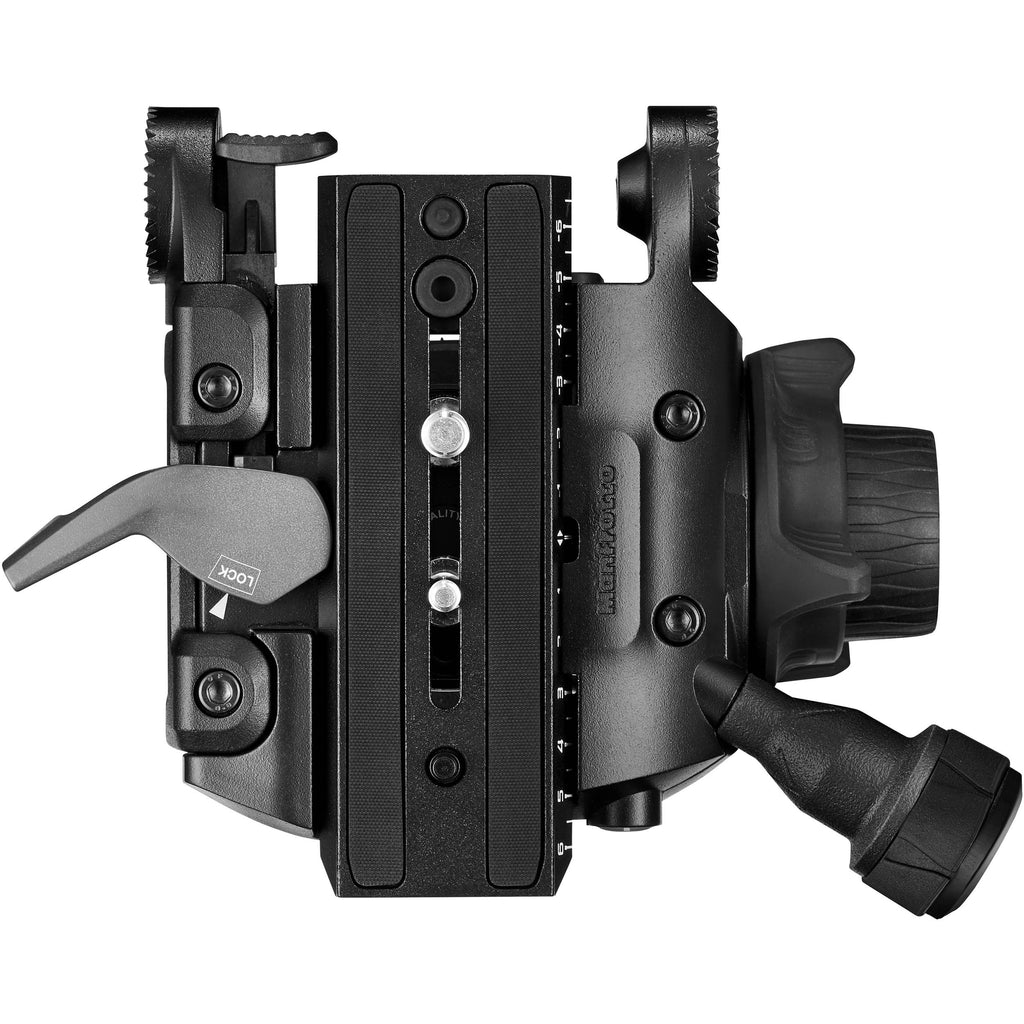

Providing further flexibility, the head's camera plate system features a side lock mechanism that allows for quicker and safer mounting of your camera plate and camera load. Instead of having to align and slide in your camera plate from the rear, you're able to conveniently tuck in one side of the plate from the top and then push and click in the other side.

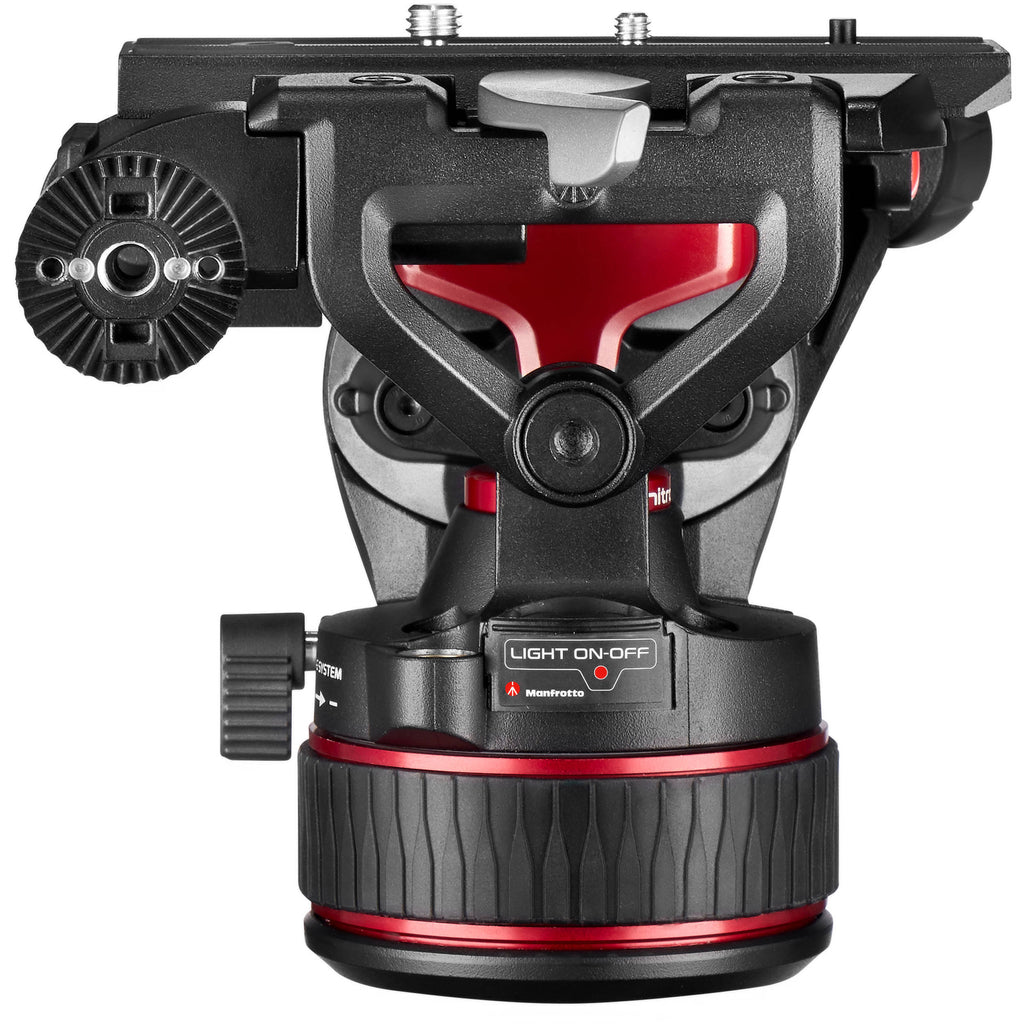

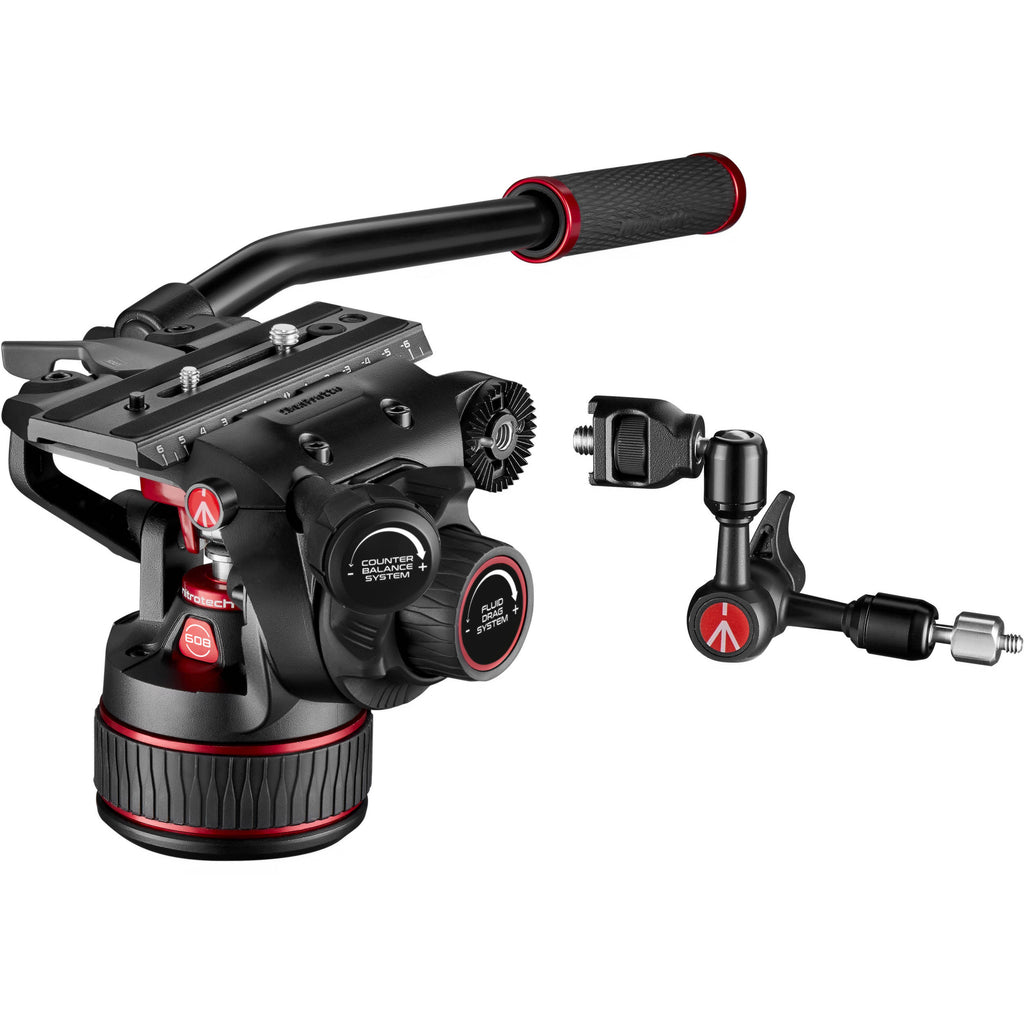

The 608 Nitrotech offers two rosette mounts for attaching the included pan bar on either the left or right side. These rosettes also feature Manfrotto's Easy Link system for mounting accessories via an articulating arm. Each rosette has a 3/8"-16 port in the center and both Manfrotto and ARRI anti-rotation slots surrounding the mounting port. The Easy Link system is designed to support Manfrotto articulating arms equipped with anti-rotation pins or those with ARRI locating pins in order to prevent twisting. At the same time, standard articulating arms can also be attached.

Other features of the 608 Nitrotech include improved resistance to lower operating temperatures in comparison to previous Nitrotech models and improved ergonomics and materials used for the different knobs.

Key Features

• Flat base with 3/8"-16 mounting thread allowing for use on tripods, sliders, jibs, monopods, and other support gear
• Nitrogen gas piston counterbalance mechanism allowing for continuous counterbalance adjustment for the full payload range of 0 - 17.6 lb
• Upgraded fluid technology enabling smooth and judder-free pan and tilt movements via continuously variable drag performance
• Easier, safer side lock camera plate mechanism
• Two rosette mounts with a 3/8"-16 port and Manfrotto and ARRI anti-rotation slots for attaching the included pan bar and a standard or anti-twist articulating arm
• 5.9" height

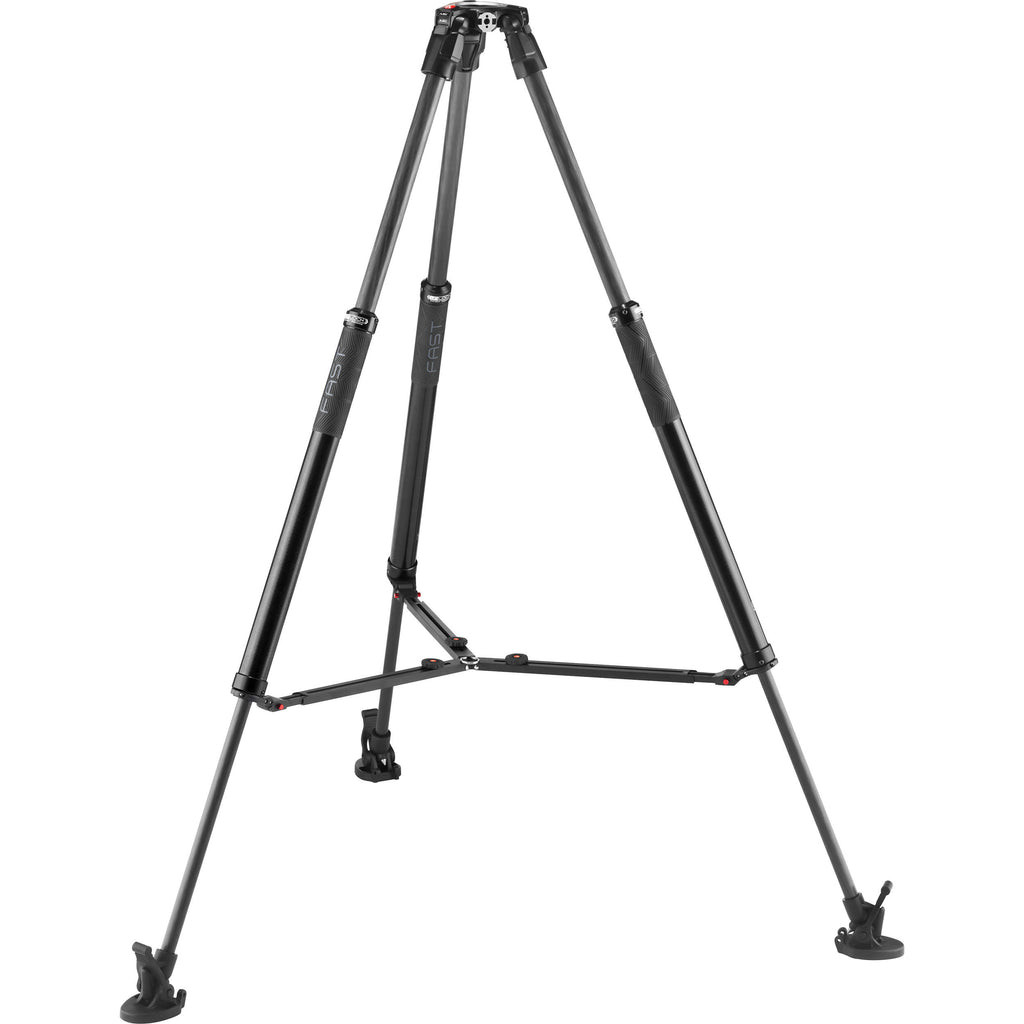

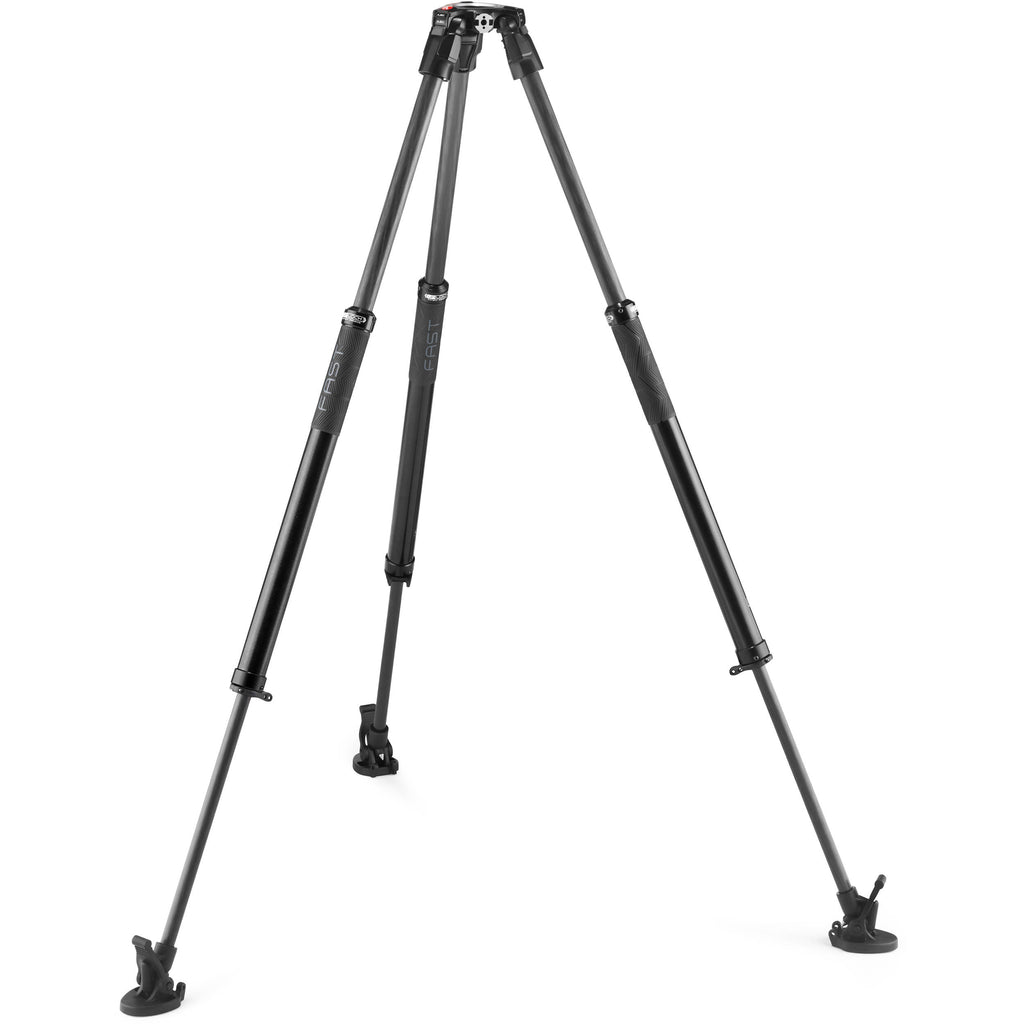

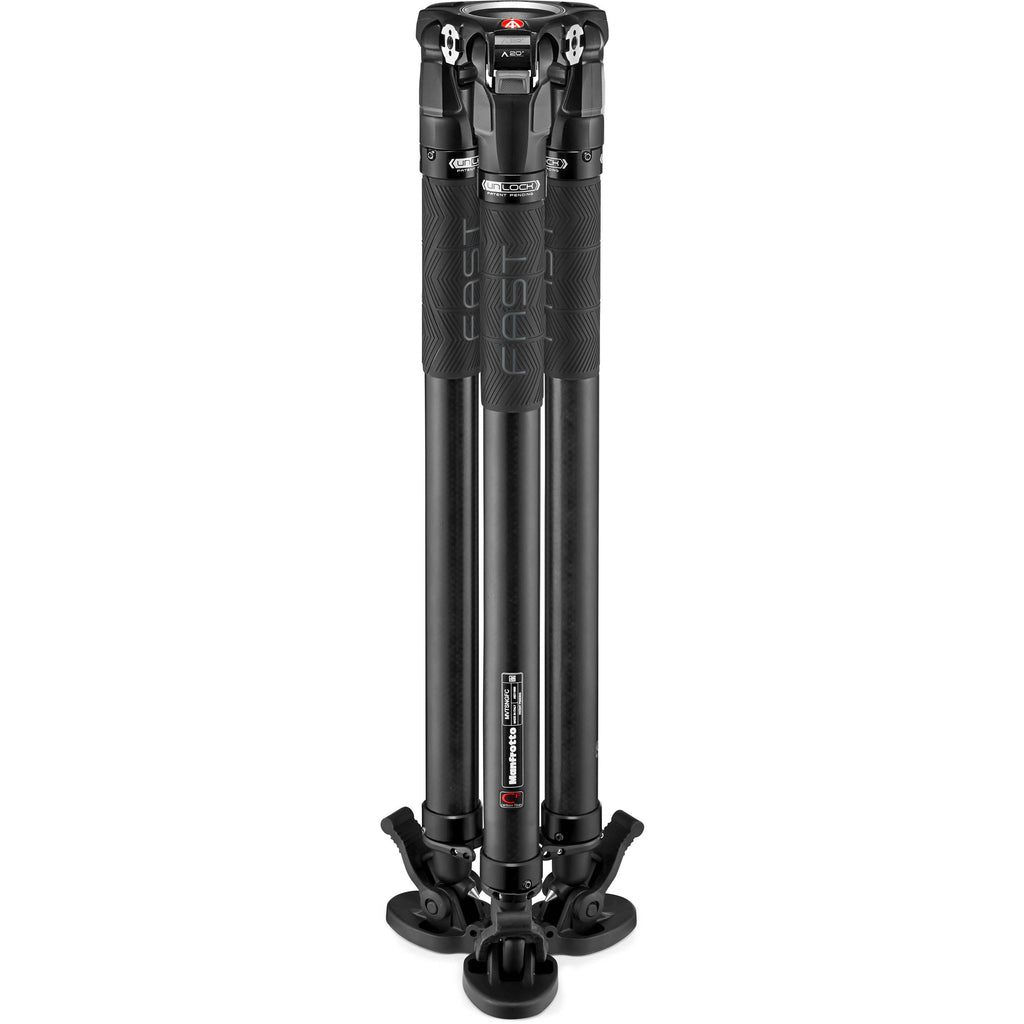

UPC: 719821443070 Manfrotto 635 FAST Single Tube Carbon Fiber Tripod Legs

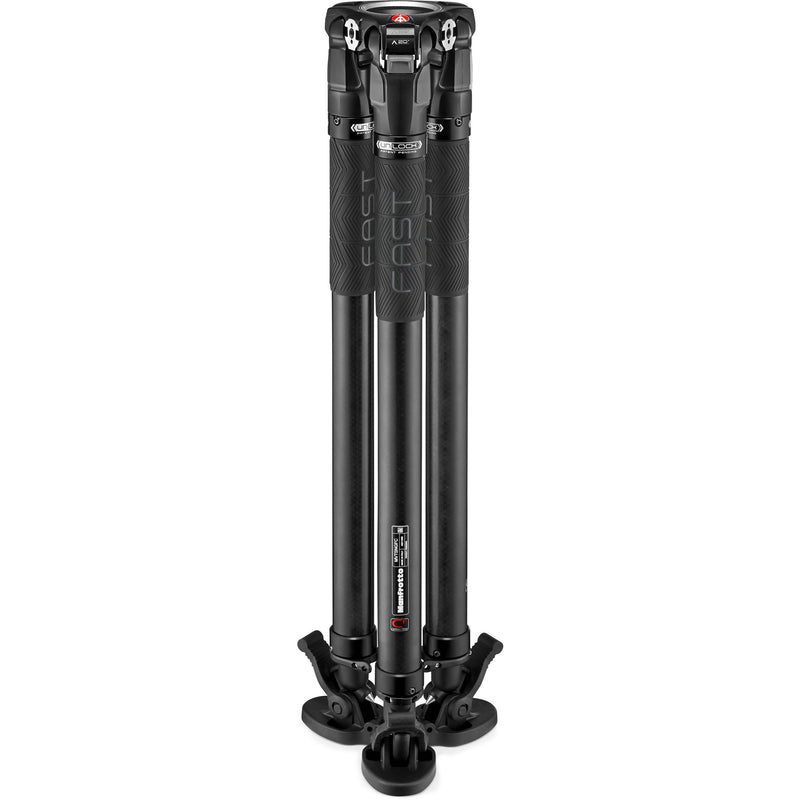

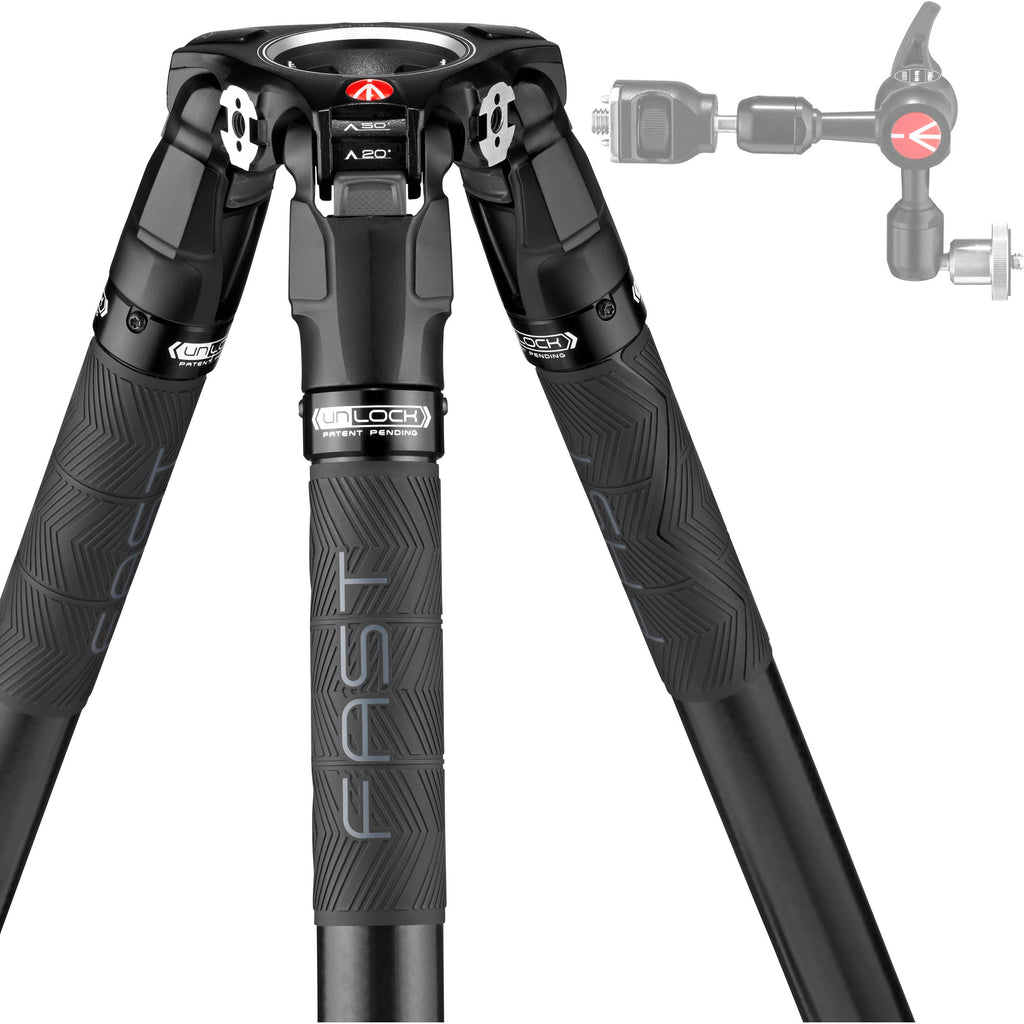

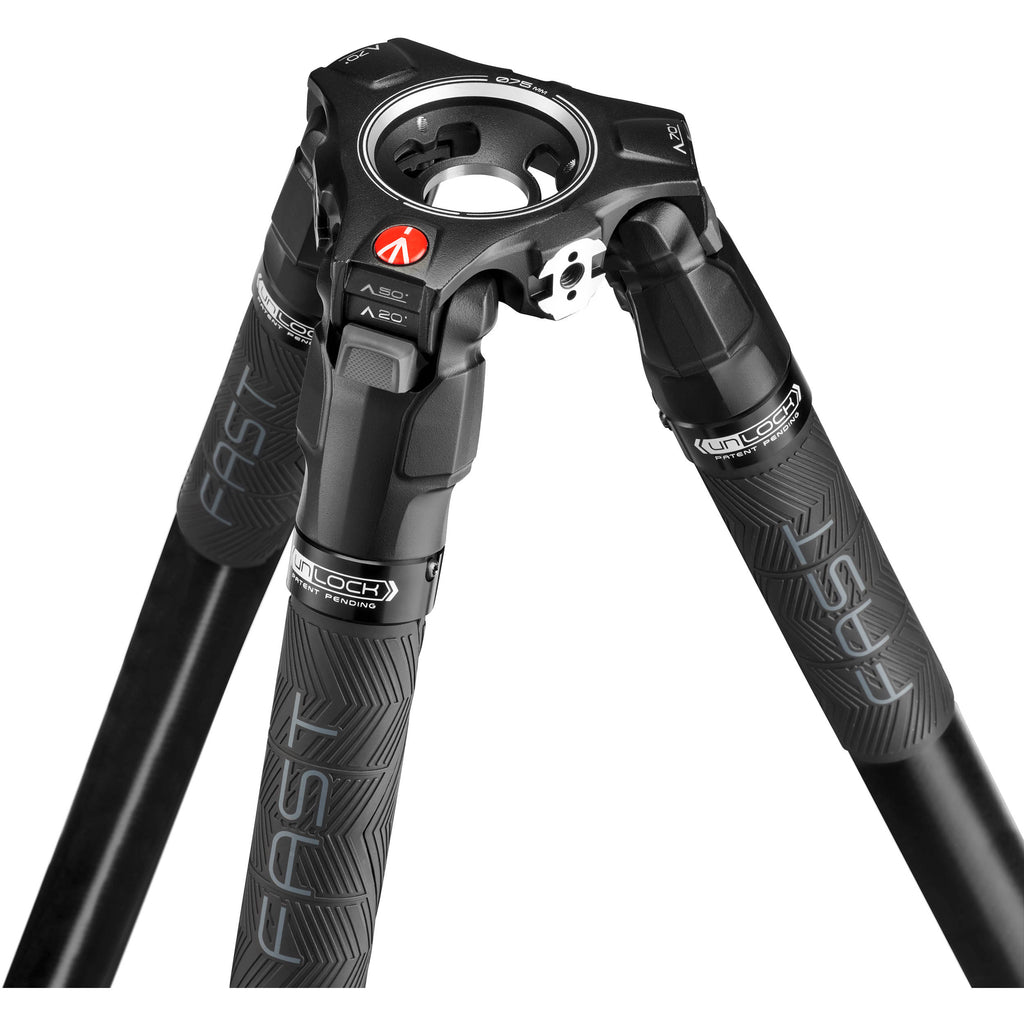

The Manfrotto 635 FAST Single Tube Carbon Fiber Tripod Legs have a 75mm bowl base and load capacity of just over 44 pounds. This tripod has a maximum height of just over 61", and with the legs spread wide a minimum operating height of 11". The three leg sections feature synchronized twist-lock leg locks, which provide for faster leg adjustments of the leg height. The bowl base has three mounting fittings compatible with both the ARRI anti-twist and Manfrotto anti-rotation systems for mounting accessories.

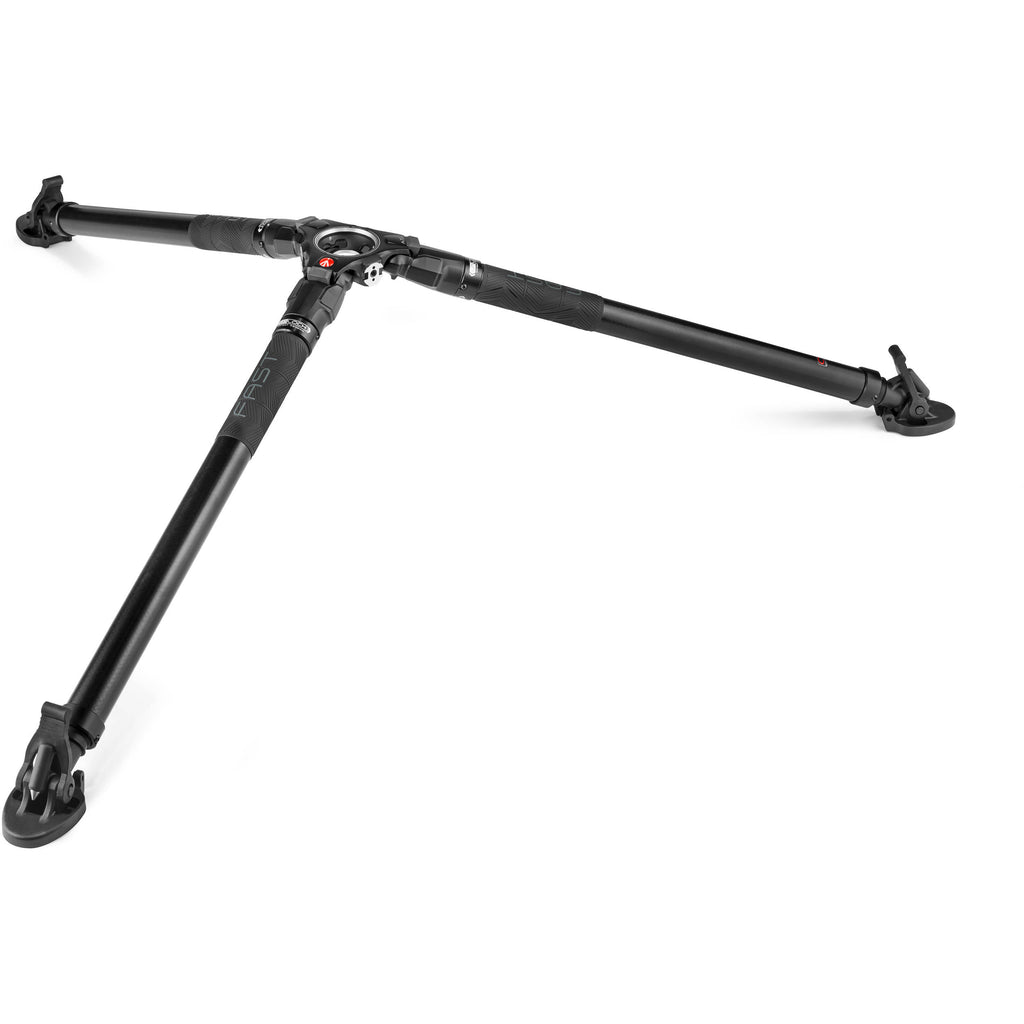

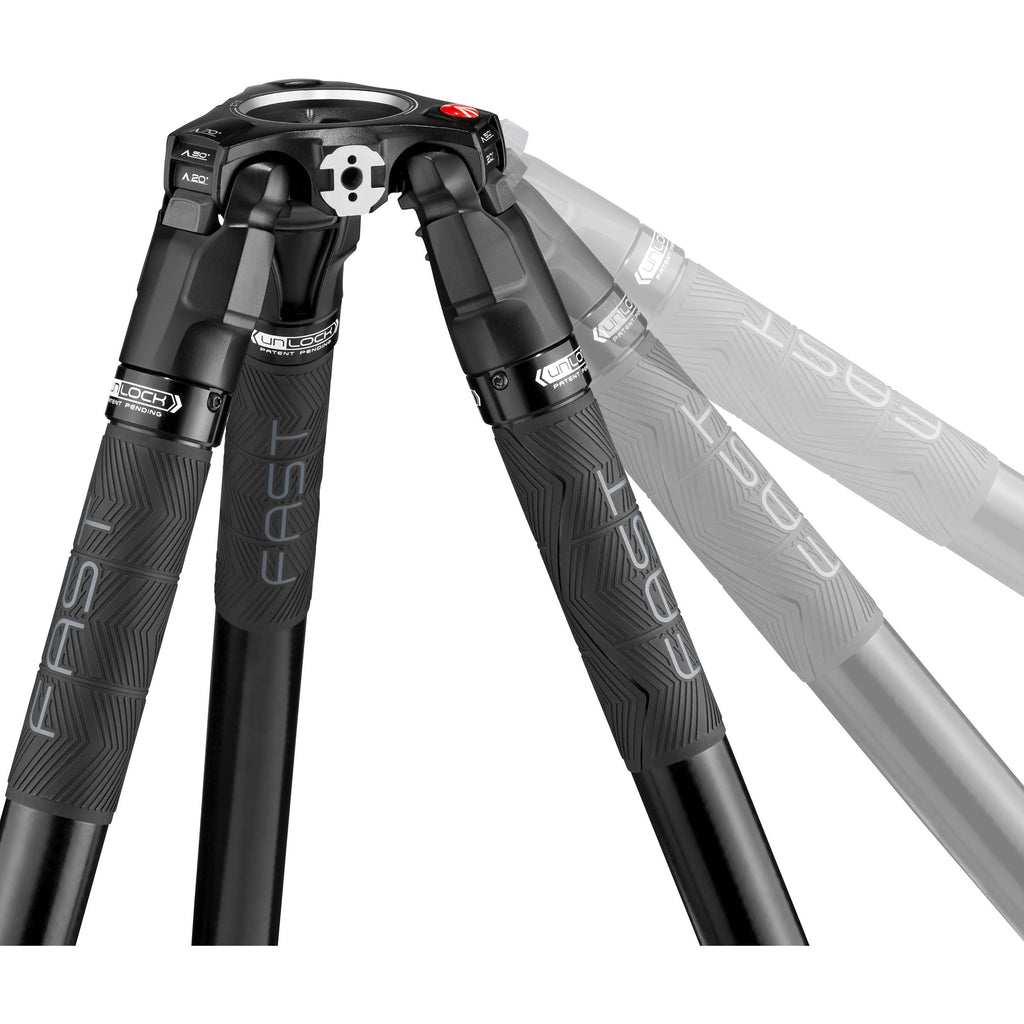

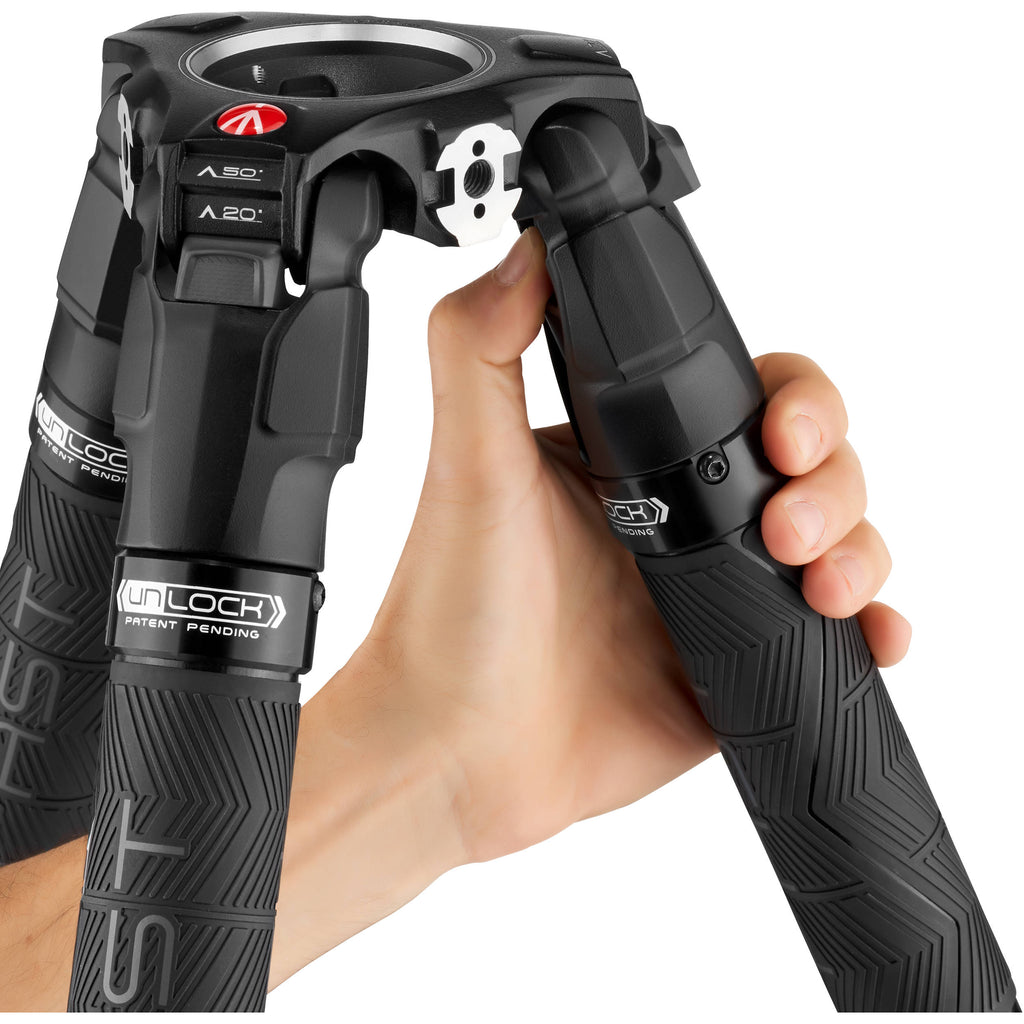

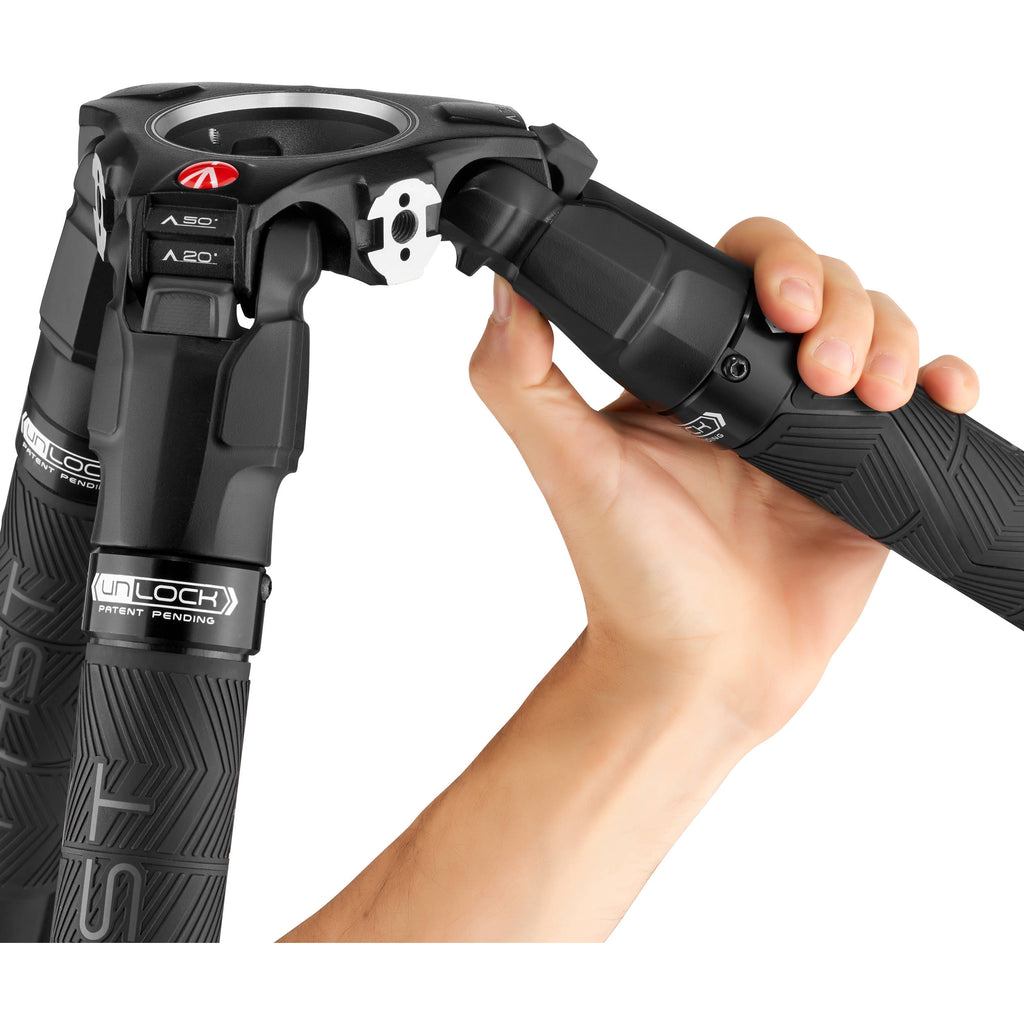

The legs move independently of each other and have independent height adjustments, which is useful on uneven terrain and in odd-shaped or tight spaces. The legs have integrated locking angles of 23, 50, and 70°, so you don't need to use a spreader to have a stable platform, though optional ground and mid-level spreaders are available. The legs feature integrated spiked feet, and rubber boots are included for working on delicate surfaces. The legs collapse down to about 29" in length for storage and transport, and they weigh in at under 8 pounds.

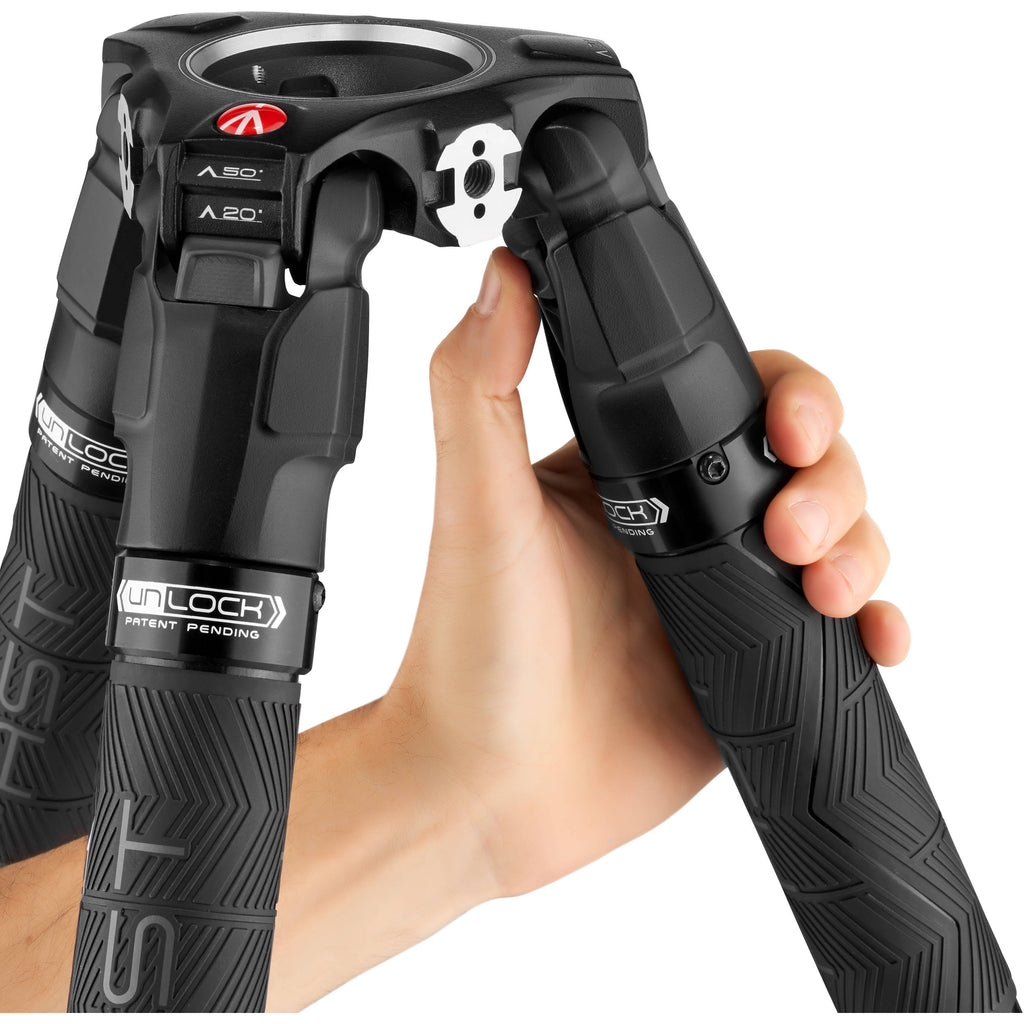

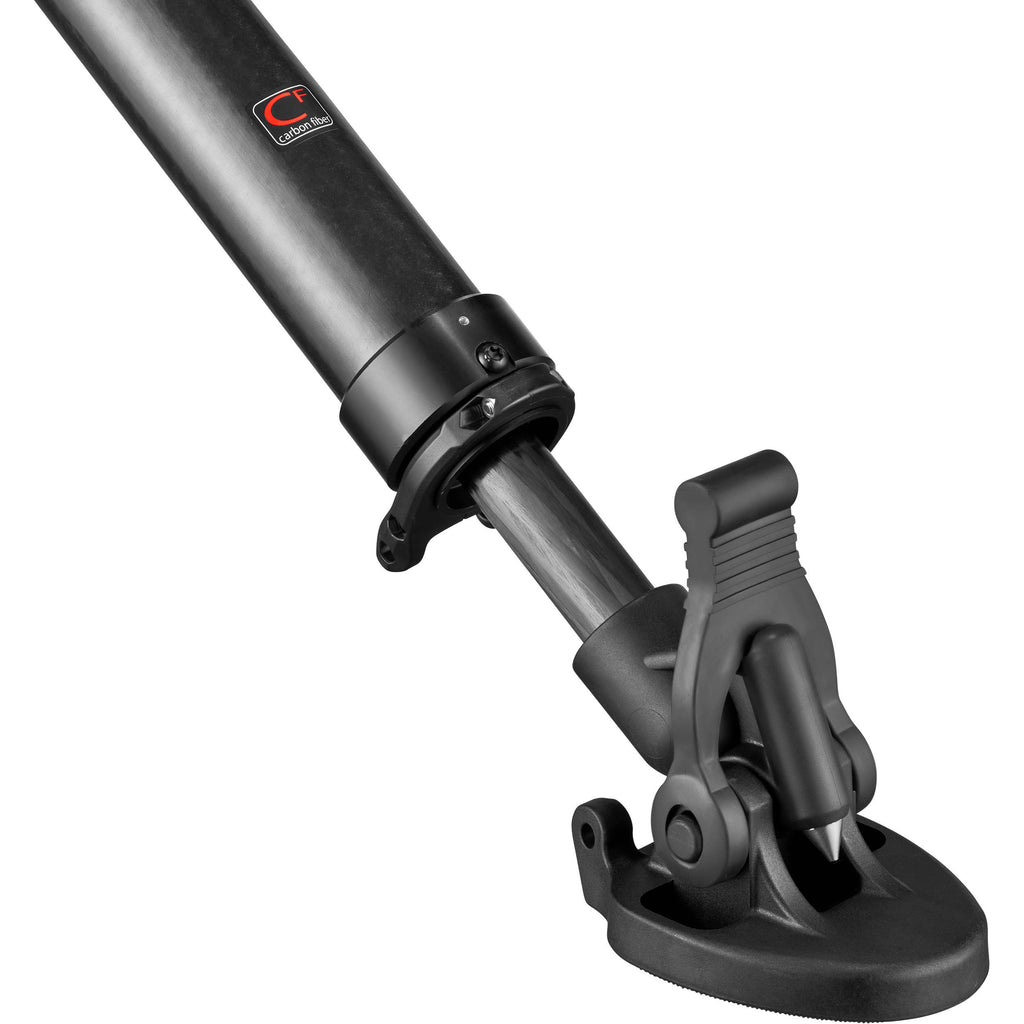

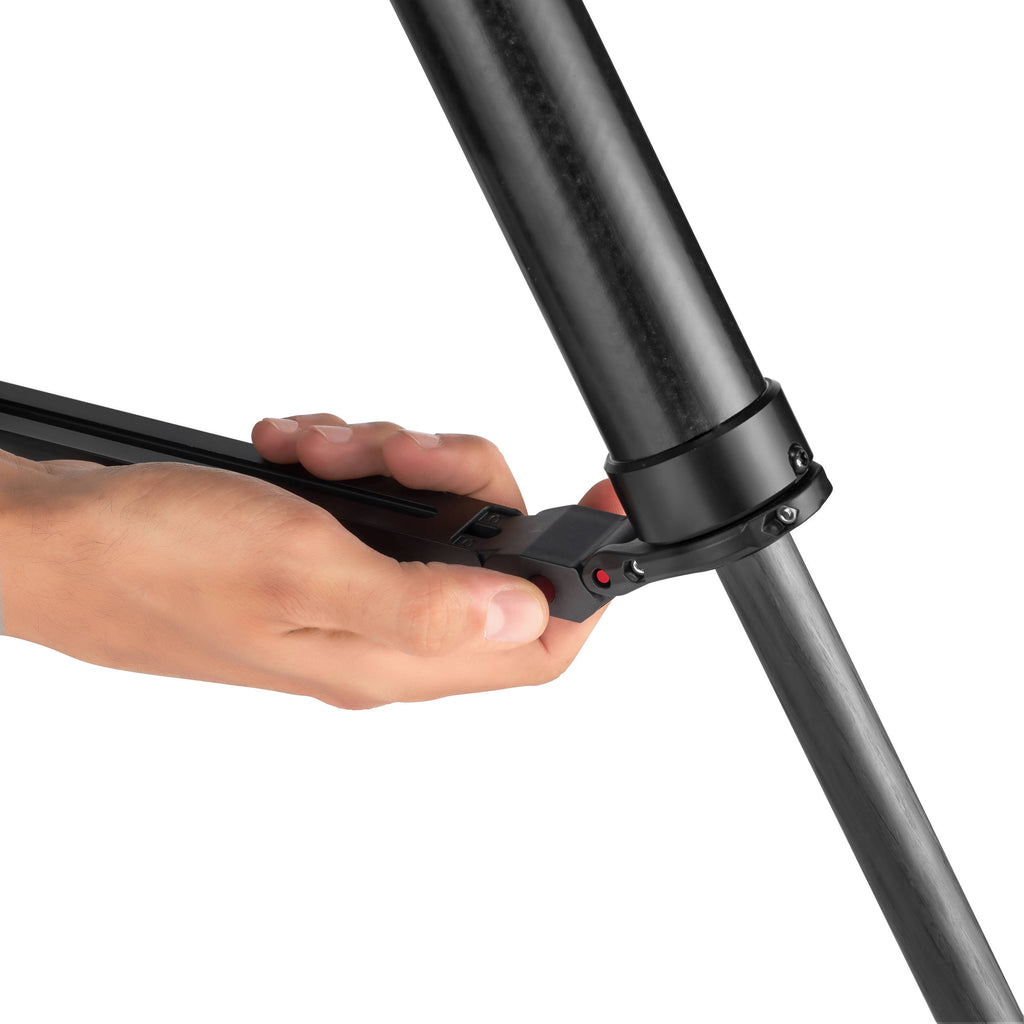

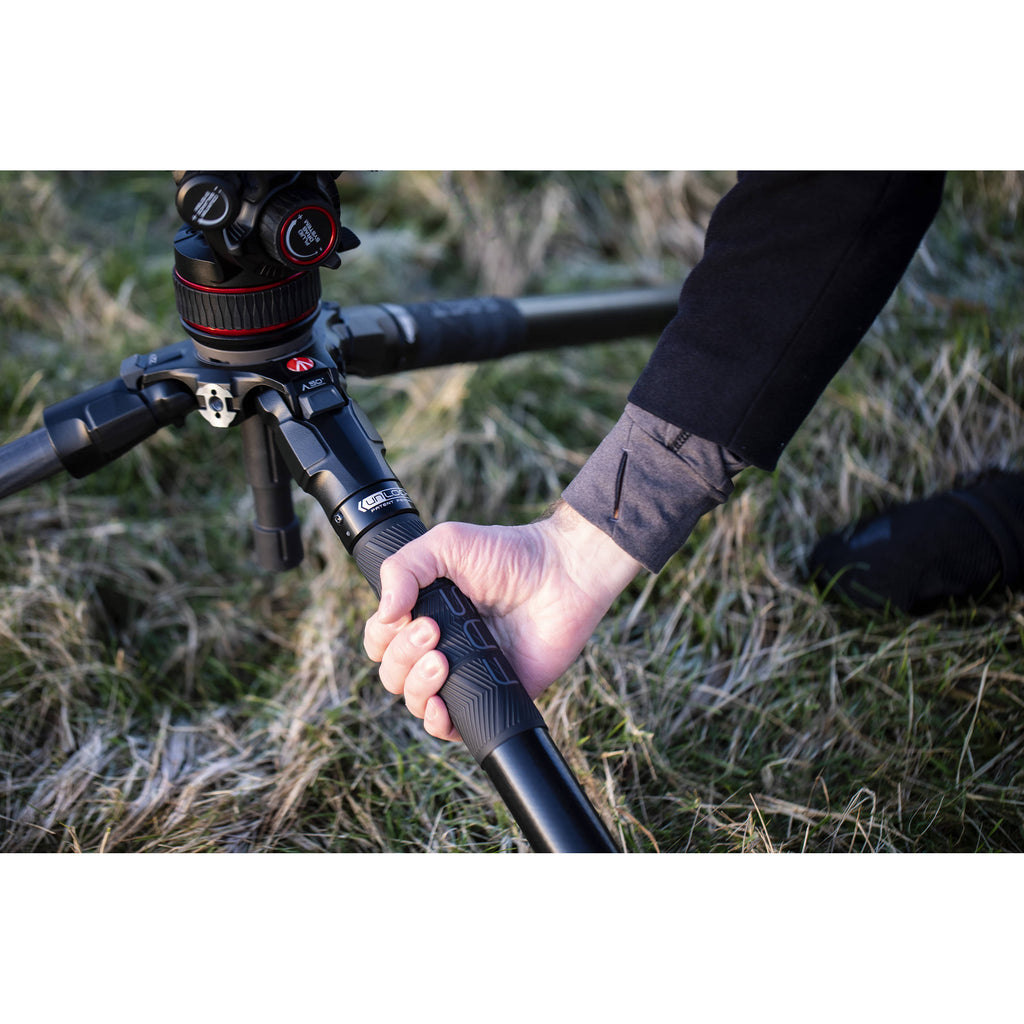

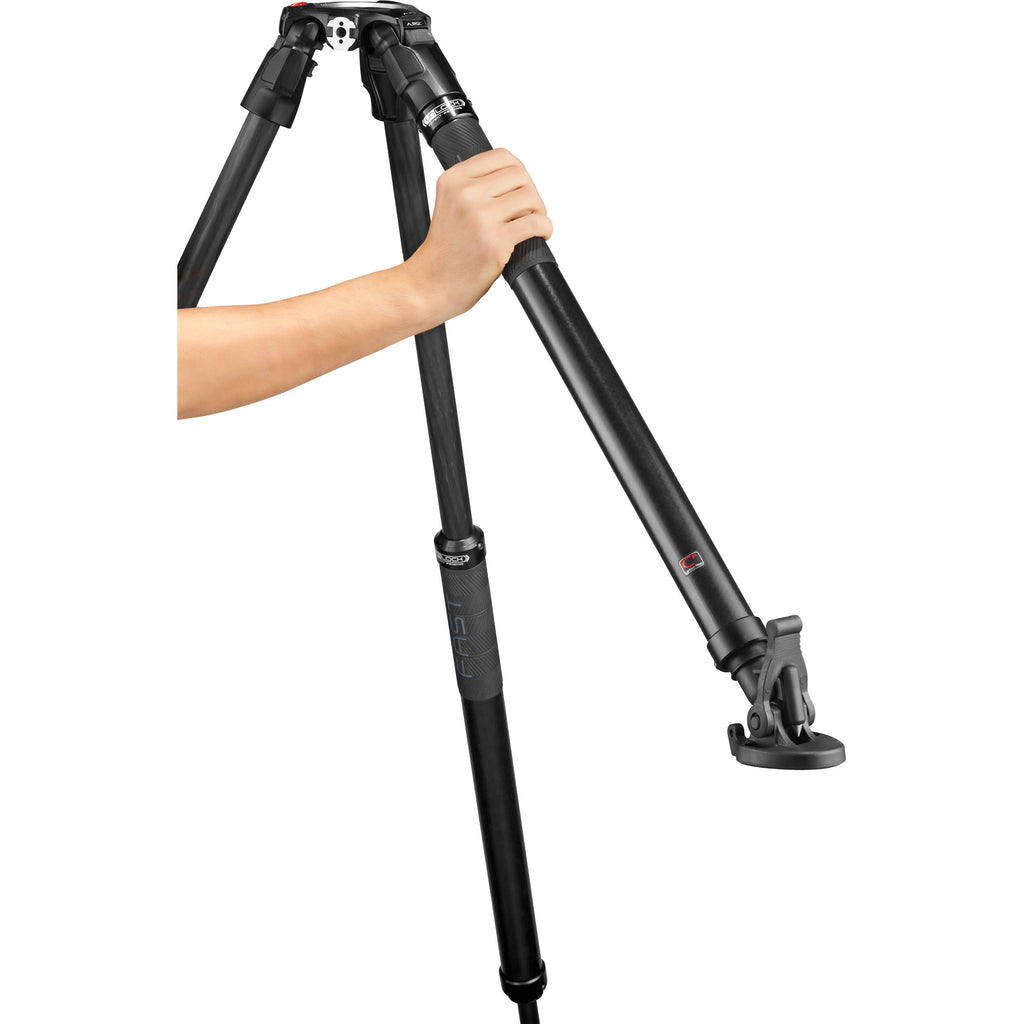

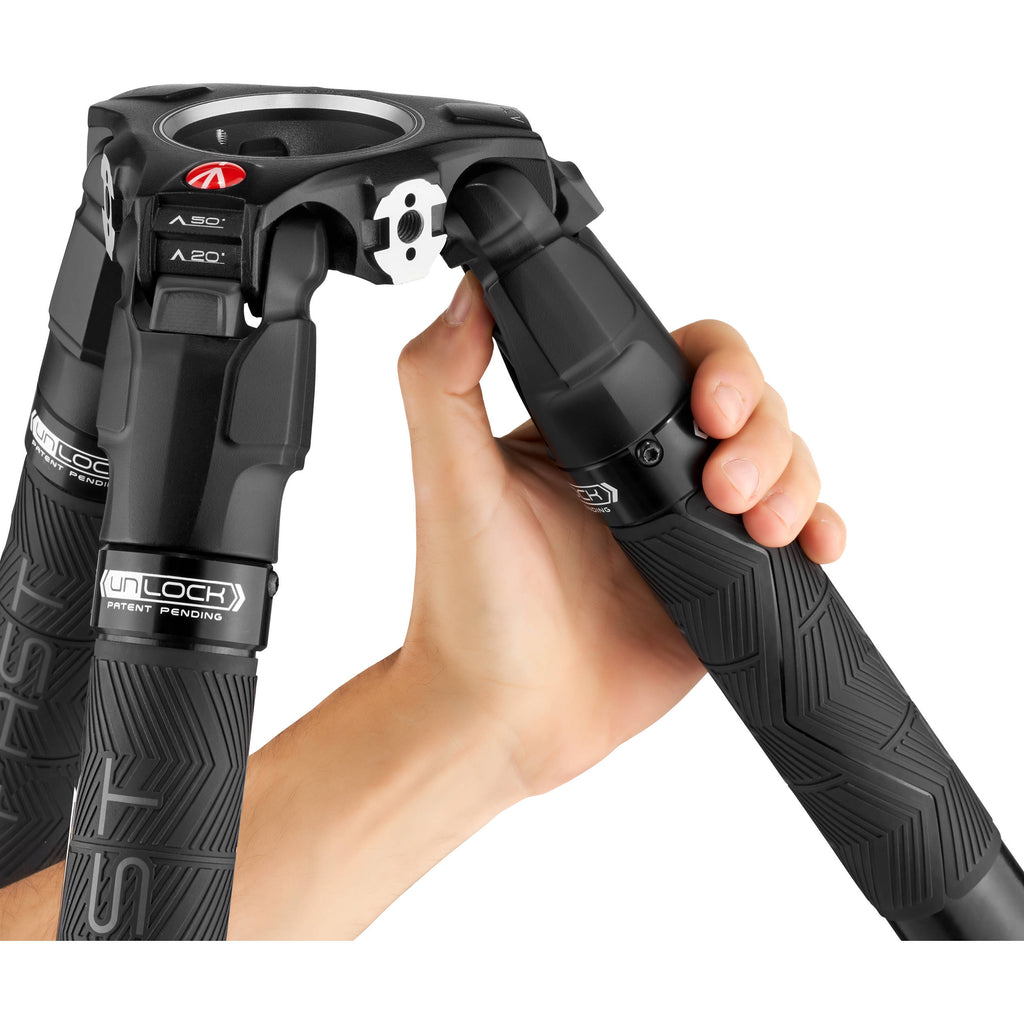

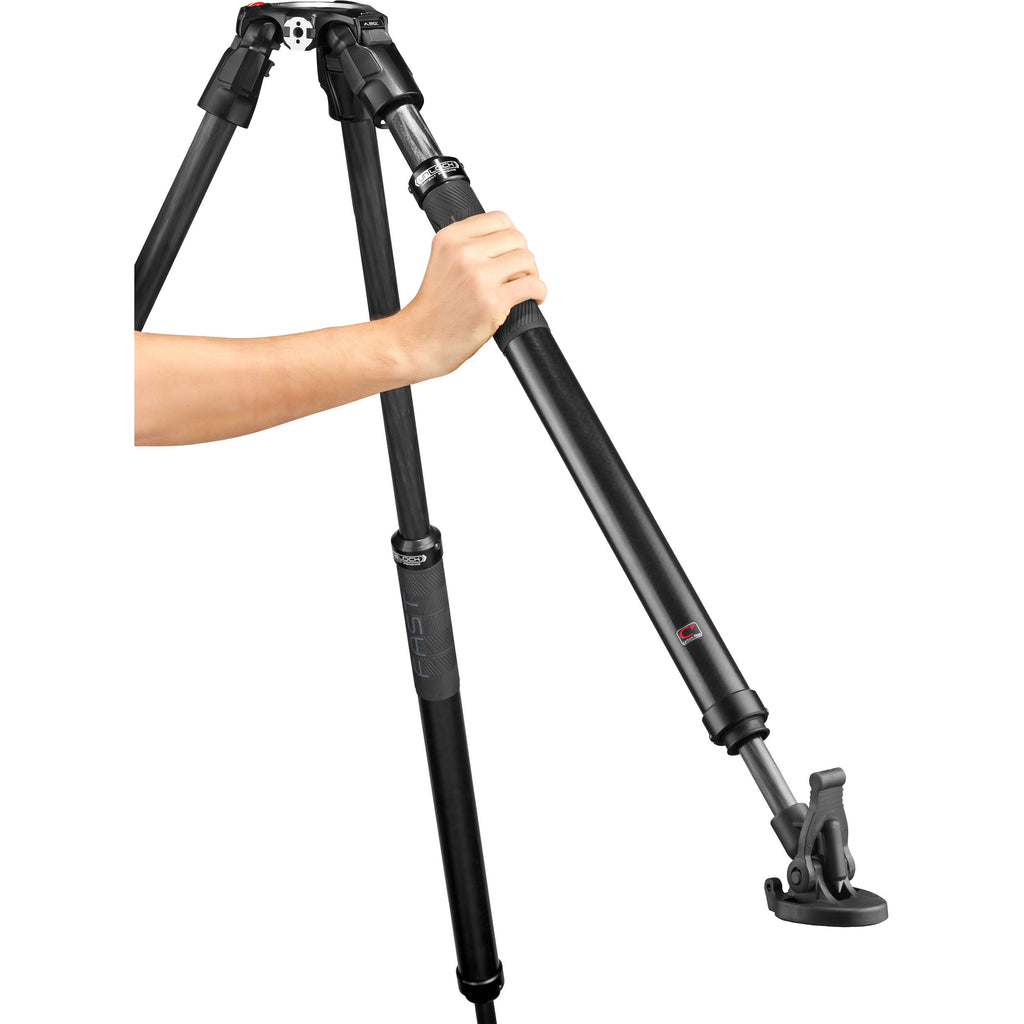

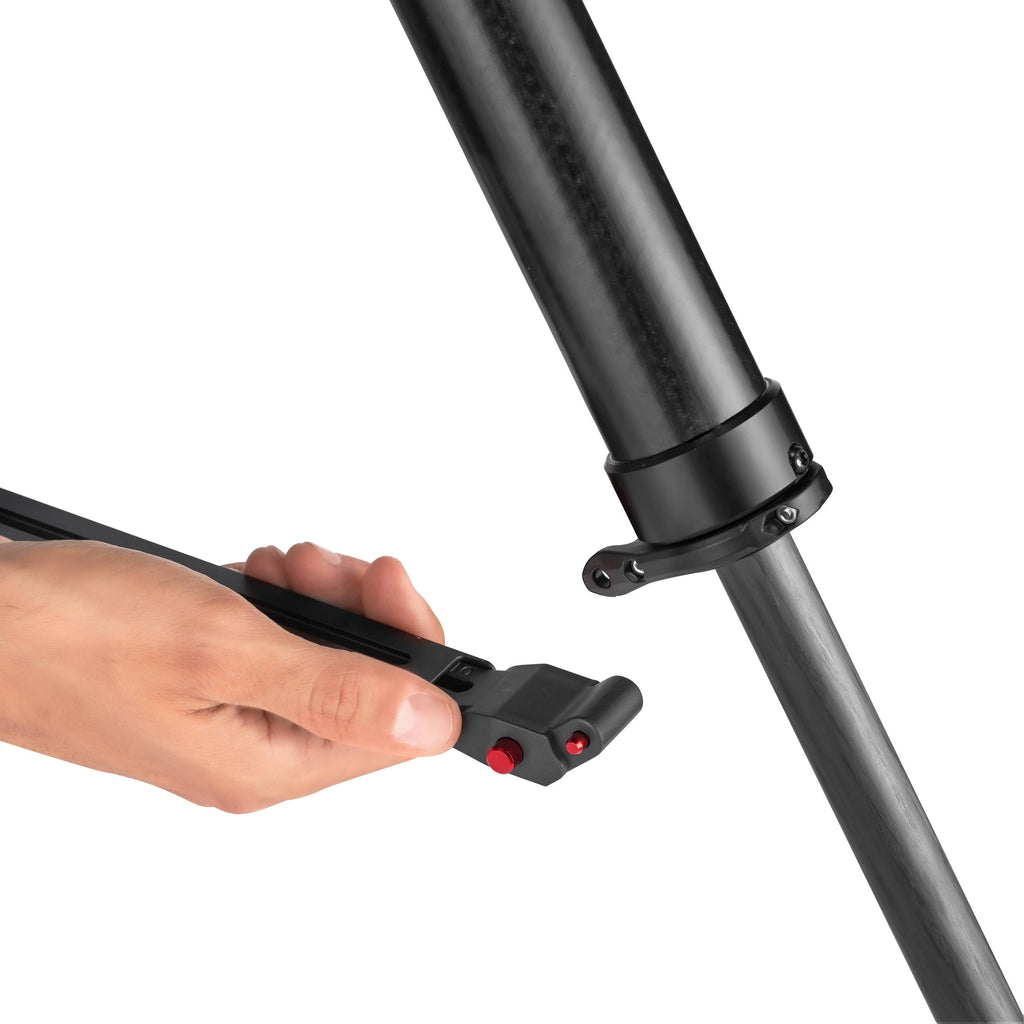

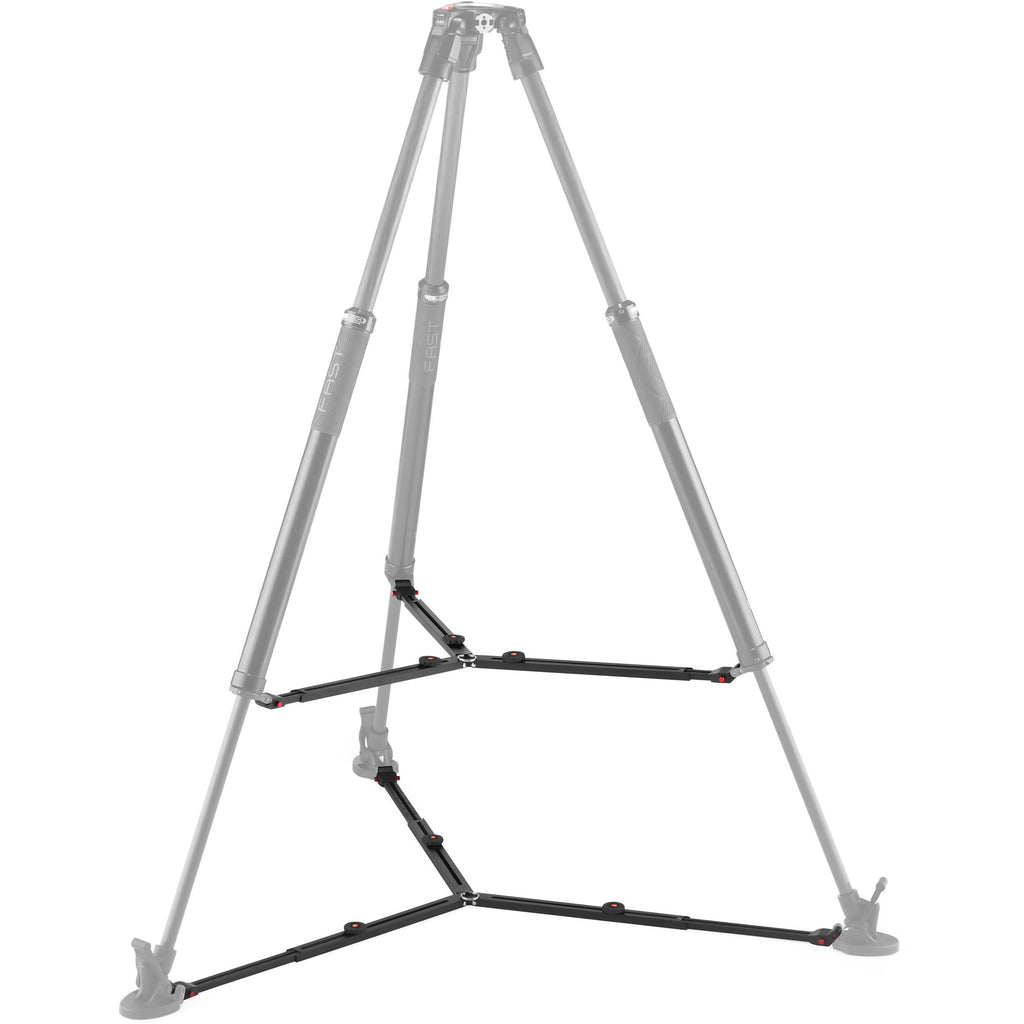

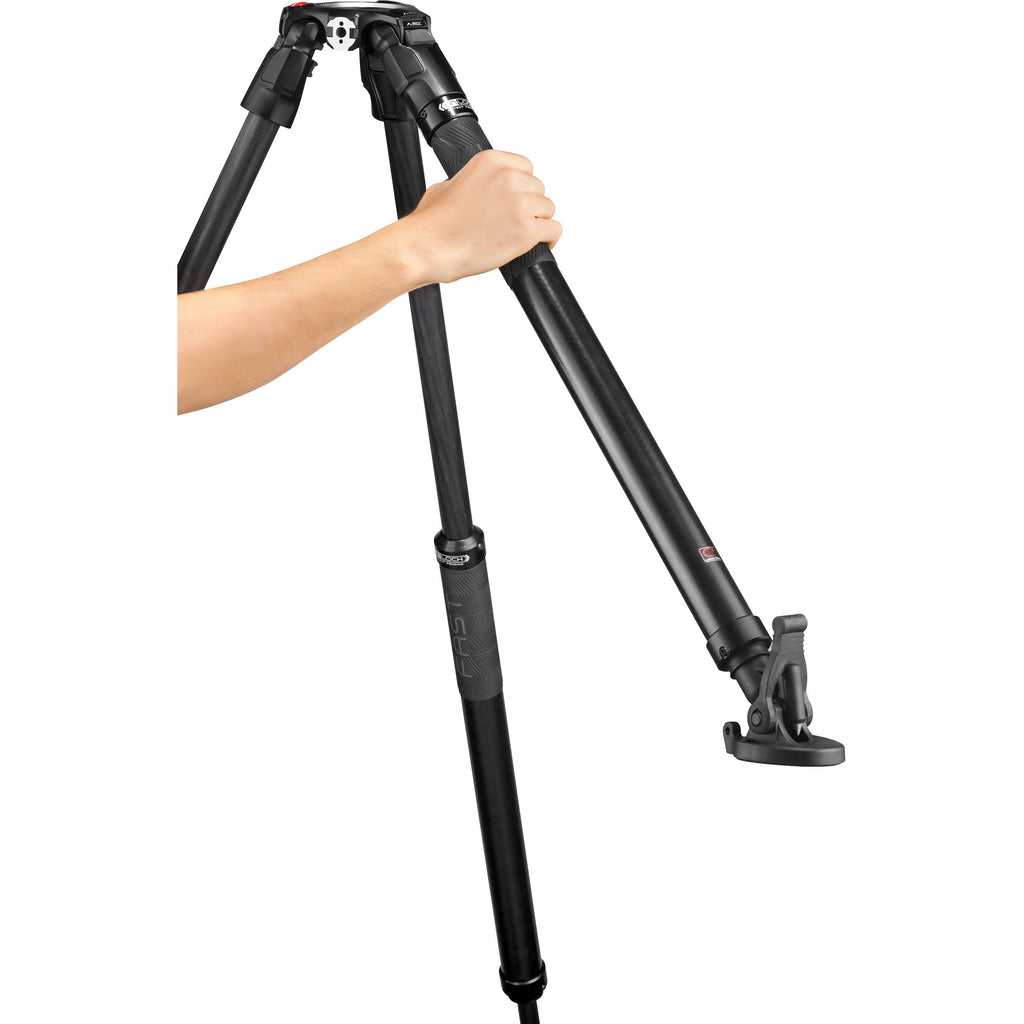

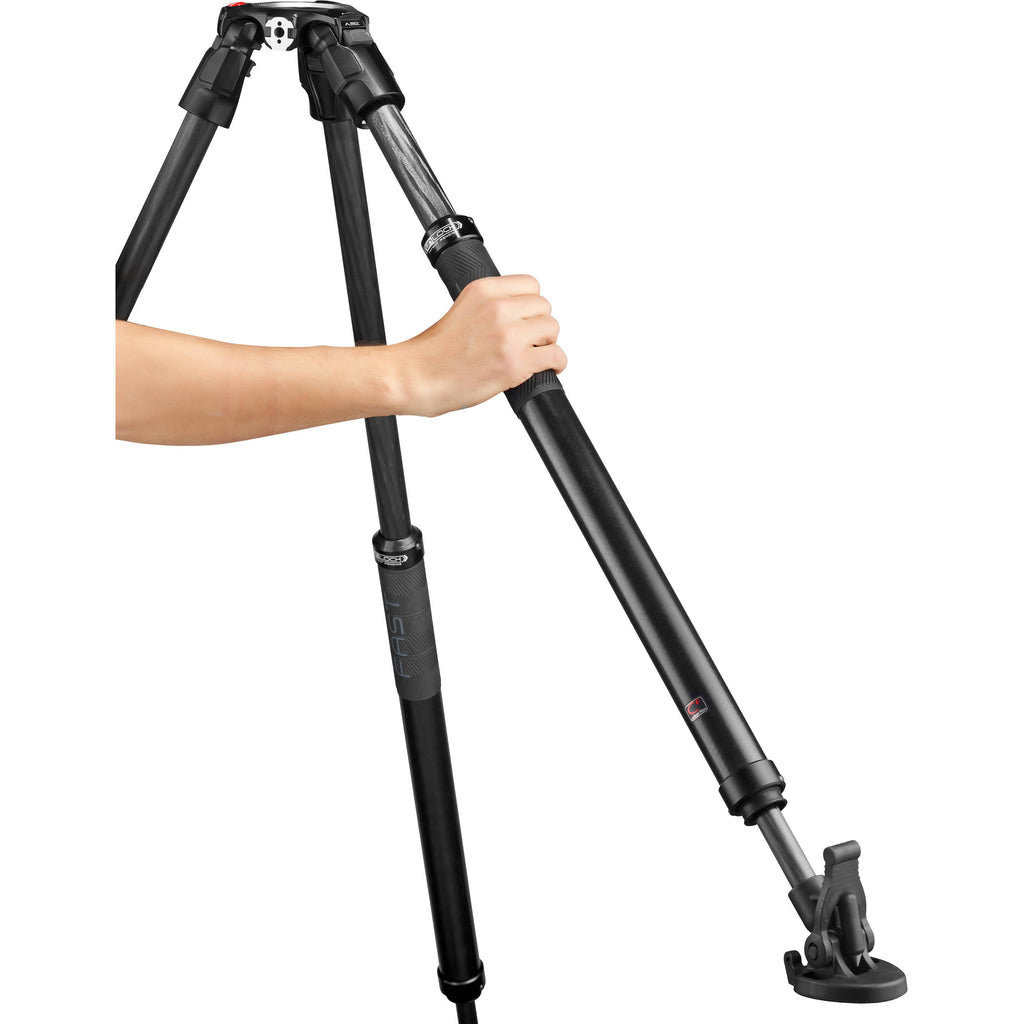

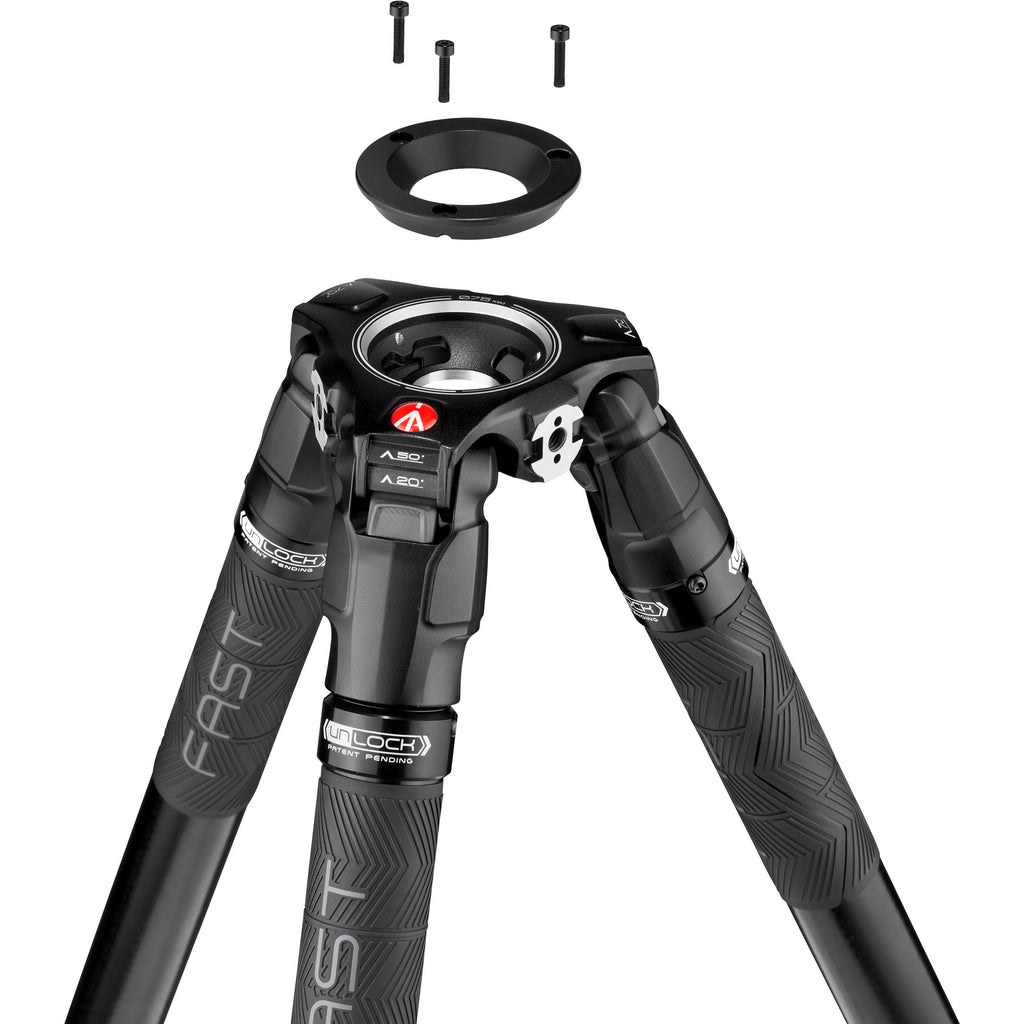

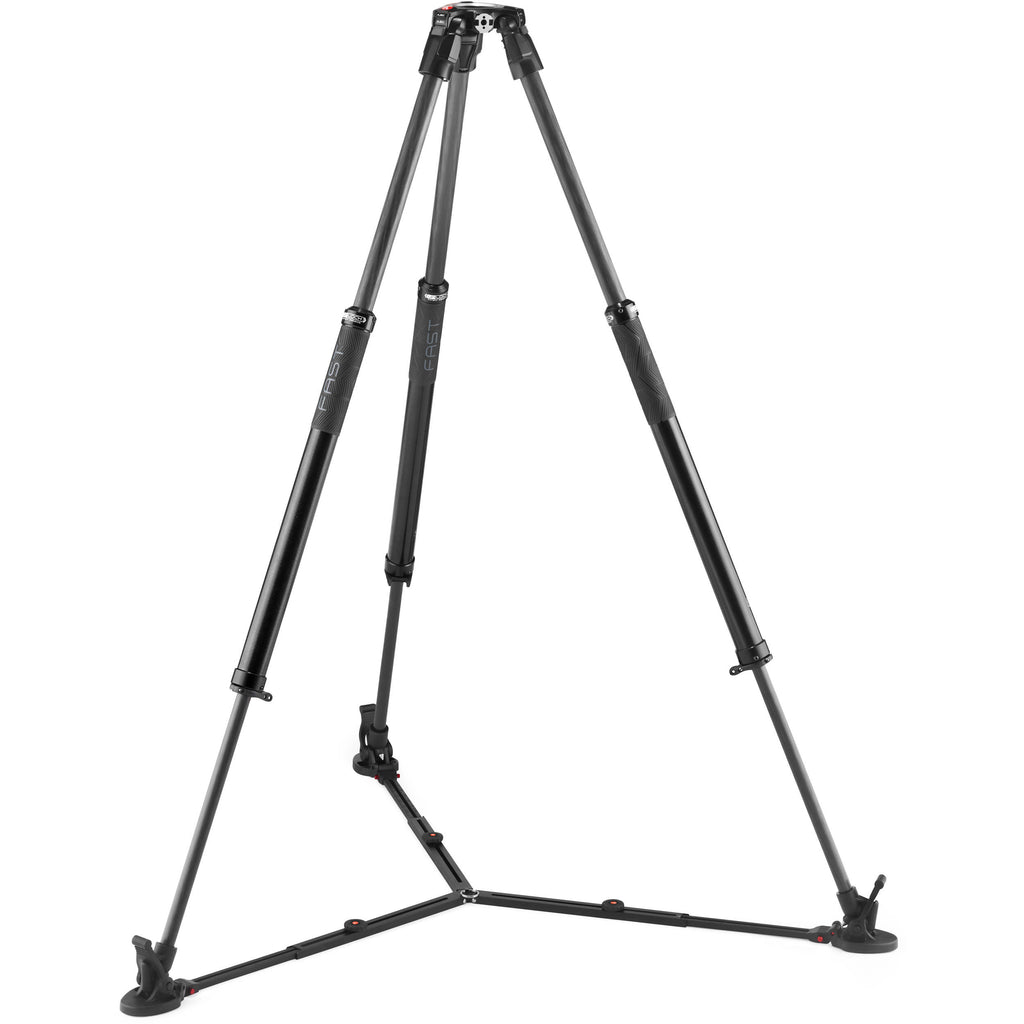

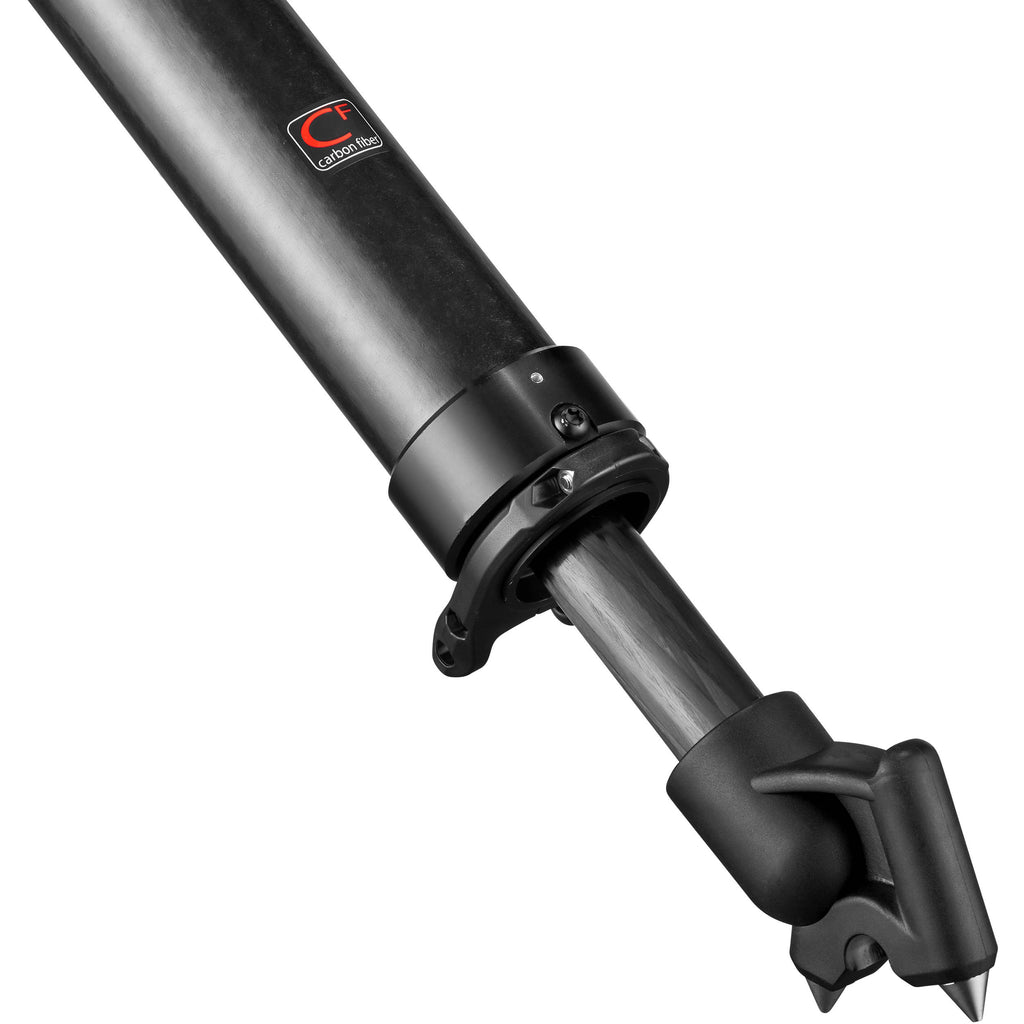

Synchronized Twist-Lock Leg Locks You can adjust the leg height using a single twist lock on each leg; this makes it faster to set up and break down Independent leg height and angle adjustment make these legs well suited for working on uneven terrains such as rocky ground or stairs as well as in tight or odd-shaped spaces The spiked feet provide grip when working on soft ground, while the included rubber boots provide grip when working on hard surfaces and protect delicate surfaces from the spiked feet The legs can accept optional mid-level or ground spreaders Bowl Adapter Ring An optional bowl adapter ring offers the user the ability to work with 60mm half ball heads UPC: 719821441441

Camera Plate Features	Quick Release
Camera Mounting Screw	1 x 1/4"-20 Male with Locating Pin

Base Mount

3/8"-16 Female

Drag Control	Pan: Continuous Tilt: Continuous
Drag Type	Fluid
Vertical Tilt	+90° to -70°
Panning Range	360°

Load Capacity	0 to 17.6 lb / 0 to 7.98 kg at CoG 2.17" / 55 mm
Counter Balance	Continuous (0 to 17.6 lb / 0 to 7.98 kg)
Pan Handle Fittings	2 x Rosette

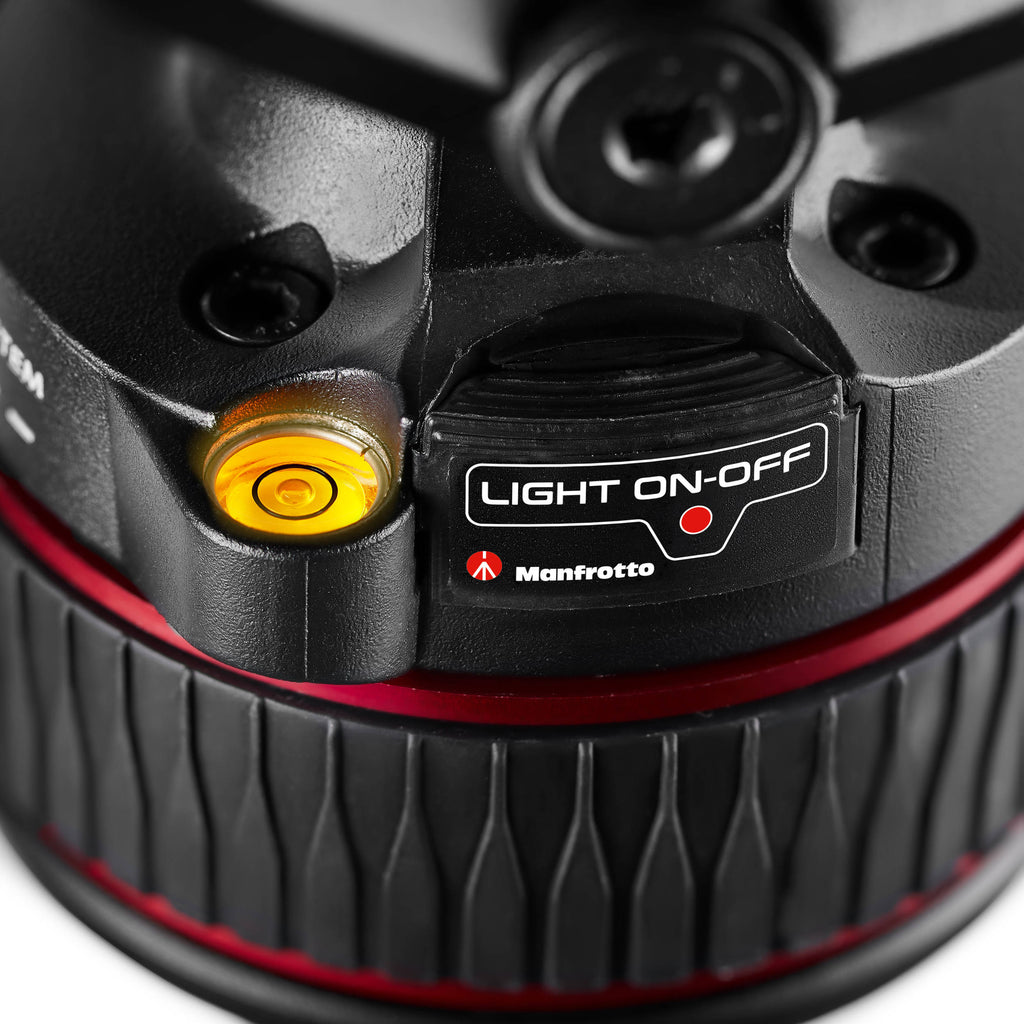

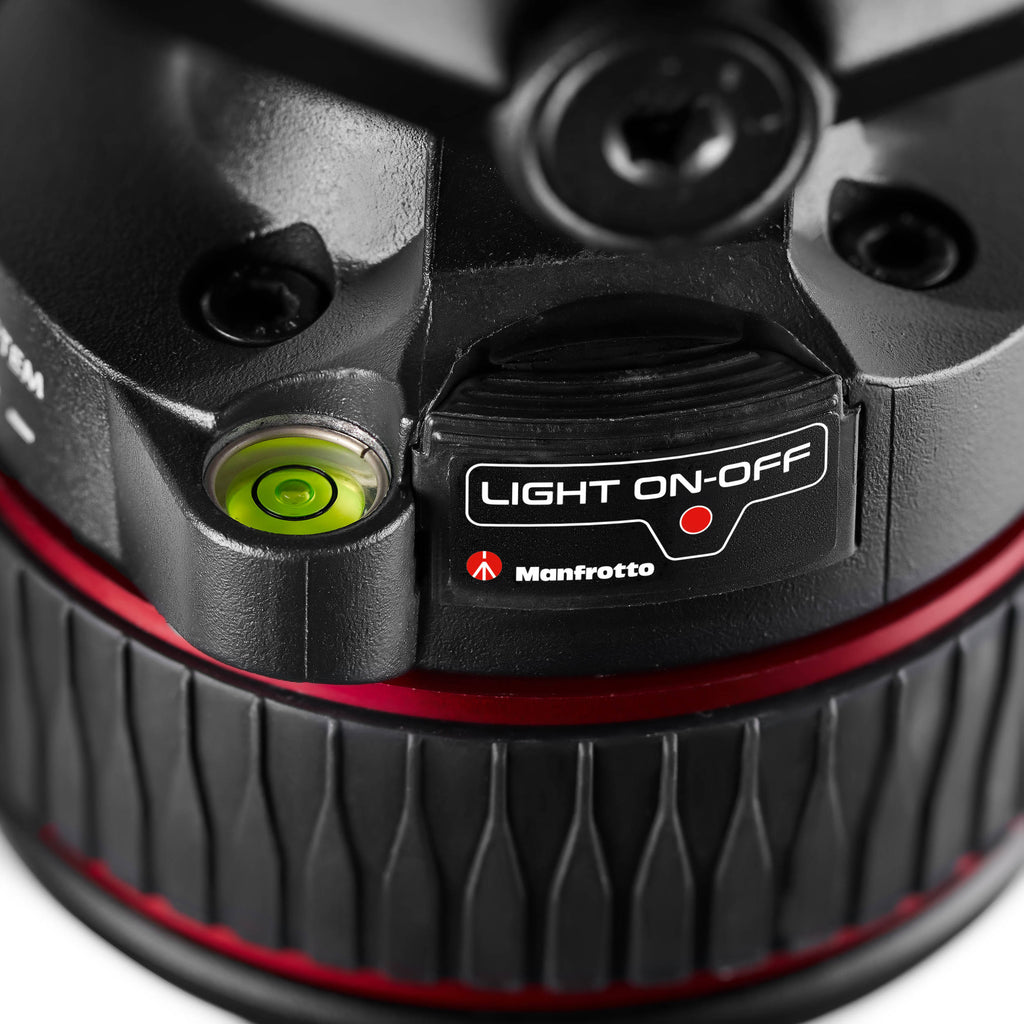

Bubble Level	1 x Illuminated
Accessory Mounting	2 x 3/8"-16 Female Thread
Operating Temperature	-4 to 122°F / -20 to 50°C
Weight	4.9 lb / 2.22 kg

Package Weight	6.6 lb
Box Dimensions (LxWxH)	30 x 20.5 x 20"

Head Mount Type	75 mm Bowl
Load Capacity	44.09 lb / 20.00 kg
Maximum Working Height	61.02" / 154.99 cm
Minimum Working Height	11.22" / 28.50 cm (without Spreader)
Folded Length	28.94" / 73.51 cm
Materials	Carbon Fiber
Bubble Level	No
Weight	7.72 lb / 3.50 kg

Leg Lock Type	Twist Lock
Leg Positions	3 Positions
Independent Leg Spread	Yes
Leg Sections	3
Leg Diameter	0.8" / 20.32 mm 0.98" / 24.89 mm 1.15" / 29.21 mm
Feet Features	Rubber
Spreader	Mid-Level, Ground (Not Included)

Package Weight	9.705 lb
Box Dimensions (LxWxH)	30.9 x 9.1 x 8"
