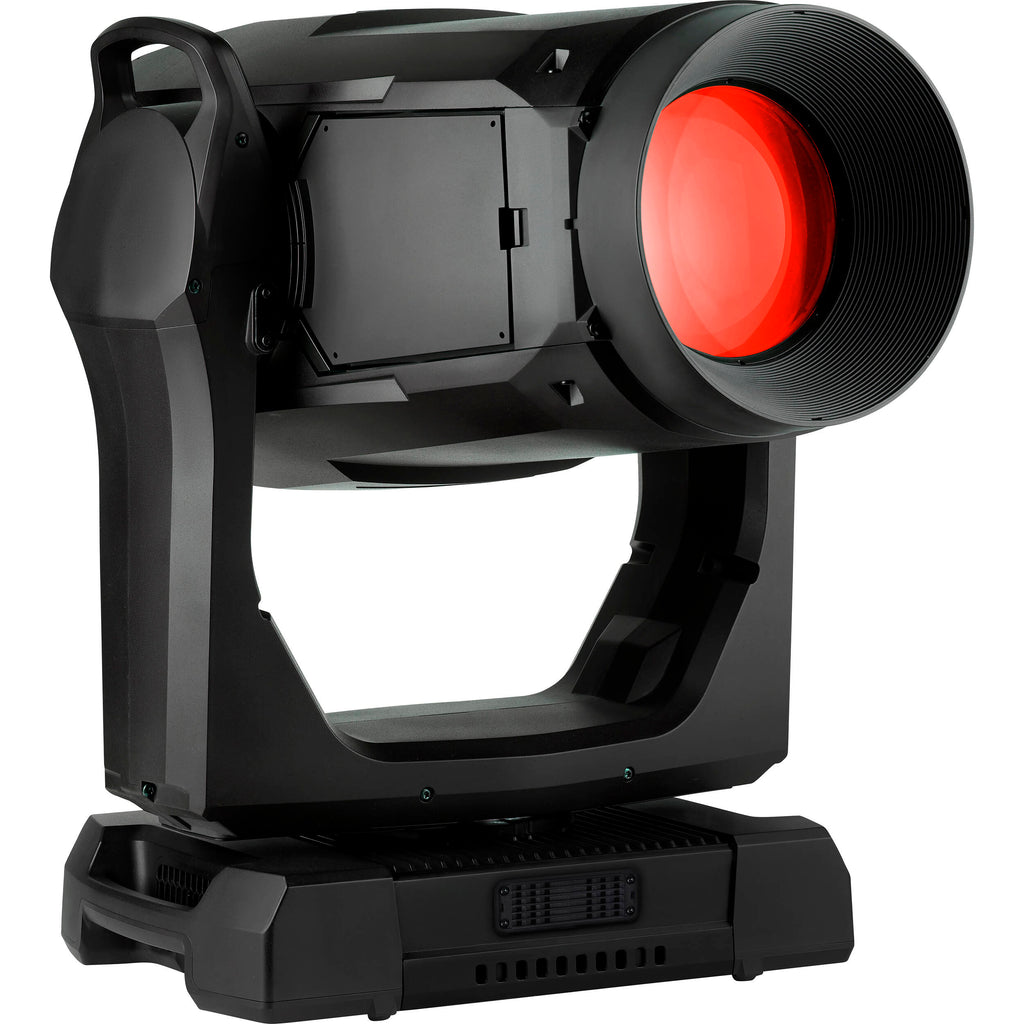

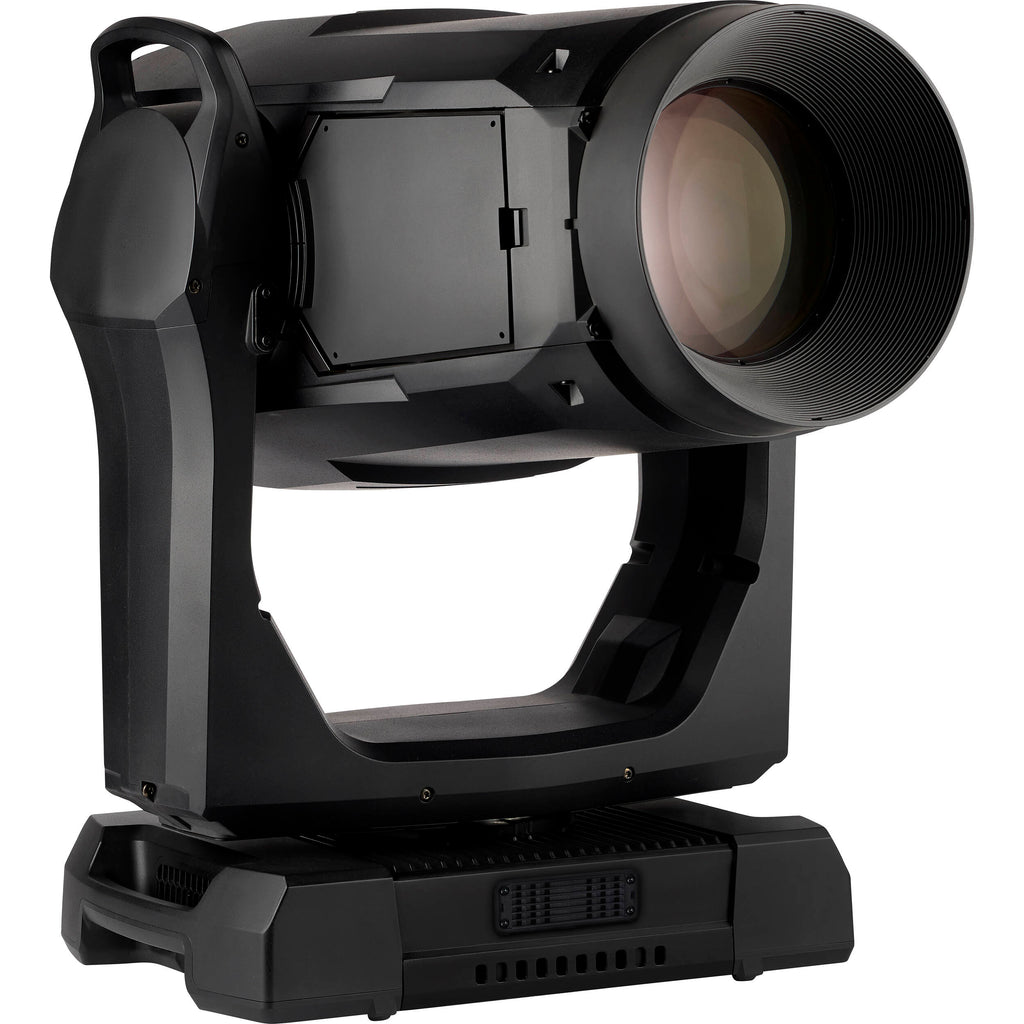

Martin Professional Lighting Mac Viper XIP High-Output, Full-Featured Outdoor Moving Head

At a Glance

• Martin XIP smart weatherproofing technology for outdoor use without compromises
• Incredible MAC Viper-class output with impressive low-noise levels of the MAC Encore-class, perfect for noise-sensitive applications
• Lumen maintenance over the entire zoom range that exceeds industry standards
• Exceptional Pan & Tilt speed, CMY, and Zoom speed and responsiveness
• Sharp framing on the breakup wheel and improved dimming
• Pure white illumination sitting on the black body curve
• Light recycling with gobos for enhanced output
• No dimming on any features, ensuring consistent brightness
• Light and heavy frost available with a heavy frost available in the entire zoom range, providing versatility in lighting effects

Dynamic Effects

• 0 - 100% continuous dimming and strobe effects
• Choice of four dimming curves
• CMY color mixing
• Color temperature control (5800 - 2850K)
• Color wheel with 5 x dichroic filters, including Spectral Enhancement Filter
• Rotating gobo wheel 1 includes 7 interchangeable gobos + open
• Rotating gobo wheel 2 includes 7 interchangeable gobos + open
• Gobo animation wheel, indexing, and continuous rotation with variable angle
• 2 x Frost (fade in), Light & Heavy
• 4-facet prism
• Iris
• Zoom
• Focus with auto tracking
• Extended Framing module with individual ±30° across entire beam and
• ±83° rotation
• Pan: 540°
• Tilt: 268°
• P3 video-mapping of fixture color and/or intensity (6 segments)
• Pre-Programmed Effects: Two ranges of pre-programmed FX
• Green Magenta Shift Control
• Virtual CTC Control (2000 to 12,850K)

Spot-On White Point

Embodying a quality of light that is more pleasing to the eye, the MAC Viper XIP light engine's native 5800K color temperature ensures a white point precisely on the black body curve, with no green or magenta shifts, only crisp, vibrant white light.

Low Noise, High Impact

MAC Viper XIP combines Viper-class output and whisper-quiet noise, similar to Martin MAC Encore. Smart heat management maintains low LED temperatures for long life/output, making it ideal for theater/ broadcast and other noise-sensitive applications.

Outstanding Optics

MAC Viper XIP's optical system features 14 precision-coated lenses and incredible center-to-edge clarity. Uniquely high contrast produces razor-sharp, mid-air effects and the shutter system's enhanced depth of field ensures well-defined gobo framing.

Creative Freedom, Exceptional Performance

As Martin's most feature-rich product ever made, MAC Viper XIP has been engineered to elevate the most demanding shows and events. Every feature has been optimized to give designers maximum creative freedom while ensuring uncompromising performance.

Superior, Steady-State Output

Martin's tailor-made light engine and XIP weatherproofing allow MAC Viper XIP to deliver a consistent 28,000 lumens. Smart, efficient cooling maintains full output with colors, gobos, effects, and gobo light recycling that boosts output by 25%.

NFC and Connectivity

MAC Viper XIP NFC technology enables smartphone control via the upcoming Martin app. DMX addressing, personality settings, and other functions are easily accessible. And with our wireless DMX module connectivity slot, it's future-ready for control.

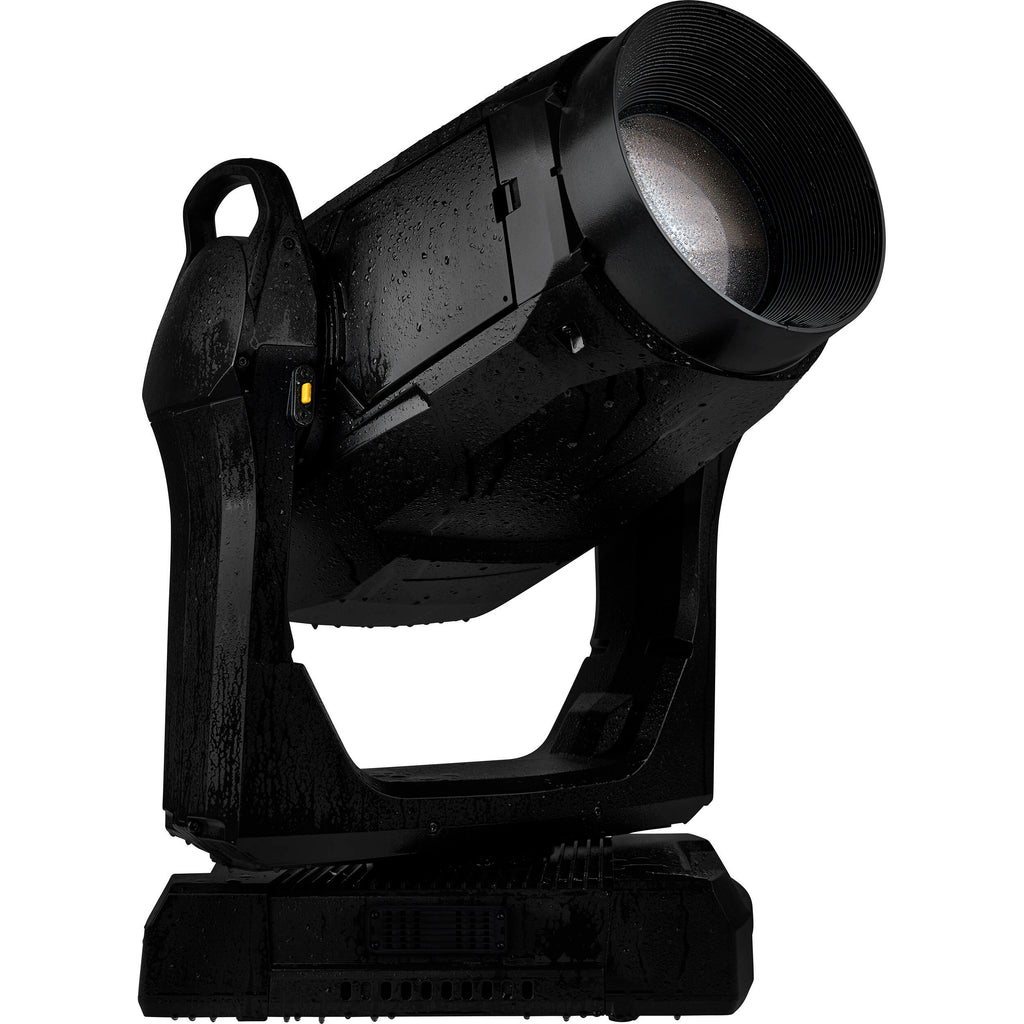

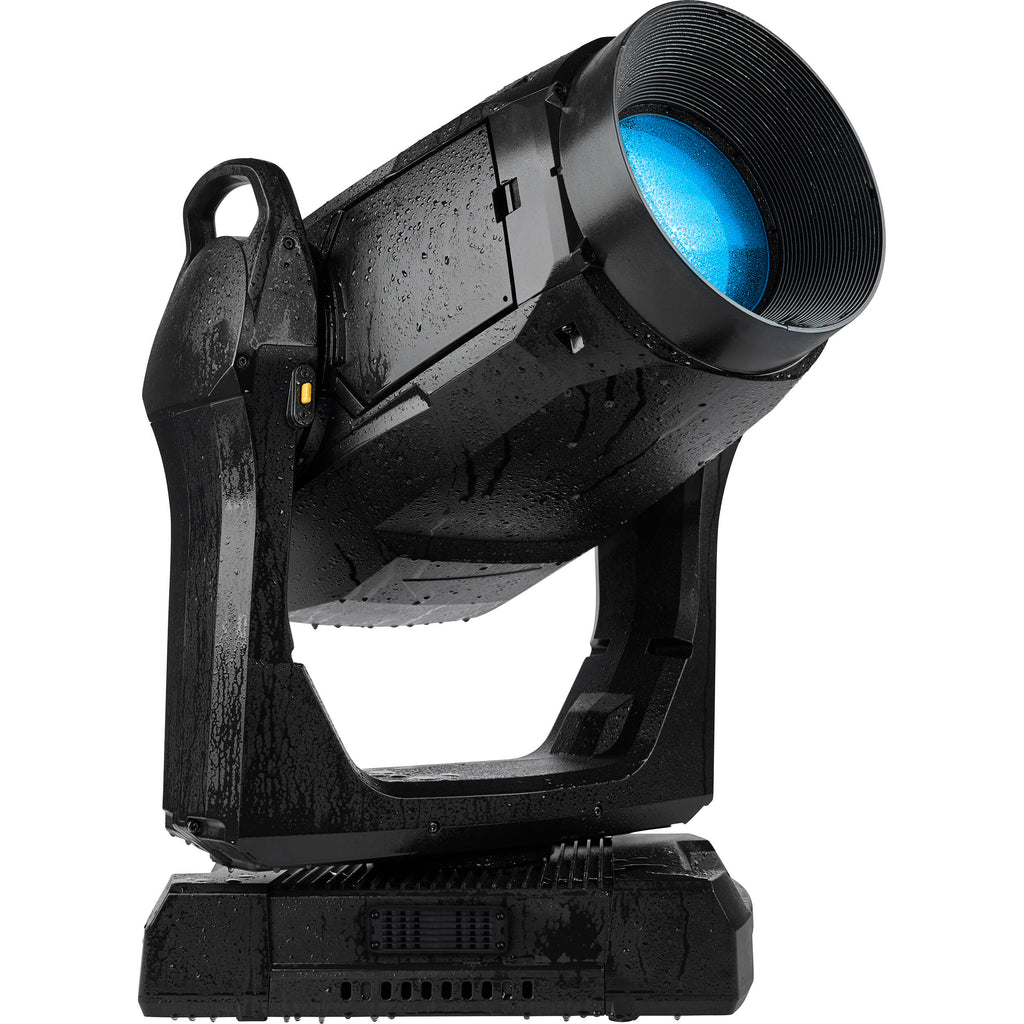

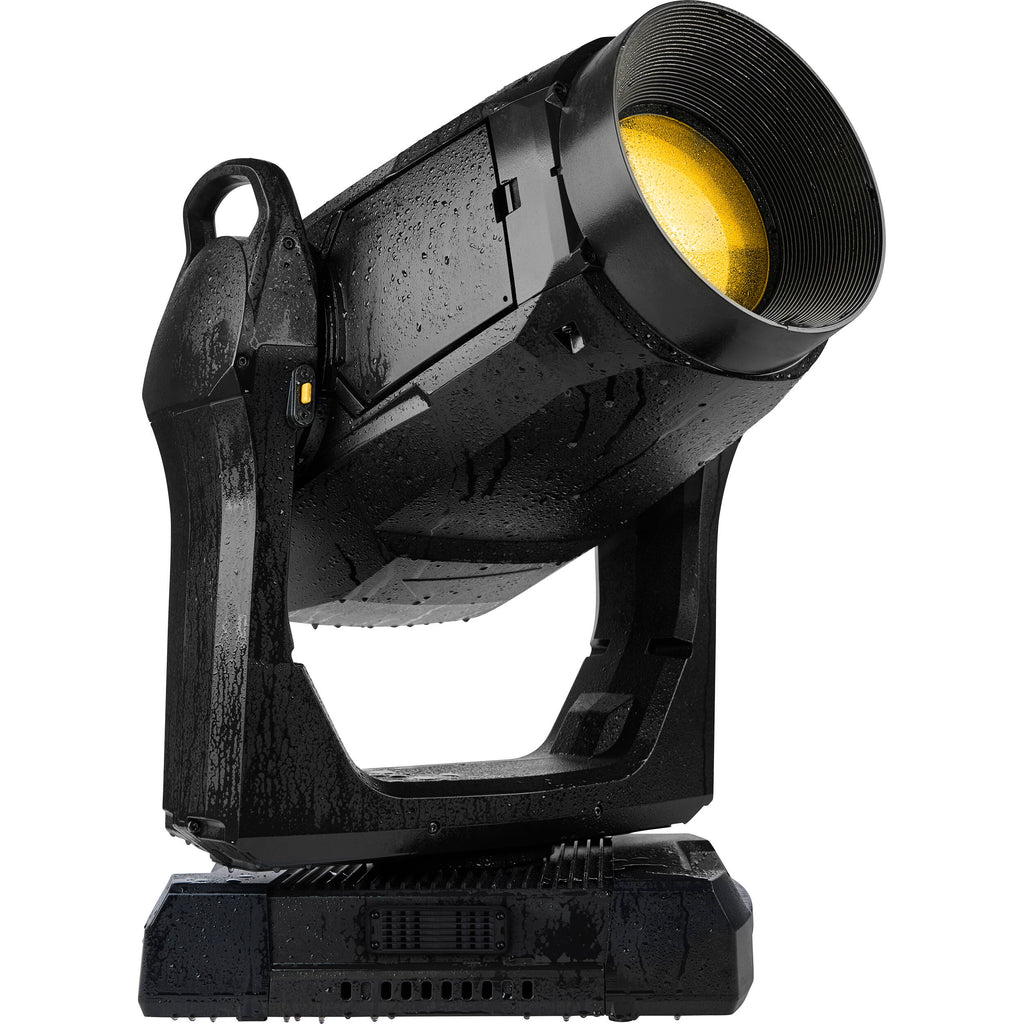

XIP Unique Weather Proofing Technology for Cross-Event Utilization

Martin's patent-pending XIP water/dust ingress protection is ideal for temporary, year-round outdoor use overcoming size, noise, output, and weight penalties, typical of IP65 fixtures. Its low noise and low weight are also perfect for indoor events.

Martin Professional Lighting Viper XIP Specs

Fixture Type	Moving Head
Light Source	55x White LED
Colors	Blue, CTB (Color Temperature Blue), CTO (Color Temperature Orange), Cyan, HCRI (High CRI), Magenta, Orange, Red, Yellow
Pixel Configuration	6x Zone
Control Protocols	DMX512, RDM, Art-Net, sACN, Martin P3
AC Input Power	100 to 240 VAC, 50/60 Hz
Power / Current Consumption	1040 W (Max) 945 W 120 W
Mounting	Floor Base, Omega Bracket

Fixture Type	Moving Head
Light Source	55x White LED
Expected Lamp Life	50,000 Hours
Colors	Blue, CTB (Color Temperature Blue), CTO (Color Temperature Orange), Cyan, HCRI (High CRI), Magenta, Orange, Red, Yellow
Pixel Configuration	6x Zone
Photometrics	51.9° at 5800K: 4717 fc / 50,779 Lux at 3.3' / 1 m 188 fc / 2031 Lux at 16.4' / 5 m 47 fc / 508 Lux at 32.8' / 10 m
Color Temperature	2850 to 5800K
Lumen Output	28,000 Lumens
Field Angle	5.7 to 51°
Shutter / Strobe	Electronic
Iris	Yes
Focus	Motorized
Zoom Adjustment	Motorized
Dimming	16-Bit Electronic, 0 to 100%
Prism	4-Facet (Rotating)

Operating Modes	DMX, Standalone
Macros / Programs	FX Macros
Effects	Pulse Strobe Framing Frost Filter
Strobe Rate	1 to 20 Hz
Gobos	14x Removable Gobo 1x Animation Wheel
Gobo Size	Outer Diameter: 1.1" / 27.1 mm Max Image Size: 0.9" / 22 mm Max Thickness: 0.04" / 1.1 mm
Color Accuracy Index	HCRI: 90 CRI: 68 TLCI: 44
Refresh Rate	2400 Hz

Tilt Ranges	260°
Pan Ranges	540°
Pan/Tilt Inversion	Yes
Movement Resolution	16-Bit

Control Protocols	DMX512, RDM, Art-Net, sACN, Martin P3
DMX Channel Modes	3 Mode(s): 70 / 64 / 54-Channel
Remote Control	No
Mobile App Compatible	Yes: Android & iOS

Inputs/Outputs	1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output 2 x etherCON/RJ45 Data Input/Output 1 x USB-C Service Input
Wireless	900 MHz Radio/RF / 2.4 GHz Radio/RF

AC Input Power	100 to 240 VAC, 50/60 Hz
AC Power Connector	Input: 1x powerCON TRUE1 Output: 1x powerCON
Fuse	No
Power / Current Consumption	1040 W (Max) 945 W 120 W
Power Linking	3 Units at 240 VAC

Environmental Resistance	Dust/Water-Resistant (IP54)
Operating Conditions	14 to 104°F / -10 to 40°C
Mounting	Floor Base, Omega Bracket
Included Accessories	No
Duty Cycle	No
Exterior Color	Black
Max Housing Temperature	176°F / 80°C
Cooling	Fan
Certifications	REACH, RoHS, WEEE
Dimensions	30.6 x 18.9 x 11.1" / 777.2 x 480.1 x 281.9 mm
Weight	81 lb / 36.7 kg
