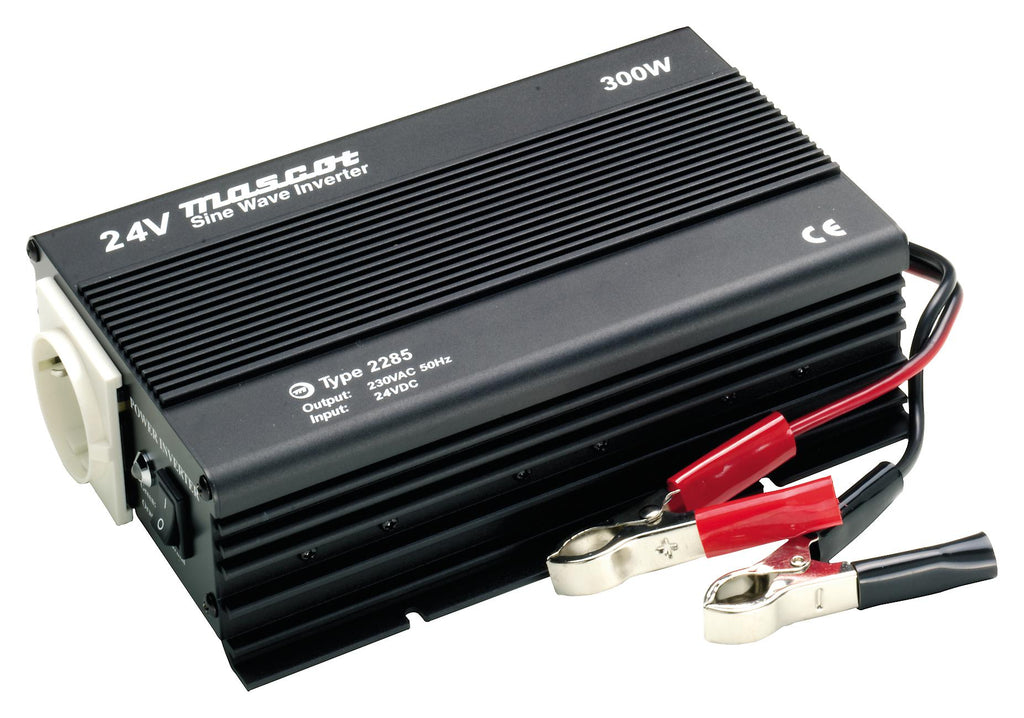

2285240000 is a pure sine wave DC/AC inverter. It powers up TV/Video, appliances, battery chargers (laptop, mobile phones), instruments, tools, and other equipment. It includes input low voltage, input overvoltage, low battery alarm, overtemperature, overload protection and short circuit proof cooling fan. Ideal for industrial and mobile applications, and for caravans, boats, and cars/trucks (application).
- Built-in alarm
- Input voltage range from 20 to 30VDC, 230VAC +5/-10% (50Hz) output voltage
- 2285: 300W (continuous), 2285: 500W (intermittent) output power, >90% efficiency
- 21.4V low battery alarm, 20V low battery shut-down
- EN 60950, EN 61000-6-3, EN 61000-6-1 safety standard
- Dimension (L x W x H) is 190 � 152 � 66mm
- Dimensions mounting holes is 110 � 145mm
- Operating temperature range from 0°C to 50°C
Product details
Power Supply Applications:
ITE & Industrial
|
Input Voltage Max:
30VDC
|
No. of Outputs:
1 Output
|
Output Voltage:
230VAC
|
Output Power:
300W
|
Product Range:
2285 Series
|
Length:
190mm
|
Width:
152mm
|
Height:
66mm
|
Other details
Brand |
MASCOT |
Part Number |
2285240000 |
Quantity |
Each |
Technical Data Sheet EN |
 |
