Description
Product Overview

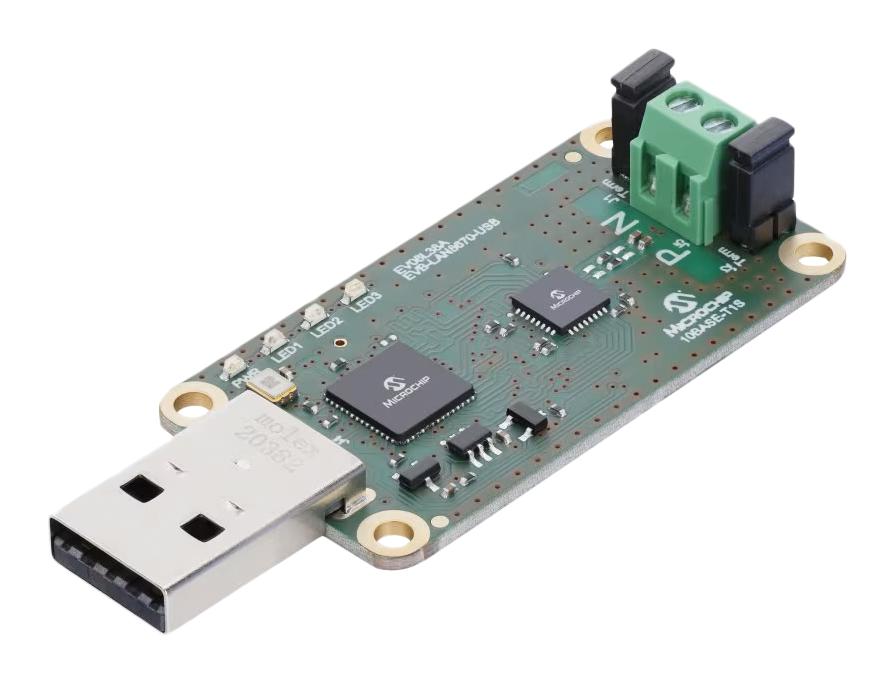

EV08L38A is a 10BASE-T1S Ethernet PHY Transceiver LAN8670 USB evaluation board (EVB-LAN8670-USB). The EVB-LAN8670-USB utilizes Microchip�s LAN9500A, which is a Hi-Speed USB 2.0 to 10/100 Ethernet controller, to interconnect a USB interface with a 10BASE-T1S Ethernet network interface. Thus, the adapter serves as a network card that connects applications via USB to the 10BASE-T1S network interface.
- USB to 10BASE-T1S interface card
- 10BASE-T1S single-pair Ethernet physical layer transceiver LAN8670
- Supports multidrop mixing segments
- Connects to a USB host
- Physical Layer Collision Avoidance (PLCA)
- Screw terminal for direct cable connection (no connector needed)
- Configurable on-board termination
- USB connector voltage range from 4.75 to 5.25V
Product details
Other details
| Brand | MICROCHIP |
| Part Number | EV08L38A |
| Quantity | Each |
| Technical Data Sheet EN |  |
