Description

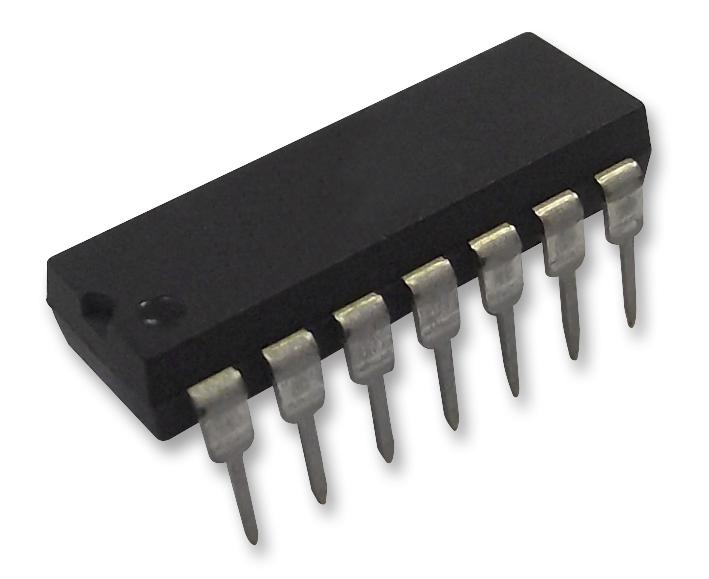

The PIC16F1503-I/P is an enhanced mid-range PIC16 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 3.5kB of addressable program memory size, 128bytes of data memory size, 12 general-purpose I/O pins, two comparators, 8-channel 10-bit analog-to-digital (A/D) converter and one 5-bit digital-to-analog (D/A) converter. This device operates at a maximum frequency of 20MHz with wide operating voltage of 1.8 to 5.5V.
- 49 (14-bit wide) easy instructions to learn
- 16 level hardware stack
- 2 (16-bit) file select registers
- Hardware interrupt handling with content save
- 16MHz internal oscillator
- Programmable brown-out reset (BOR)
- Power on reset (POR)
- Internal voltage reference (Bandgap)
- Two 8-bit digital timers
- One 16-bit digital timer
- Four stand alone PWM
- 2x Configurable logic cell modules (CLC)
- 1x Complementary waveform generator (CWG)/Complementary output generator (COG)
- Numerically controlled oscillator (NCO)
- In-Circuit Serial Programming� (ICSP�)
Applications
Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: PIC16 Family PIC16F15xx Series Microcontrollers |
| Device Core: PIC16 |
| Operating Frequency Max: 20MHz |
| Program Memory Size: 3.5KB |
| No. of Pins: 14Pins |
| IC Case / Package: DIP |
| No. of I/O's: 12I/O's |
| Interfaces: I2C, SPI |
| RAM Memory Size: 128Byte |
| ADC Channels: 8Channels |
| ADC Resolution: 10Bit |
| Supply Voltage Min: 2.3V |
| Supply Voltage Max: 5.5V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| IC Mounting: Through Hole |
| MCU Family: PIC16 |
| MCU Series: PIC16F15xx |
| Qualification: - |
| MSL: - |
Other details
| Brand | MICROCHIP |
| Part Number | PIC16F1503-I/P |
| Quantity | Each |
| Technical Data Sheet EN |  |
