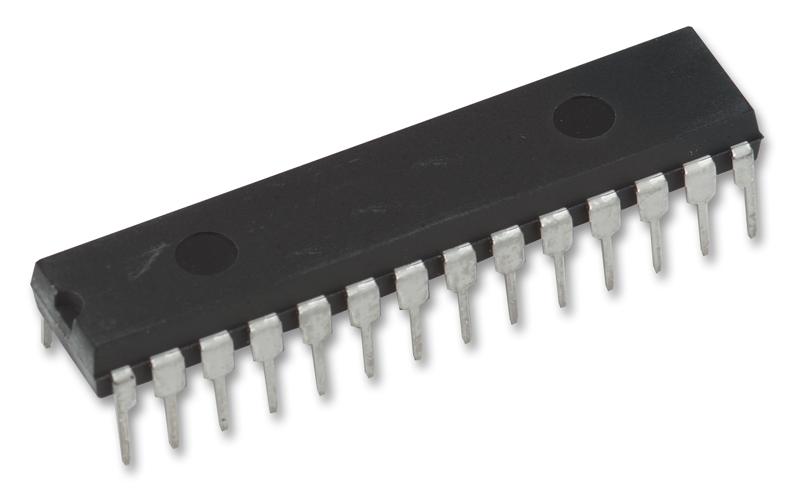

Microchip PIC18F252-I/SP 8 Bit MCU Flash PIC18 Family PIC18F25xx Series Microcontrollers 40 MHz 32 KB 28 Pins Ndip

High performance enhanced flash microcontroller (MCU) with 10bit analogue to digital converter. This 28 pin DIP MCU features source code compatible with the PIC16 and PIC17 instruction sets, 16bit wide instructions, 8bit wide data path, up to 10 MIPs operation, 5 input channels of 10bit analogue to digital converter, power-on reset (POR), power-up timer (PWRT) and oscillator start-up timer (OST), watchdog timer (WDT) with its own on-chip RC oscillator for reliable operation, single supply 5V In-Circuit Serial Programming� (ICSP�) via two pins and In-Circuit Debug (ICD) via two pins.

• High performance RISC CPU addressing to 32Kbytes program and 1.5Kbytes data memory
• 100,000 flash and 1,000,000 data EEPROM erase/write cycle
• 40 years FLASH/data EEPROM retention
• Self-reprogrammable under software control
• 17 interrupt sources and 75 instructions set
• 3 I/O ports ( A, B, C), 4 timer and 2 capture/compare/PWM modules
• MSSP and addressable USART serial communications
• Programmable low voltage detect (PLVD), brown-out reset (BOR) and code protection
• Power saving SLEEP mode
• Fully static design CMOS technology

Applications

Embedded Design & Development

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC18F252-I/SP
Quantity	Each
Technical Data Sheet EN
Application Note EN
CAD CadSoft_EAGLE EN
Product Change Notice EN
