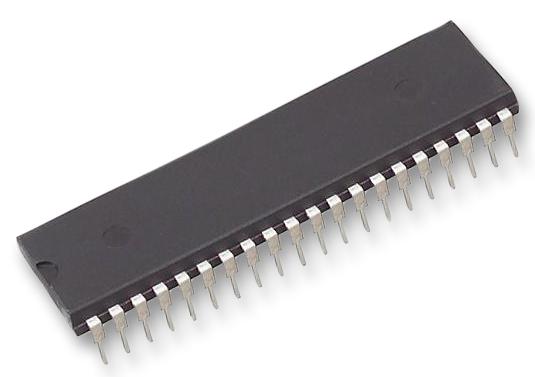

Microchip PIC18F45K22-I/P PIC18F45K22-I/P 8 Bit MCU Flash PIC18 Family PIC18F K2x Series Microcontrollers 64 MHz 32 KB 40 Pins

The PIC18F45K22-I/P is a 1536-byte SRAM low-power High-performance Microcontroller with XLP technology. The PIC18F45K22 family introduces design enhancements that make this microcontroller a logical choice for many high performance and power sensitive applications. The PIC18F45K22 family incorporates a range of features that can significantly reduce power consumption during operation. The flash cells for both program memory and data EEPROM are rated to last for many thousands of erase/write cycles - up to 10K for program memory and 100K for EEPROM. Data retention without refresh is conservatively estimated to be greater than 40 years. This device can write to their own program memory spaces under internal software control. By using a bootloader routine located in the protected Boot Block at the top of program memory, it becomes possible to create an application that can update itself in the field.

• High performance RISC CPU - C compiler optimized architecture/instruction set
• Extreme low-power management with nanoWatt XLPâ�¢
• Flexible oscillator structure - Two external clock modes up to 64MHz and fail-safe clock monitor
• Analogue - Analogue-to-digital converter (ADC) module and analogue comparator module
• Self-programmable under software control
• High/low-voltage detection (HLVD) module - Interrupt on high/low-voltage detection
• Extended watchdog timer (WDT) - Programmable period from 4ms to 131s
• In-Circuit Serial Programmingâ�¢ (ICSPâ�¢) - Single-supply 3V
• In-Circuit Debug (ICD)
• Peripheral - Two capture/compare/PWM (CCP) modules and up to 35 I/O pins plus 1 input-only pin
• Supplier's original packaging: Tube

Applications

Computers & Computer Peripherals, Industrial, Automotive

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC18F45K22-I/P
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
CAD CadSoft_EAGLE EN
