MICROCHIP PIC18F46Q71-E/P 8 Bit MCU, PIC18 Family PIC18FxxQ71 Series Microcontrollers, PIC18, 64 MHz, 64 KB, 40 Pins, PDIP

PIC18F46Q71-E/P is a low-power, high-performance microcontroller with XLP technology. This is an ideal solution for lighting, motor control and medical market segments. This analogue-focused family features a 12bit differential ADC with computation and context switching, two operational amplifiers, a 10bit digital-to-analogue converter (DAC) and two 8-bit DAC modules with buffered outputs and internal connections to other peripherals, and two advanced high-speed analogue comparators. This device family also features the analogue peripheral manager to manage analogue peripherals for optimizing power consumption. The PIC18-Q71 microcontroller family also features the 8-bit signal routing port module to interconnect digital peripherals without using external pins.

• 64kbytes program memory flash, 4096bytes data SRAM, 256bytes data EEPROM
• (2) 16bit universal timer, 1/2 10-Bit DAC/8-Bit DAC, (2) operational amplifier
• 1 high-low voltage detect, 1/1 SPI/I²C, 1/1 UART/UART with protocol support
• 4 direct memory access (DMA), operating voltage range from 1.8V to 5.5V
• DC â�� 64MHz clock input, 62.5ns minimum instruction cycle
• User-programmable source and destination sizes
• Hardware and software-triggered data transfers
• Fixed interrupt latency of three instruction cycles
• Programmable vector table base address

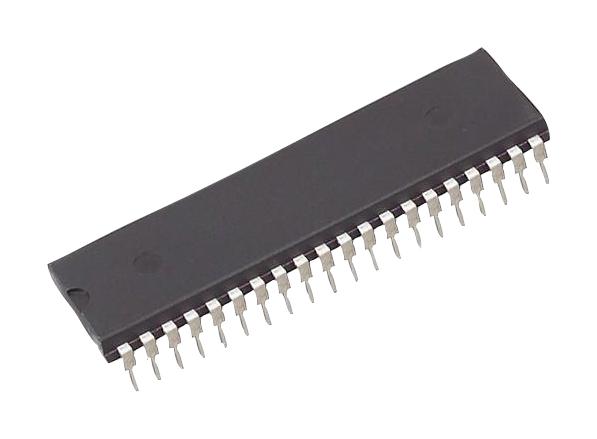

• 40-lead PDIP package, extended temperature range from -40°C to +125°C
