Microchip PIC18LF26K40T-I/ML PIC18LF26K40T-I/ML 8 Bit MCU XLP PIC18 Microcontrollers 64 MHz KB 28 Pins QFN

The PIC18LF26K40T-I/ML is a large memory, highly integrated 8bit general purpose flash microcontroller in 28 pin QFN package. This microcontroller with C compiler optimized RISC architecture combines large flash/EE/RAM memory, rich peripheral integration, eXtreme low power (XLP) and 5V support to suit a variety of general purpose applications. The device delivers core independent peripherals such as complementary waveform generator (CWG), window watchdog timer (WWDT), CRC/memory scan, hardware capacitive voltage divider (CVD), zero cross detect, signal measurement timer (SMT), hardware limit timer (HLT) and peripheral pin select for providing increased design flexibility and lower system cost. It features low current power-on reset (POR), configurable power-up timer (PWRTE), brown-out reset (BOR) with fast recovery and low power BOR (LPBOR) option and programming/debug features such as in-circuit debug integrated on-chip and in-circuit serial programming (ICSP) via two pins.

• 64Kbytes flash program memory, 4096bytes data SRAM and 1024bytes data EEPROM
• Twenty four I/O pins, four 8bit/three 16bit timers and two comparators
• Twenty four 10bit ADC, one 5bit DAC and one zero cross detect
• Two EUSART, two I2C/SPI, PPS, RS232, RS485 and LIN interfaces
• Operating voltage range from 1.8V to 3.6V
• Operating speed of 0MHz to 64MHz, 62.5ns minimum instruction cycle and auto wake-up on start
• Fail-safe clock monitor, two-speed oscillator start-up & 3 power saving modes (doze, idle, sleep)
• Two capture/compare/PWM (CCP) modules and two 10bit pulse width modulators
• 16MHz internal oscillator, 32KHz low power internal oscillator and auto-baud detect
• Operating temperature range from -40°C to 85°C

Applications

Embedded Design & Development

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC18LF26K40T-I/ML
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Product Change Notice EN

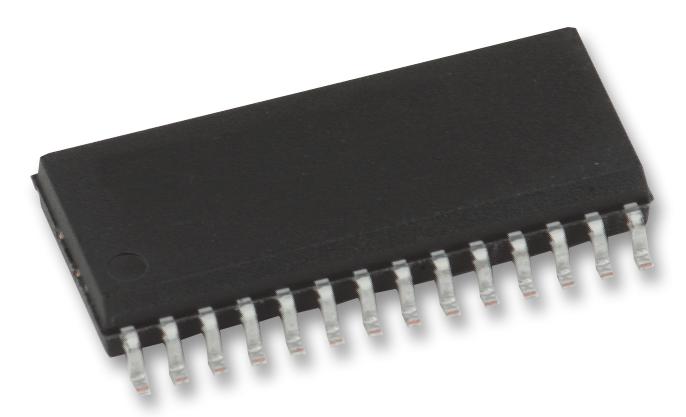

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
