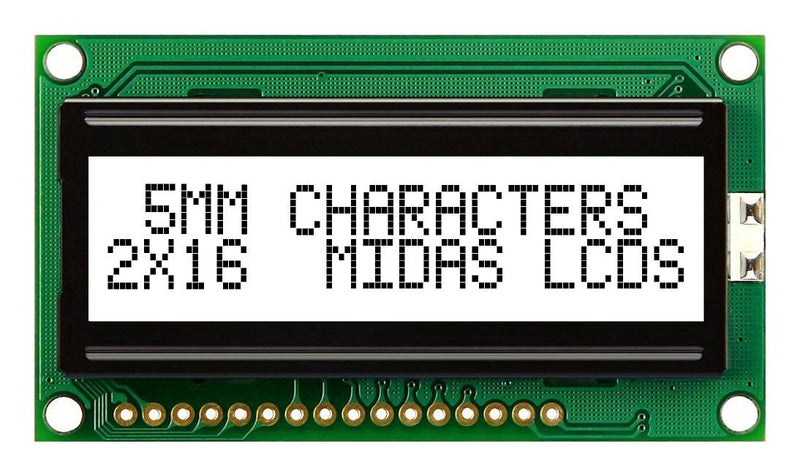

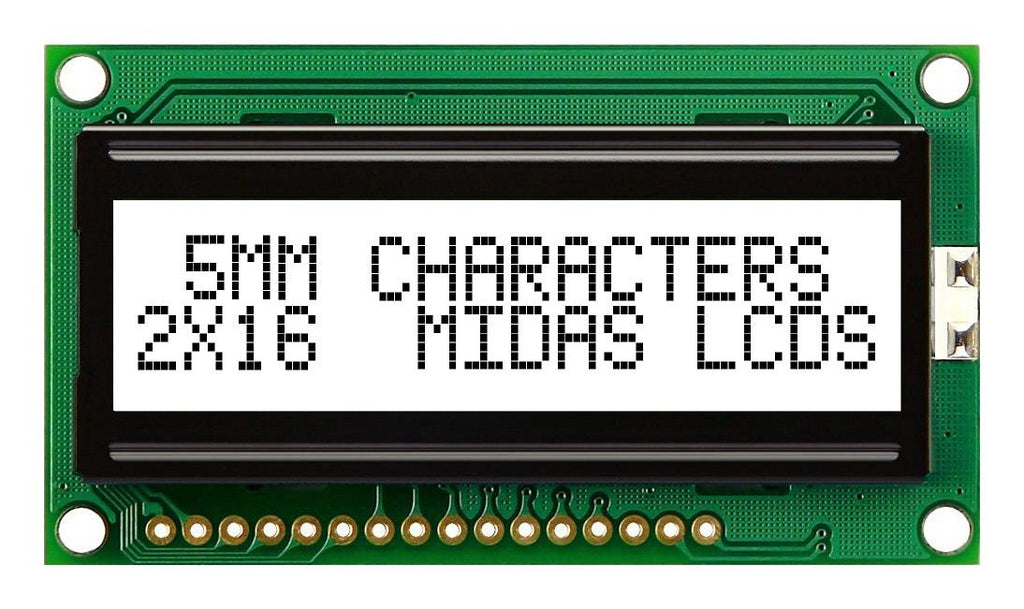

- Character LCD (Liquid Crystal Display) with 16 characters x 2 lines
- FSTN transflective, 4.99mm character height
- White LED backlight
- Black characters on a White background appearance, ST7066U + ST7065C controller
- Parallel interface, -20°C to +70°C operating temperature
- ST7066U controller
- 3.3V driving voltage, 3.0V LED backlight voltage
- 16 way, 2.54mm pitch, flat-flexi
- Chip on board construction
- 65.50mm x 36.70mm x 13.50mm overall size, 54.00mm x 14.40mm viewing area
Other details
| Brand |
MIDAS |
| Part Number |
MC21605H6W-FPTLW3.3-V2 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
