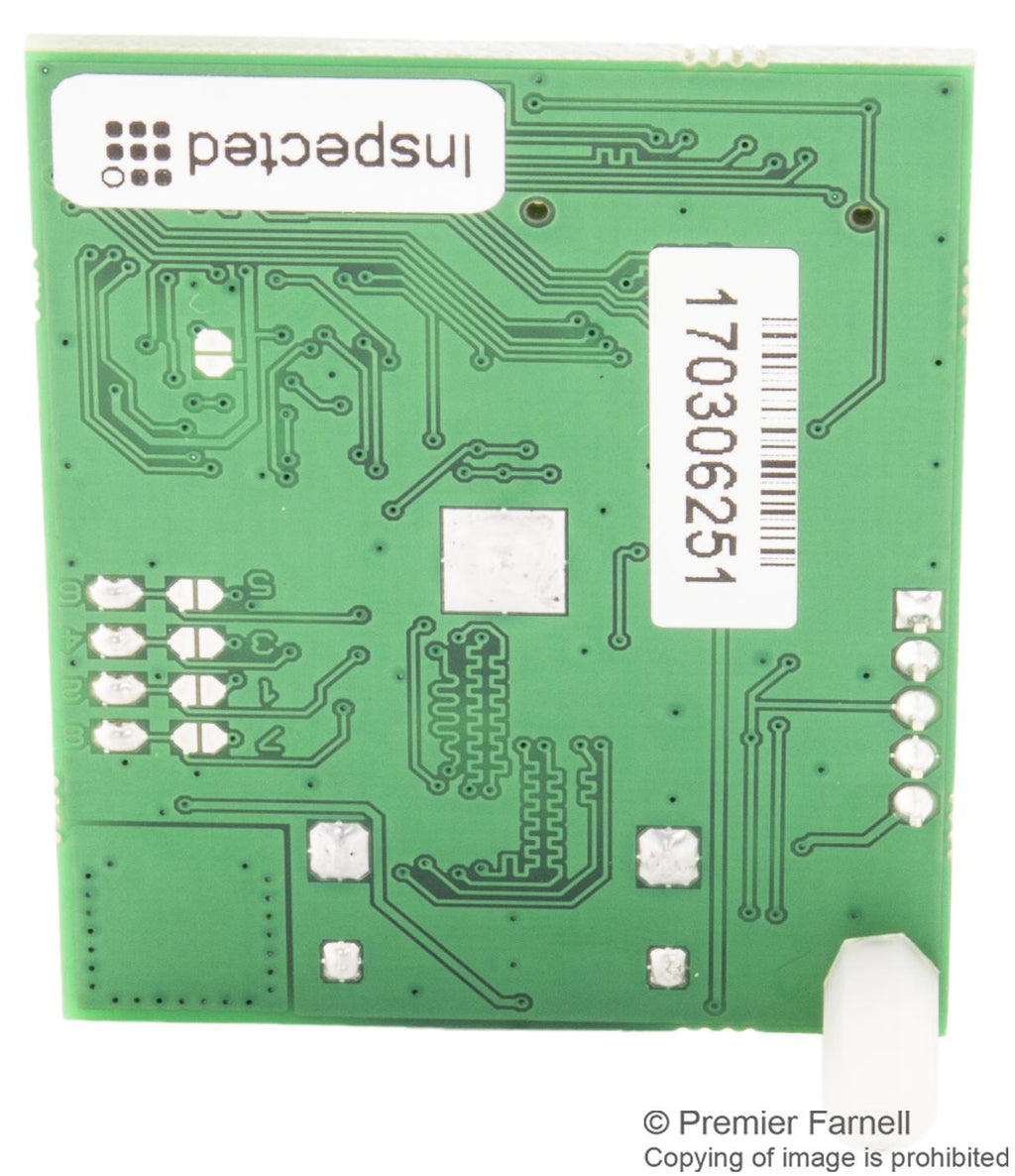

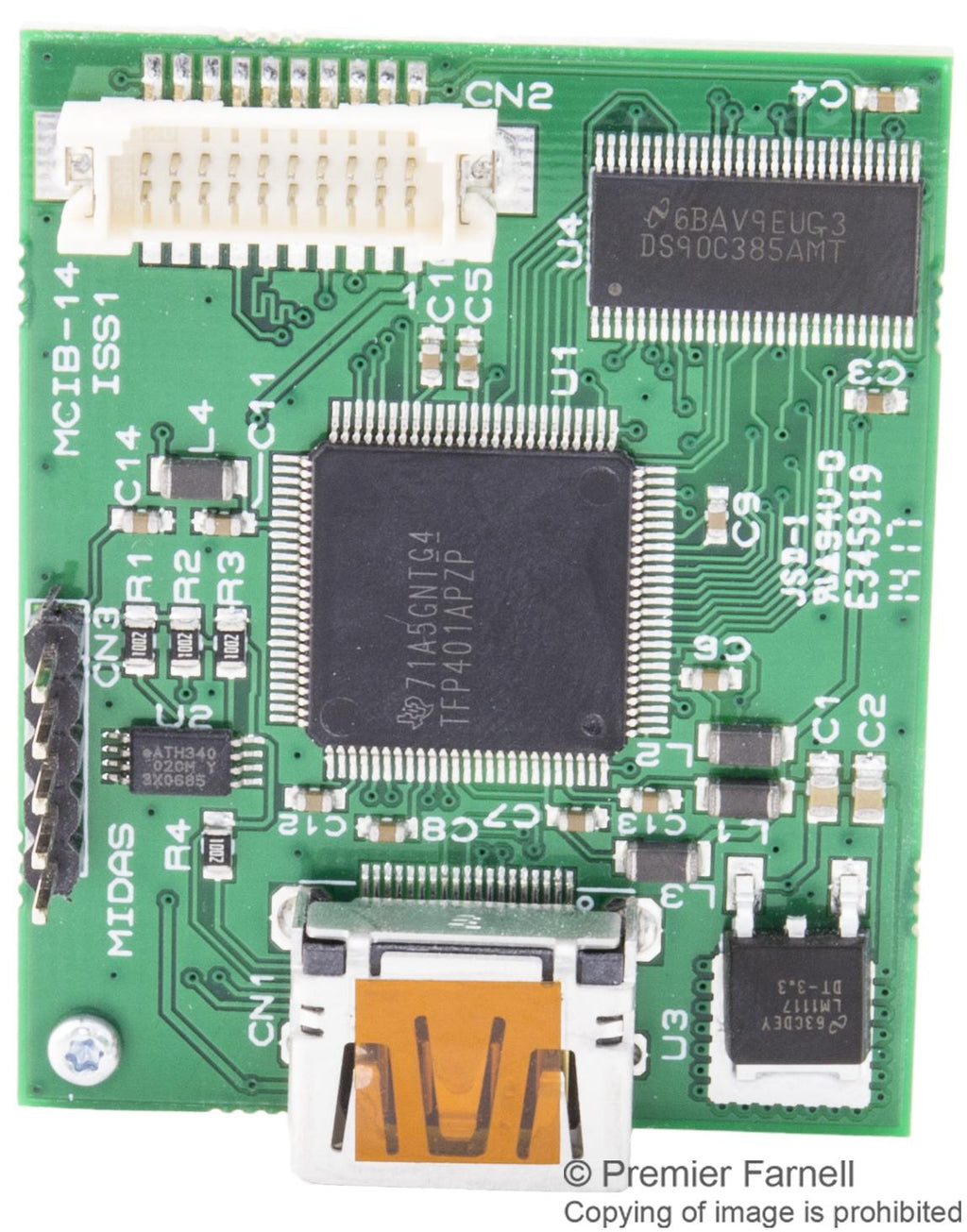

The MCIB-14 from Midas is a HDMI to LVDS converter. This converter is ideal for connecting a range of Midas TFT displays to a single board computer such as the Raspberry Pi.
- Standard high definition multimedia interface (HDMI) connector
- 20 way 1.25mm pitch DF13A-20DP-1.25V(25) LVDS connector
- Connections for 5V power and EDID programming
- Single 5V power supply requirement
- EEPROM (24C02) for extended display identification data (EDID) storage
- Mechanical dimensions 50mm x 40mm x 12mm
- Compatible with many LVDS interface TFTs (cable required)
- 4.75V to 5.5V supply voltage
- 0?C to +70?C operating temperature
Footnotes Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MIDAS |
| Part Number |
MCIB-14 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| CAD/Ultra_Librarian EN |
|
