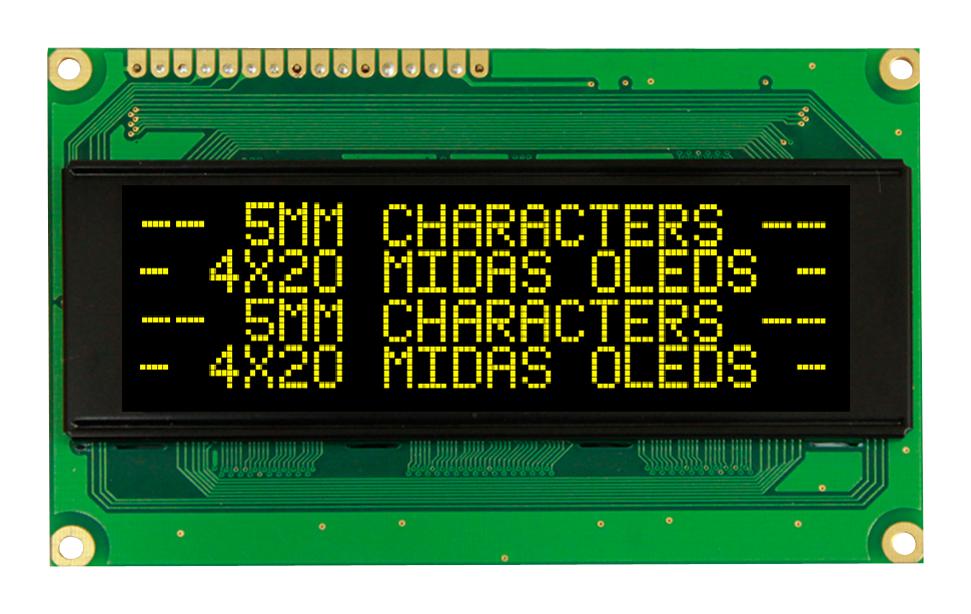

- 4 lines of 20 characters, 4x20
- Yellow OLED (Organic Light Emitting Diode)
- Yellow dots on a black background appearance
- Chip On Board (COB) construction
- HDD44780 compatible controller
- Four built in font sets: English, Japanese, European, and Cyrillic (Russian)
- Parallel interface
- Superb all round view angles
- High contrast
- Fast refresh rate
- -40°C to +80°C extended operating temperature
- 16 way SIL (Single In Line) pin out, 2.54mm pitch
- 98.0mm x 60.0mm x 10.0mm panel size
- 77.0mm x 25.2mm viewing area
- 2.97mm x 4.77mm character size
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MIDAS |
| Part Number |
MCOB42005A1V-EYP |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| CAD/Ultra_Librarian EN |
|
