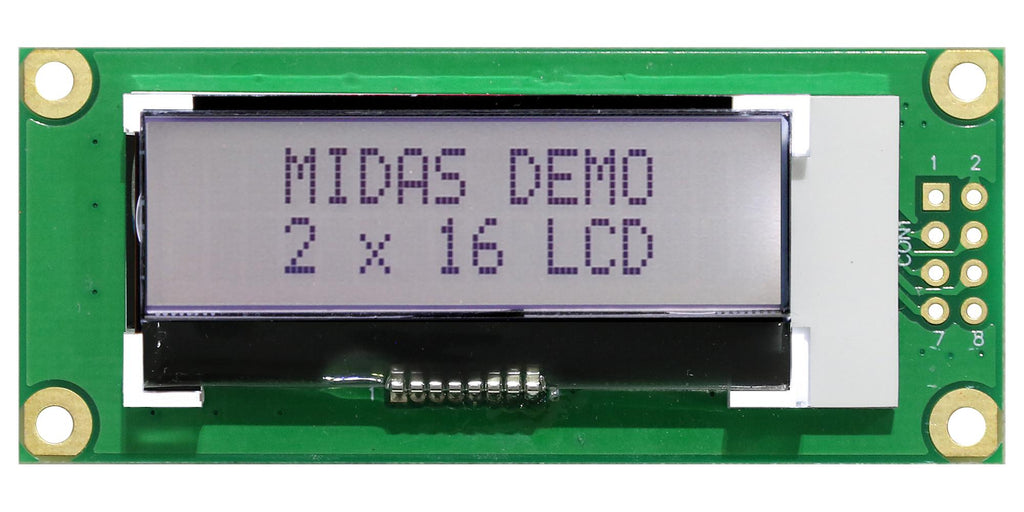

- Character LCD (Liquid Crystal Display)
- 16 characters x 2 lines, FSTN transflective
- White LED backlight
- Black characters on a white background appearance
- I2C interface, ST7032i controller
- 3.3V driving voltage
- 8 DIL right connection, 3.79mm character height
- Operating temperature range from -20°C to +70°C
- Chip on glass on PCB construction
- 66.00mm x 28.00mm x 9.30mm overall size, 40.00mm x 9.98mm viewing area
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MIDAS |
| Part Number |
MD21605B6W-FPTLWI3 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
