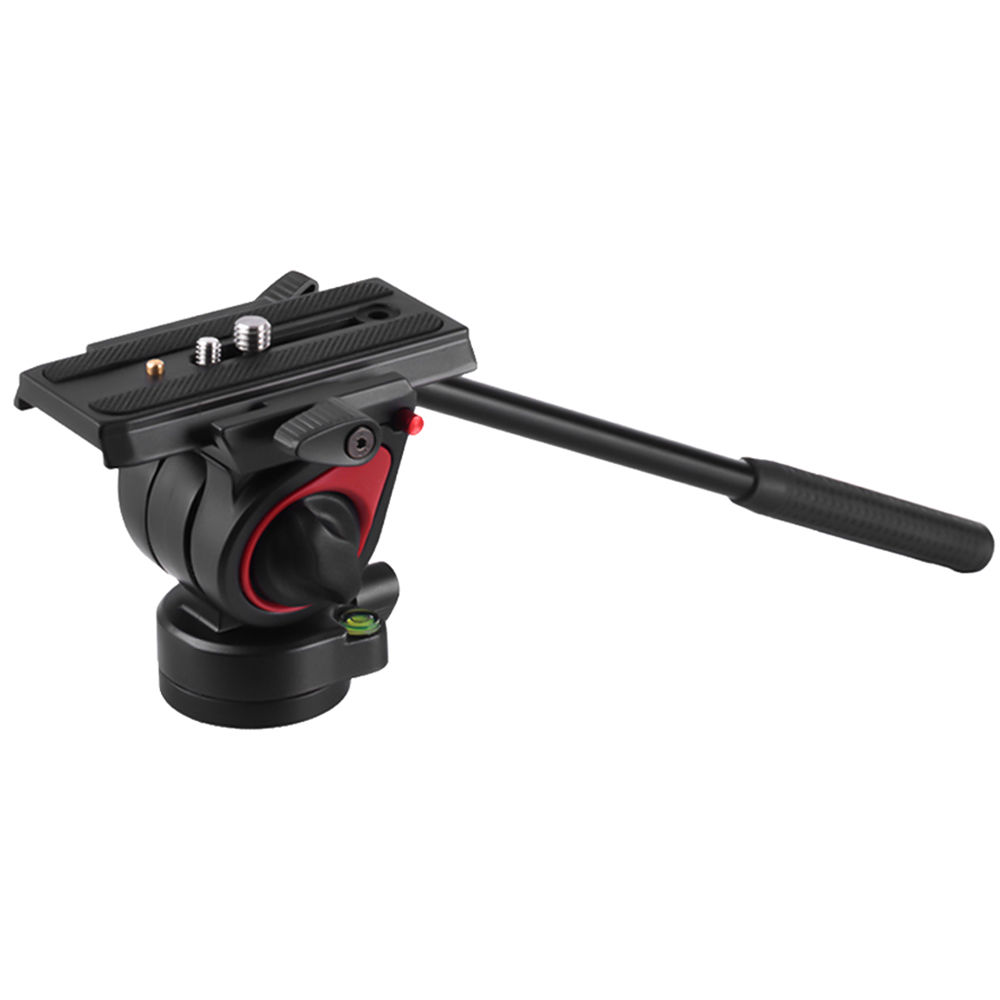

Aluminum Video Fluid Head50mm Base, 8.8 lb Max Load360° Horizontal Panning+90 to -70° Tilt Range The MUF Video Fluid Head from miliboo is a pan and tilt fluid tripod head that fits tripods with a 3/8"-16 mounting screw. The lightweight yet durable fluid head is made of aluminum, features a 50mm base, and weighs 1.2 lb.

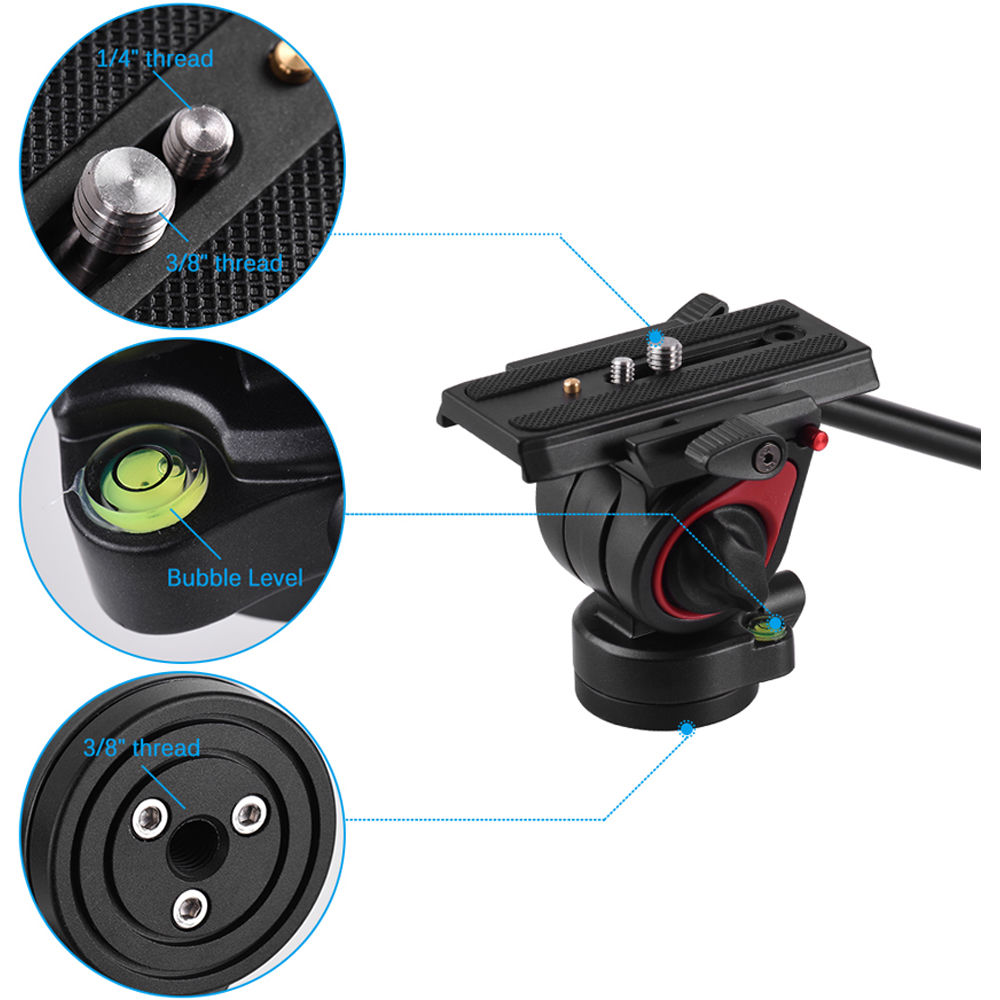

The MUF features a +90 to -70° tilt range and a full 360° panning range, and it has a maximum payload of 8.8 lb. The sliding quick release plate features 1/4"-20 and 3/8"-16 camera mounting screws, as well as a safety pin to prevent twisting. The head also features a bubble level to help balance your gear and an 11" pan bar for smooth motion. There are locks to secure the camera plate, the pan bar, as well as the head's pan and tilt.
UPC: 739770131361
| Camera Plate Features | Sliding Balance Plate, Quick Release |
| Camera Mounting Screw | 1 x 1/4"-20 Male with Locating Pin
1 x 3/8"-16 Male |
| Plate Dimensions | 4.21 x 1.54" / 10.7 x 3.9 cm |
| Base Mount | 3/8"-16 Female |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -70° |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
| Material | Aluminum |
| Load Capacity | 8.8 lb / 3.99 kg |

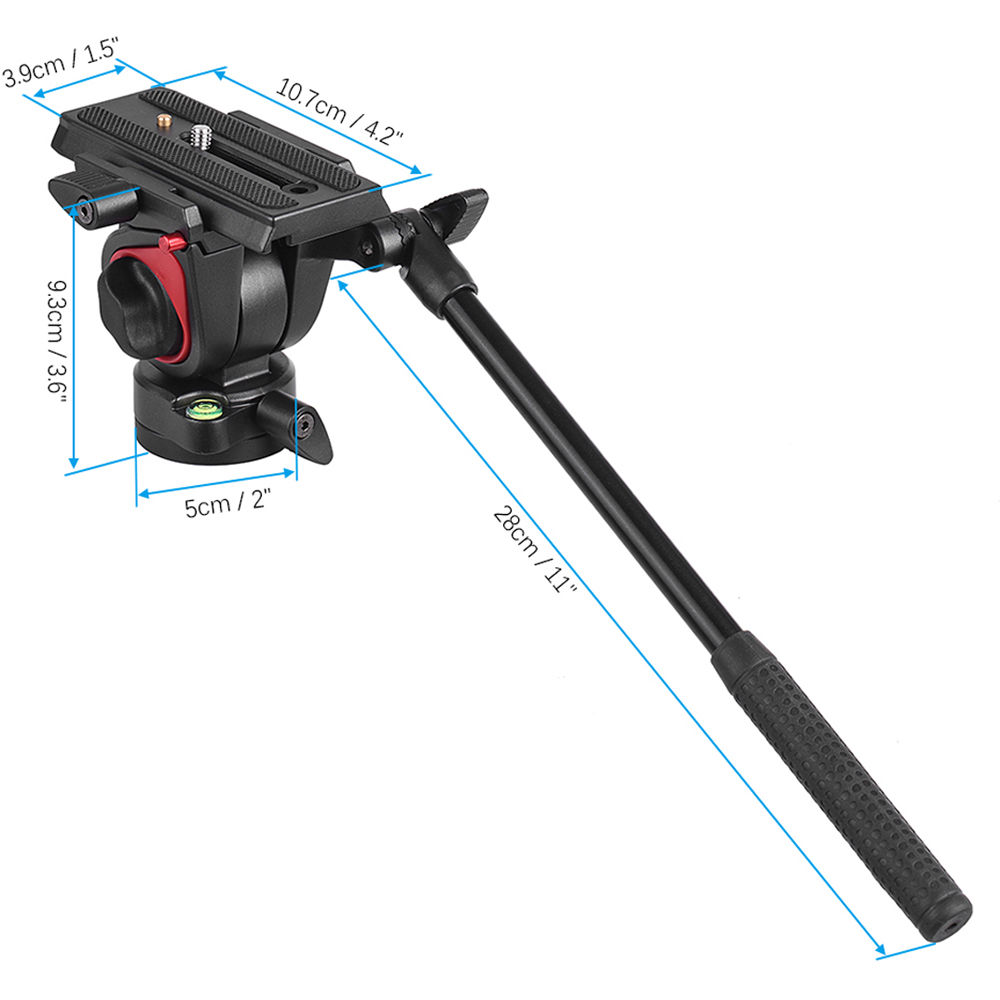

| Included Pan Handle Length | 11.02" / 28 cm |
| Bubble Level | 1 |
| Base Diameter | 1.97" / 50 mm |
| Dimensions | 0.37" / 9.3 mm |
| Weight | 1.22 lb / 554 g |
| Package Weight | 2.05 lb |
| Box Dimensions (LxWxH) | 15.7 x 8.7 x 6.1" |
In the Box
- miliboo MUF Video Fluid Head
- Quick Release Plate
- Pan Bar
- Limited 3-Year Warranty
