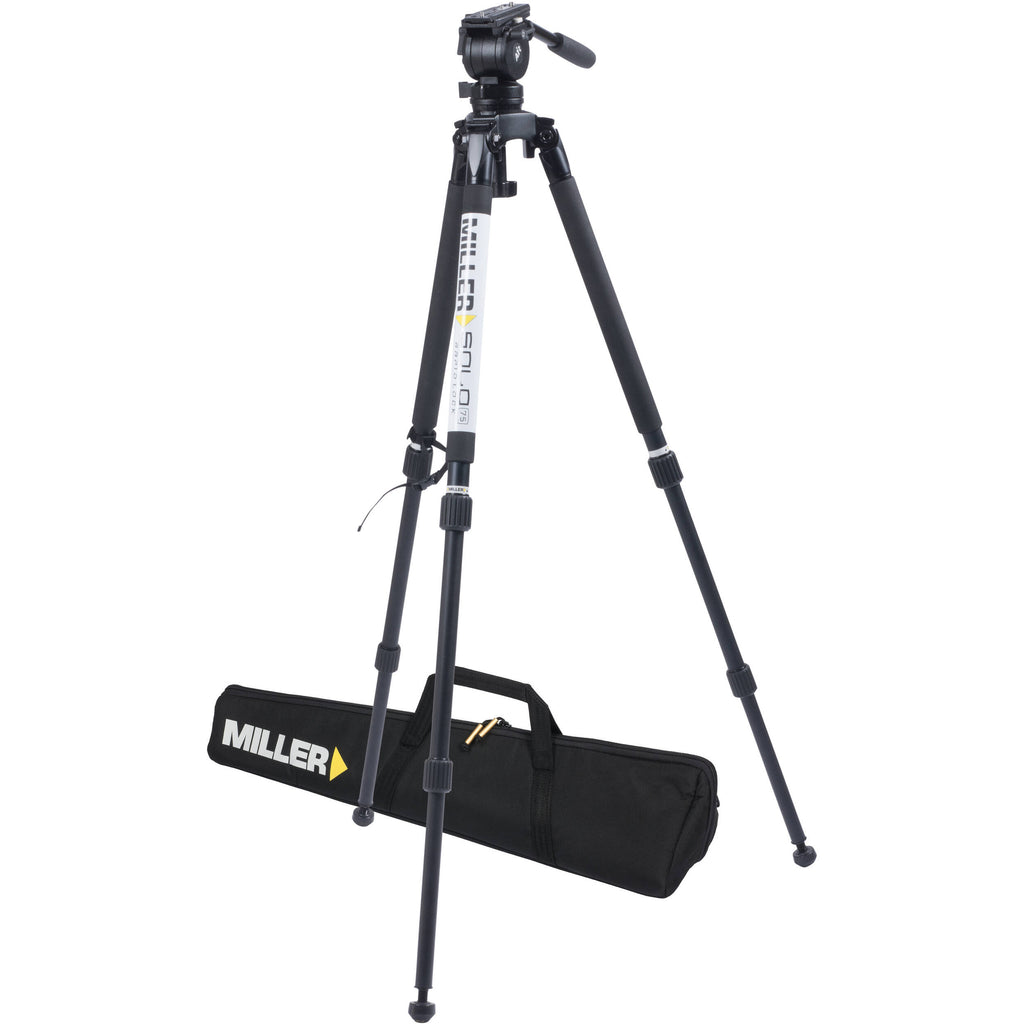

Miller Air Tripod System Overview
The Miller Air Alloy Tripod System is a lightweight system built for indoor and outdoor shooting conditions for both video and photo applications. It includes aluminum alloy tripod legs designed for quick setups and breakdowns, and a pan and tilt fluid head offering constant drag in all temperature ranges. It also includes a quick-release camera plate, pan handle, and weatherproof, padded soft carry case. The system features a 4.4 lb - 11 lb payload range.
The tripod legs are height-adjustable in two stages between a ground-hugging 9.2" and secure 63". A neoprene grip on the upper leg section provides a comfortable way of moving the tripod when it's already set up. The fluid head offers two selectable counterbalance positions and 90° to -75° tilt range. It also provides a 60mm sliding range for the included camera plate.
The tripod has rubber feet that wind up to reveal spikes for use on soft ground. The camera plate offers 1/4"-20 and 3/8"-16 camera-mounting screws, and a 1/4"-20 screw adapter with a locating pin is also included for added safety.
- 4.4 lb - 11 lb payload
- 75mm bowl / 75mm ball
- 2 selectable counterbalance positions
- Constant fluid drag in all temperature ranges
- 90° to -75° tilt range
- Height-adjustable from 9.2" to 63"
- 2 leg stages / 3 leg sections
- Rubber feet with spikes within

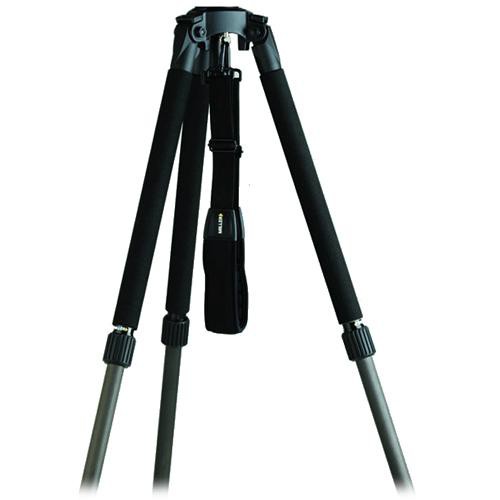

- Neoprene grip leg protection on upper leg section
- Quick-release camera plate
- 60mm camera plate sliding range
- Pan handle
- Weatherproof, padded soft carry case
In the Box
- Miller Air Alloy Tripod System

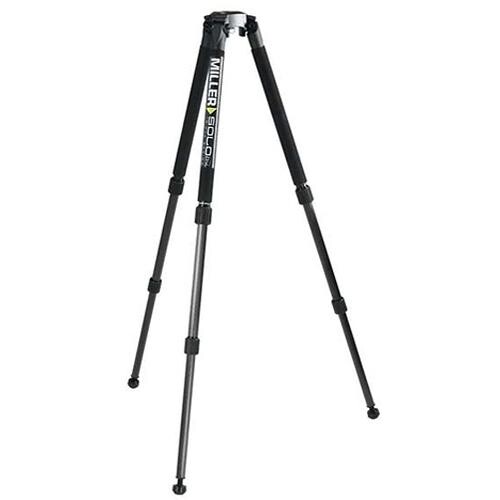

- Miller Solo DV Aluminum Tripod with 75mm bowl- Supports up to 44 lb (20 kg)
- Air Fluid Head
- Pan Handle

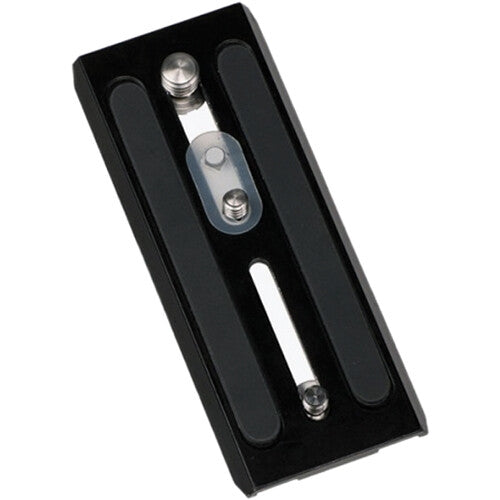

- Miller Sliding Camera Plate

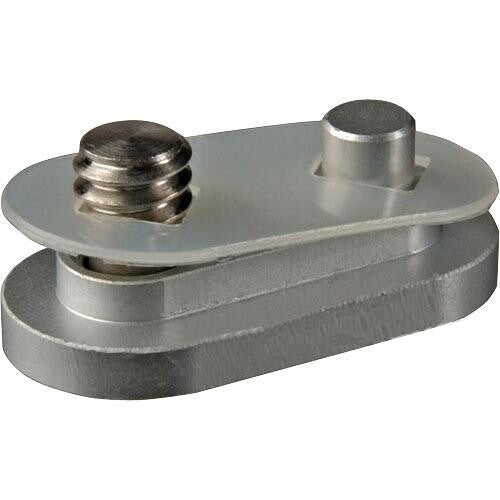

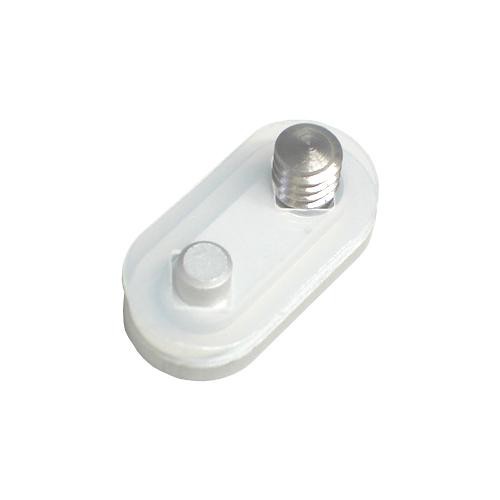

- Miller 1/4"-20 Screw & Location Pin Adapter
- Weatherproof, Padded Air Soft Carry Case
Miller Air Tripod System Specs

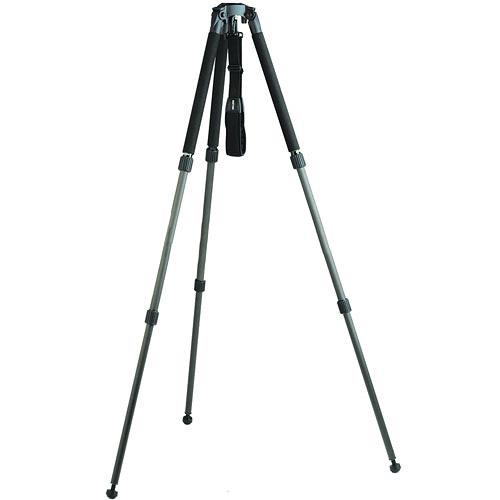

Tripod Legs
| Payload |
44 lb (20 kg) |
| Bowl |
Integrated 75 mm bowl with bubble level |
| Material |
Aluminum alloy |
| Maximum Height |
69.4" (176 cm) |
| Minimum Height |
9.2" (23.4 cm) |
| Folded Length |
27.6" (70 cm) |
| Stages |
2 stages / 3 sections |
| Leg Lock Type |
Concentric |
| Independent Leg Spread |
Yes |
| Spiked/Retractable Feet |
Yes/Yes |
| Center Brace |
No |
| Weight |
6.6 lb (3 kg) |
Fluid Head
| Payload |
4.4 - 11 lb (2 - 5 kg) |
| Counterbalance |
2 selectable positions |
| Tilt Range |
90° to -75° |
| Camera Plate Sliding Range |
60 mm |
| Ball |
75 mm ball |
General
| Folded Length |
33" (84 cm) (with head attached) |
| Mount Type |
1/4"-20 + pin; 1/4"-20 & 3/8"-16 |
| Total Weight |
10.8 lb (4.9 kg) |
Packaging Info
| Package Weight |
17 lb |
| Box Dimensions (LxWxH) |
37.5 x 13 x 10.5" |
