Miller CiNX 5 HDC Overview
- 1 Description
- 2 Miller CiNX 5 Fluid Head
- 3 Miller HDC 100 1-Stage Metal Alloy Tripod (Mid-Level Spreader Ready)
- 4 Miller 993 Mid-level Spreader
- 5 Miller 478 Rubber Feet Pads for Select Tripods (Set of 3)
- 6 Miller Long Smart Tripod Case with Wheels for 1 Stage HD Systems (Black)

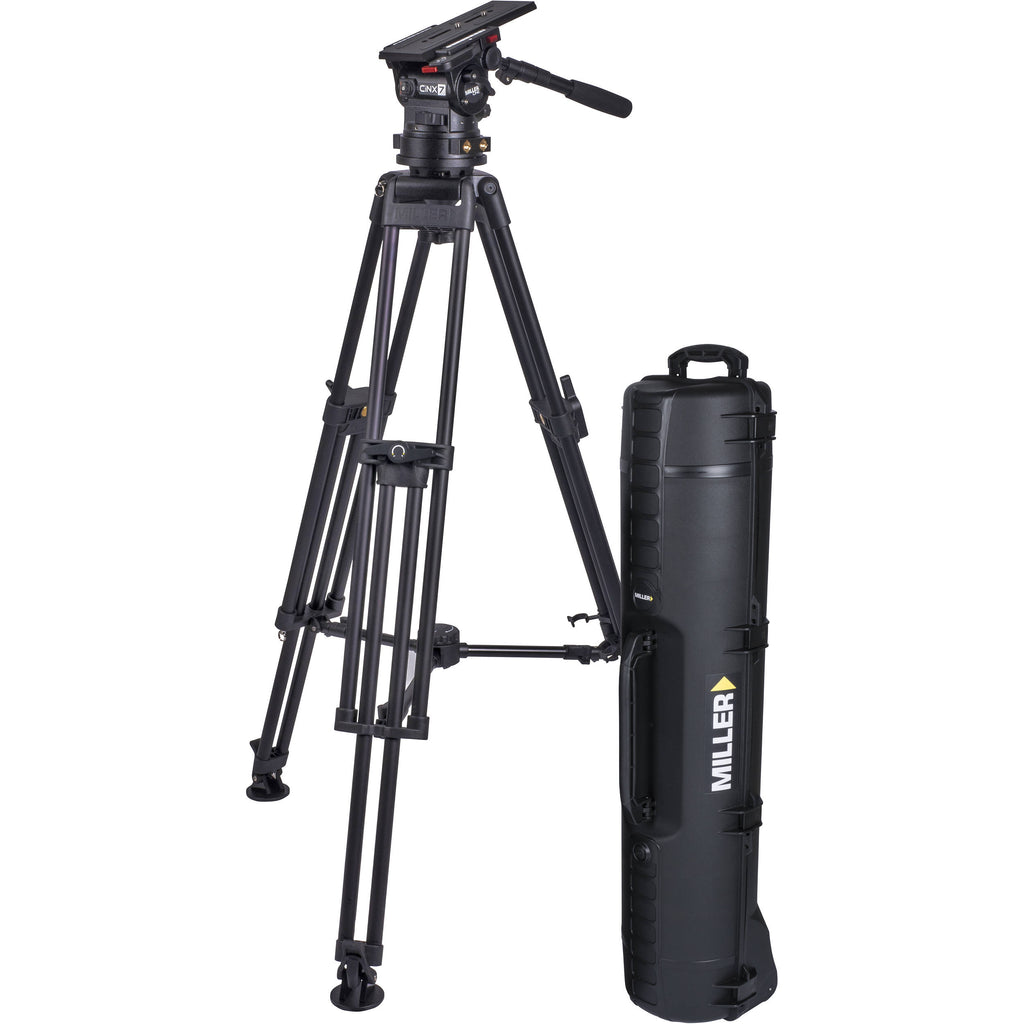

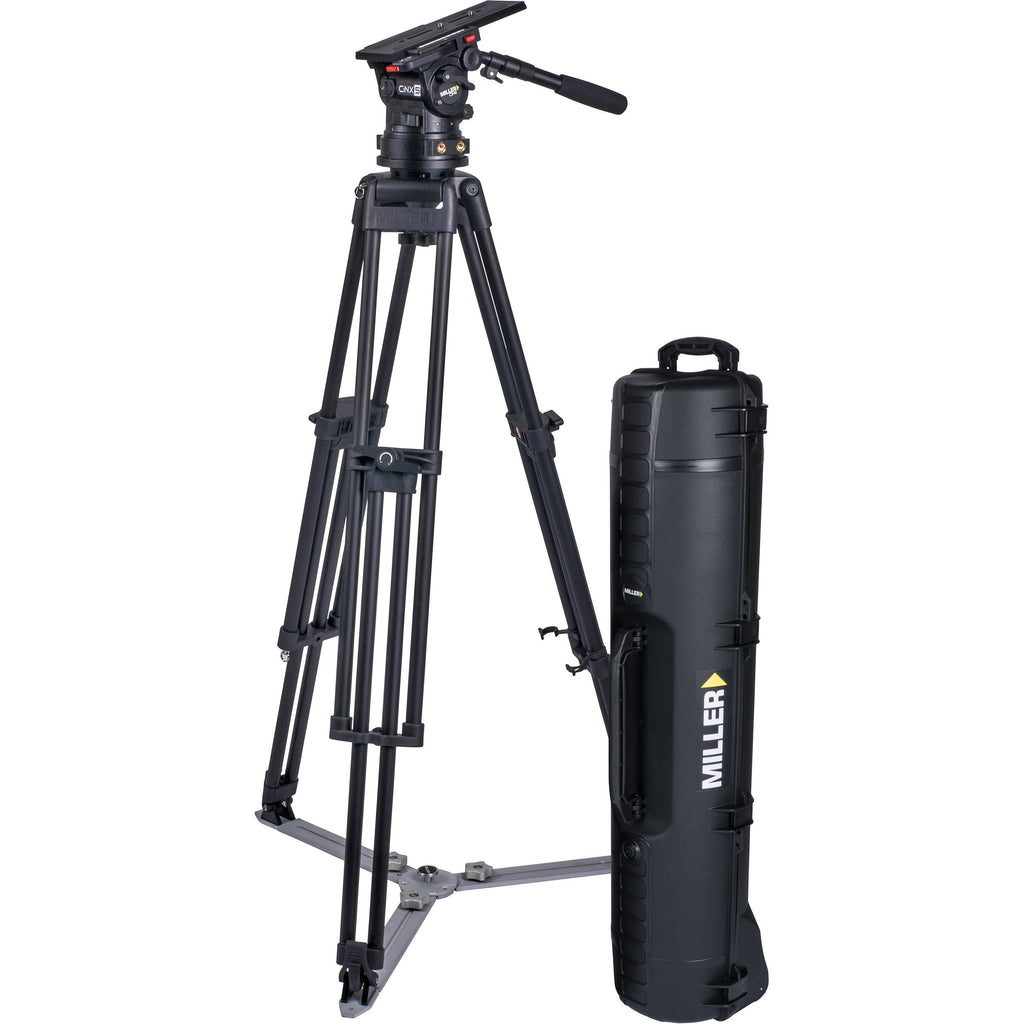

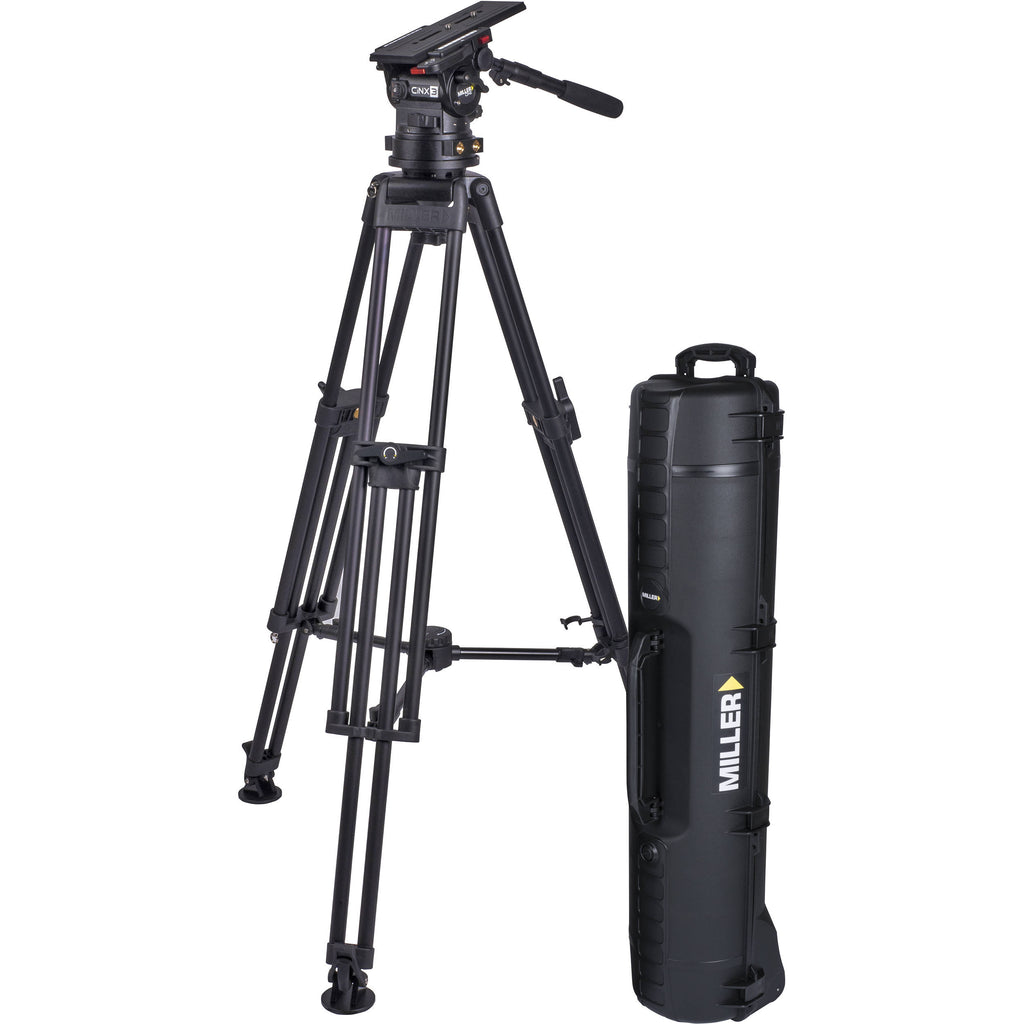

This Miller CiNX 5 and HDC 100 1-Stage Tripod System features the CiNX 5 fluid head, 100mm bowl HDC 100 aluminum tripod legs, mid-level spreader, and a wheeled carry case. The included version of the HDC 100 tripod has spiked feet and is mid-spreader ready. Rubber shoe pads are also included as part of this bundle.
The CiNX 5 supports 4.4 to 46.2 lb loads and offers 16 steps of counterbalance and 7 + 0 steps of pan and tilt drag. It features a flat base and comes with a 100mm bowl claw adapter. This head is designed to achieve ultra-soft starts and stops and balanced diagonal transitions. A sideload camera plate system allows you to efficiently mount and remove your camera.
With the head and mid-spreader attached, the tripod offers a height range of approximately 38.2 to 68" in one stage of adjustment.
The wheeled case is designed with high-pressure resin, polymer, and aluminum materials and has a top handle, side handle, and bottom wheels. It's IP67 watertight and resistant to dust, moisture, acids, and sand. Other features include an automatic air pressure valve and inner padding.

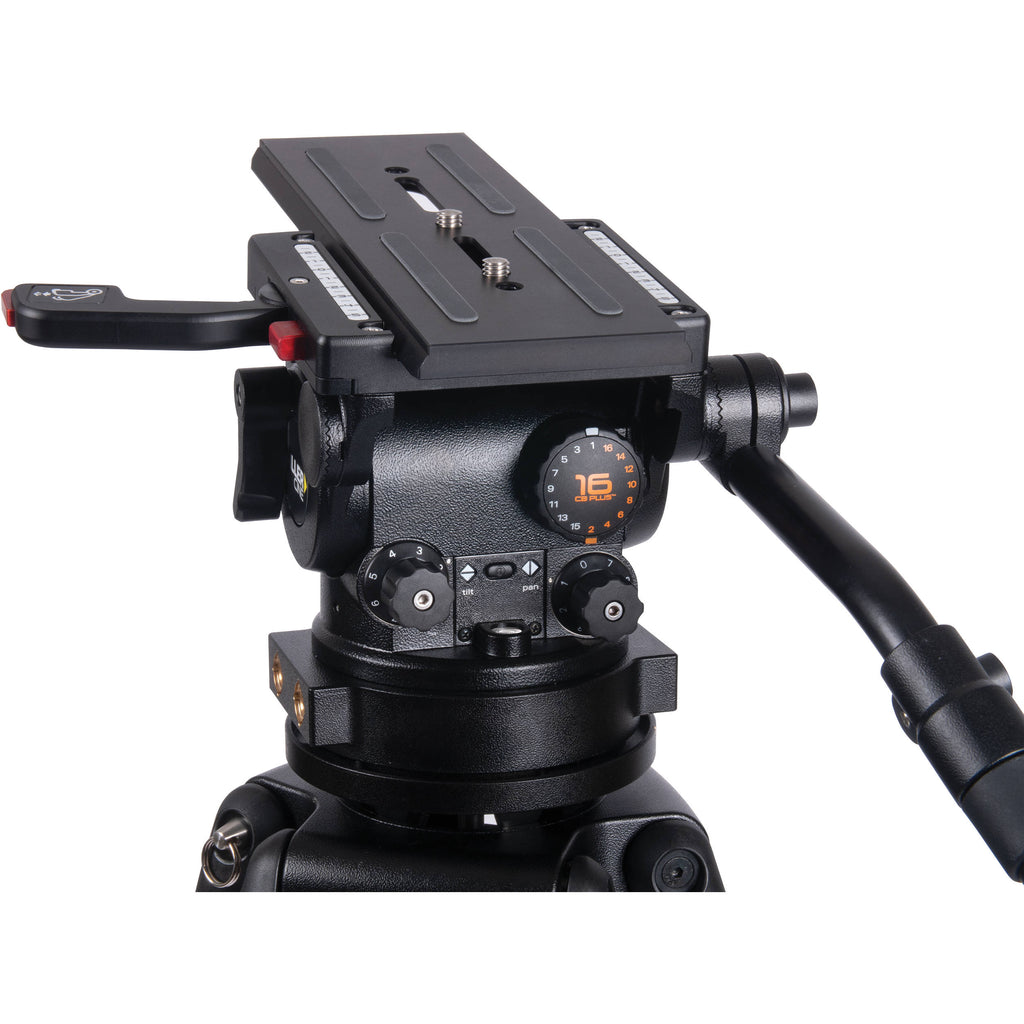

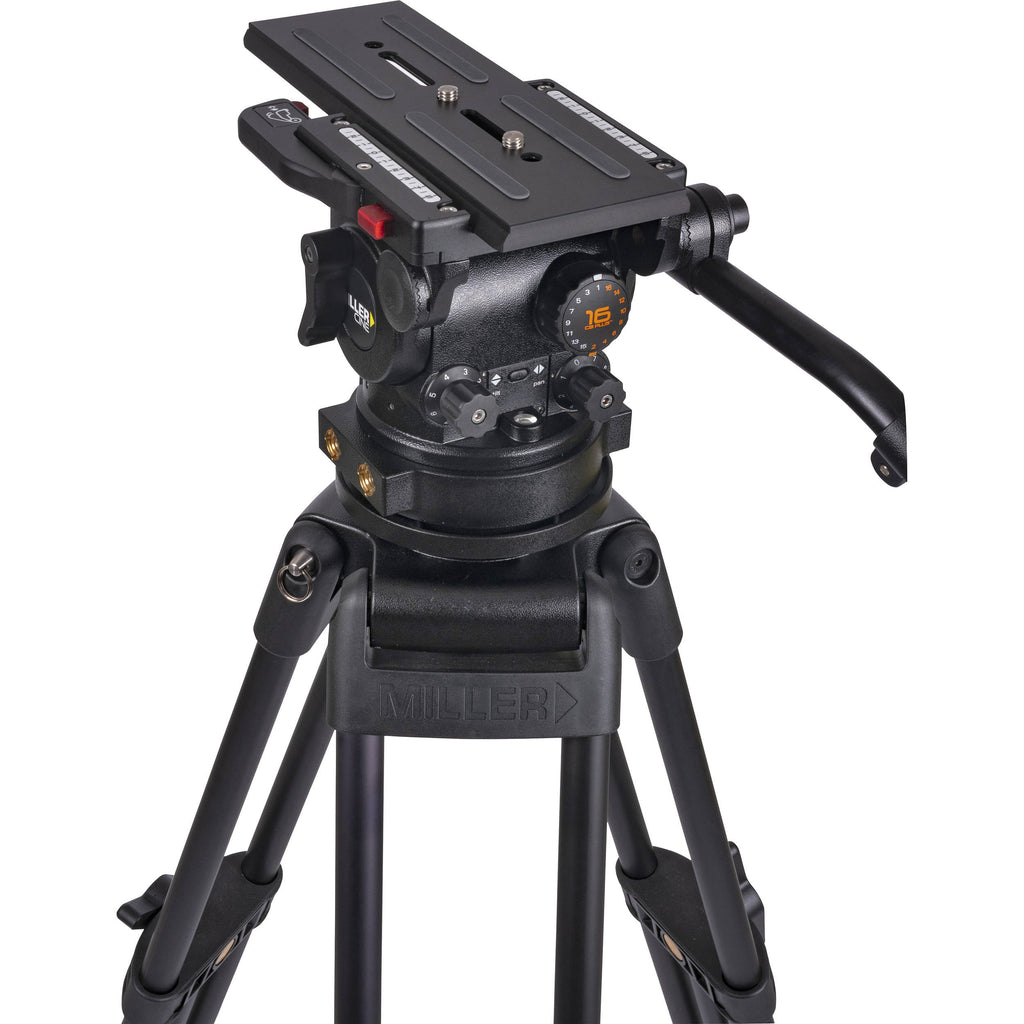

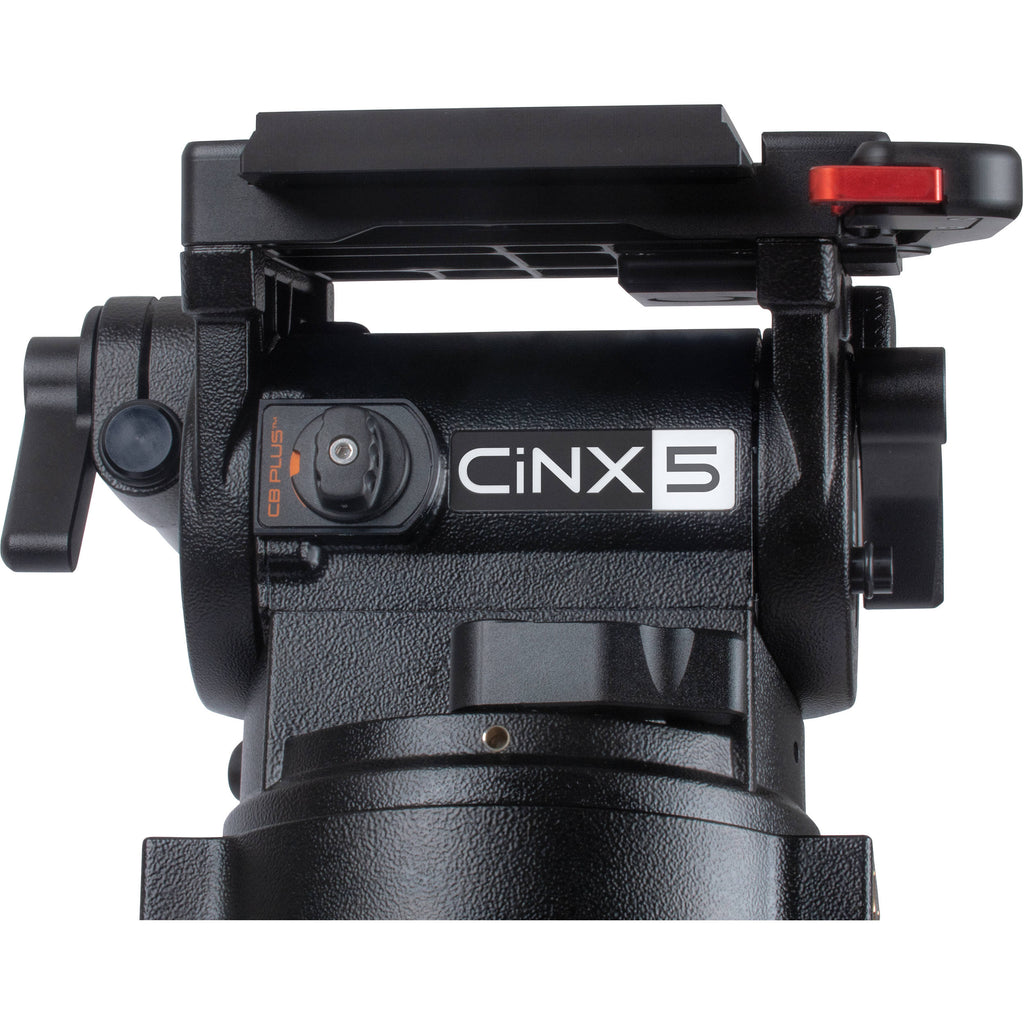

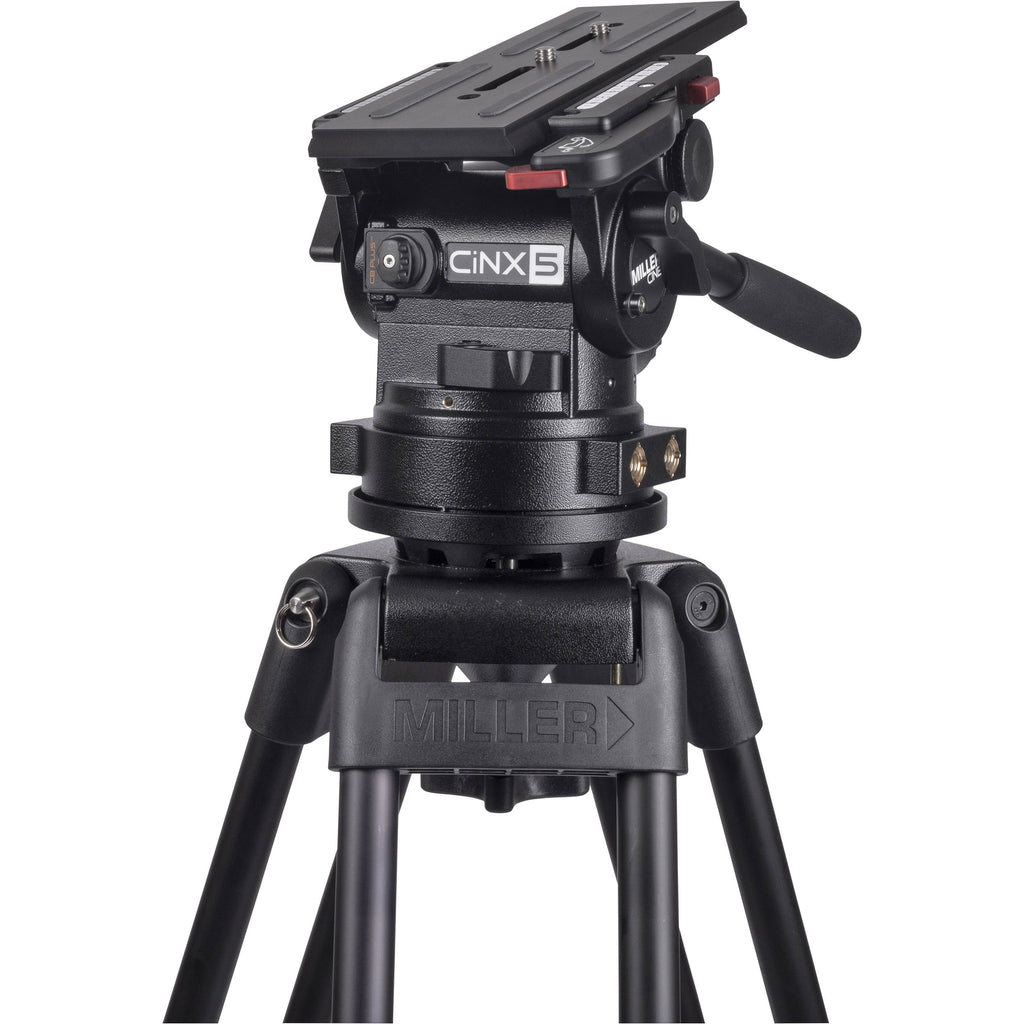

Miller CiNX 5 Fluid Head
In comparison to the CiNX 3 head, Miller 's CiNX 5 Fluid Head offers 7 + 0 steps of pan and tilt drag and a slightly higher payload of 4.4 to 46.2 lb, while counterbalance remains at 16 steps. The CiNX series is designed with a strength-to-size ratio that provides an optimal solution for supported load capacities. At the same time, the drag and counterbalance systems offer progressive and equal increments of drag and torque to ensure ultra-soft starts and stops and balanced diagonal transitions. In this regard, the additional two steps of drag allow for even smoother and more effective operation.
The CiNX 5 features a 3/8"-16 threaded flat base and includes a 100mm bowl claw adapter. Optional 150mm bowl or Mitchell base adapters from Miller are also supported.
The pan/tilt controls and a bubble level are all illuminated at the press of an illumination button. The CiNX 5 comes with a GP23A-type battery already installed for illumination but supports multiple other types as you will find in the user manual.
For ultimate efficiency with heavy cameras, the CiNX 5 has a sideload camera plate platform with a safety lock, and it comes with an ARRI-type camera plate that can be adjusted approximately 6". It also includes a rosette-mount telescopic pan handle while supporting two in total for dual-handed operation. On the sides, it provides four anti-twist ARRI accessory mounts. The head is made of lightweight yet high-strength die-cast aluminum and rigid composite polymers. It's finished with a durable black ripple and anti-corrosive pretreatment. It also has water- and dust-resistant sealing.
The head also has a very wide operating temperature range of -40 to 149°F.
Key Features
- Fluid drag system with smooth start and soft stop technology and balanced diagonal transitions
- 3/8"-16 threaded flat base
- Includes a 100mm bowl claw adapter (optional 150mm bowl or Mitchell base adapters supported)
- 16 steps counterbalance
- Payload range of 4.4 to 46.2 lb
- 8 steps of pan and tilt drag; illuminated controls
- Sideload platform with safety lock
- 5.9" camera plate sliding range
- Four anti-twist ARRI accessory mounts
- Illuminated bubble level
- Pan handle included; optional second one supported
- Wide operating temperature range of -40 to 149°F
Miller HDC 100 1-Stage Metal Alloy Tripod (Mid-Level Spreader Ready)
The heavy-duty Miller HDC 100 1-Stage Metal Alloy Tripod is a quick-setup solution for a tripod head that fits a 100mm bowl base. Its standard height design and metal alloy construction support up to 210 lb for use in ENG, EFP, and other pro video applications.
The HDC 100 extends from 30.3 to 60.1" in height, and when it's folded up for transport it measures 35.7". The tripod feet have integrated steel spikes to add stability on rough or uneven terrain, and each leg's single stage is secured with rotating locks. Compatible mid-level spreaders, rubber feet, and dollies are available separately.
One-stage metal alloy tripod for heads that fit a 100mm bowl
Maximum payload up to 210 lb
Compatible with separately available mid-level spreader
Height extends from 30.3 to 60.1"
Miller 993 Mid-level Spreader
The Miller 993 is a mid-level spreader for Sprinter, Arrow 25/40 and HD tripod systems. This device offers variable adjustment in minimum and maximum height settings and a latch and swivel design.
Miller 478 Rubber Feet Pads for Select Tripods (Set of 3)
The 478 Tripod Feet from Miller are a set of three rubber snap-on feet designed to be used in any situation where the integrated dual spiked feet are not optimal. They are ideal for use on both slippery and glossy floors. These rubber feet are compatible with the HD MB 1-stage tripod (alloy).
Miller Long Smart Tripod Case with Wheels for 1 Stage HD Systems (Black)
Store, transport, and protect a select Miller system tripod with the black Miller Long Smart Tripod Case with Wheels for 1 Stage HD Systems . The case features a latch closure, inner padding, a neoprene O-ring, an automatic air pressure valve, and an IP67 watertight rating. For strength and durability, the case is constructed from special polymers and aluminum. Carry the case with the top and center handles or roll with the built-in wheels.
Watertight (IP67), resistant to dust, moisture, acids and sand.
Ergonomic handle made of PP SEBS material with steel pins to provide a strength and ergonomics.
Automatic valve which automatically adjusts the air pressure inside.
Internal O-ring made of neoprene PA66 makes the suitcase totally waterproof.
Materials: made of a patented material given by a special compound based on polypropylene TTX01, glass fiber and rubber.
The case opens along the long side and uses 4 latches and can be locked (not included) if required.
In the Box
- Miller CiNX 5 Fluid Head
- Miller ARRI Camera Plate for Cineline 70 Fluid Head
- Miller 698 Telescopic Pan Handle with Clamp for Cineline 70 and Skyline 70 Head
- Miller D100 Claw Ball Level Adapter for ArrowFX Fluid Head and 100mm Bowl
- Limited 3-Year Warranty
- Miller HDC 100 1-Stage Metal Alloy Tripod (Mid-Level Spreader Ready)
- Miller 993 Mid-level Spreader
- Miller 478 Rubber Feet Pads for Select Tripods (Set of 3)
- Miller Long Smart Tripod Case with Wheels for 1 Stage HD Systems (Black)
Table of Contents
- Description
- Miller CiNX 5 Fluid Head
- Miller HDC 100 1-Stage Metal Alloy Tripod (Mid-Level Spreader Ready)
- Miller 993 Mid-level Spreader
- Miller 478 Rubber Feet Pads for Select Tripods (Set of 3)
- Miller Long Smart Tripod Case with Wheels for 1 Stage HD Systems (Black)
Miller CiNX 5 Fluid Head Specs
Camera Plate
| Camera Plate Features | Quick Release |
| Camera Plate Type | Sideload Plate |
| Camera Mounting Screw | 2 x 3/8"-16 Male |
| Balance Plate Sliding Range | 5.91" / 150 mm |
| Safety Lock | Yes |
| Plate Dimensions | 10.24 x 3.76 x 0.46" / 260 x 95.5 x 11.7 mm |
Tripod Platform
| Base Mount | 100 mm Half Ball
3/8"-16 Female |
Pan & Tilt
| Drag Control | Pan: Stepped 7-Step Plus 0
Tilt: Stepped 7-Step Plus 0 |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -75° |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
Physical
| Material | Aluminum, Composite |
| Load Capacity | 4.4 to 46.2 lb / 2 to 20.96 kg |
| Counter Balance | Incremental 15-Step Plus 0 |
| Pan Handle Fittings | 2 x Rosette |
| Bubble Level | 1 x Illuminated |
| Accessory Mounting | 4 x ARRI Accessory Mount Female |
| Operating Temperature | -40 to 149°F / -40 to 65°C |
| Weight | 8.8 lb / 3.99 kg |
Miller HDC 100 1-Stage Metal Alloy Tripod (Mid-Level Spreader Ready) Specs
General
| Head Mount Type | 100 mm Bowl |
| Load Capacity | 209.44 lb / 95 kg |
| Maximum Working Height | 60.1" / 152.65 cm (without Spreader) |
| Minimum Working Height | 30.3" / 76.96 cm (without Spreader) |
| Folded Length | 35.7" / 90.68 cm |
| Bubble Level | No |
| Weight | 11.9 lb / 5.40 kg |
Legs
| Leg Lock Type | Rotating Locking Lever |
| Leg Positions | Locking 2 Positions and Continuously Adjustable |
| Independent Leg Spread | Yes |
| Leg Sections | 2 |
| Leg Diameter | 0.94" / 24 mm |
| Feet Features | Spiked |
| Spreader | Mid-Level (Not Included) |
Miller 993 Mid-level Spreader Specs
| Construction | Alloy |
| Type | Mid-Level |
| Adjustable | Continuously variable through all height settings |
| Minimum Length | 12.4" (315mm) |
| Maximum Length | 20.3" (515mm) |
| Weight | 1.7 lbs (0.75kg) |
Packaging Info
| Package Weight | 2.385 lb |
| Box Dimensions (LxWxH) | 18.35 x 6.55 x 6.4" |
Miller 478 Rubber Feet Pads for Select Tripods (Set of 3) Specs
| Dimensions | 3.1 x 1.5" (80 x 40 mm) |
| Weight | 1.2 lb (0.5 kg) |
Miller Long Smart Tripod Case with Wheels for 1 Stage HD Systems (Black) Specs
| Material | High-pressure resin, polymers, aluminum, and a neoprene O-ring |
| Type of Closure | Latches |
| Temperature Range | 40° - +176° F / -40° - +80° C |
| Padded | Yes |
| Carrying/Transport Options | Top handle, side handle, bottom wheels |
| Dimensions | 11.2 x 13.2 x 44.4" / 28.5 x 33.5 x 112.8 cm |
| Weight | 14.9 lb / 6.8 kg |
