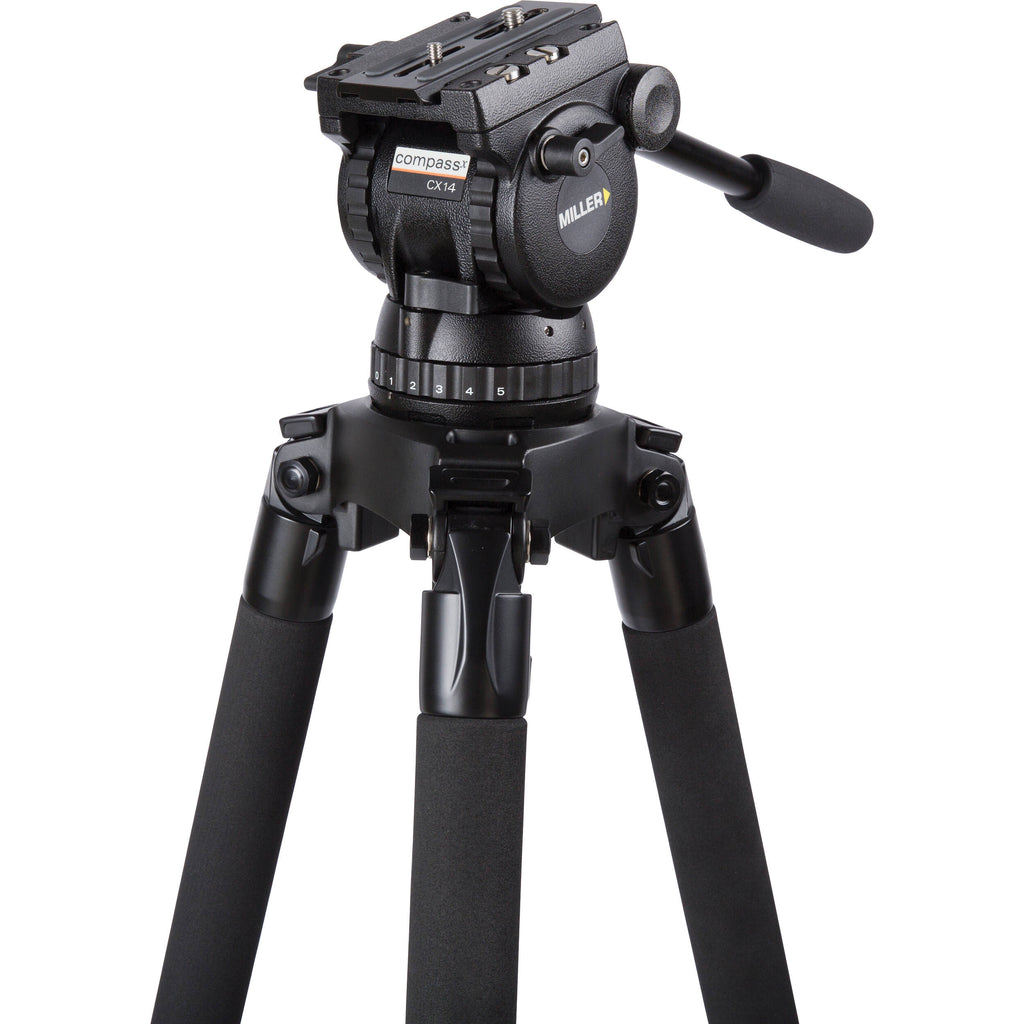

Supports 0 to 30.9 lb100mm Ball Base+90 to -75° Tilt Range16-Step Counterbalance (15+0) The Miller CX14 Fluid Head is designed to accommodate a wide payload range with 16 steps of counterbalance. The head has a tilt range of +90 to -75°, which allows you to tilt the camera straight down, then nearly straight up. Pan, tilt, and counterbalance can all be set to zero, for totally free movement of the head, often useful for whip pans. The fluid head accommodates cameras and rigs weighing up to 30.9 pounds, more than adequate for use with small cinema cameras with rigs or medium sized ENG camcorders. The sideload plate design enables you to simply drop in your camera from the top without the alignment issues posed by rear-loading variations. The plate offers 2.4" of sliding range to balance your rig.
The CX14 is die-cast from a lightweight, yet durable metal alloy with composite polymers and precision ball-bearings for smooth mechanical operation. Even in harsh conditions, the CX14 will perform reliably. The base of the CX14 is a removable 100mm ball for mounting to compatible tripods and grip equipment. An illuminated bubble level makes it easy to level the CX14 in dark environments. A fixed length pan handle is included, and an integrated second rosette is available for attaching an optional second pan handle.

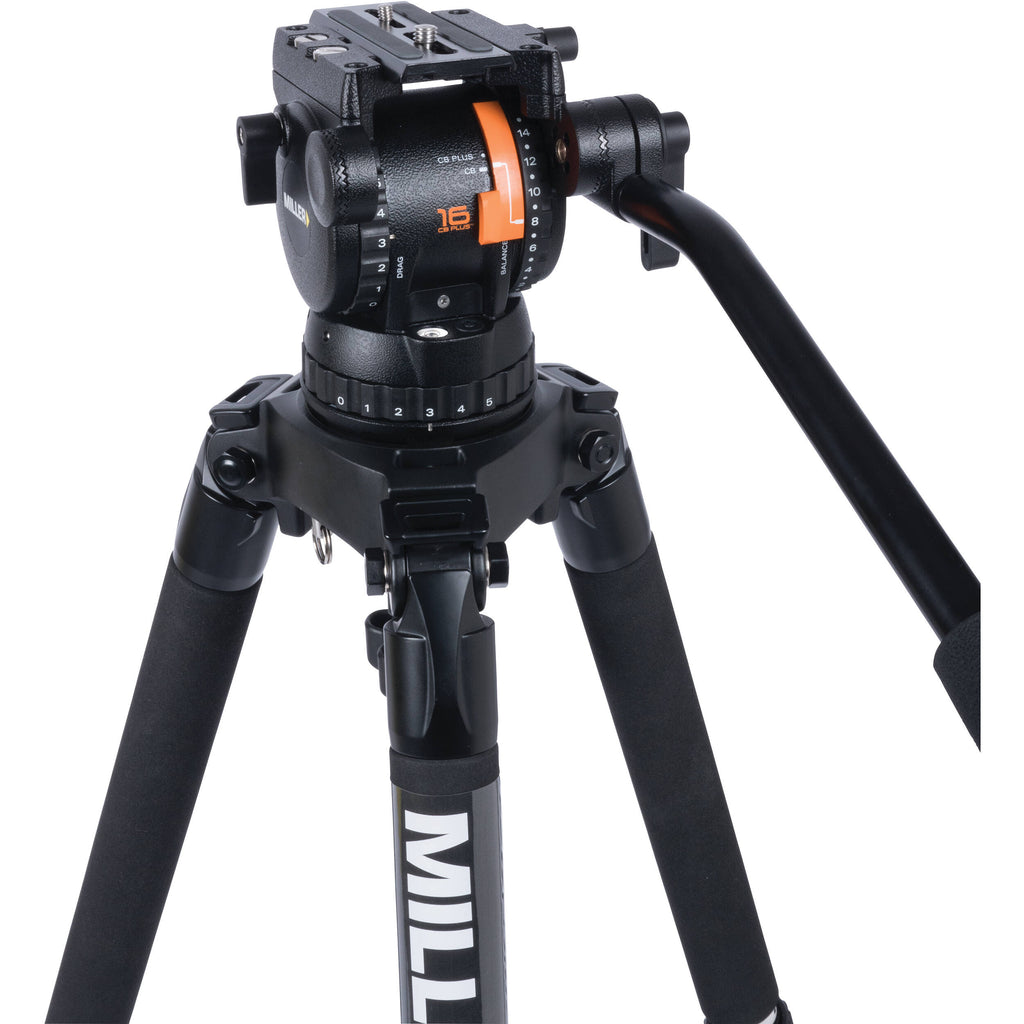

With the head mounted level in your tripod legs (not included), you can tilt your camera straight down, and without adjusting the tripod tilt up to nearly straight up and down The counterbalance settings enable you to tweak the head to neutralize the weight of the camera, so it stays in whatever tilt position you put it in without having to fight against gravity trying to tilt the camera forward or back, or fight against a spring trying to push the camera to level The pan and tilt axes feature independent locks and drag adjustment The 100mm ball base provides a wide platform making it easier to balance your camera on the head within the footprint of the head for more stable pan and tilt The 100mm bowl base is removable, revealing a flat base with a 3/8"-16 threaded hole, well suited for sliders and other flat base applications Threaded holes on both sides of the heads pan base enable mounting accessory blocks to the head The unused rosette has a removable cover for protection Extra camera tie-down screws mount in the top of the camera platform, making them easily available.
| Camera Plate Features | Sideload, Sliding Balance Plate |
| Camera Plate Type | Euro Plate, Miller 1205, Sideload Plate |
| Camera Mounting Screw | 1 x 1/4"-20 Male
1 x 3/8"-16 Male |
| Balance Plate Sliding Range | 2.4" / 6 cm |
| Plate Dimensions | 4.72 x 1.91 x 0.31" / 120 x 48.5 x 8 mm |
| Camera Platform Adjustment | No |
| Base Mount | 100 mm Half Ball |
| Drag Control | Pan: 5-Step Plus 0
Tilt: 5-Step Plus 0 |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -75° |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
| Material | Aluminum |
| Load Capacity | 0 to 26.4 lb / 0 to 12 kg |
| Counter Balance | Incremental 15-Step Plus 0 |
| Pan Handle Fittings | 2 x Rosette |
| Included Pan Handle Length | 15.35" / 390 mm |
| Bubble Level | 1 x Illuminated |
| Base Diameter | 3.94" / 100 mm |
| Operating Temperature | -40 to 149°F / -40 to 65°C |
| Weight | 5.51 lb / 2.5 kg |
| Package Weight | 8.545 lb |
| Box Dimensions (LxWxH) | 14 x 12.3 x 10.5" |
In the Box
- Miller CX14 Fluid Head
- Miller Standard Camera Plate for AIR, DS10, DS20, Compass, CompassX Heads (2.4")
- 1/4"-20 Camera Tie-Down Screw
- 3/8"-16 Camera Tie-Down Screw
- Pan Handle
- Limited 3-Year Warranty
