Description
- Supports Up to 22 lb
- Dynamic Fluid Drag System
- Disc Lock Pan/Tilt Braking System
- Sliding Camera Plate
- Selectable Counterbalance (2 Settings)
- 75mm Ball Leveling with Bubble Level

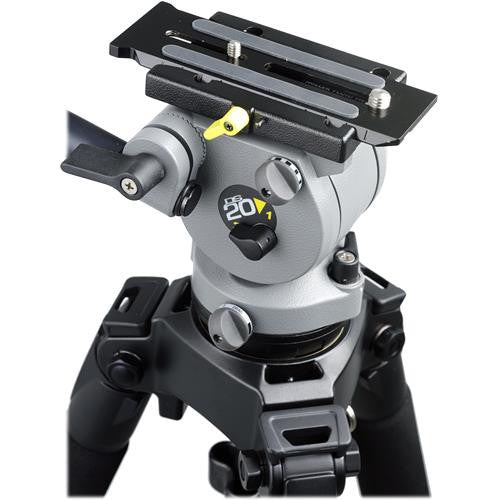

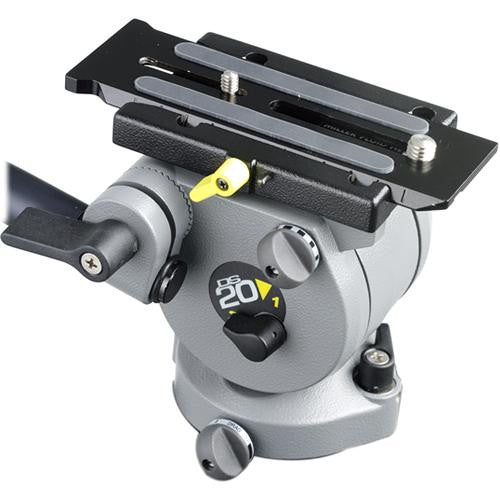

The Miller DS-20 Fluid Head (75mm Ball Base) delivers the level of quality that is needed for professional ENG and corporate production. Features a dynamic fluid drag system providing consistent control across all temperature ranges and through a wide range of settings. It also offers an integrated counterbalance system combined with a sliding balance plate for a wide tilt angle, as well as a quick release and automatic locking system, for quick setup and disengagement of your camera.
- Multi-Step Pan & Tilt Fluid Drag System
- The DS-20 fluid head incorporates Miller's Dynamic Fluid Drag system ensuring smooth, consistent fluid drag control across all temperature ranges and through a wide range of light and heavy settings. By being independent of payload weight, the dynamic system ensures smooth "starts" and dead "stops" for precise framing without any backlash. The system is fully sealed within sub-assemblies for a leak-proof, low maintenance life.
- Preset Counterbalancing
- The DS-20 uses a special designed counterbalanced system, to neutralize the effect of payloads and their centers of gravity. The built-in preset counterbalance system combined with a 60mm sliding camera platform optimizes tilt control in the intended capacity range. Allowing a +90/-70� angle tilt without worrying that the camera will topple.
- Quick Release Camera Platform
- Fitted with a precision, quick release camera platform that incorporates a sliding balance plate for fine tune payload balancing. The self-engaging action of the camera plate ensures rapid camera attachment in the field, while the built-in safety lock guarantees camera safety during setup and pull-down.
- Safe at any temperature
- Pressure or temperature does not influence the damping system; it has an operating range from -40�F to +149�F, and works without friction. Shoot wherever you want, from torrid heat to cold climates.
- Built-in bubble for horizontal leveling
- Load capacity of 22 lb
In the Box
Miller DS-20 Fluid Head (75mm Ball Base)
- 680 16mm Handle with Handle Carrier
- 489 Camera Mounting Plate
- 493 1/4"-20 and Location Pin Adaptor Carriage
- 3-Year Parts and Labor Warranty
| Load Capacity | 22 lb (10 kg) |
| Diameter/Thread | 75mm (3") Half Ball |
| Counter Balance System | Static counter balancing |
| Counter Balance Range | 20 lb |
| Center of Gravity | Not Specified |
| Quick Release/Wedge Plate | Yes (Miller 489 Camera Mounting Plate) |
| Balance Plate | Sliding, with 1/4"-20 and 3/8" Screws |
| Tilt Drag | Variable Dial |
| Tilt Range | +90/-70� |
| Tilt Lock | Positive lock caliper brake system |
| Spring Loaded Counter Balance | Variable Dial |
| Pan Range | 360� |
| Pan Lock | Positive lock caliper brake system |
| Leveling Bubble/Illuminated | Yes, Non |
| Temperature Range | -40� to +149� F (-40� to +65� C) |
| Weight | 3.9 lb (1.75 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 6.85 lb |
| Box Dimensions (LxWxH) | 16.772 x 14.331 x 10.63" |
