Description
Miller CompassXV 10 Tripod System Overview
- 1Description
- 2Miller Versa CXV10 Fluid Head with Pan Handle
- 3Miller Toggle 2-Stage Alloy Tripod (Ground-Level Spreader Ready)
- 4Miller 550 Rubber Feet Pads for Select Tripods (Set of 3)
- 5Miller Softcase for 2-Stage Toggle 2 Tripod Systems (Black)

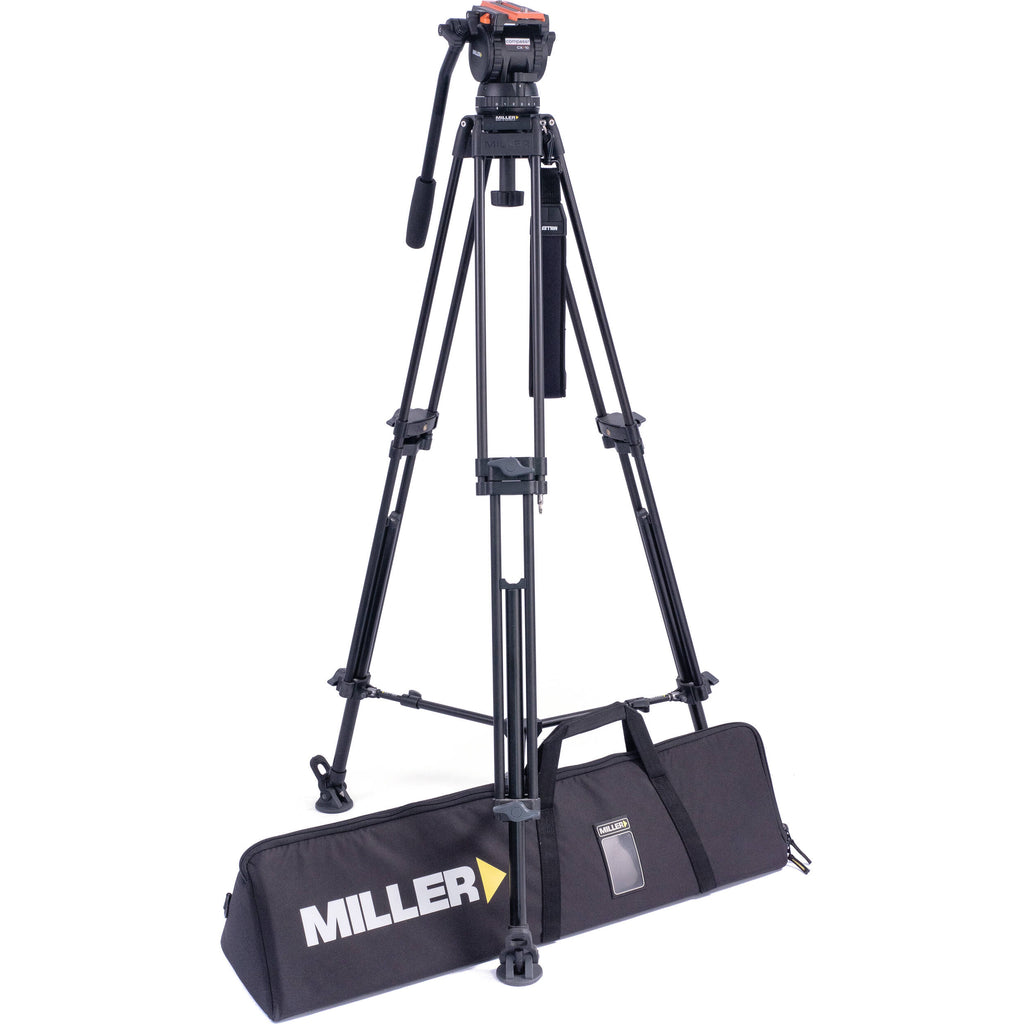

The Versa CXV10 Head, Toggle 2-Stage Tripod, Mid-Level Spreader, Rubber Feet & Soft Case Kit from Miller includes a Versa CXV10 fluid head with pan handle, a Toggle 2-stage aluminum tripod with 100mm bowl, a mid-level spreader, and a soft case with carry strap. The CXV10 fluid head supports up to 26.4 lb and employs CB Plus technology, providing 15+0 positions of counterbalance, 5+0 levels of pan and tilt settings, and 3.9" of camera plate travel.
The head is matched with the 2-stage Toggle aluminum tripod, and together the system has a height range of 21.4 to 67.4. The included mid-level spreader is well suited for working on uneven or rocky terrain and allows your tripod to remain stable on such uneven surfaces as stairs. The soft case features a triangular shape and extra-wide opening, and it features foam padding to protect your tripod. An included shoulder strap helps you carry your tripod system in the bag without occupying your hands.

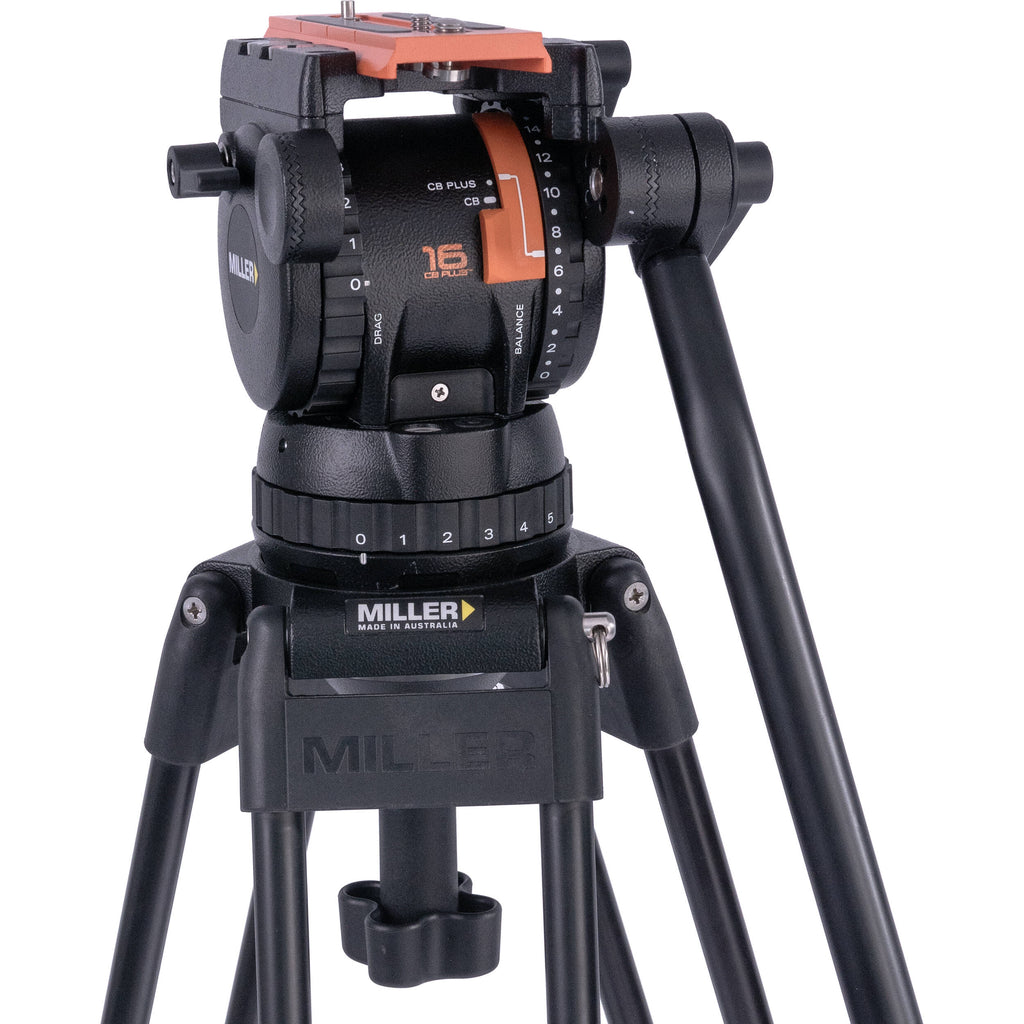

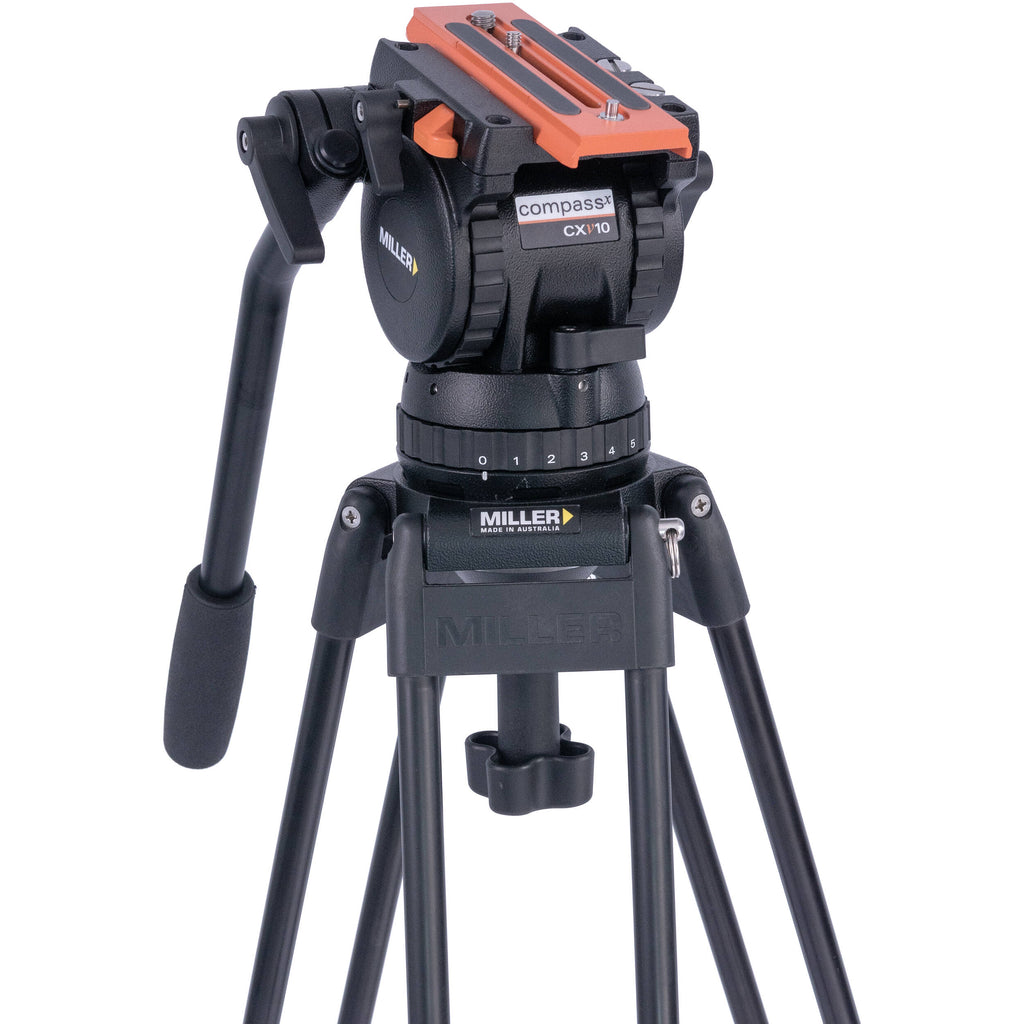

The Versa CXV10 Fluid Head with Pan Handle from Miller is designed to accommodate a wide payload range, 16 steps of counterbalance with CB Plus for fine adjustments, as well as five selectable pan/drag settings. Pan, tilt, and counterbalance can all be set to zero, enabling even the lightest cameras to be supported. Maxed out, this head is rated to support camera setups up to 26.4 lb, adequate for a DSLR or mirrorless camera, a cinema camera, or an ENG camcorder. Securing your camera or rig is easy. The sideload quick release plate design enables you to simply drop in your camera without the alignment issues posed by rear-loading variations. The plate offers 3.9" of sliding range to balance your rig.
To survive fast-paced shooting environments, the CXV10 is die-cast from a lightweight yet durable metal alloy with composite polymers and precision ball bearings for smooth mechanical operation. Even in harsh conditions, the CXV10 will perform reliably. The base of the CXV10 is a 100mm ball for mounting to compatible tripods and grip equipment. An illuminated bubble level makes it easy to level the CXV10 in dark environments. A fixed-length pan handle is included, and a second rosette is available for attaching an optional second pan handle.

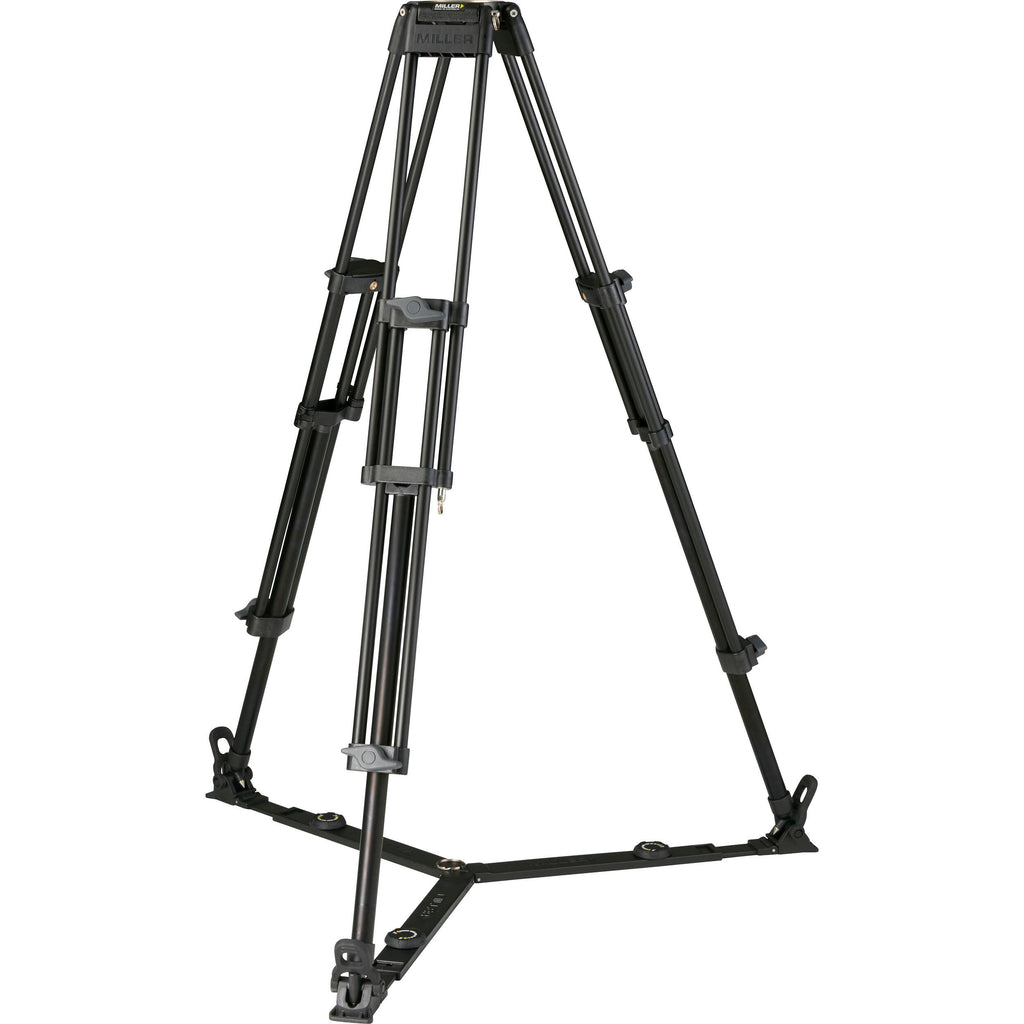

The Miller Toggle 2-Stage Alloy Tripod is designed to be a compact yet sturdy platform for your 100mm ball-base fluid head. The 2-stage design allows for a large 15.4 to 61.4" height range while maintaining a compact folded length of 27". Each stage features its own rotary clamp for secure locking, enabling support for payloads up to 55 pounds. Compatible spreaders, rubber feet, and dollies are available separately.
The 550 Tripod Feet from Miller are a set of three rubber snap-on feet designed to be used in any situation where the integrated dual spiked feet are not optimal. They are ideal for use on both slippery and glossy floors. These rubber feet are compatible with all tripods featuring 835 and 508 above ground spreaders.

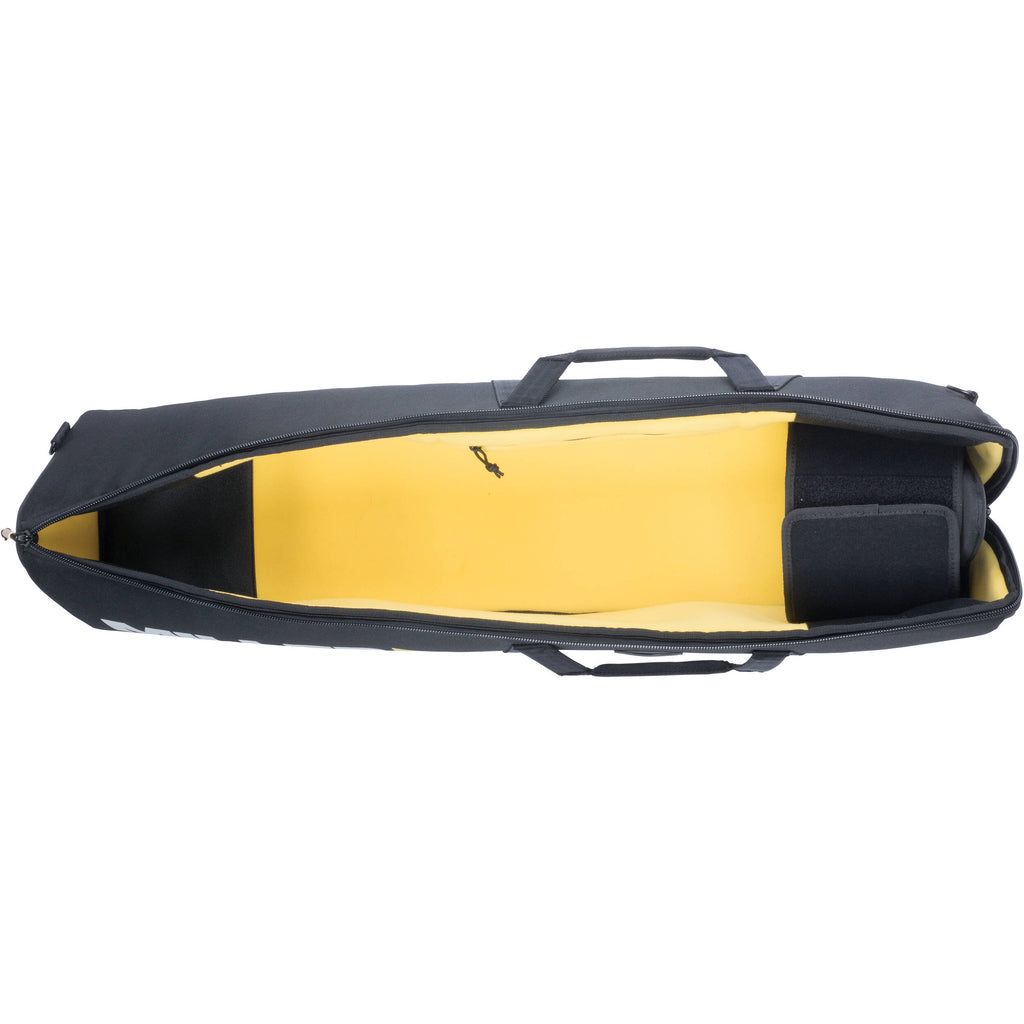

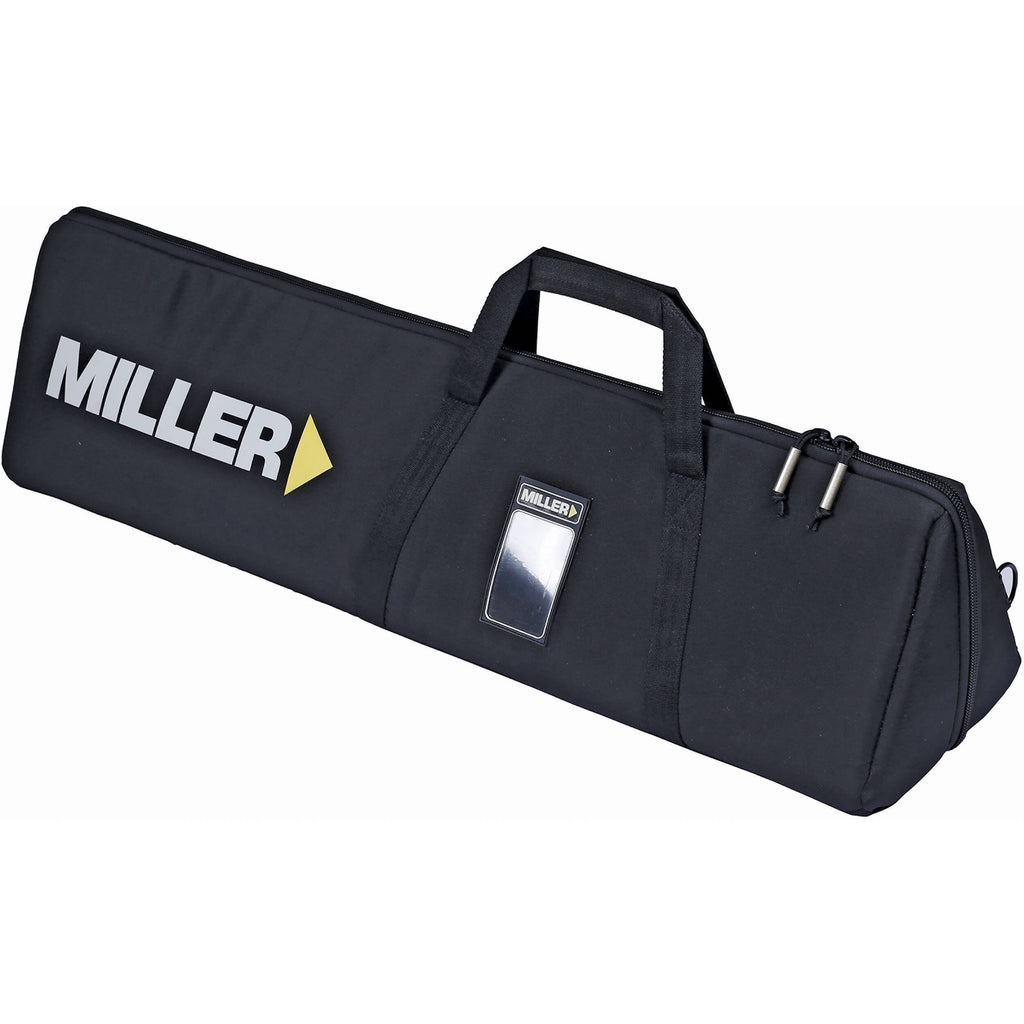

Store, transport, and protect your tripod or other gear with the black Miller Softcase for 2-Stage Toggle 2 Tripod Systems. This sturdy case is constructed from Cordura nylon and high-density foam, with a brushed polyester interior. The triangular shape promotes a secure fit, and the dual zippers and wide opening provide easy access. Carry the case with the dual strap handles or attach an optional, user-supplied shoulder strap to the D-links. Users will appreciate the external pocket and card holder.
In the Box
- Miller Versa CXV10 Fluid Head with Pan Handle
- Quick Release Sideload Plate
- Pan Handle
- Limited 3-Year Manufacturer Warranty
- Miller Toggle 2-Stage Alloy Tripod (Ground-Level Spreader Ready)
- Limited 3-Year Manufacturer Warranty
- Miller 550 Rubber Feet Pads for Select Tripods (Set of 3)
- Limited 3-Year Manufacturer Warranty
- Miller Softcase for 2-Stage Toggle 2 Tripod Systems (Black)
- Limited 3-Year Manufacturer Warranty
- Padded Shoulder Strap
- Description
- Miller Versa CXV10 Fluid Head with Pan Handle
- Miller Toggle 2-Stage Alloy Tripod (Ground-Level Spreader Ready)
- Miller 550 Rubber Feet Pads for Select Tripods (Set of 3)
- Miller Softcase for 2-Stage Toggle 2 Tripod Systems (Black)
Miller Versa CXV10 Fluid Head with Pan Handle Specs
Camera Plate Features |
Quick Release, Sideload, Sliding Balance Plate
|
Camera Plate Type |
Versa Plate
|
Camera Mounting Screw |
1x 1/4"-20 Male
1x 3/8"-16 Male with Locating Pin |
Base Mount |
100 mm Half Ball
|
Counter Balance |
Incremental 15-Step Plus 0 (26.5 lb / 12 kg)
|
Battery Type |
11A
|
Drag Type |
Fluid
|
Load Capacity |
26.5 lb / 12 kg at CoG 3.9" / 100 mm
|
Camera Plate Features |
Quick Release, Sideload, Sliding Balance Plate
|
Camera Plate Type |
Versa Plate
|
Camera Mounting Screw |
1x 1/4"-20 Male
1x 3/8"-16 Male with Locating Pin |
Balance Plate Sliding Range |
3.9" / 10 cm
|
Safety Lock |
Yes
|
Base Mount |
100 mm Half Ball
|
Counter Balance |
Incremental 15-Step Plus 0 (26.5 lb / 12 kg)
|
Center of Gravity |
3 to 6.9" / 75 to 175 mm
|
Pan Handle Fittings |
2x Rosette
|
Included Pan Handle Length |
15.4" / 39.1 cm
|
Bubble Level |
1x Illuminated
|
Battery Type |
11A
|
Base Diameter |
3.9" / 9.9 cm
|
Height |
6.2" / 15.7 cm
|
Drag Control |
Tilt: Stepped 5-Step Plus 0
Pan: Stepped 5-Step Plus 0 |
Drag Type |
Fluid
|
Vertical Tilt |
+90° to -75°
|
Panning Range |
360°
|
Independent Pan Lock |
Yes
|
Independent Tilt Lock |
Yes
|
Lateral Tilt |
No
|
Load Capacity |
26.5 lb / 12 kg at CoG 3.9" / 100 mm
|
Weight |
5.5 lb / 2.5 kg
|
Miller Toggle 2-Stage Alloy Tripod (Ground-Level Spreader Ready) Specs
Head Mount Type |
100 mm Bowl
|
Maximum Working Height |
61.4" / 156 cm
|
Minimum Working Height |
15.4" / 39 cm
|
Closed Length |
27.2" / 69 cm
|
Materials |
Aluminum
|
Leg Sections |
3
|
Head Mount Type |
100 mm Bowl
|
Maximum Working Height |
61.4" / 156 cm
|
Minimum Working Height |
15.4" / 39 cm
|
Closed Length |
27.2" / 69 cm
|
Materials |
Aluminum
|
Weight |
6.6 lb / 3 kg
|
Leg Sections |
3
|
Package Weight |
11.9 lb
|
Box Dimensions (LxWxH) |
37.3 x 13 x 10.4"
|
Miller 550 Rubber Feet Pads for Select Tripods (Set of 3) Specs
Dimensions |
2.7" (70 mm)
|
Weight |
8 oz (210 g)
|
Package Weight |
0.74 lb
|
Box Dimensions (LxWxH) |
7.2 x 5.55 x 5.4"
|
Miller Softcase for 2-Stage Toggle 2 Tripod Systems (Black) Specs
Material |
Cordura nylon exterior, high-density foam padding, and brushed polyester interior
|
Type of Closure |
Zipper
|
Padded |
Yes
|
Carrying/Transport Options |
Dual, top strap handles
|
Interior Dimensions |
36.6 x 10.2 x 9.5" / 93.0 x 26.0 x 24.0 cm
|
Weight |
2.7 lb / 1.2 kg
|
