Description
Miller CompassXV 14 Tripod System Overview

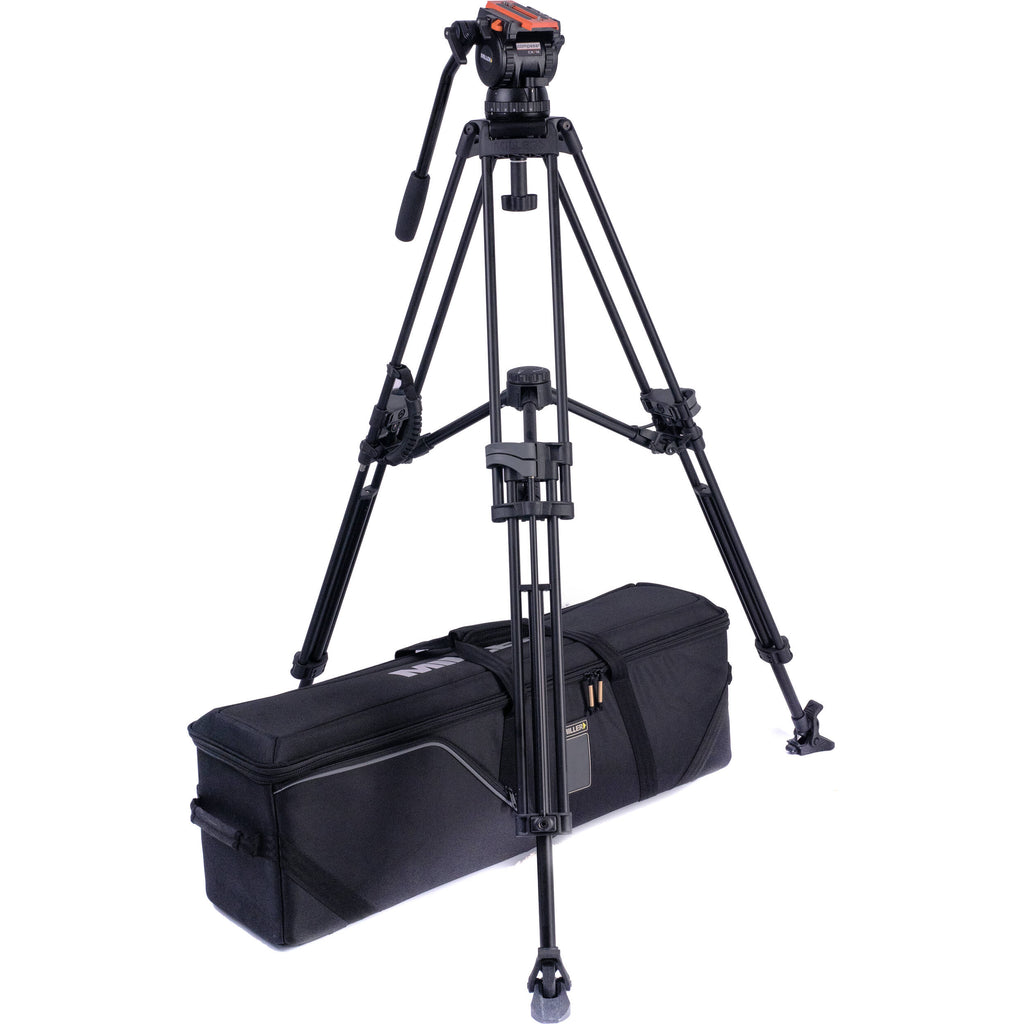

The Versa CXV14 Head, Sprinter II 2-Stage Alloy Tripod, Mid-Level Spreader, Rubber Feet & Soft Case Kit from Miller includes the Versa CXV14 fluid head, a pan handle, a quick release plate, the 100mm Sprinter II 2-stage alloy tripod legs, a mid-level spreader, a rubber foot set, and a soft carry case.
The Versa CXV14 head is designed to accommodate a payload up to 30.9 lb and has 16 steps of counterbalance with CB Plus, a quick release plate with 3.9" of sliding range to balance your rig, a 100mm ball base, an illuminated bubble level, and a fixed length pan handle. The 2-stage legs are made from lightweight alloy and have a 23.7 to 66.6" height range, a mid-level spreader, removable rubber feet, a 100mm bowl, and a 33.6" transport length.

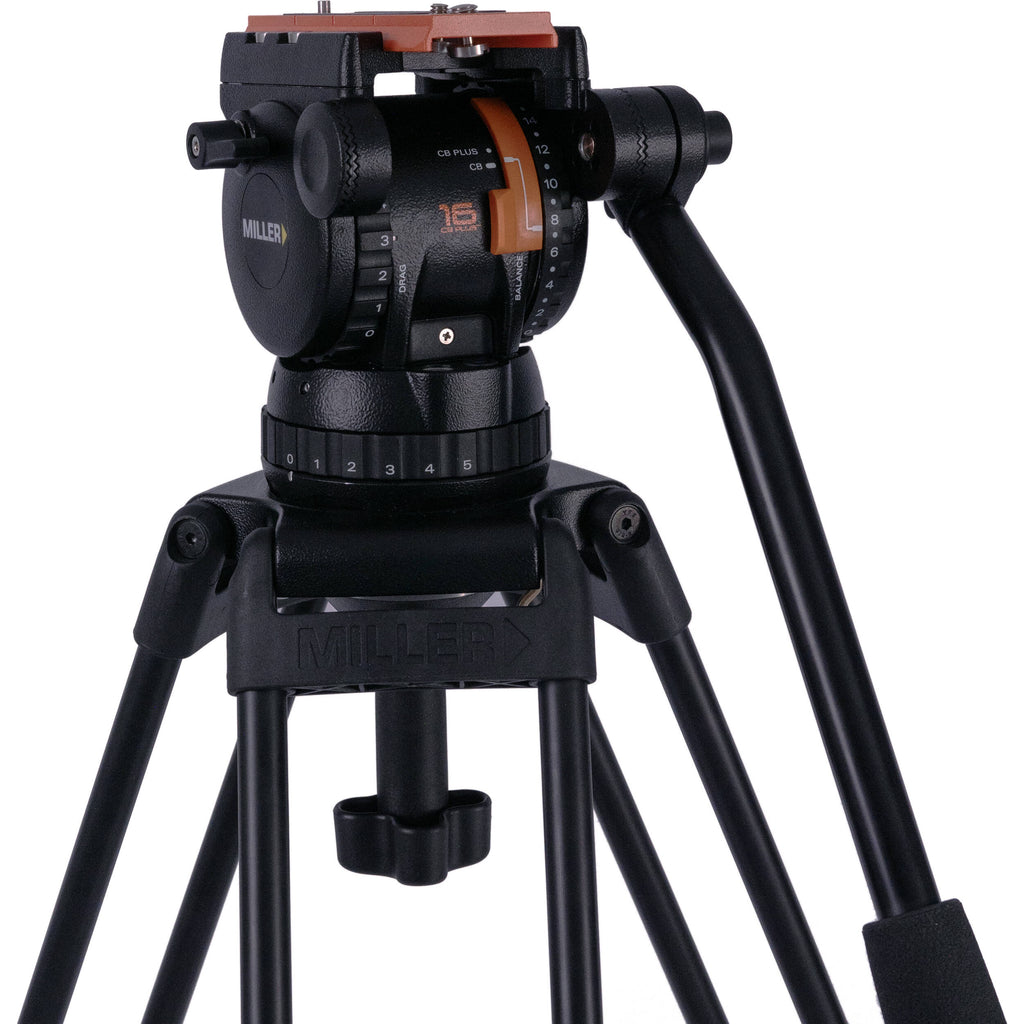

The Versa CXV14 Fluid Head with Pan Handle from Miller is designed to accommodate a wide payload range, 16 steps of counterbalance with CB Plus for fine adjustments, as well as five selectable pan/drag settings. Pan, tilt, and counterbalance can all be set to zero, enabling even the lightest of cameras to be supported. Maxed out, this head is rated to support camera setups up to 30.9 lb, adequate for a DSLR or mirrorless camera, a cinema camera, or a ENG camcorder. Securing your camera or rig is easy. The sideload quick release plate design enables you to simply drop in your camera without the alignment issues posed by rear-loading variations. The plate offers 3.9" of sliding range to balance your rig.
To survive fast-paced shooting environments, the CXV14 is die-cast from a lightweight, yet durable metal alloy with composite polymers and precision ball bearings for smooth mechanical operation. Even in harsh conditions, the CXV14 will perform reliably. The base of the CXV14 is a 100mm ball for mounting to compatible tripods and grip equipment. An illuminated bubble level makes it easy to level the CXV14 in dark environments. A fixed-length pan handle is included, and a second rosette is available for attaching an optional second pan handle.
The Miller Sprinter II 2-Stage Alloy Tripod is a quick-setup solution for a tripod head with 100mm ball base. Its light weight, flip-locks, and rigid construction allow for durability without compromising usability in ENG, EFP, and other pro video applications. Unlike many traditional multi-stage designs, both flip-locks are located on the same section for easy reaching, no matter the height setting. The fast setup is complemented by an in-line carry handle, for portability on set or in the field. Compatible spreaders, rubber feet, and dollys are available separately.
The Miller 993 Mid-Level Spreader is a mid-level spreader for Sprinter, Arrow 25/40, and HD tripod systems. This device offers variable adjustment in minimum and maximum height settings, plus a latch and swivel design.
The 475 Tripod Feet from Miller are a set of three rubber snap-on feet designed to be used in any situation where the integrated dual spiked feet are not optimal. They are ideal for use on both slippery and glossy floors. These rubber feet are compatible with all tripods with a 993 mid level spreader.
Store, transport, and protect your gear with the black Miller Arrowx softcase 2 Stage for Sprinter II and Toggle 2 Stage Tripod Systems. The case features zipper closure, top and bottom cradles with straps to secure your tripod, and back pack straps with a storage pocket. For strength and durability, the case is constructed with a ballistic nylon shell and hard plastic skid pads. Carry the case with the dual strap handles or padded grab handle. You can also attach a sold-separately shoulder strap to the case D-links. An external pocket and card holder makes case identification easier.
In the Box
- Miller Versa CXV14 Fluid Head with Pan Handle
- Quick Release Sideload Plate
- Pan Handle
- Limited 3-Year Manufacturer Warranty
- Miller Sprinter II 2-Stage Alloy Tripod (Mid-Level Spreader Ready)
- Limited 3-Year Manufacturer Warranty
- Miller 993 Mid-Level Spreader
- Limited 3-Year Manufacturer Warranty
- Miller 475 Rubber Feet Pads for Select Tripods (Set of 3)
- Limited 3-Year Manufacturer Warranty
- Miller Arrowx softcase 2 Stage for Sprinter II and Toggle 2 Stage Tripod Systems (Black)
- Back Pack Straps
- Limited 3-Year Manufacturer Warranty
Additional Resources
Miller CompassXV 14 Tripod SystemSpecs
Camera Mounting |
1/4"-20 & 3/8"-16 Screws with Locating Pin (Sideload Quick Release w/ Sliding Balance Plate: Versa Plate)
|
Head Type |
Fluid Head
|
Drag Control |
Yes
|
Load Capacity |
30.9 lb / 14 kg
|
Weight |
5.5 lb / 2.5 kg
|
Camera Mounting |
1/4"-20 & 3/8"-16 Screws with Locating Pin (Sideload Quick Release w/ Sliding Balance Plate: Versa Plate)
|
Head Type |
Fluid Head
|
Base Mount |
100 mm Half Ball
|
Counter Balance |
Incremental 15-Step Plus 0 (30.9 lb / 14 kg)
|
Dimensions |
Base Diameter: 3.9" / 9.9 cm
Height: 6.2" / 15.7 cm |
Drag Control |
Yes
|
Independent Pan Lock |
Yes
|
Independent Tilt Lock |
Yes
|
Vertical Tilt |
+90° to -75°
|
Lateral Tilt |
No
|
Load Capacity |
30.9 lb / 14 kg
|
Accessory Mounting |
2x Pan Handle Fitting
|
Bubble Level |
Yes (Illuminated)
|
Weight |
5.5 lb / 2.5 kg
|
Miller CompassXV 14 Tripod SystemSpecs
Head Mount Type |
100 mm Bowl
|
Primary Material |
Aluminum
|
Maximum Working Height |
60.4" / 153 cm
|
Minimum Working Height |
17.3" / 44 cm
|
Closed Length |
27.6" / 70 cm
|
Weight |
8.3 lb / 3.8 kg
|
Head Mount Type |
100 mm Bowl
|
Primary Material |
Aluminum
|
Leg Sections |
2
|
Maximum Working Height |
60.4" / 153 cm
|
Minimum Working Height |
17.3" / 44 cm
|
Closed Length |
27.6" / 70 cm
|
Weight |
8.3 lb / 3.8 kg
|
Package Weight |
9.9 lb
|
Box Dimensions (LxWxH) |
37.3 x 12.9 x 11"
|
Miller CompassXV 14 Tripod SystemSpecs
Construction |
Alloy
|
Type |
Mid-Level
|
Adjustable |
Continuously Variable Through All Height Settings
|
Minimum Length |
12.4" / 315 mm
|
Maximum Length |
20.3" / 515 mm
|
Weight |
1.7 lb / 0.75 kg
|
Package Weight |
2.385 lb
|
Box Dimensions (LxWxH) |
18.35 x 6.55 x 6.4"
|
Miller CompassXV 14 Tripod SystemSpecs
Dimensions |
L: 3.7" / L: 95 mm
|
Weight |
8 oz / 210 g
|
Package Weight |
0.65 lb
|
Box Dimensions (LxWxH) |
7.35 x 5.85 x 5.2"
|
Miller CompassXV 14 Tripod SystemSpecs
Material |
Ballistic nylon outer shell
|
Type of Closure |
Zipper
|
Padded |
Yes
|
Carrying/Transport Options |
Dual top handles and padded end handle
D-links for optional, user-supplied shoulder strap Back pack straps |
Dimensions |
37.8 x 10.2 x 12.6" / 96.0 x 26.0 x 32.0 cm
|
Weight |
9.7 lb / 4.4 kg
|
Package Weight |
12.68 lb
|
Box Dimensions (LxWxH) |
39 x 13.75 x 12"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
