Description

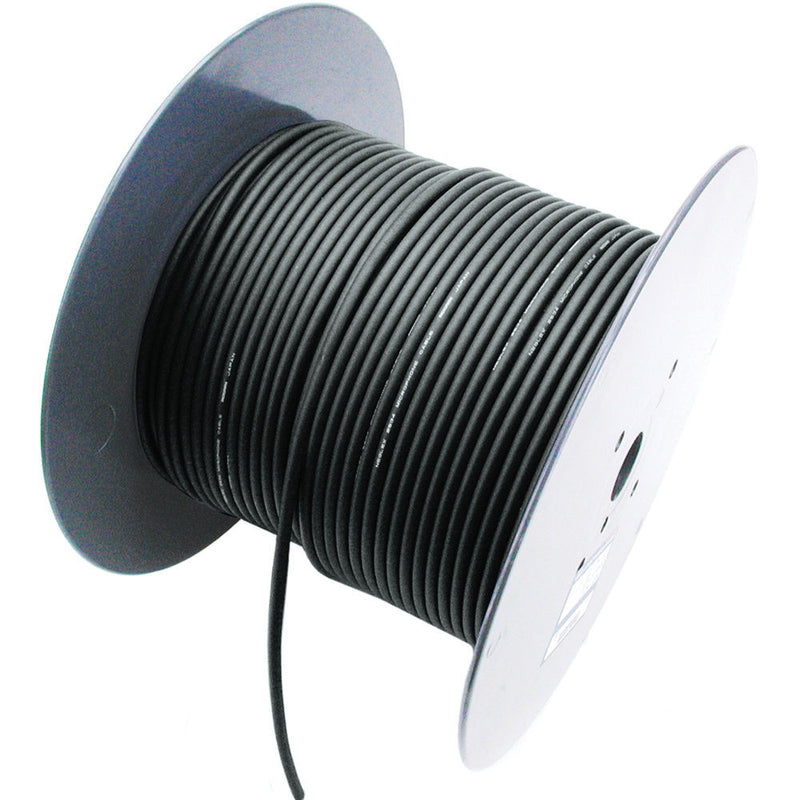

The W2534 A 00 Neglex Quad High-Definition Microphone Cable (164', Black) from Mogami is ideal for home studios suffering from wiring and grounding problems, and for applications where intense RFI interference is a problem. It is designed for use with unbalanced equipment, such as high-quality pre-amp, amp inputs and tape decks. It provides an improvement in signal-to-noise of 10 to 20 dB over equivalent twisted pair cables. It is more effective in cancelling noise that can get past even the best of shields, which is critical in an environment of high RF and EM interference. Originally designed for BANTAM patch-cords, this cable can be ideally used where a small diameter Quad microphone cable is required.
- Conductor insulation is XLPE (Cross-Linked Polyethylene), which has excellent electrical characteristics and prevents shrink-back during soldering
- Served (spiral) bare copper shield is superior to foil or braided shields for sound quality and simplifies termination
| Number of Conductors | 4 (Quad) |
| Conductor | Details: 20/0.12 OFC Size: 0.226 mm² (#24 AWG) |
| Insulation | Overall Diameter: 1.6Ø (0.063" / 1.6 mm) Material: XLCPE (Cross-Linked Polyethylene) Color: Blue / Clear (Quad) |
| Shielding | Approximately 64/0.18 A |
| Jacket | Overall Diameter: 6.0Ø (0.236" / 5.99 mm) Material: Flexible PVC Color: Black |
| DC Resistance | At 68°F (20°C): Inner Conductor: 0.025 ?/feet (0.083 ?/m) Shield: 0.0037 ?/Feet (0.012 ?/m) |
| Capacitance | At 1 kHz, 68°F (20°C) K 0 : 20 pF/feet (65 pF/m) |
| Inductance | At 1 kHz, 68°F (20°C) 0.12 µH/feet (0.4 µH/m) |
| Noise | Electrostatic: 50 mV Maximum Electromagnetic: 0.15 mV Maximum |
| Microphonics | At 50K?/ Load: 430 mV Maximum |
| Voltage Breakdown | Must withstand at 500 VDC / 15 seconds |
| Insulation Resistance | 100,000 M ?/ × m Minimum at 125 VDC, 68°F (20°C) |
| Flex Life | 11,000 cycles |
| Emigration | Non-emigrant to ABS |
| Tensile Strength | 686 N |
| Operating Temperature | -4 to158°F (-20 to 70°C) |
| Length | 164' (50 m) |
| Weight | 6.06 lb (2.75 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 5.85 lb |
| Box Dimensions (LxWxH) | 9.9 x 9.0 x 2.0" |
- Lifetime Warranty
