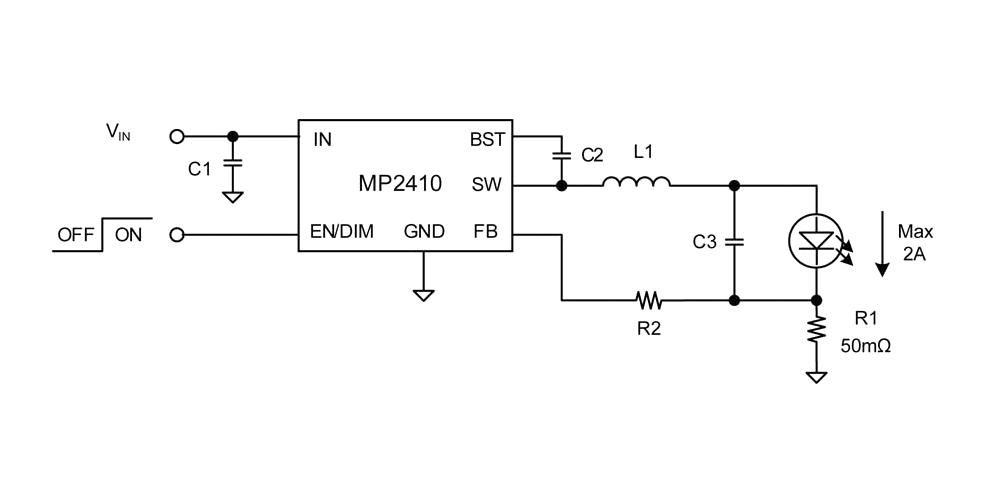

- Monolithic synchronous step-down white LED driver in 6 pin TSOT-23 package
- 100mohm internal high side power MOSFET
- 80mohm internal low side synchronous rectifier
- Peak current mode control
- 100mV feedback voltage
- Up to 97% efficiency
- Analog and PWM dimming
- Cycle-by-cycle current Limit
- Inherent LED open protection
- Output short circuit protection (SCP)
Product details
| Device Topology |
Synchronous Buck (Step Down) |
| Input Voltage Min |
4.2V |
| Input Voltage Max |
24V |
| Output Voltage Max |
- |
| Output Current Max |
2A |
| Switching Frequency |
1MHz |
| No. of Outputs |
1Outputs |
| IC Mounting |
SMD |
| Driver Case Style |

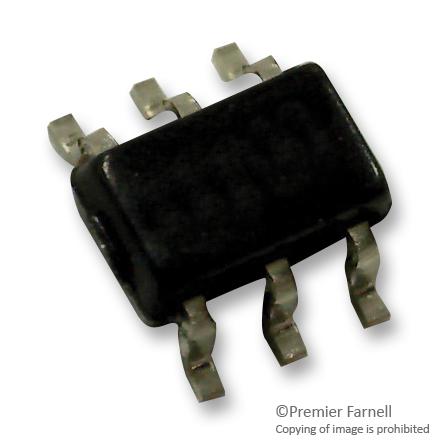

TSOT-23 |
| No. of Pins |
6Pins |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
125°C |
| Product Range |
- |
| Automotive Qualification Standard |
- |
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MP2410AGJ-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
