- 3.7" OLED Touchscreen
- 660' Range Line-of-Sight
- 2.4 GHz Frequency Operation
- Built-In Lens Profiles
- Store Custom Lens Profiles on SD Card
- Separatable Handwheel
- Optional Cable for Wired Operation

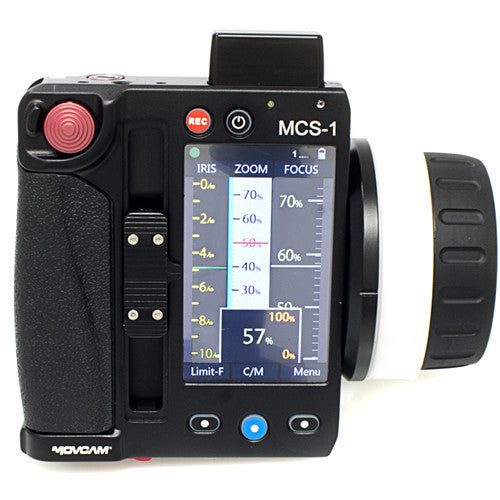

At the heart of the Movcam 3-Axis System sits the MCS-1 Hand Control Unit . Focus, iris, and zoom can be controlled independently with the handwheel, slider, and pressure-sensitive rocker. Using the license-free 2.4 GHz band, the hand unit can communicate with the receiver from up to 660' away in ideal line-of-sight situations. Dominating the front surface of the unit is a 3.7" touchscreen which shows real-time lens data and is also used for lens data entry and menu settings. Lens data for popular lenses is already programmed into the unit. Information for lenses not already built-in can be manually programmed into the unit by the user using the touchscreen and stored on an SD card for instant recall on any compatible device.
- Daylight-viewable 3.7" OLED touchscreen for data entry and real-time display of lens and system data
- 3D function mode
- Wireless start/stop control for ARRI, Sony, and RED, as well as cameras compatible with the LANC protocol
- EF lens control with RED cameras using an electronic EF mount
- Pre-programmed lens data and custom lens mapping, store lens data on an SD card for instant recall
- Hardware remote cable connection for wired operation
- Pressure-sensitive zoom control
- Programmable lens end-stops
- Dampened focus handwheel
- Backlit handwheel and function buttons
- Operates on separately available Sony NP-F550 or NP-F570 batteries
In the Box

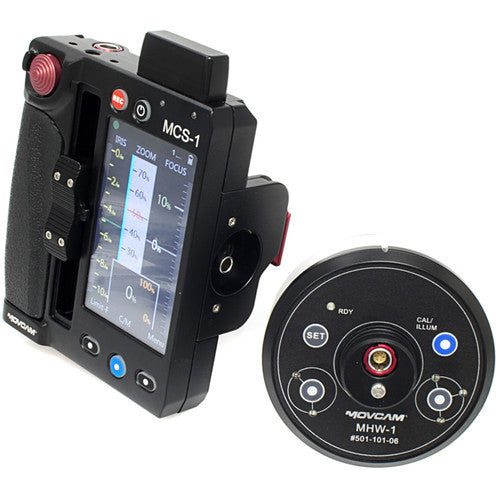

Movcam MCS-1 Hand Control Unit for 3-Axis System
| Screen Size | 3.7" / 9.4 cm |
| Battery Mount | Sony NP-F (L-series) |
| Operating Frequency | 2.4 GHz |
| Operating Range | Up to 660' / 200 m (line-of-sight) |
