Description
MSI B650-S WIFI Overview

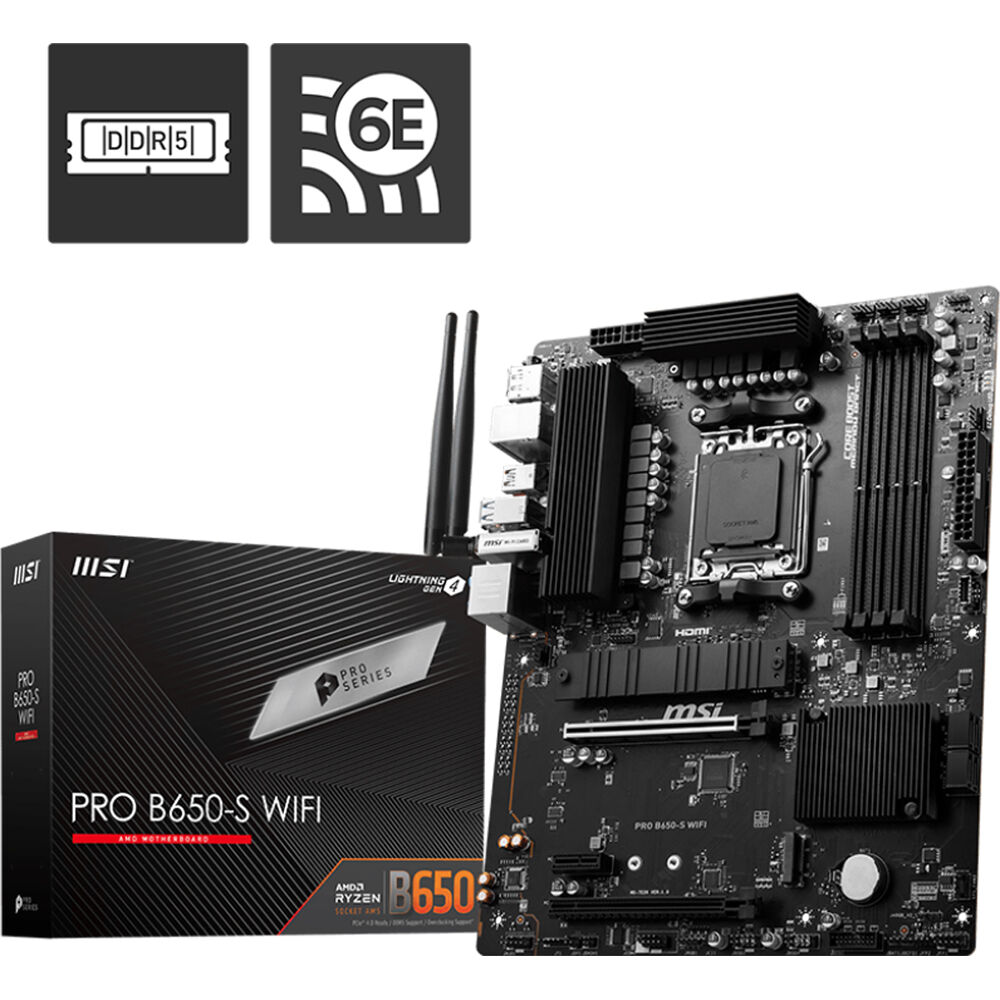

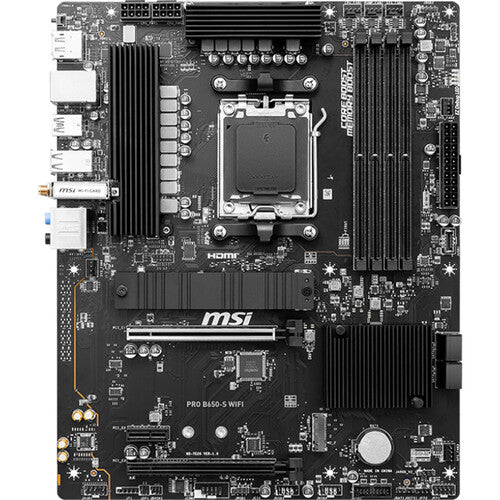

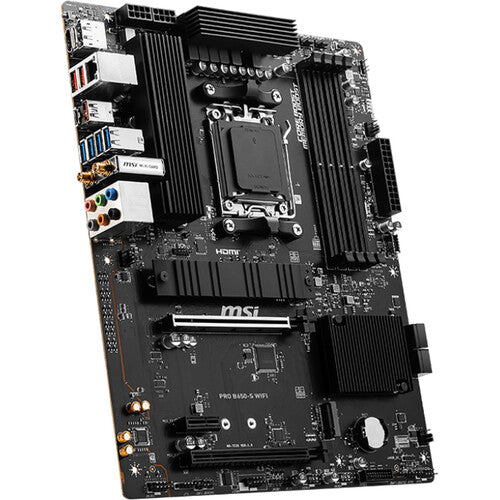

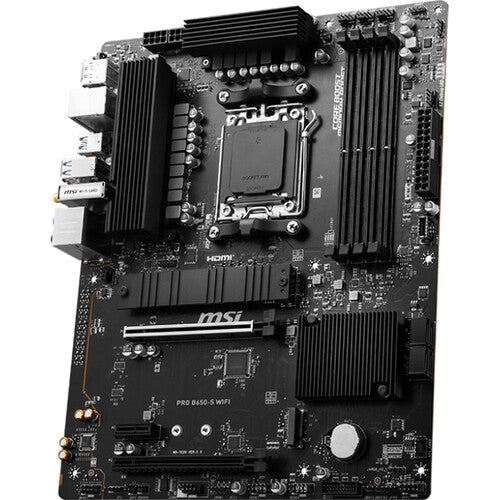

Achieve power and performance using the MSI PRO B650-S WIFI ATX Motherboard to start your next build. Its B650 chipset and AM5 socket support AMD Ryzen 7000 series processors. An ATX form factor provides enough room to be compatible with a wide variety of components so you can customize your system for entertainment, content creation, and more.
RAM Compatibility
Four 288-pin slots support up to 192 GB of dual-channel DDR5 RAM with up to 7200 MHz speeds when overclocked or 4800 MHz when not overclocked.

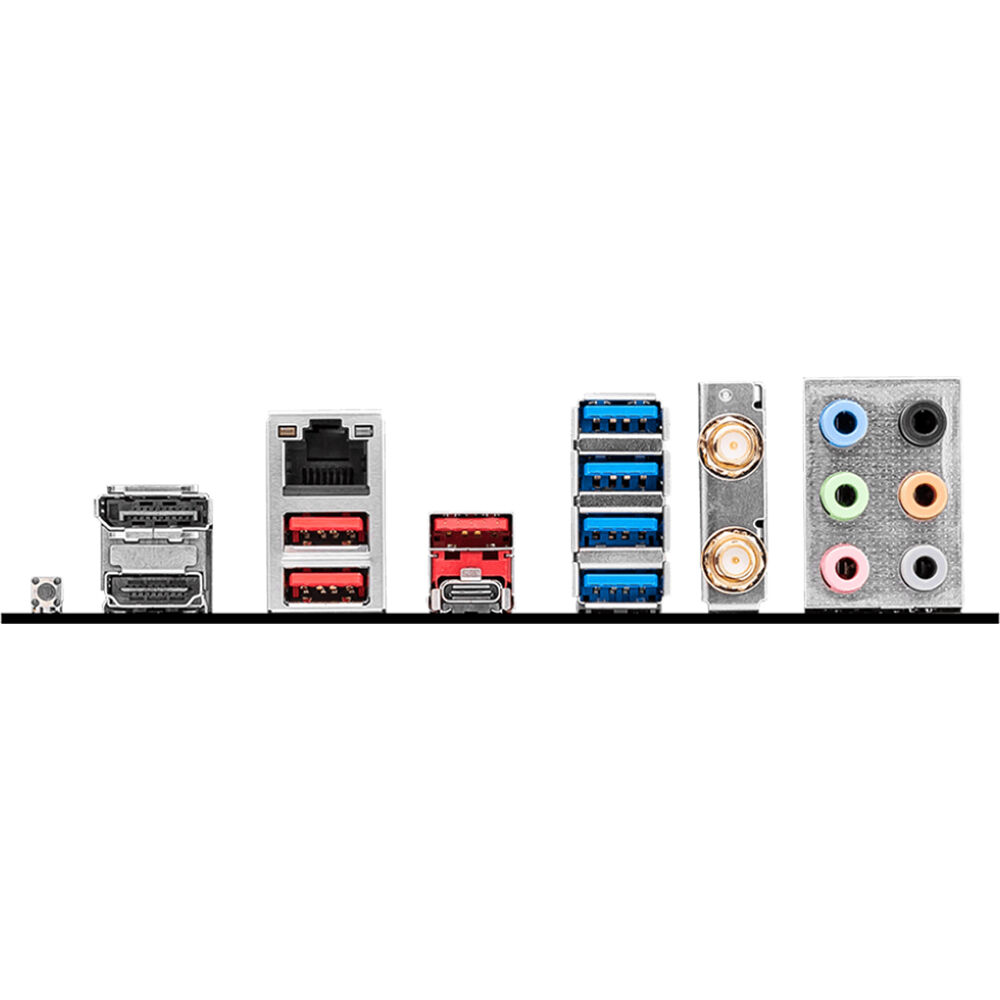

Rear I/O and Connectivity
A DisplayPort and HDMI port allow you to connect external displays straight to the motherboard if your CPU has integrated graphics. A 2.5 GbE Ethernet port gives you a wired LAN connection while the two antenna connectors allow you to utilize Wi-Fi 6E and Bluetooth 5.3 for wireless connections. Six 3.5mm audio jacks can support headsets, speakers, and other audio output devices.
Three USB-A 3.2 Gen 2 ports offer up to 10 Gb/s transfer speeds and four USB-A 3.2 Gen 1 ports offer up to 5 Gb/s transfer speeds. A single USB-C 3.2 Gen 2x2 port reaches up to 20 Gb/s speeds for external drives or higher-end peripherals.
Storage Compatibility
This motherboard can support two M.2 NVMe PCIe 4.0 x4 SSDs and four SATA III drives so you can have as much storage as you need.
PCIe Steel Armor
Two PCIe 4.0 x16 slots allow you to use two graphics cards at once since this motherboard supports AMD's multi-GPU software. MSI's PCIe steel armor helps reinforce the slot for a more secure connection capable of handling heavy graphics cards.
Cooling
VRM, M.2, and chipset heat sinks help to dissipate heat and keep your motherboard run cool while under load.
UPC: 824142336267
In the Box
- MSI PRO B650-S WIFI ATX Motherboard
- EZ M.2 Clip
- 2 x Wi-Fi Antenna
- SATA Cable
- I/O Shield
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
MSI B650-S WIFISpecs
Key Specs
| Chipset |
AMD B650
|
| CPU Socket |
AM5
|
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 7000, 7200 MT/s
|
| Storage Slots |
1x (PCIe 4.0 x4)
1x (PCIe 4.0 x4) |
| Expansion Slots |
1x PCIe 4.0 x16 (x16 mode)
1x PCIe 4.0 x16 (x4 mode) 1x PCIe 3.0 x1 (x1 mode) |
| Wi-Fi |
Wi-Fi 6E (802.11ax) with MU-MIMO Support
|
| Form Factor |
ATX
|
CPU
| Chipset |
AMD B650
|
| CPU Socket |
AM5
|
Back Panel I/O
| USB |
1x USB-C (USB 3.2 Gen 2x2)
3x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1) |
| Thunderbolt |
No
|
| Display |
1x HDMI
1x DisplayPort |
| Audio |
6x 1/8" / 3.5 mm
|
| Ethernet / Controller |
1x Realtek 8125BG 2.5Gigabit
|
| Wi-Fi Antenna |
2x Connector
|
| Buttons |
BIOS Flashback
|
Memory
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 7000, 7200 MT/s
|
| Maximum Capacity |
192 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC Unbuffered
|
Storage Expansion
| SATA |
4x SATA III
|
| Storage Slots |
1x (PCIe 4.0 x4)
1x (PCIe 4.0 x4) |
| RAID Support |
RAID 0, 1 (M.2)
RAID 0, 1 (SATA) |
Internal I/O
| Expansion Slots |
1x PCIe 4.0 x16 (x16 mode)
1x PCIe 4.0 x16 (x4 mode) 1x PCIe 3.0 x1 (x1 mode) |
| USB |
4x USB 2.0 Header (Supports 1 USB-A Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-A Port) 1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) |
| Multi-GPU Support |
AMD CrossFireX
|
| Air Cooling |
1x 4-Pin CPU
4x 4-Pin System |
| Liquid Cooling |
1x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard
2x 8-Pin CPU |
| Security |
TPM Header
|
| LED Header |
4x RGB
|
| Audio |
1x Speaker
|
Audio
| Audio Codec |
Realtek ALC897 (7.1-Channel)
|
| DAC |
No
|
Wireless
| Wi-Fi |
Wi-Fi 6E (802.11ax) with MU-MIMO Support
|
| Bluetooth |
5.3
|
Software
| OS Compatibility |
Windows 10 (64-Bit Only)
Windows 11 (64-Bit Only) |
Physical
| Form Factor |
ATX
|
| Dimensions |
12.0 x 9.60" / 304.8 x 243.84 mm
|
Packaging Info
| Package Weight |
3.21 lb
|
| Box Dimensions (LxWxH) |
13.7 x 10.7 x 2.6"
|
