Description

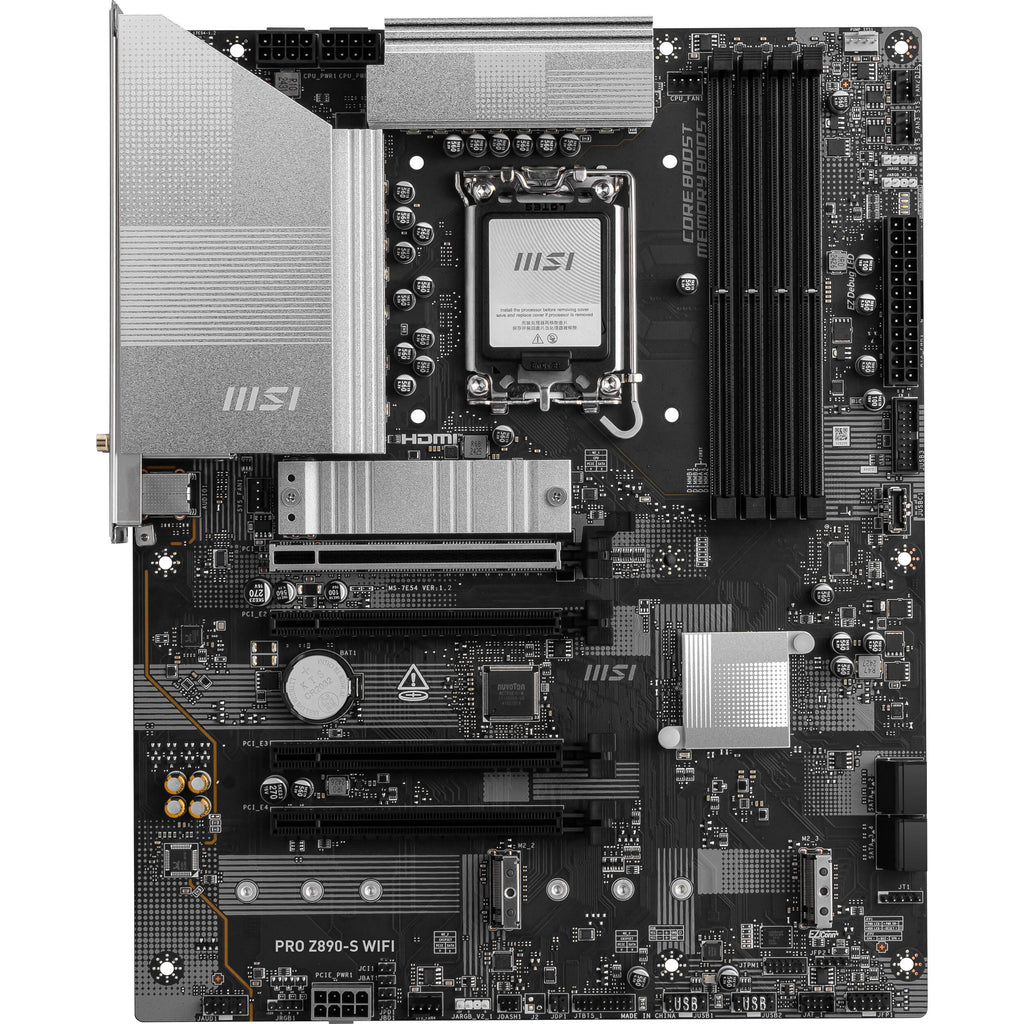

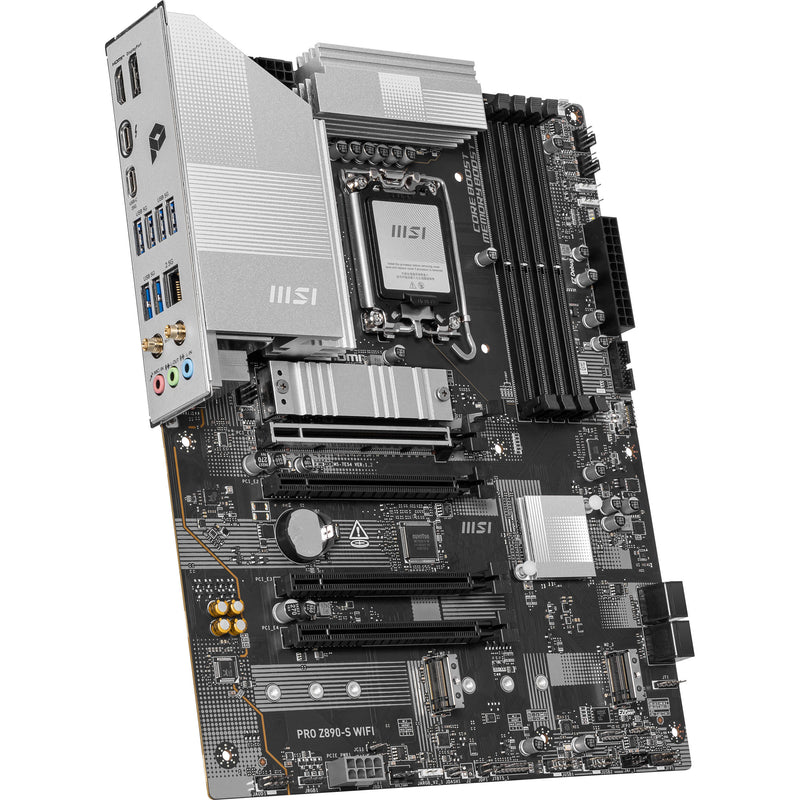

MSI PRO Z890-S WIFI Overview
Power up your workflow by including the MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard in your computer build. Supporting Intel Core Ultra series 2 desktop processors with the LGA 1851 socket, professional content creators can outfit this motherboard to smoothly handle demanding applications and AI workloads.
Install one M.2 PCIe 5.0 and two 4.0 SSDs to store your applications and important files. There are also four SATA III connectors available. The four DDR5 DIMM slots allow you to add up to 256GB of memory for smooth multitasking. With one PCIe 5.0, two PCIe 4.0, and one PCIe 3.0 x16 slot, you can install powerful graphics cards and other compatible expansions.
The rear panel features a Thunderbolt 4 port that can transfer up to 40 Gb/s with compatible devices or connect a USB-C compatible 8K display. The second USB-C slot works with 20 Gb/s compatible devices. You may use the six USB-A 3.2 Gen 1 ports with 5 Gb/s peripherals. Built-in Wi-Fi 7 (802.11be) support and a 2.5 Gb/s Ethernet port provide you with connections to compatible network devices for smooth video streaming and fast file transfers.
Processor and Socket Support
Supports Intel Core Ultra processors (Series 2) for the LGA 1851 socket.
Wi-Fi 7 (802.11be)
Wi-Fi 7 (802.11be) has a 320 MHz channel, achieving a maximum transmission speed of 5.8 Gb/s, which is 2.4x faster than Wi-Fi 6/6E.
Thunderbolt 4 Port
Thunderbolt 4 brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, daisy-chain, multi-port accessory architecture, and USB4 compliant.
20 Gb/s USB 3.2 Gen 2x2
A built-in USB 3.2 Gen 2x2 port offers transmission speeds of 20 Gb/s, which is 4x faster than USB 3.2 Gen 1.
DDR5 Memory
DDR memory performance is enhanced with DDR5 and MSI Memory Boost technology. Dual-channel DDR5 memory is supported at speeds up to 8600+ MT/s (OC).
Enhanced Power Design
12+1+1+1 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost, and 6-layer PCB.
Frozr Guard
Extended Heat Sink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and M.2 Shield Frozr are built for high performance and non-stop experience.
EZ DIY
EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna
Lightning Gen 5
PCIe 5.0 x4 delivers bandwidth of up to 128 GB/s for compatible M.2 SSDs.
2.5G LAN Network Solution
The 2.5GbE LAN solution delivers an improved network experience.
Extended Heat Sink Design
MSI's extended PWM heat sink and enhanced circuit design ensures even high-end processors run at full speed.
M.2 Shield FROZR
A strengthened built-in M.2 thermal solution keeps M.2 SSDs safe while preventing throttling, making them run faster.
Pre-installed I/O Shielding
Better EMI protection and more convenience during installation.
Frozr AI Cooling
Detects CPU & GPU temperatures and automatically adjusts the system fan accordingly.
Audio Boost
Reward your ears with studio-grade sound quality for an immersive gaming experience.
UPC: 824142386569
Items Included
- MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
MSI PRO Z890-S WIFI Specs
Key Specs
| Chipset |
Intel Z890
|
| CPU Socket |
LGA 1851
|
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 4800, 4866, 4933, 5000, 5066, 5100, 5133, 5200, 5300, 5333, 5400, 5600, 5800, 6000, 6133, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600 MT/s
|
| Storage Slots |
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III) |
| Expansion Slots |
1x PCIe 5.0 x16
2x PCIe 4.0 x16 (x4 mode) 1x PCIe 3.0 x16 (x1 mode) |
| Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
|
| Form Factor |
ATX
|
CPU
| Chipset |
Intel Z890
|
| CPU Socket |
LGA 1851
|

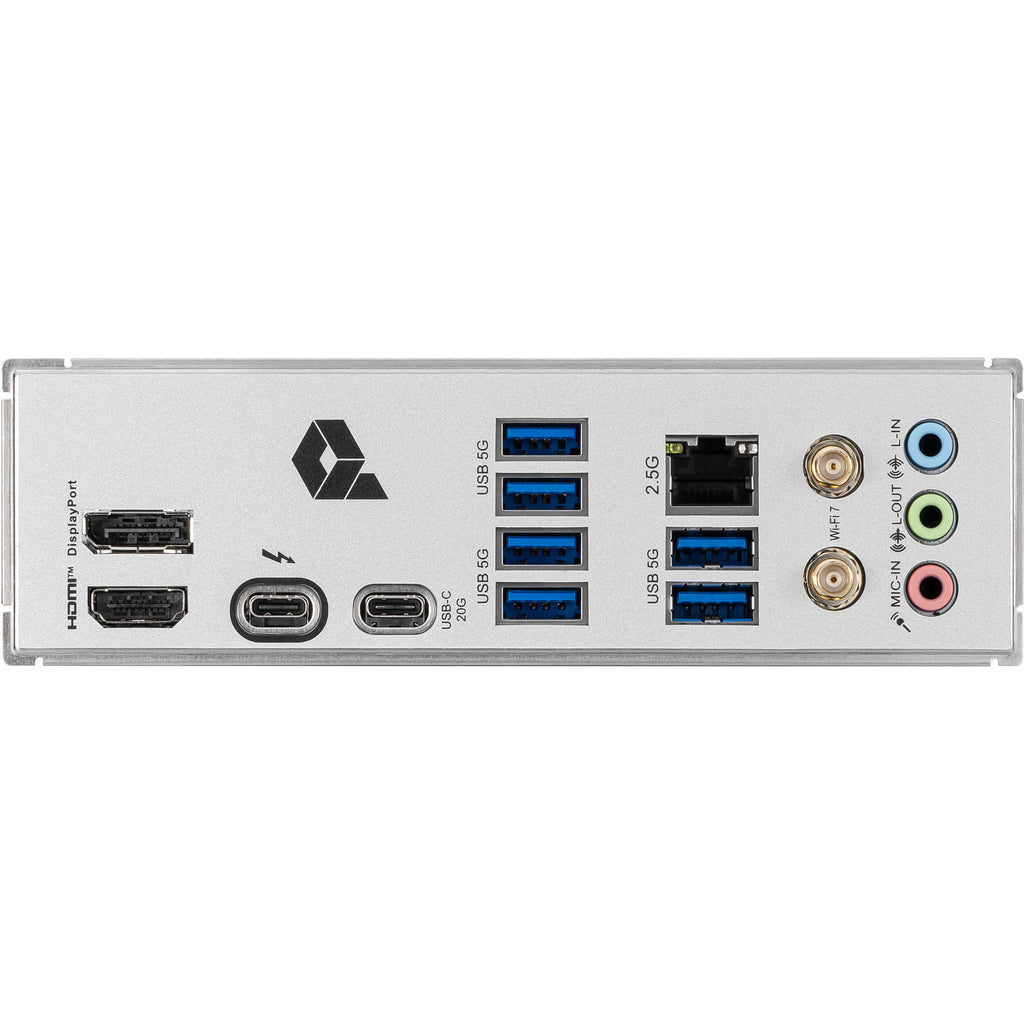

Back Panel I/O
| USB |
1x USB-C (USB 3.2 Gen 2x2)
6x USB-A (USB 3.0 / 3.1/3.2 Gen 1) |
| Thunderbolt |
1x Thunderbolt 4
|
| Display |
1x HDMI 2.1
1x DisplayPort 1.4 |
| Audio |
3x 1/8" / 3.5 mm
|
| Ethernet / Controller |
1x Realtek 8125D 2.5Gigabit
|
| Wi-Fi Antenna |
2x Connector
|
Memory
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 4800, 4866, 4933, 5000, 5066, 5100, 5133, 5200, 5300, 5333, 5400, 5600, 5800, 6000, 6133, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600 MT/s
|
| Maximum Capacity |
256 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC Unbuffered
|
Storage Expansion
| SATA |
4x SATA III
|
| Storage Slots |
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III) |
| Optane Memory Support |
No
|
| RAID Support |
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5, 10 (SATA) |
Internal I/O
| Expansion Slots |
1x PCIe 5.0 x16
2x PCIe 4.0 x16 (x4 mode) 1x PCIe 3.0 x16 (x1 mode) |
| USB |
1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling |
1x 4-Pin CPU
4x 4-Pin System |
| Liquid Cooling |
1x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard
2x 8-Pin CPU 1x 8-Pin ATX |
| Security |
Chassis Intrusion, TPM Header
|
| LED Header |
4x RGB
|
| Audio |
1x Speaker
|
| Diagnostics |
2-Digit Debug LED, Clear CMOS, Flash BIOS
|
| Add-On |
1x Tuning Controller
1x Thunderbolt Header |
BIOS
| ROM |
256 Mb
|
Front Panel I/O
| Front Panel I/O |
AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.2 Gen 2x2
|
Audio
| Audio Codec |
Realtek ALC897 (7.1-Channel)
|
| DAC |
No
|
Wireless
| Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
|
| Bluetooth |
5.4
|
| Module Support |
1 E Key M.2
|
Software
| OS Compatibility |
Windows 11 (64-Bit Only)
|
Physical
| Form Factor |
ATX
|
| Dimensions |
12.0 x 9.60" / 304.8 x 243.84 mm
|
Packaging Info
| Package Weight |
3.625 lb
|
| Box Dimensions (LxWxH) |
14.1 x 10.9 x 2.9"
|
