Description

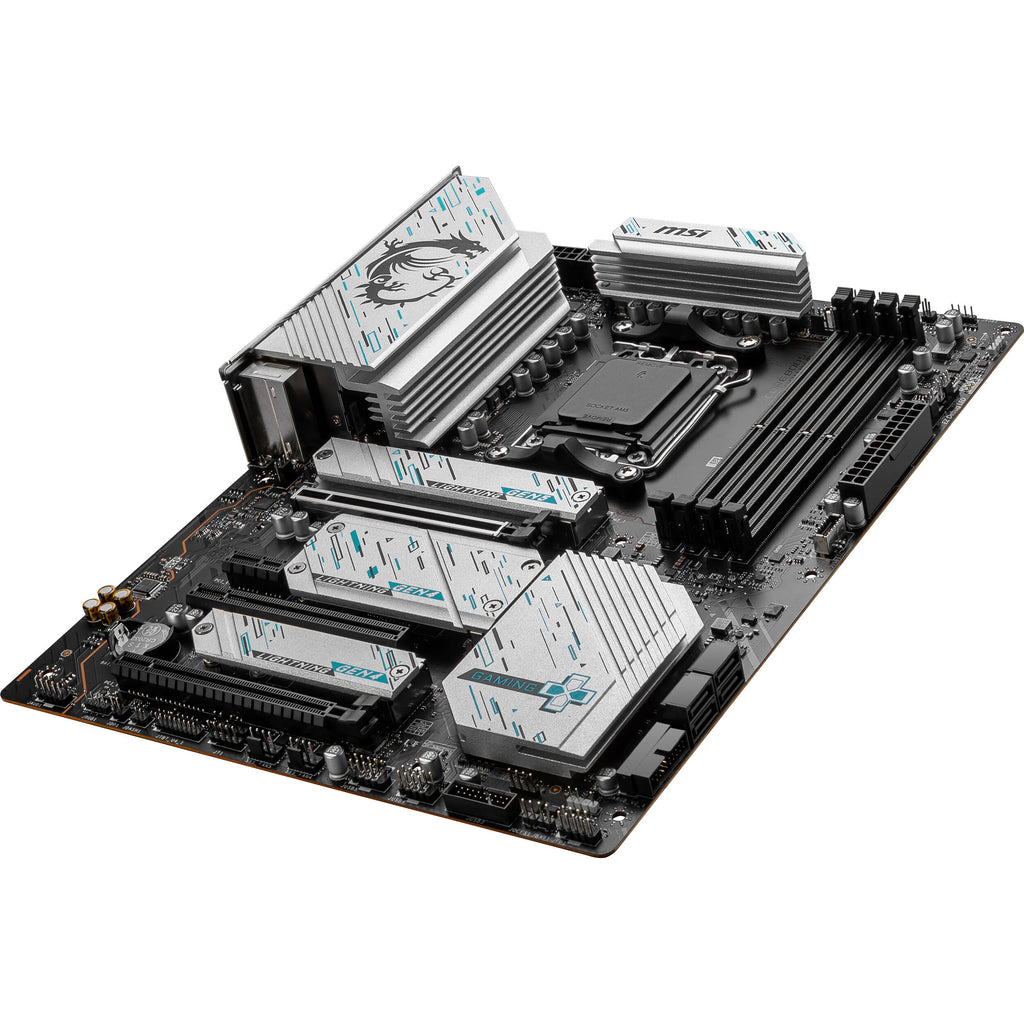

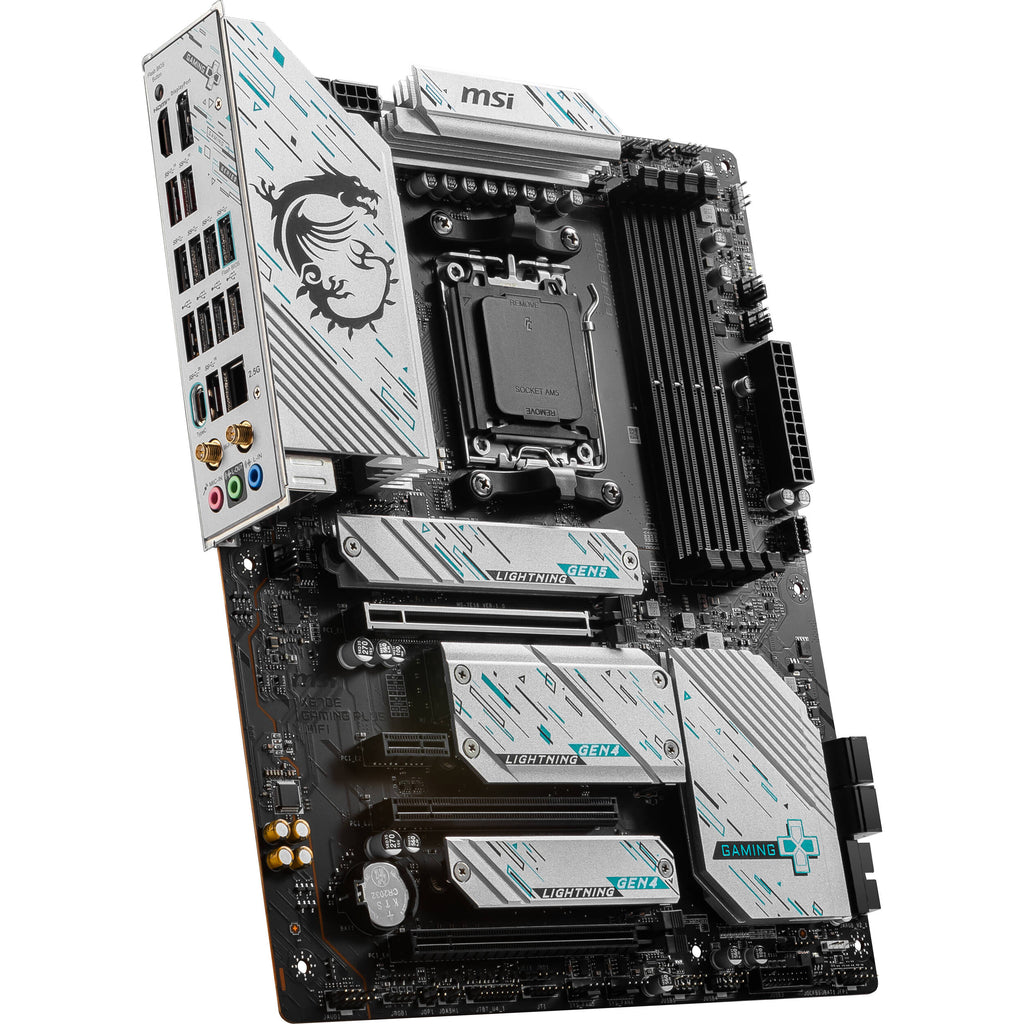

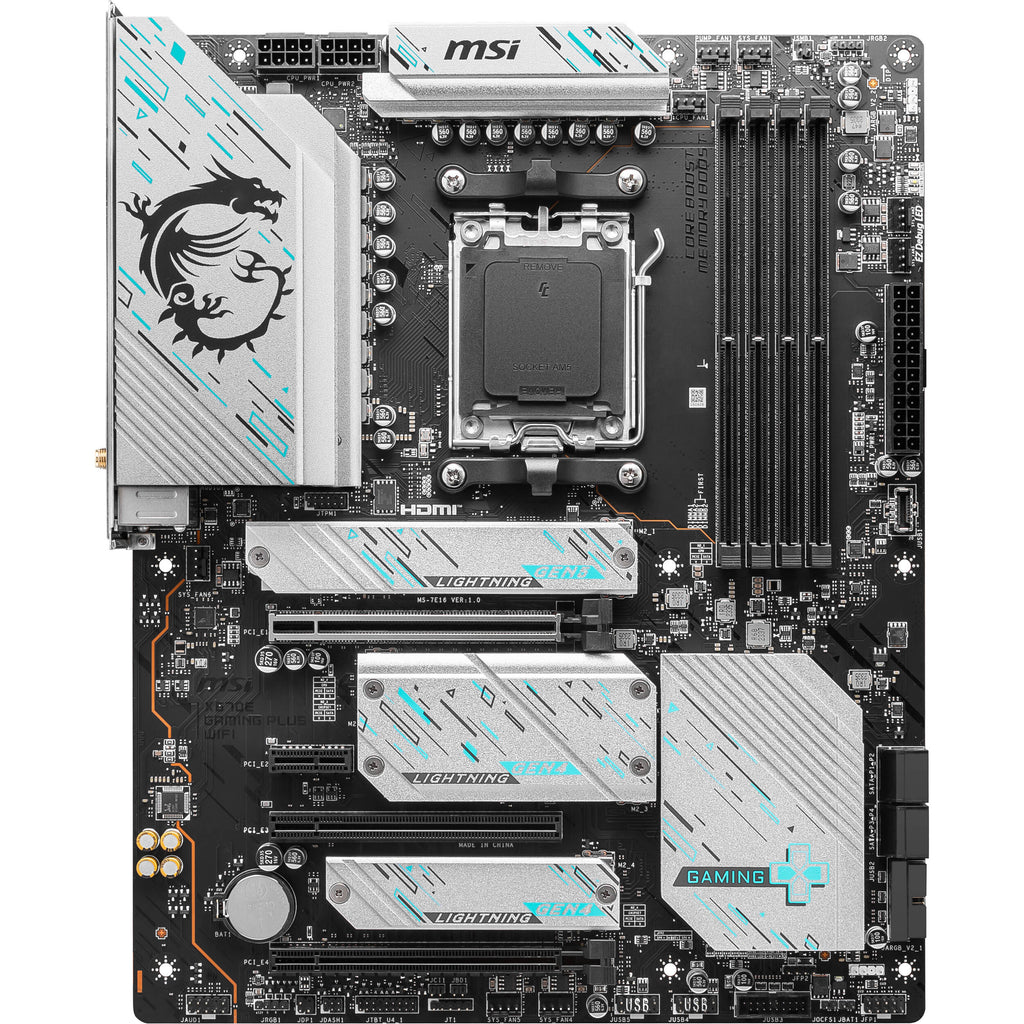

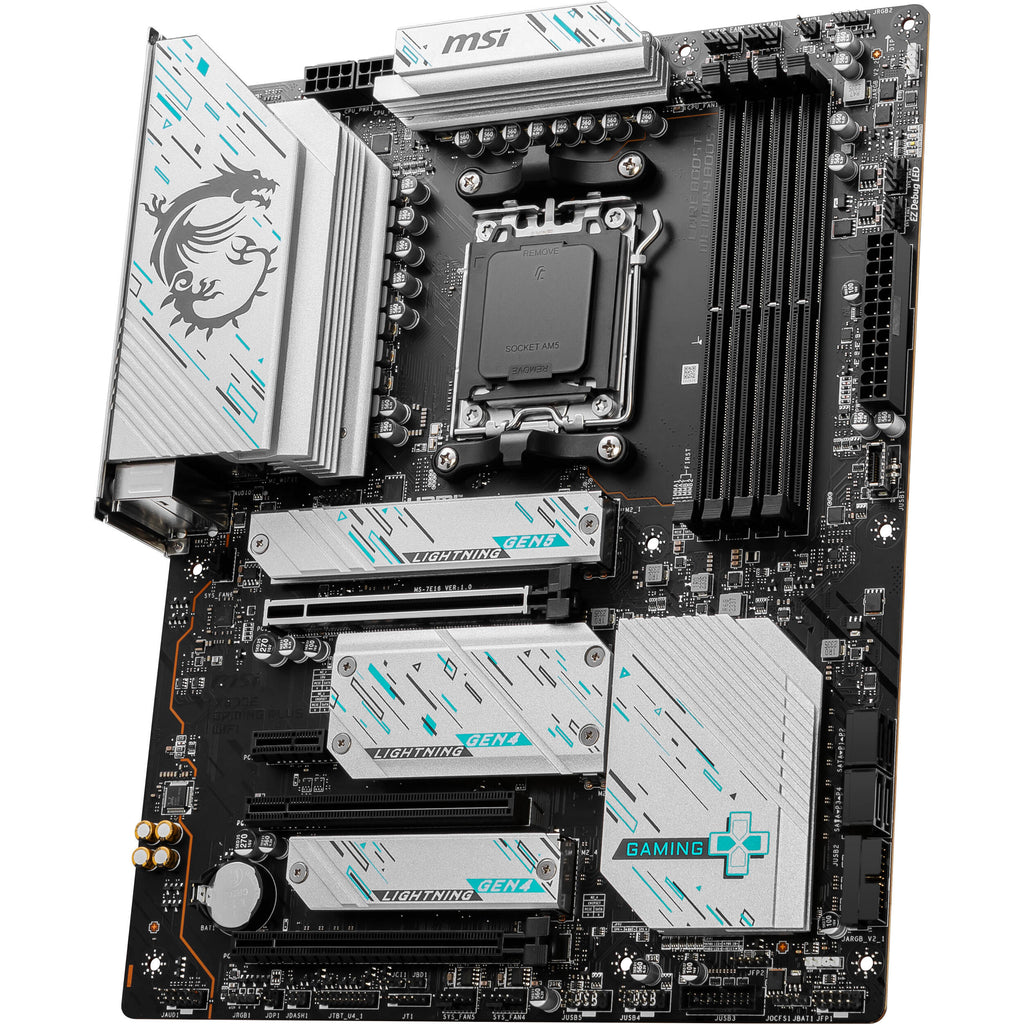

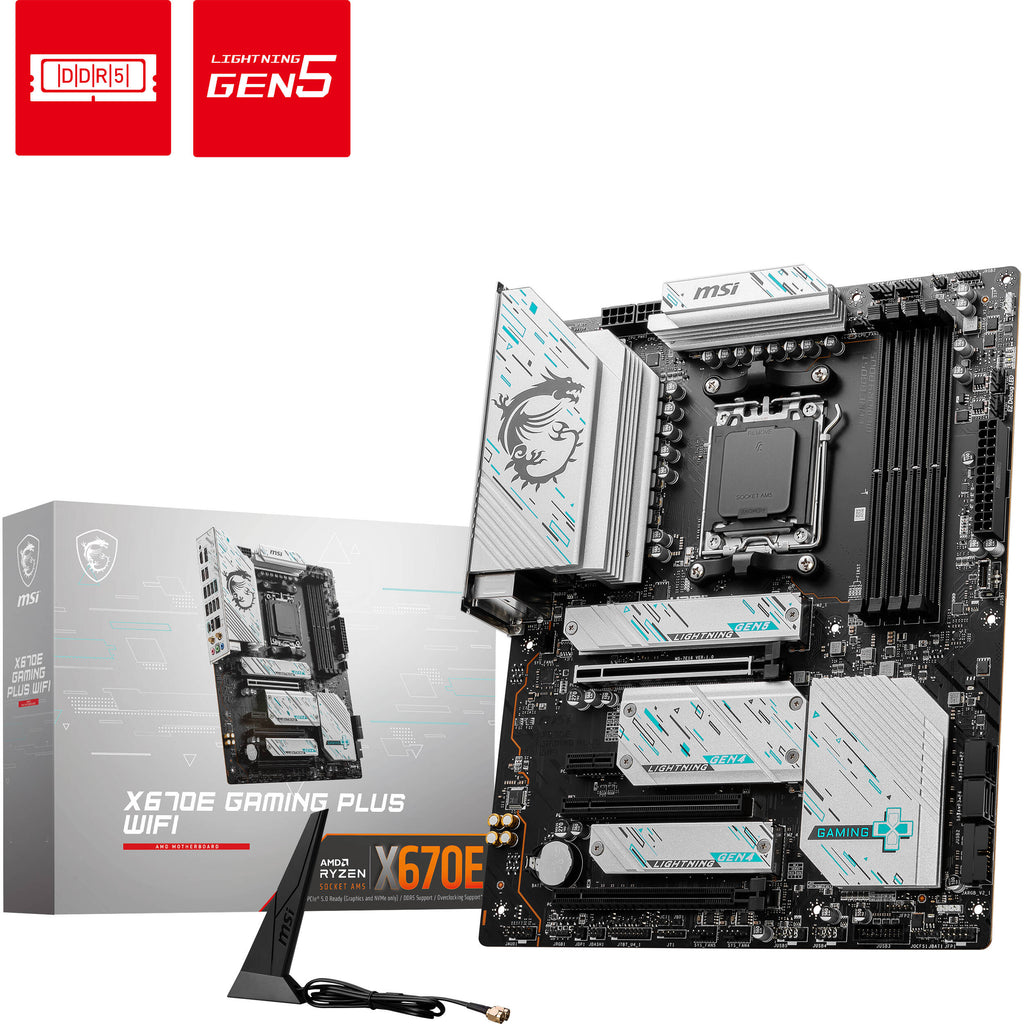

MSI X670E GAMING PLUS WIFI Overview
Lay the foundation of your next build with the robust MSI X670E GAMING PLUS WIFI AM5 ATX Motherboard. The X670E can leverage a wide range of high-performance components, giving gaming enthusiasts ample speed and responsiveness for a fully immersive experience.
Sporting an ATX form factor and X670 chipset, you get access to an AM5 socket which supports a wide range of AMD Ryzen 7000 and 8000 processors. Four DDR5 DIMMS can support up to 192GB of 7800 MHz memory, enhancing multitasking and rendering speeds. Amass your library of games with four SATA III slots and four M.2 interfaces. Easily install a wide range of utility and graphics cards with one PCIe 5.0 x16, one PCIe 4.0 x4, and two PCIe 3.0 x1 slots. A wide range of USB ports allows you to connect multiple peripherals consisting of USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2x2. Realtek ALC897 7.1-channel audio provides you with deep and rich tones suitable for immersing you deep in your games. You can also use integrated Bluetooth 5.3 technology to connect wireless devices such as mice, keyboards, and even headsets. Connect to your network and download games, stream media, and more with Wi-Fi 6E (802.11ax) wireless networking and 2.5 Gigabit Ethernet wired connectivity.
Power Solution
Designed with a digital CPU framework, the X670E utilizes a 14+2+1 duet rail power system, ready to handle and sustain heavy gaming loads. The 6-layer PCB design is constructed from 2oz thickened copper and IT-170GR materials, providing ample throughput for your devices. You also get additional features such as Performance Switch, PBO Thermal Point, and CONFIG TDP which assists with overclocking capabilities alongside integrated 1-second overclocking, load-line calibration, and overvoltage protection.
DIY Friendly
Whether you are a seasoned builder or a complete newcomer, the X670E includes various improvements that streamline the installation process and provide you with better quality of life features. EZ M.2 Clip, Driver Utility Installer, and Flash BIOS Button assist with installing your components and keeping the firmware updated. Other benefits include a pre-installed I/O back panel, PCIe XL clip, EZ debug LEDs, keep out zone, and double ESD protection.
Integrated Protections
Improving conductivity and ensuring electrical load is properly distributed, the X670E incorporates a reinforced pin design for greater stability, low impedance, and enhanced durability. Integrated overcurrent protection protects crucial components including the CPU, DDR memory slots, and USB ports. You also get additional protections thanks to onboard transient voltage suppressors.
Expansive Capabilities
MSI's Lightning Gen 5 platform leverages PCIe throughput up to 128 GB/s across the expansion slots as well as the M.2 PCIe 5.0 slot. You also get support for resource-demanding devices with the USB 3.2 Gen 2x2 port which boasts up to 20 Gb/s data transfer speeds.
Memory Layout
DDR5 memory slots offer high-speed data transfer rates and enhanced stability which is optimized with AMD's EXPO platform.
BIOS & Software
Fine-tune your experience with multiple BIOS and software settings and programs including CLICK BIOS 5 and MSI Center. You also get a 60-day trial of AIDA64 diagnostics software and Norton 360 Deluxe. Additionally, you can enable Re-Size BAR which enables the CPU to access the entire GPU frame buffer to improve performance.
Audio
Enhancing your audio capabilities, you get a dedicated processor which manages sound signals accompanied by audio capacitors, audio jacks, isolated signals, and de-pop protection.
Mystic Light
MSI's Mystic Light LED customization supports a wide range of RGB strips and peripherals without a separate controller. You get A-RAINBOW V2, RGB, and Ambient Link to assist with colorization and syncing external components such as lighting plates.
UPC: 824142345986

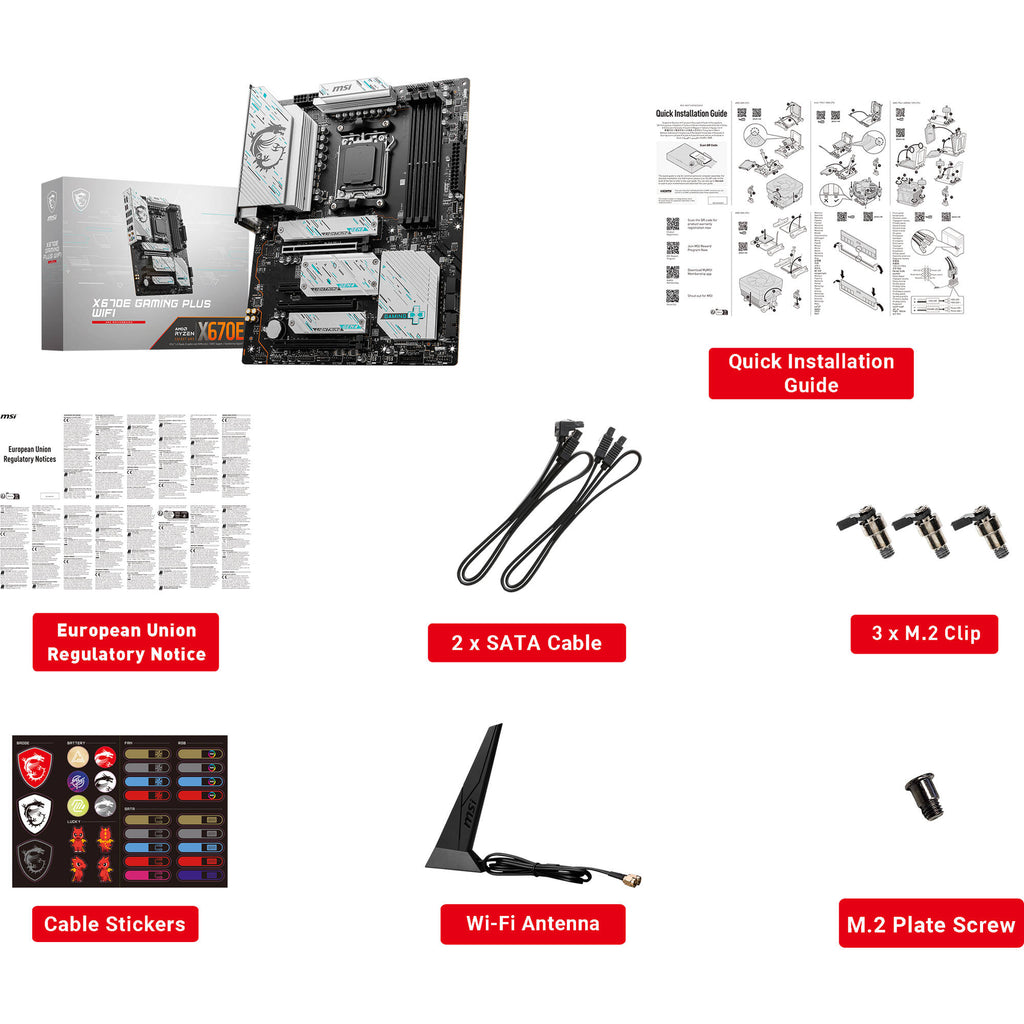

In the Box
- MSI X670E GAMING PLUS WIFI AM5 ATX Motherboard
- SATA Cable
- Wi-Fi Antenna
- 3 x EZ M.2 Clip Packages
- M.2 Plate Screw Package
- Limited 3-Year Manufacturer Warranty
Additional Resources
MSI X670E GAMING PLUS WIFISpecs
Key Specs
| Chipset |
AMD X670
|
| CPU Socket |
AM5
|
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6600, 6800, 7000, 7200, 7400, 7600, 7800 MT/s
|
| Storage Slots |
1x M.2 (M Key) 2280, 22110 (PCIe 5.0 x4)
3x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4) |
| Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 4.0 x4 2x PCIe 3.0 x1 |
| Wi-Fi |
Wi-Fi 6E (802.11ax) with MU-MIMO Support
|
| Form Factor |
ATX
|
CPU
| Chipset |
AMD X670
|
| CPU Socket |
AM5
|

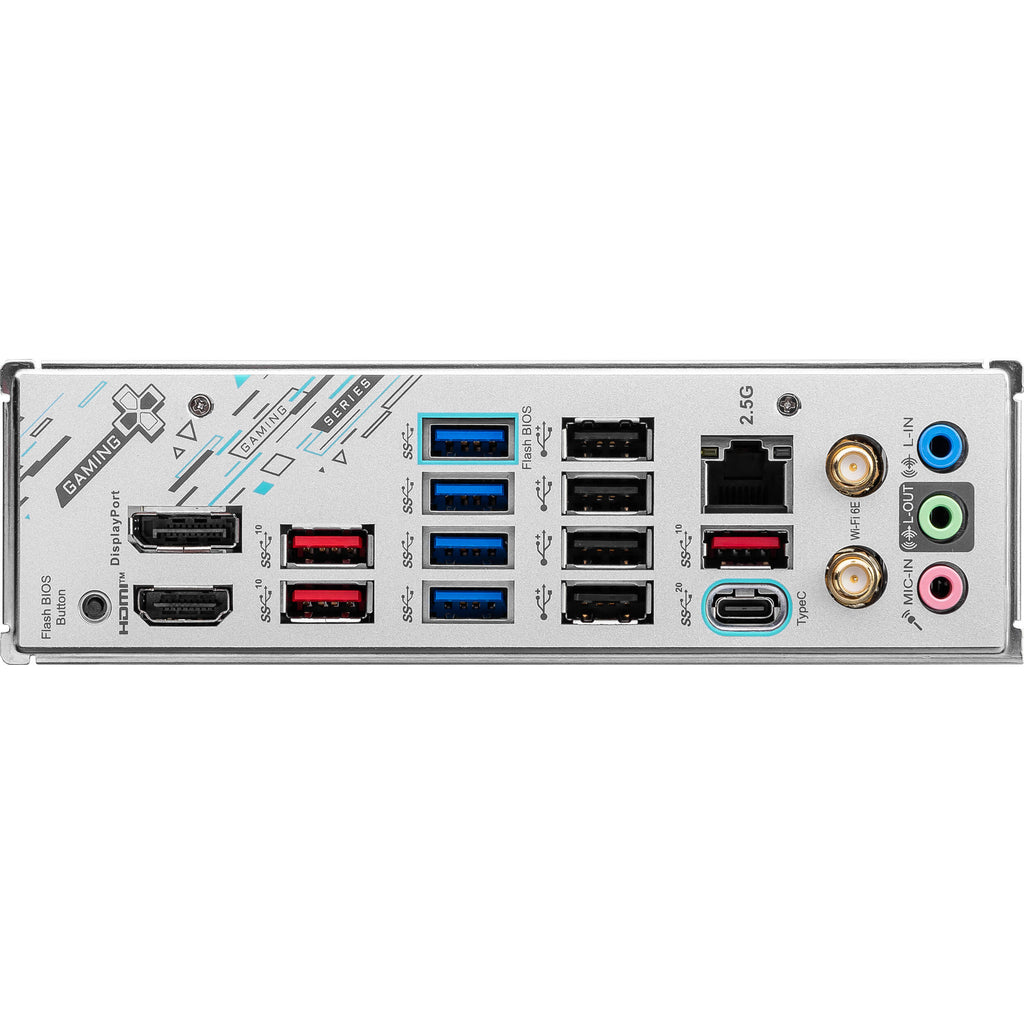

Back Panel I/O
| USB |
4x USB-A (USB 2.0)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 3x USB-A (USB 3.1/3.2 Gen 2) 1x USB-C (USB 3.2 Gen 2x2) |
| Thunderbolt |
No
|
| Display |
1x HDMI
1x DisplayPort |
| Audio |
3x 1/8" / 3.5 mm
|
| Ethernet / Controller |
1x Realtek RTL8125BG 2.5Gigabit
|
| Wi-Fi Antenna |
2x Connector
|
| Buttons |
BIOS Flashback
|
Memory
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6600, 6800, 7000, 7200, 7400, 7600, 7800 MT/s
|
| Maximum Capacity |
192 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC Unbuffered
|
Storage Expansion
| SATA |
4x SATA III
|
| Storage Slots |
1x M.2 (M Key) 2280, 22110 (PCIe 5.0 x4)
3x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4) |
| RAID Support |
RAID 0, 1, 10 (SATA)
RAID 0, 1 (M.2) |
Internal I/O
| Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 4.0 x4 2x PCIe 3.0 x1 |
| USB |
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling |
1x 4-Pin CPU
6x 4-Pin System |
| Liquid Cooling |
1x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard
2x 6-Pin ATX |
| Security |
Chassis Intrusion, TPM Header
|
| LED Header |
4x RGB
|
| Add-On |
1x Thunderbolt Card Header
|
BIOS
| ROM |
256 Mb
|
Front Panel I/O
| Front Panel I/O |
AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
|
Audio
| Audio Codec |
Realtek ALC897 (7.1-Channel)
|
| DAC |
No
|
Wireless
| Wi-Fi |
Wi-Fi 6E (802.11ax) with MU-MIMO Support
|
| Bluetooth |
5.3
|
Software
| OS Compatibility |
Windows 10 to 11 (64-Bit Only)
|
Physical
| Form Factor |
ATX
|
| Dimensions |
12.0 x 9.60" / 304.8 x 243.84 mm
|
Packaging Info
| Package Weight |
3.915 lb
|
| Box Dimensions (LxWxH) |
13.5 x 10.6 x 3"
|
