Description
MSolutions MS-63U1C Overview
The USB-C 3.2 Gen 1 Extender Set MS-63U1C from MSolutions allows you to connect one USB-C device via USB 3.2 Gen 1 USB-C ports, and once connected, the data USB-C data channel can be transmitted to a distance of up to 164' using a CAT6A (or above) cable. There is a total bandwidth of 5 Gb/s for your device. LED status indicators are featured on both the Host and Device units, so you can confidently tell when your devices are plugged in and ready for use. MSolutions also designed these extenders to feature bi-directional RS-232 controls that can distribute serial commands between transmitter and receiver, which allows for control commands to be quickly sent.

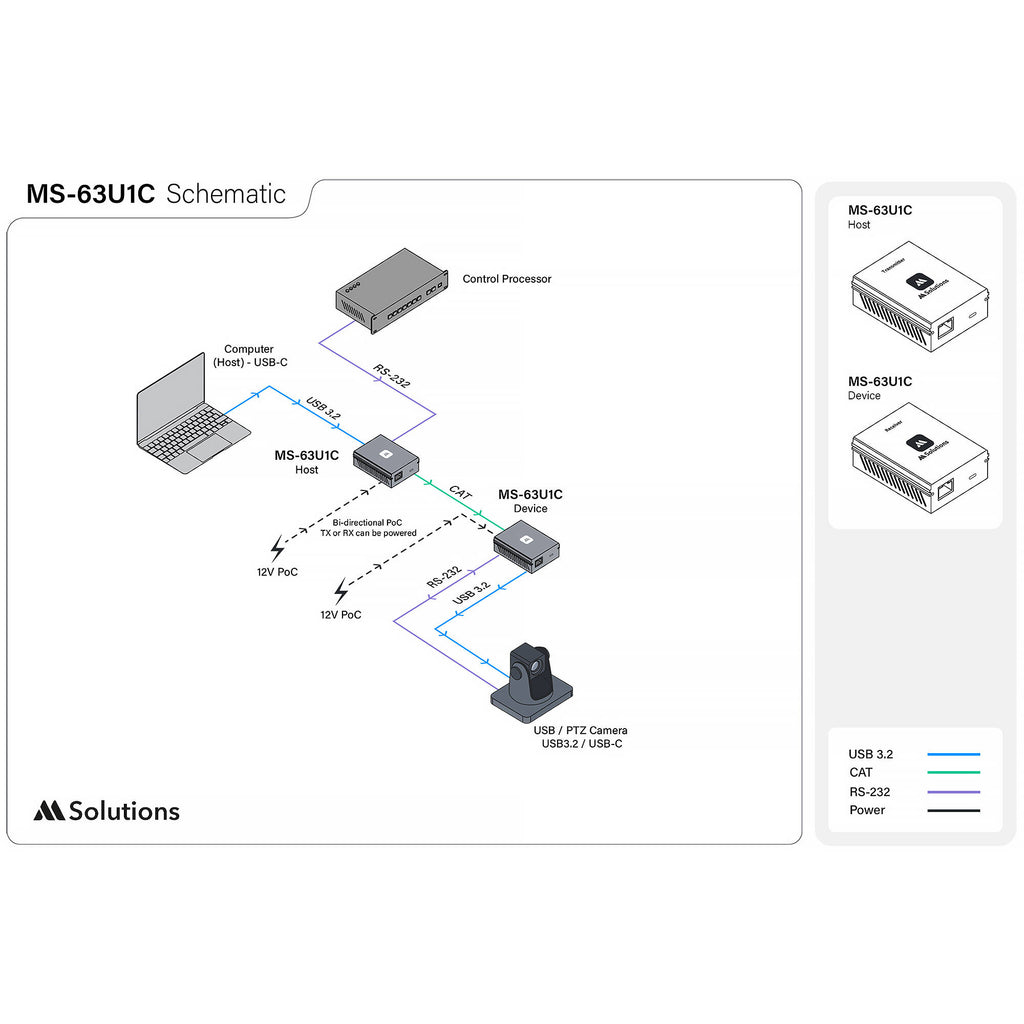

This kit is plug and play, simply connect your devices to the device unit, connect the device unit to the host unit using a CAT6A cable, then connect the host unit to your PC or similar device using the USB-C host port, and finally connect power to the preferred side to provide power to both devices. With this setup you can reliably run your devices and peripherals from a further distance, allowing you greater freedom in device usage.
Items Included
- MSolutions USB-C 3.2 Gen 1 Extender Set MS-63U1C (164')
- Power Supply (with US, UK, and EU Territory Clips)
- 2 x Surface Mounting Brackets
- USB-C to USB-A Cable
- Limited 3-Year Manufacturer Warranty
Additional Resources
MSolutions MS-63U1C Specs
| Maximum Range |
54.7 yd / 50 m over Cat 6a Cable
|
| Receiver I/O |
1x USB-C Input
1x RJ45 (Gigabit Ethernet) Input 1x Block 3-Pin (RS-232) Input |
| Transmitter I/O |
1x USB-C Output
1x RJ45 (Gigabit Ethernet) Output 1x Block 3-Pin (RS-232) Output |
| Power Source |
Power Adapter
|
| Receiver I/O |
1x USB-C Input
1x RJ45 (Gigabit Ethernet) Input 1x Block 3-Pin (RS-232) Input |
| Transmitter I/O |
1x USB-C Output
1x RJ45 (Gigabit Ethernet) Output 1x Block 3-Pin (RS-232) Output |
| Maximum Number of Devices |
1
|
| Power Source |
Power Adapter
|
| Power Connector |
Unspecified Size Barrel
|
| Input Power |
12 VDC at 2 A
|
| Power Consumption |
3 W
|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 0 to 80% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Dimensions |
2.4 x 1.0 x 3.3" / 60.0 x 25.0 x 84.0 mm Each
|
| Weight |
Each: 3.5 oz / 0.1 kg
|
