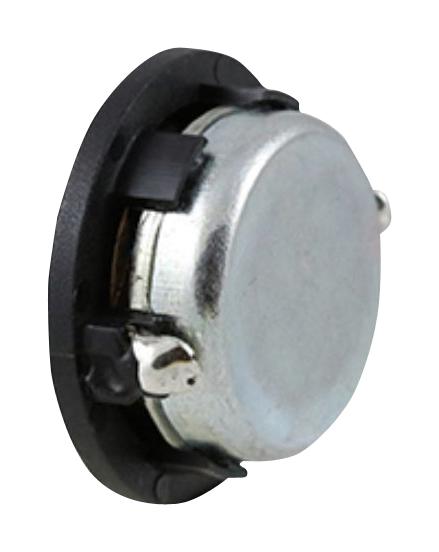

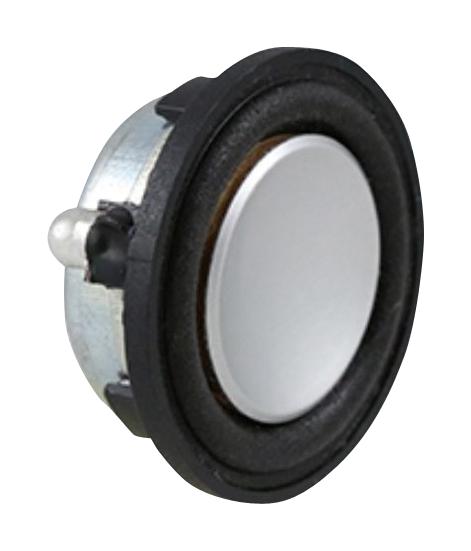

- 8ohm, 2W miniature speaker
- 8 ±15%ohm rated impedance 1.0KHz/1.0Vrms
- 2W rated input power, 3W for 1 min maximum input power
- Resonant frequency is 270 ±20%Hz/1V, frequency range from : F0Hz to 20,000Hz
- 86 ±3dB sound pressure level at (AVG 0.5, 1.0, 2.0, 4.0)KHz 0.89V/0.1m baffleboard (IEC)
- PBT frame, SPCC plate and yoke, NdFeB magnet, foam cloth cone
- Operating temperature range from -20°C to +60°C
- 7.4 ±10%ohm coil resistance
- 8% maximum at 1KHz,0.1W total harmonic distortion
Applications
Medical Electronics, Consumer Electronics, Clock & Timing, Test & Instrumentation, Agriculture, Automotive Systems, Sensing & Instrumentation, Computers & Computer Peripherals, Remote Sensing and Metering, Safety
Product details
| Driver Type |
Miniature |
| External Diameter - Metric |
28mm |
| External Width - Metric |
- |
| Impedance |
8ohm |
| Power Rating Nom |
2W |
| Sound Level SPL |
86dB |
| External Diameter - Imperial |
1.102" |
| External Width - Imperial |
- |
| Frequency Response Min |
0Hz |
| Frequency Response Max |
20kHz |
| Speaker Shape |
Round |
| Resonant Frequency |
270Hz |
| Speaker Mounting |
Bare Mount |
| Power Rating Max |
3W |
| External Length - Metric |
- |
| External Depth - Metric |
11mm |
| External Length - Imperial |
- |
| External Depth - Imperial |
0.433" |
| Product Range |
- |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MCABS-266-RC |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
