| ₹ 726.47 includes GST and import duties. | |
| B2B customers can avail ₹ 110.79 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The MEE1 series isolated single-output PCB-mounting DC/DC Converter with free air convection cooling. The device is more efficient and offers improved regulation performance for applications where a wide output voltage variation cannot be tolerated. This is ideally suited for providing local supplies on control system boards with the added benefit of 1kVDC galvanic isolation to reduce switching noise.
- Operation to zero load
- 1kVDC Isolation hi pot test
- Efficiency up to 87% typical
Applications
Signal Processing, Industrial
Product details
| Output Power Max | 1W |
| Input Voltage DC Min | 4.5V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Depth | 11.48mm |
| Width | 6mm |
| Product Range | MEE1 Series |
| DC / DC Converter Type | SIP |
| Approvals & Standards | - |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 3.3V |
| Output Current - Output 3 | - |
| DC / DC Converter Output Type | Fixed |
| No. of Outputs | 1 Output |
| Input Voltage DC Max | 5.5V |
| Output Current - Output 1 | 303mA |
| Height | 10mm |
Other details
| Brand | MURATA POWER SOLUTIONS |
| Part Number | MEE1S0503SC |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
| Product Change Notice EN | |

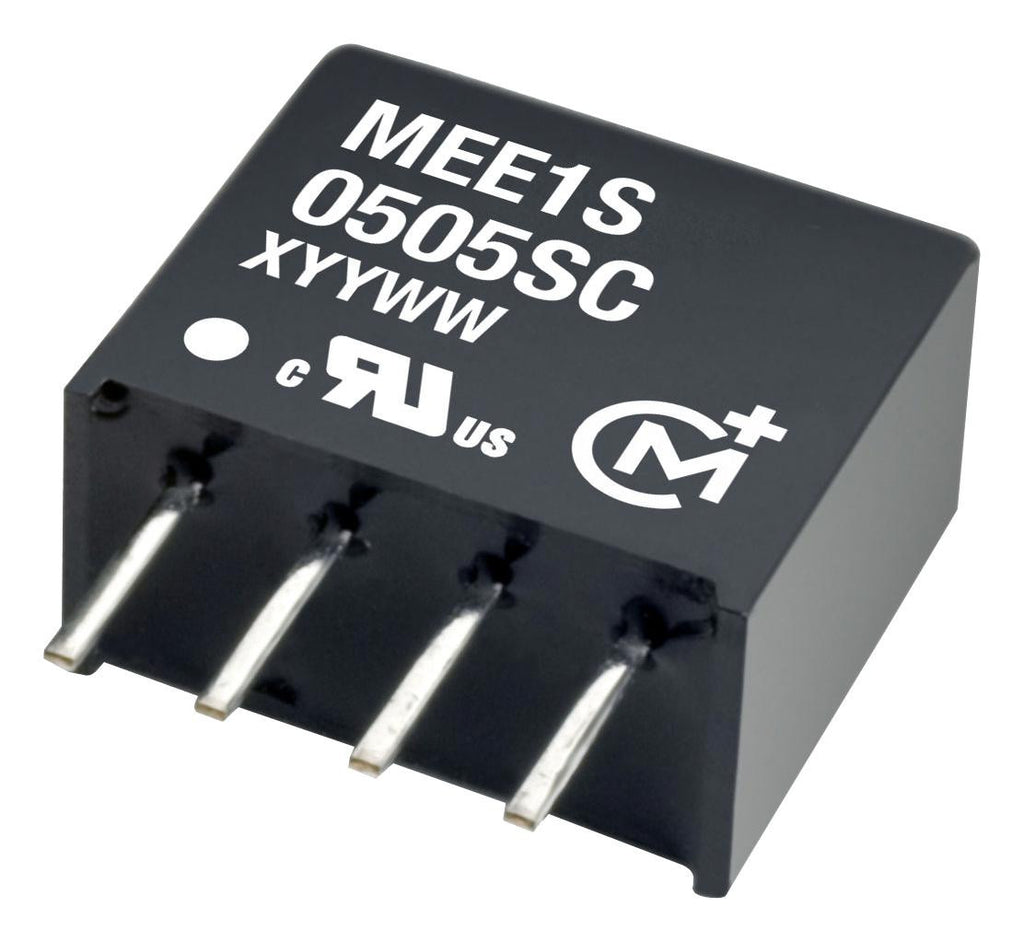

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 711.94 |
| 3-5 | ₹ 704.68 |
| 5-10 | ₹ 690.15 |
| 10+ | ₹ 675.62 |
Bulk discount will be automatically applied during checkout based on quantity.
