| ₹ 267520.0 includes GST and import duties. | |
| B2B customers can avail ₹ 40796.8 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

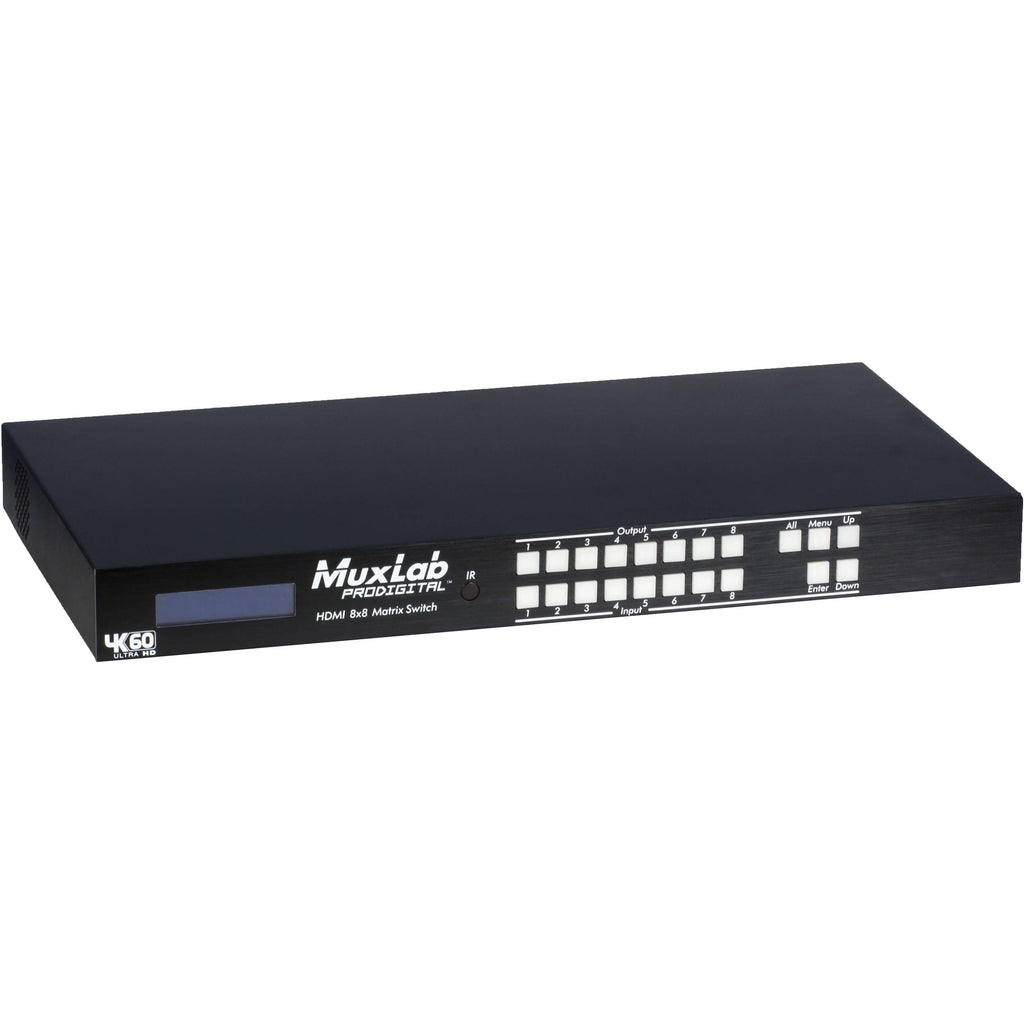

The HDMI 8 x 8 Matrix 4K/60 Switcher with US Power Cord from MuxLab connects eight HDMI sources to eight displays. It provides eight HDMI outputs and each HDMI output supports up to 4K resolution. The matrix also supports 3D formats and independent EDID control with scaling capability, so that different displays, each with different resolutions, can be simultaneously supported. It works with Blu-ray players, media players/streamers, cameras, set-top boxes, home theater systems, and game consoles that connect to an HDMI display. Any source can be accessed at any time, by any display, by selecting it via the supplied IR remote control, RS-232, TCP/IP, or by using the selection buttons on the front panel.
- Features
-
- HDCP 2.2 compliant
- Full HDR support
- Powerful EDID management
- Supports independent port scaling and displays with different resolutions
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, DTS-HD Master Audio, and DTS:X
- Supports coax digital audio out (S/PDIF)
- Available Window�s GUI control software
- Fits on a standard 19� rack
- Applications
-
- Commercial and residential AV systems
- Classroom training systems
- Digital signage
- Boardroom systems
- Collaborative PC systems
- Medical information systems
- US Power Cord
- Bracket
- IR Remote Control
- Limited 2-Year Warranty
| Environment | HDMI 2.0a |
| Devices | 4K Blu-ray, media players/streamers, projectors, monitors, TV, PC, laptops |
| Transmission | Transparent to the user |
| Video Bandwidth | 18 Gb/s |
| Maximum Pixel Clock | 594 MHz |
| Signals | HDMI 2.0a (4K/60 4:4:4) protocol and HDCP 1.4 and 2.2 |
| Video Resolution | VESA and SMPTE 480p to 2160p (4K) with 3D Bit Depth: 8, 10, 12 |

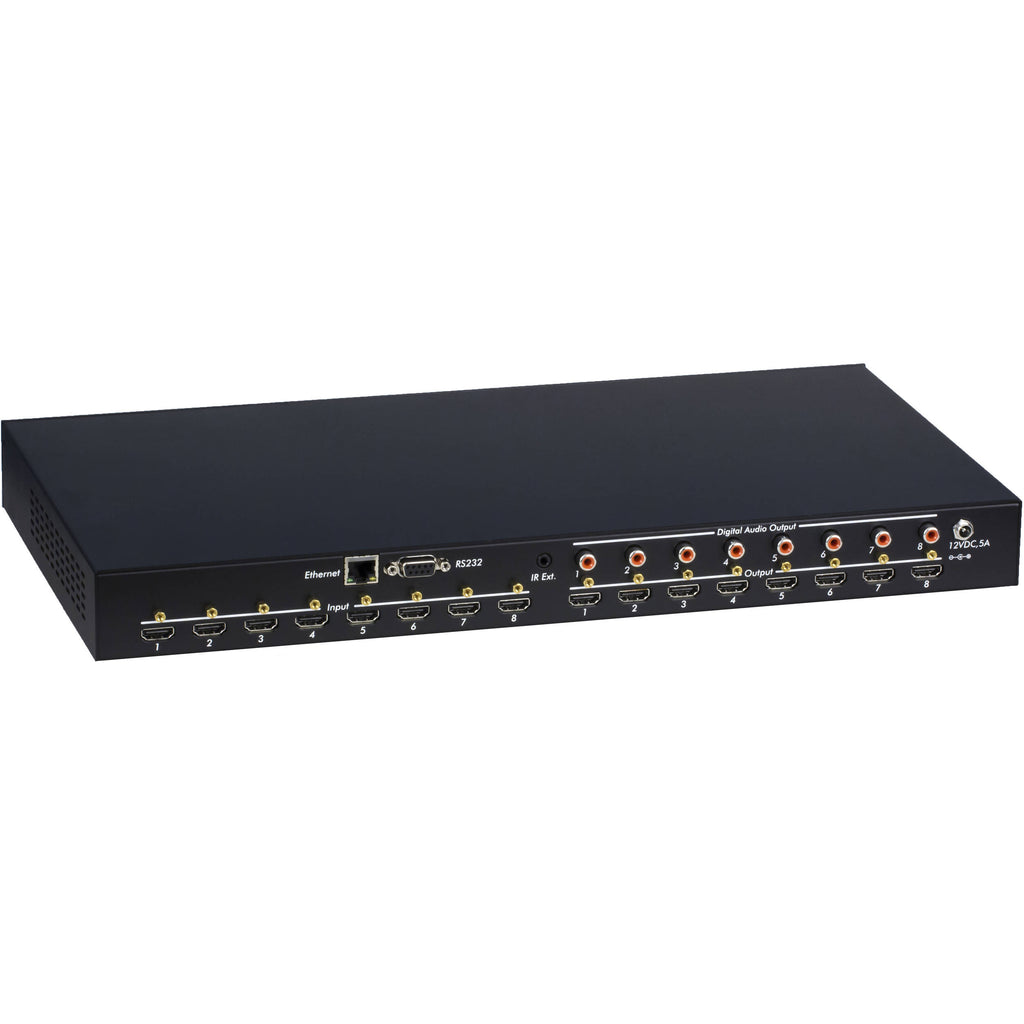

| Connectors | 8 x HDMI connectors, for HDMI input 8 x HDMI connectors, for HDMI output 1 x 3.5 mm jack, for IR sensor 1 x DB9 connector for RS232 management 1 x RJ45 shielded connector for Ethernet 8 x Coax digital audio outputs 1 x 2.1 mm barrel locking connector for power |
| Audio | Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, DTS-HD Master Audio & DTS:X |
| HDMI Distance | 32.8' (10 m) for HDMI cable |
| Power Supply | 110 to 240 VAC 12 VDC, 5.0 A |
| Temperature | Operating: 32 to 104°F (0 to 40°C) Storage: -4 to 185°F (-20 to 85°C) |
| Humidity | Up to 95% non-condensing |
| Enclosure | Metal enclosure |
| Compliance | Regulatory: FCC, CE, RoHS |
| Dimensions | 17.20 x 1.69 x 8.86" (437 x 43 x 225 mm) |
| Weight | 9.69 lb (4.40 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 10.05 lb |
| Box Dimensions (LxWxH) | 19.213 x 13.465 x 9.685" |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 262169.6 |
| 3-5 | ₹ 259494.4 |
| 5-10 | ₹ 254144.0 |
| 10+ | ₹ 248793.6 |
Bulk discount will be automatically applied during checkout based on quantity.
