Description

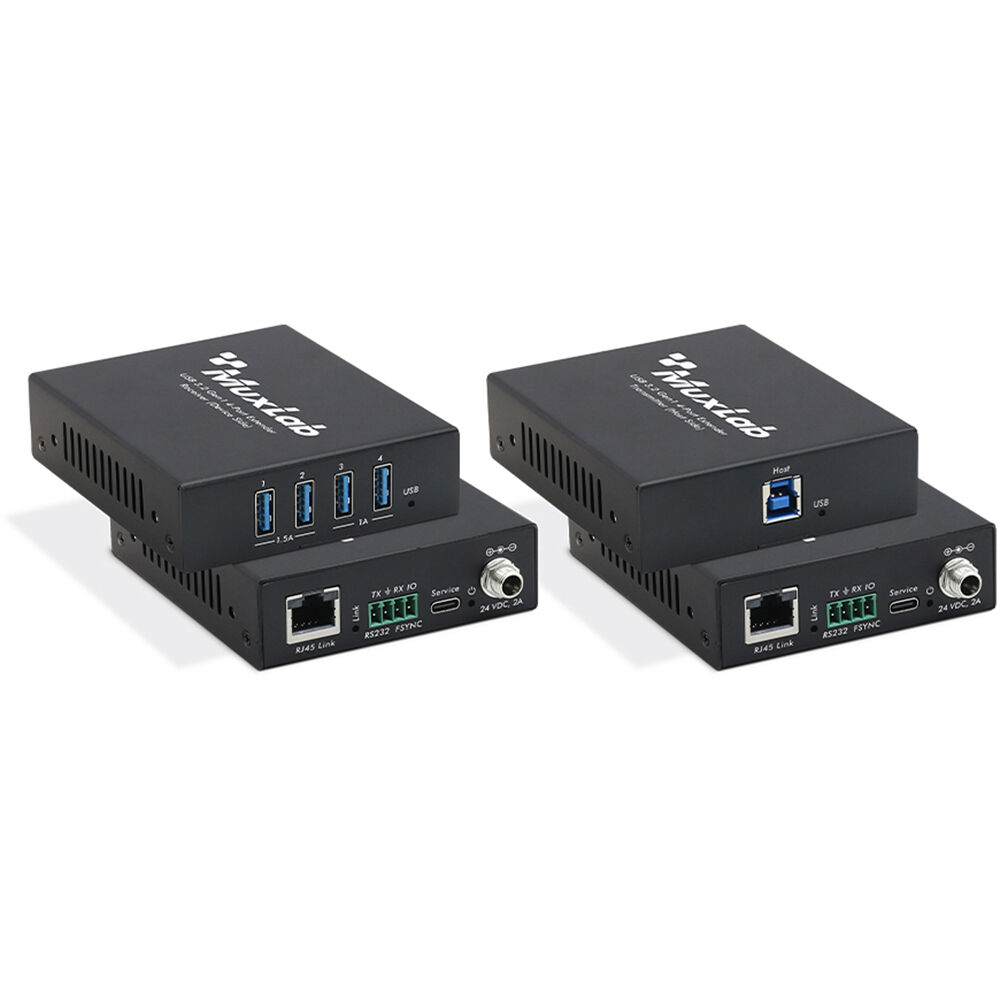

MuxLab 500530 Overview
The USB 3.2 Gen1 4-Port Extender Kit from MuxLab includes a transmitter and receiver that extends a USB-B host computer data connection up to 328' away. The kit extends USB 3.2 Gen 2 signals over a Cat 6a cable to remote USB devices, features up to 5 Gb/s transmission rates, and provides 10G network bandwidth via HDBaseT. It supports 5 VDC power on each of the four USB receiver outputs, which allows you to extend connections to USB peripherals such as keyboards, mice, interactive whiteboards, and other devices without the need for additional power adapters.
The extender's transmitter is powered using the included power supply, which can also power the receiver using PoC (power-over-cable). This device does not require any software to your system or target devices. Simply attach the transmitter to your computer's USB port, plug in the Cat 6a cable, attach remote USB peripherals to the receiver, and start working. It works with Windows, Mac OS X, and Linux operating systems.
- Extension of USB 3.2 Gen 1 up to 328' over Cat 6a cable
- USB 3.2 Gen 1 connectivity with data transfer rate up to 5 Gb/s
- Backwards compatible with USB 2.0 and USB 1.1
- Hardware acceleration for isochronous and bulk transfer
- USB-A port 1 and 2 support 5 VDC/1.5A; port 3 and 4 support 5 VDC/1A on the receiver
- Support RS-232 pass-through and FSYNC GPIO passthrough (for industry camera use)
- Support bidirectional 24 VDC PoC
- Simple plug and play, no driver and setting installation required
- Conference rooms
- Classroom projector systems
- Collaborative PC systems
- Digital signage
- Educational institutions
- Boardroom systems
Items Included
- MuxLab USB 3.2 Gen1 4-Port Extender Kit (328')
- Transmitter
- Receiver
- 24 VDC Power Supply
- 2 x 4-Pin Terminal Connector to 3.5mm Adapter
- 4 x Mounting Ear
- 8 x Screw
- Limited 2-Year Manufacturer Warranty
Additional Resources
MuxLab 500530 Specs
| Operating Humidity |
20 to 90%
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Humidity |
20 to 90%
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Package Weight |
2.09 lb
|
| Box Dimensions (LxWxH) |
9.5 x 6.4 x 3.1"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
