Description

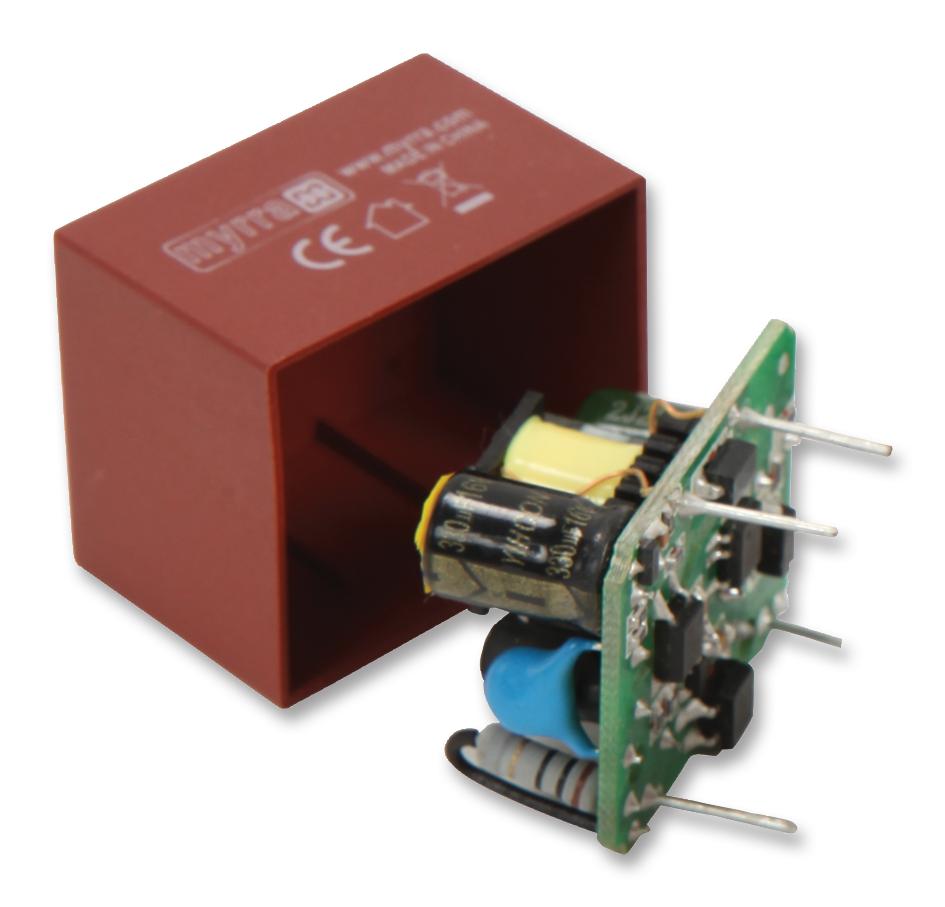

The 47166 is a 24V/5W PCB mount non-regulated Encapsulated Electronic Transformer is a switched mode power supply based on Flyback topology. It constitute an interesting alternative to the traditional supply in the most common applications of power lower than 5W. This power supply output is fixed and can be adjustable.
- Wide input voltage range
- Very low standby power consumption
- 80% Efficiency
- -25 to 50°C Operating temperature range
- Input protection by integrated fusible resistor
- No load input power (<200mW)
Applications
Power Management
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Power Supply Applications: ITE |
| No. of Outputs: 1 Output |
| Output Power Max: 5W |
| Output Voltage - Output 1: 24VDC |
| Output Current - Output 1: 210mA |
| Output Voltage - Output 2: - |
| Output Current - Output 2: - |
| Output Voltage - Output 3: - |
| Output Current - Output 3: - |
| Power Supply Output Type: Fixed |
| Input Voltage VAC: 85V AC to 265V AC |
| Width: 26.7mm |
| Height: 21.8mm |
| Depth: 31.7mm |
| Product Range: 47000 Series |
Other details
| Brand | MYRRA |
| Part Number | 47166 |
| Quantity | Each |
| Technical Data Sheet EN |  |
