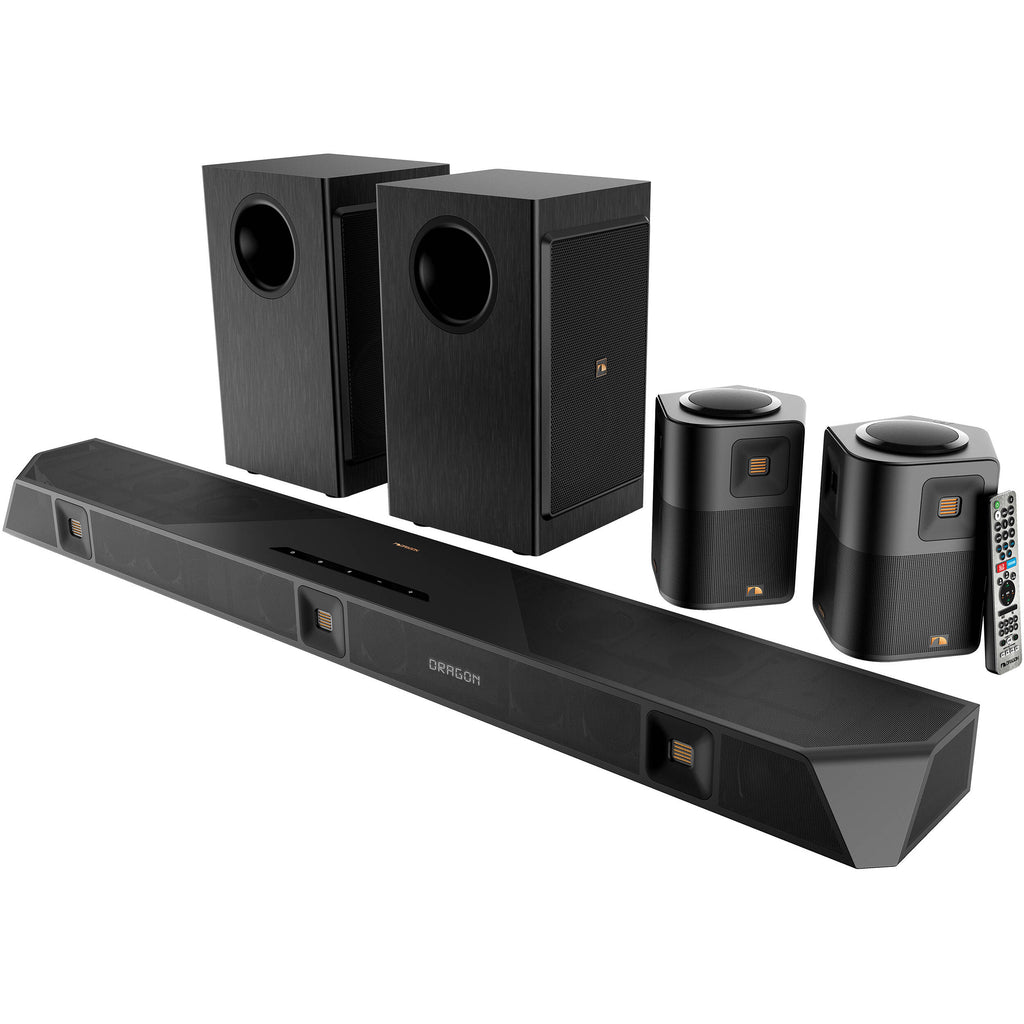

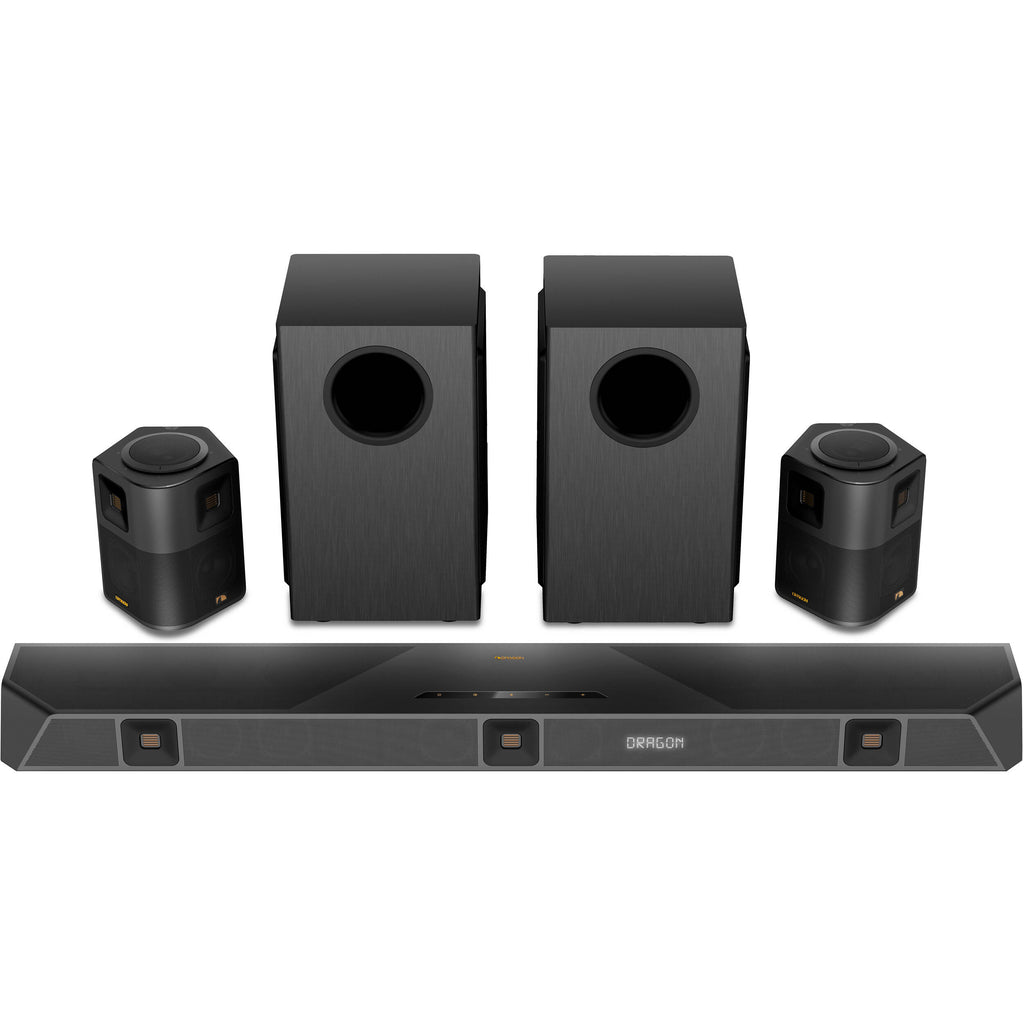

Nakamichi DRAGON 11.4.6-Channel Dolby Atmos Home Surround Sound System with Dual-Opposing 8" Subwoofers

The Nakamichi DRAGON 11.4.6-Channel Dolby Atmos Home Surround Sound System with Dual-Opposing 8" Subwoofers is a 21-channel wireless surround sound system with quad 8" subwoofers, 2 Omni-Motion Reference surrounds, 7 AMT tweeters, and 15 digital amplifiers. The DRAGON system can render Dolby Surround formats, such as Dolby TrueHD and Dolby Atmos, that are identical to high-end AVRs, delivering the same granular detail and positional precision of a movie theater. It's also equipped with DTS:X Pro support, the commercial version of DTS:X, which unlocks extra surround and height details. The entire system is easily controlled via an on-screen display, mobile remote app, or an included 43-key backlit Bluetooth/IR remote control.

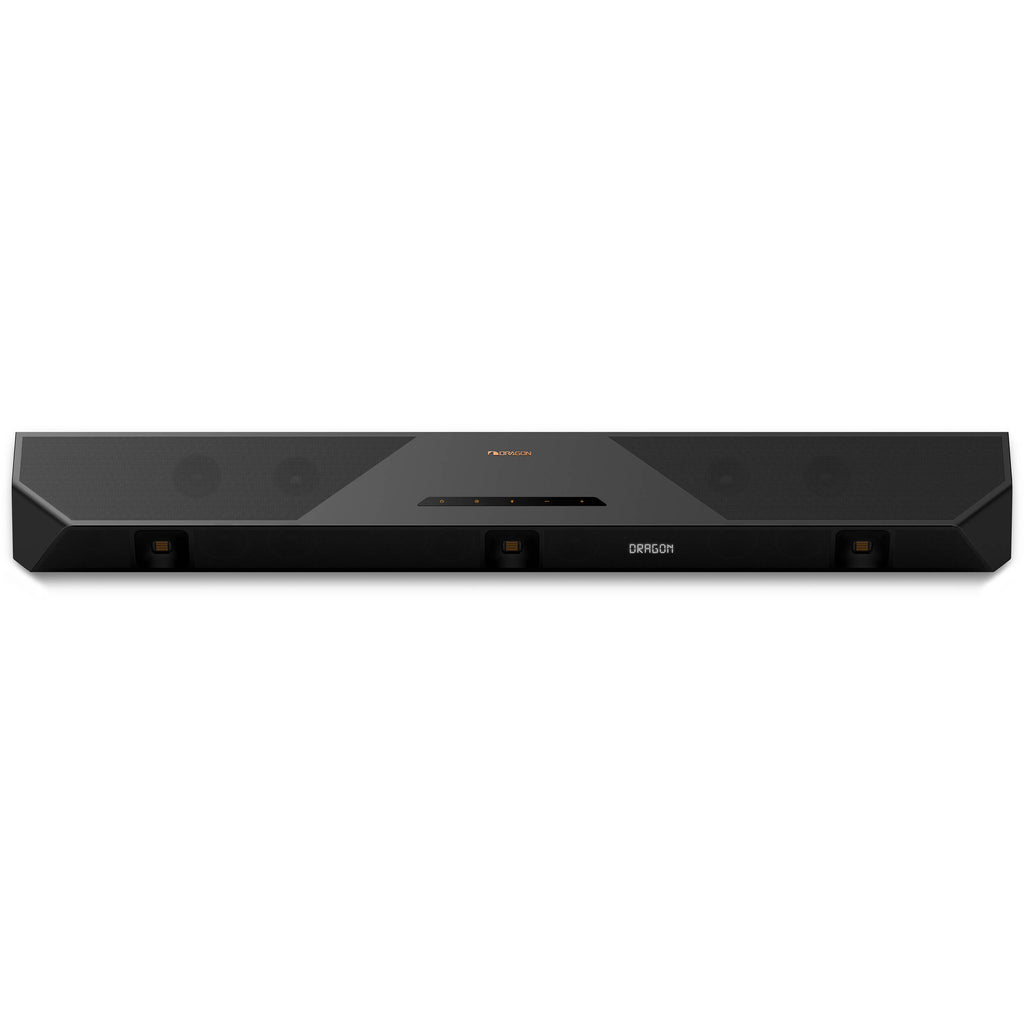

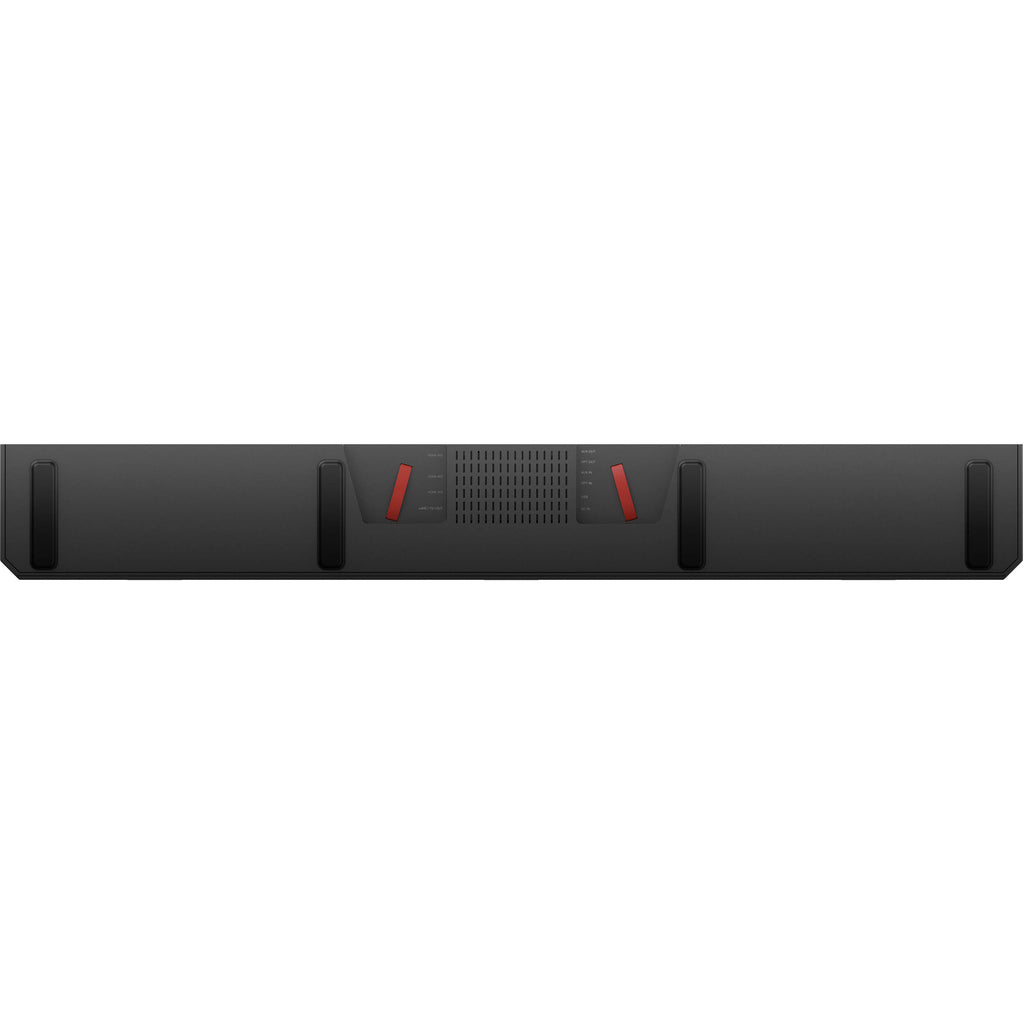

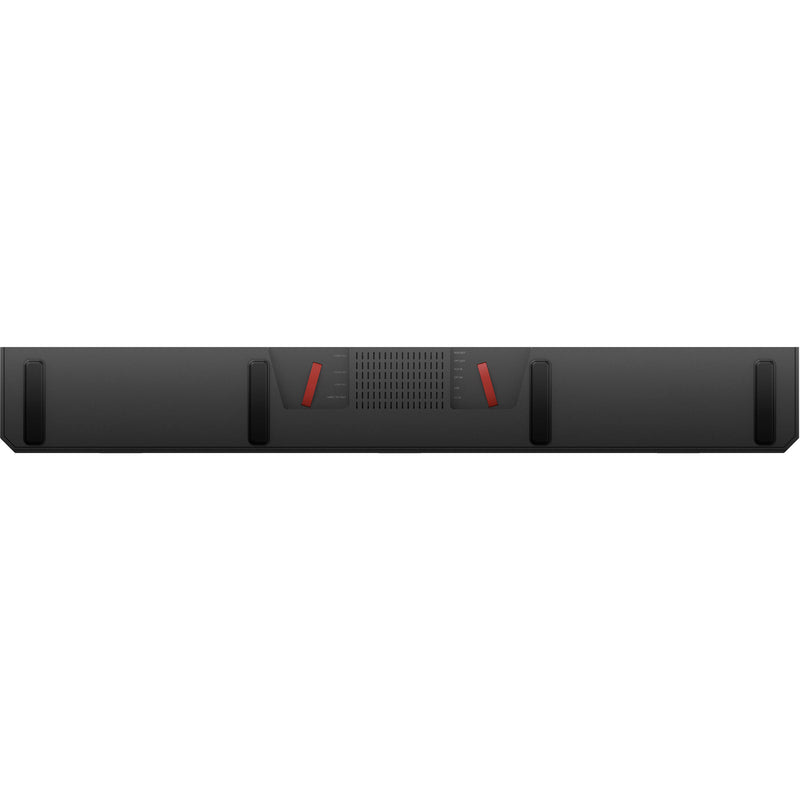

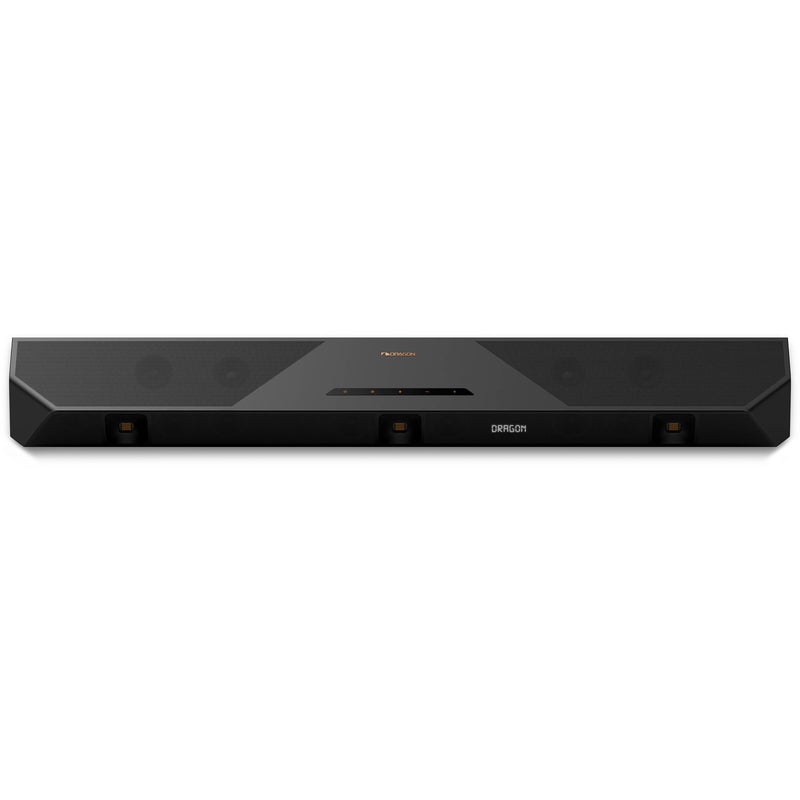

The main unit in the DRAGON system is a 58" wide soundbar that enables optimal air volume for all of its 17 drivers, achieving their maximum acoustic performance and replicating a true-to-life cinema or concert hall soundstage. Each speaker channel has its own dedicated enclosure, optimizing air movement for immaculate sound separation. The main unit consists of ten 3" drivers and four 3" dual-angled up-firing drivers. Each pair of up-firing drivers are inclined at 10 and 20°, and work with rear up-firing drivers to precisely render overhead sound effects for a true-to-life X.X.6 multi-altitude soundscape. The main unit also features 3 exposed Hi-Fi grade Air Motion Tweeters (AMT) that work to elevate the experience by delivering treble effects and fast transients with extreme clarity.

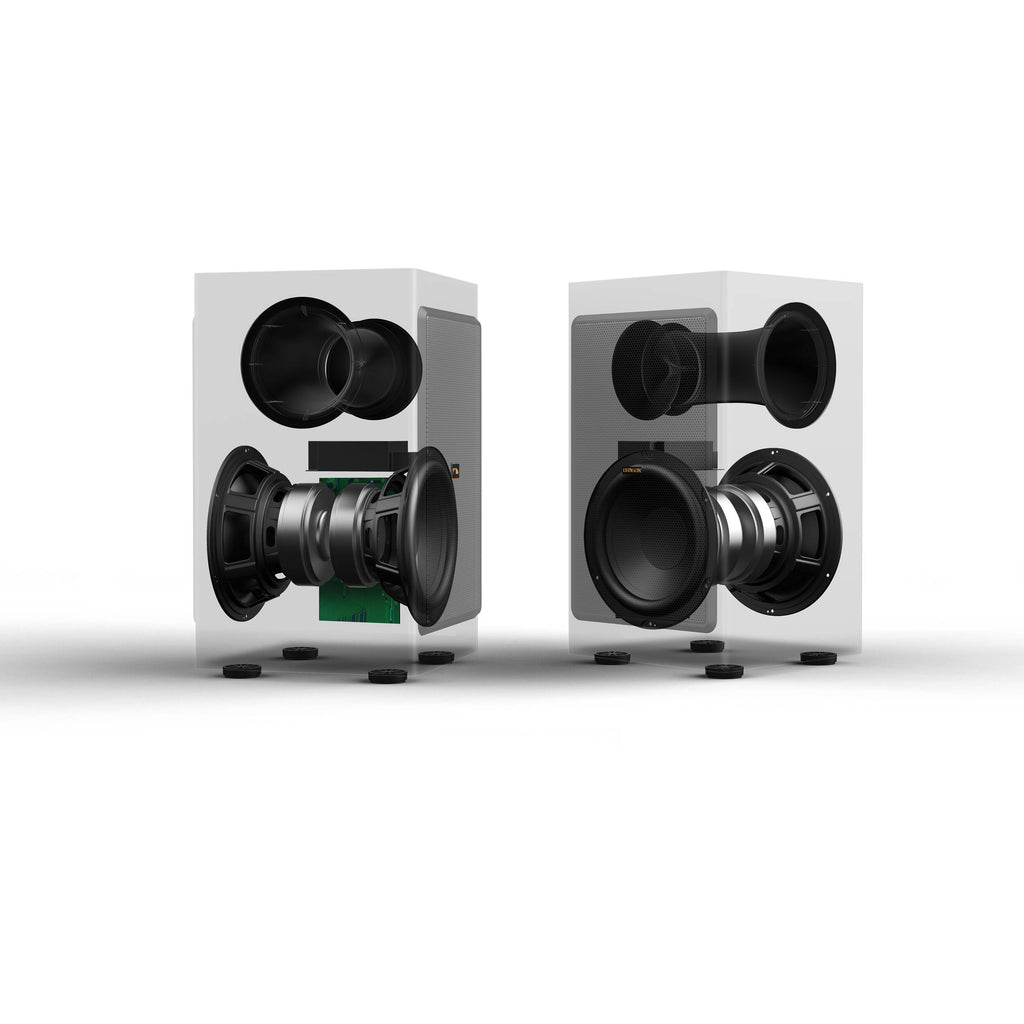

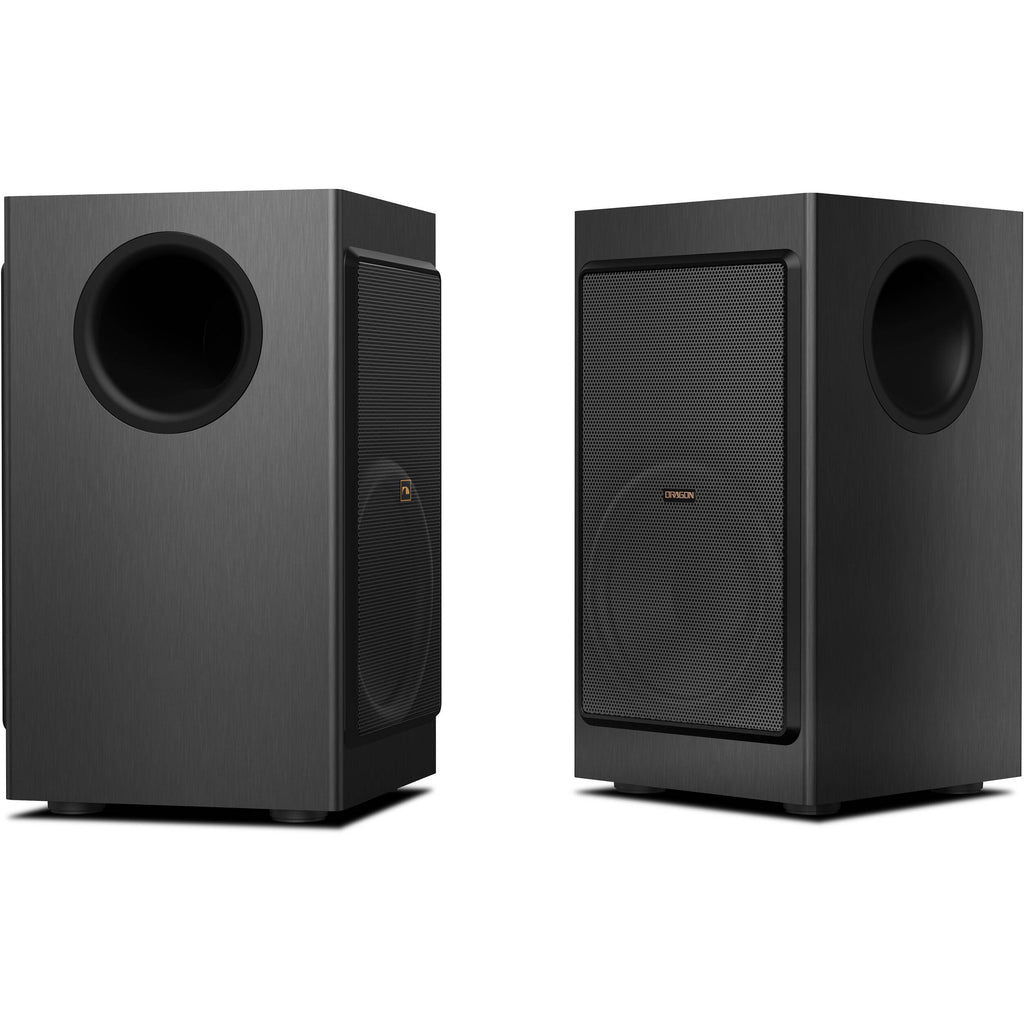

Each of the two subwoofers' enclosures pack a pair of 8" woofers in a dual-opposing configuration, which work to unlock their maximum kinetic energy in a more compact footprint that has nearly limitless placement options for your space. They let you hear and feel powerful bass that can go as deep as 20 Hz without distortion, even at high volumes. To accommodate individual user preference and the dynamics of the room, you can use the remote to independently switch them on or off.

This pair of wireless surrounds each integrate side, rear, and height channels that come together to deliver a 360° soundscape. Weighing 9 lb each, they are designed in a bipolar configuration with three 3" drivers and two 1.5" Air Motion Tweeters (AMT), which are designed to produce breathtaking surround effects with pinpoint accuracy that envelop you and your guests in stunning clarity and realism. The singular 3" up-firing driver in each work with the four in the main unit to precisely produce overhead sound effects for a true-to-life X.X.6 multi-altitude soundscape. In addition, each of these up-firing drivers features a PerfectHeight mechanism with up to 180° of rotation to accommodate speaker placement, room shape, and seating position.

You can use AHD technology to focus, expand, and intensify the height soundscape to complete the surround sound picture and tailor height effects to your specific listening environment. Choose from the following modes:

• Off: When off, the drivers' height effects are as the director intended
• Focal: Optimizes height effects for a center-focused 3D soundstage
• Wide: Optimizes height effects for a soundstage with a wide field of view
• Max: This maximizes the height effects regardless of content type



Experience some of the best audio and video resolution possible with the main unit's support for HDMI eARC and its 3 HDMI inputs with Dolby Vision and 4K120/8K HDR pass-through. This also includes support for VRR, ALLM, and FRL technologies, which work to ensure low-latency performance for gaming and other content.

Included in the system is a full-featured, aluminum 43-key backlit Bluetooth remote that enables seamless control from any corner of the room without requiring line-of-sight. It also offers large, color-coded, and thumb-sized buttons, making it easy to control. This remote is in addition to an on-screen display and mobile remote app, delivering seamless navigation and nearly effortless usability.

• Get four times more wireless range with Bluetooth 5.0
• Enjoy 24-bit high-resolution wireless audio streaming with Qualcomm aptX HD
• 4K video upscaling
• 3000W of peak power output
• Integrated 2-line dot matrix display
• For international customers who require product servicing, Nakamichi will honor its warranty as long as the product can be shipped to them in California and an eligible USA shipping address is given for them to ship the product back to after servicing is complete. Contact dragonvip@nakamichi-usa.com for more details.

Nakamichi DRAGON Specs

Channel Configuration	11.4.6-Channel
High-Frequency Drivers	3x 1.5" / 3.8 cm Front-Firing Tweeter
Full-Range Drivers	8x 3" / 7.6 cm Front-Firing 2x 3" / 7.6 cm Side-Firing 4x 3" / 7.6 cm Up-Firing
Amplifier Output	1500 W Peak
Satellite Speaker Configuration	2-Way
Subwoofer Driver	2x 8" / 20.3 cm per Subwoofer
Subwoofer Amplifier Output	500 W per Subwoofer
Inputs	3x HDMI 2.1 - Audio/Video 1x Optical TOSLINK - Audio 1x 1/8" / 3.5 mm - Audio
Outputs	1x HDMI 2.1 - eARC/Audio/Video 1x Optical TOSLINK - Audio 1x 1/8" / 3.5 mm - Audio
Wireless	Bluetooth 5.0
Audio Decoding	DTS Digital Surround, DTS Neural:X, DTS-HD Master Audio, DTS:X, DTS:X Pro, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, LPCM, PCM
HDMI Compliance	CEC, eARC
Wall Mountable	Yes, with Optional Hardware

Channel Configuration	11.4.6-Channel
Enclosure Type	Sealed
High-Frequency Drivers	3x 1.5" / 3.8 cm Front-Firing Tweeter
Full-Range Drivers	8x 3" / 7.6 cm Front-Firing 2x 3" / 7.6 cm Side-Firing 4x 3" / 7.6 cm Up-Firing
Amplification	7x
Amplifier Output	1500 W Peak
Frequency Response	20 Hz to 40 kHz
Maximum SPL	125 dB SPL

Speaker Positioning	Rear
Satellite Speaker Configuration	2-Way
Enclosure Type	Sealed
High-Frequency Drivers	2x 1.5" / 3.8 cm Tweeter per Speaker
Full-Range Drivers	2x 3.5" / 8.9 cm Side-Firing per Speaker 1x 3" / 7.6 cm Up-Firing per Speaker
Power Rating	250 W per Speaker
Placement & Mounting Options	Tabletop/Bookshelf, Wall-Mount

Enclosure Type	Bass-Reflex
Subwoofer Driver	2x 8" / 20.3 cm per Subwoofer
Subwoofer Amplifier Output	500 W per Subwoofer

Inputs	3x HDMI 2.1 - Audio/Video 1x Optical TOSLINK - Audio 1x 1/8" / 3.5 mm - Audio
Outputs	1x HDMI 2.1 - eARC/Audio/Video 1x Optical TOSLINK - Audio 1x 1/8" / 3.5 mm - Audio
USB I/O	1x USB-A (Unspecified Interface) (Service)
Ethernet I/O	No
Wireless Audio Protocols	Bluetooth
Wireless	Bluetooth 5.0
Bluetooth	5.0
NFC	No
Bluetooth Codec Support	aptX HD
Mobile App Compatible	Yes: Android & iOS Functionality: Remote Control

Audio Decoding	DTS Digital Surround, DTS Neural:X, DTS-HD Master Audio, DTS:X, DTS:X Pro, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, LPCM, PCM
HDMI Compliance	CEC, eARC
HDR Support	Yes, HDR10/HDR10+/Dolby Vision

Input Power

100 to 240 VAC, 50 / 60 Hz

Material of Construction	Metal
Wall Mountable	Yes, with Optional Hardware
Dimensions	58.1 x 7.7 x 4.4" / 147.6 x 19.6 x 11.2 cm (Soundbar) 9 x 8.3 x 10.7" / 22.9 x 21.1 x 27.2 cm (Satellites) 12.5 x 11.2 x 20.9" / 31.8 x 28.4 x 53.1 cm (Subwoofer)
Weight	32.2 lb / 14.6 kg (Soundbar) 8.8 lb / 4 kg (Each Satellite) 34.4 lb / 15.6 kg (Subwoofer)

Package Weight	152 lb
Box Dimensions (LxWxH)	67 x 23 x 19"
