Description
Nanlite PavoSlim 240CL Overview
Slim Yet Rugged, Compact Yet Bright | Introducing PavoSlim 240CL
PavoSlim 240CL Dual-Panel Coupler Kit | Operation Tutorial
By Photo's
Dany Serota
Experience an efficient and uncomplicated lighting setup with the PavoSlim 240CL RGB LED Panel with Pop-Up Softbox from Nanlite. Like the 240C unit, the 240CL is a full-color RGBWW fixture that remains thin, lightweight, and impressively bright. But this version was thoughtfully designed with a 48 x 12" format to be easily mounted close to the ceiling. Suitable for a variety of users and applications, the 240CL's ultrathin and compact metal body fits the most constrained spaces. Nanlite includes a pop-up softbox to give gaffers, DPs, and creators a fast and easy way to set up the LED panel. This 240W fixture offers a wide 2700 to 7500K color temperature and boasts high color accuracy ratings. It also features green-to-magenta shift by +/- 150, a full-color HSI mode, 151 gel presets, 15 lighting effects, multiple control methods, and AC or optional battery power. Its greatest convenience is the ability to assemble and disassemble it quickly and efficiently. A padded carry case safely holds everything, so you can take it anywhere.

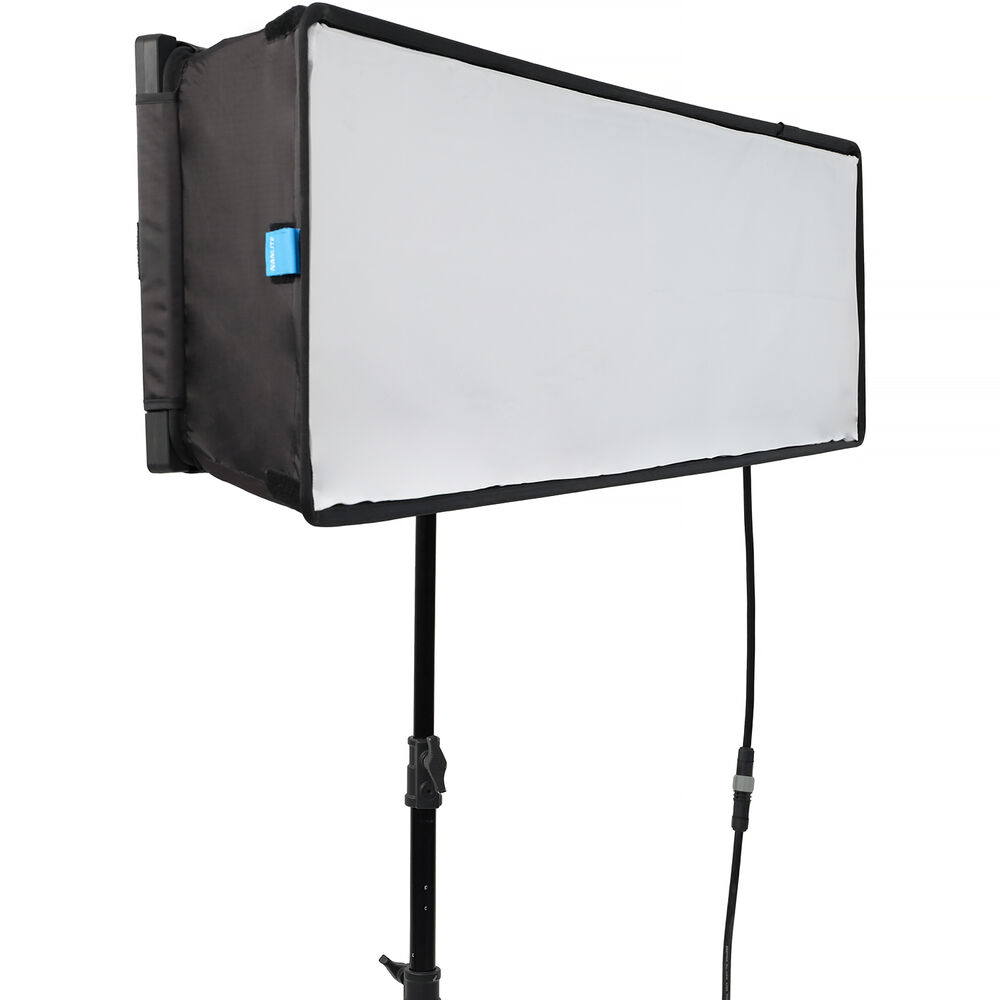

Pop-Up Softbox

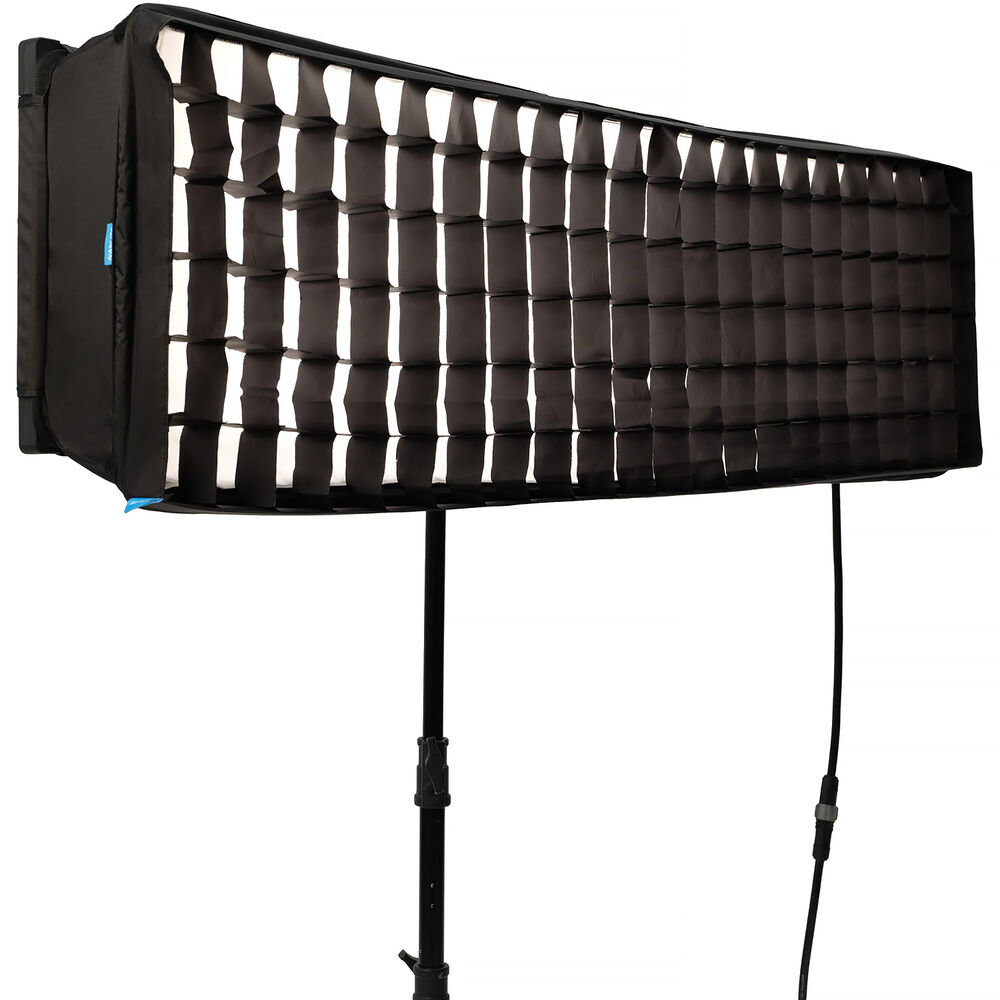

Nanlite combines the PavoSlim 240CL with a pop-up softbox that significantly shortens setup time to save you effort when it's time to shoot. An egg crate and 1.5- and 2.5-stop diffusers are also included for modifying and adjusting the panel's output.
Exceptionally Thin & Bright

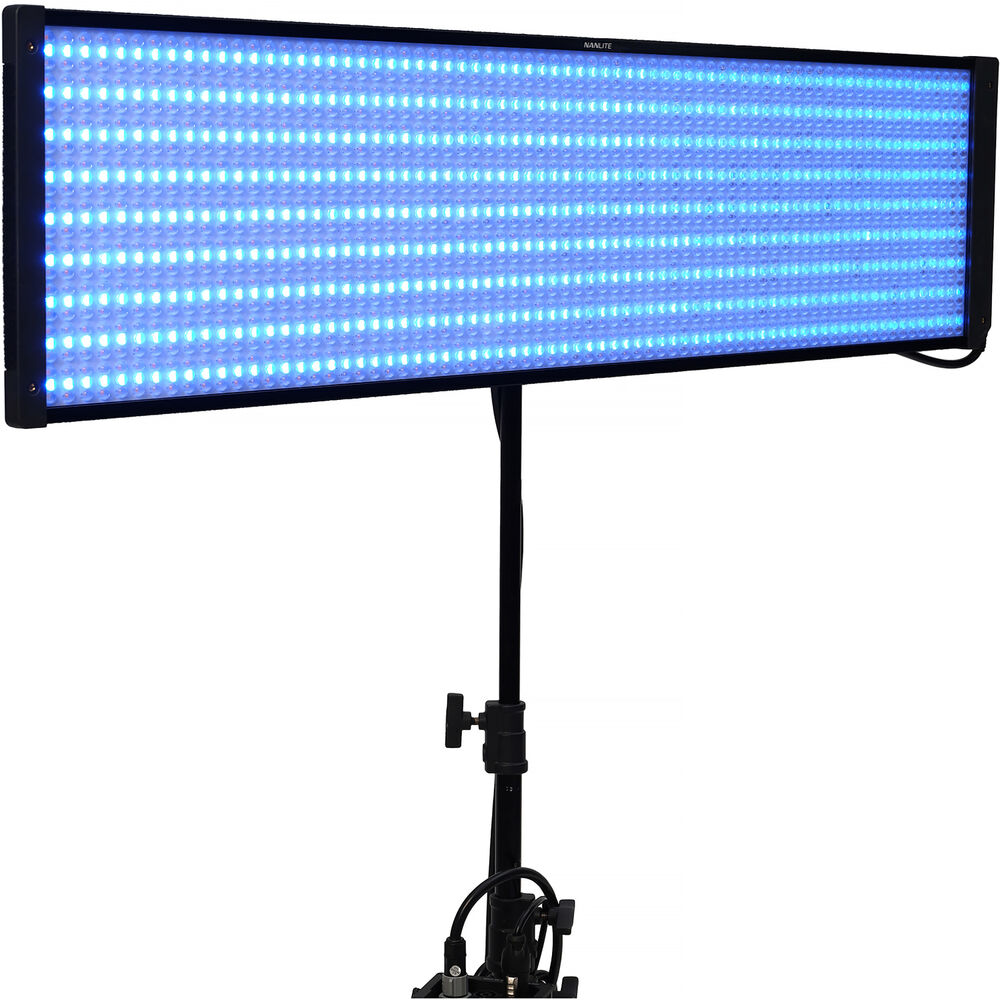

Offering a wide variable color temperature range of 2700 to 7500K and 0 to 100% dimming, this ultrathin and powerful panel seamlessly integrates into ambient light situations, letting you match the output of most fixtures. Designed for studio, film, and TV productions, this thin and lightweight LED panel provides flicker-free, bright illumination of 21,030 lux at 3.3' (5600K).
Color Accuracy
The panel's high CRI/TLCI ratings of 96/97 provide high color accuracy and rendering. Other scores are SSI (3200K) of 84, SSI (5600K) of 74, TM-30 Rf of 94, and TM-30 Rg of 100.
Lighting Effects
Fifteen built-in special effects: hue loop, CCT loop, intensity loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, firework, explosion, and welding.
Advanced Control Methods

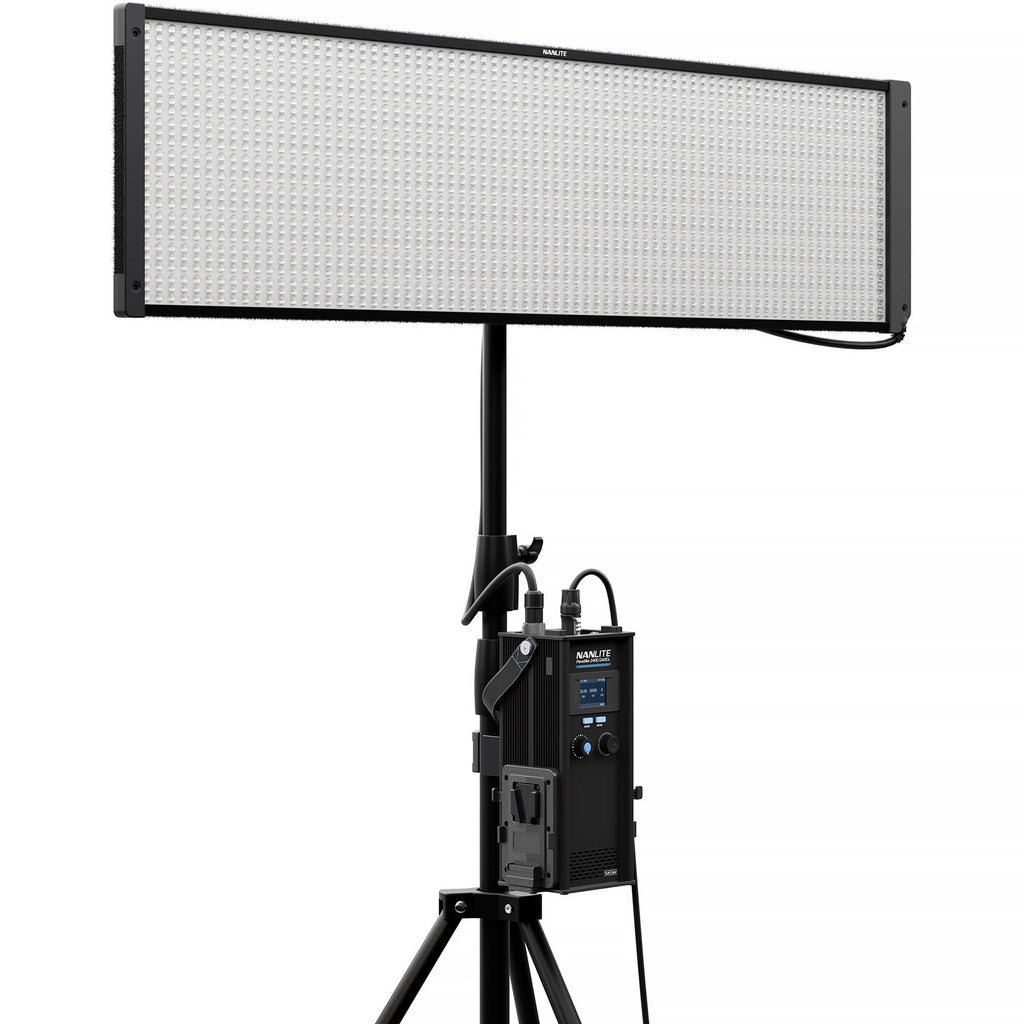

Multiple onboard and wireless control options make for easy creative adjustments. This version comes with built-in LumenRadio CRMX for a convenient connection to wireless DMX. Use the onboard controls located on the included control unit or the Bluetooth Nanlink app control right from your smartphone for intuitive management of settings. Going further, 2.4 GHz provides control through the separately available WS-TB-1 transmitter box for more elaborate setups or with the optional WS-RC-C2 handheld remote. DMX/RDM control is also supported for advanced users.
Power Options
- Dual-voltage design for worldwide use
- Control unit with built-in battery plates for two optional 14.4-14.8V or 26V V-mount batteries
- Requires two optional batteries for full output power
Multiple Mounts

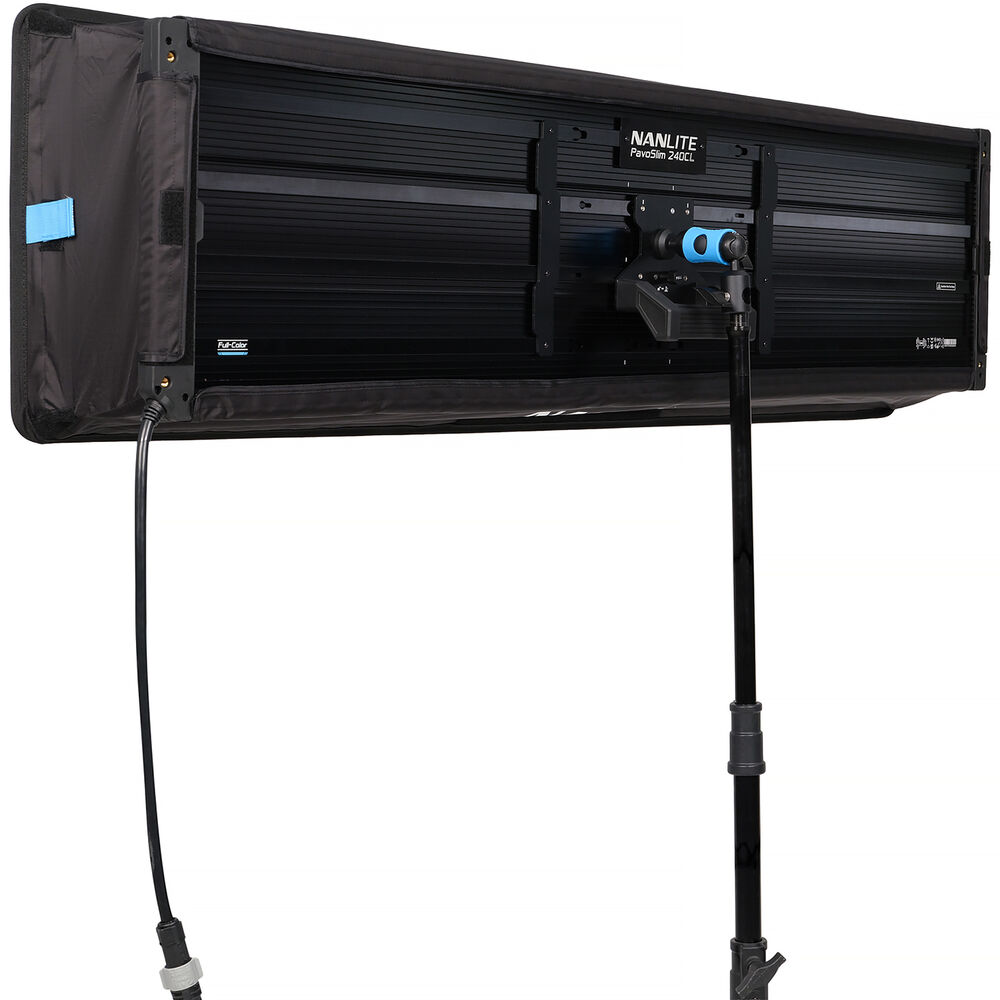

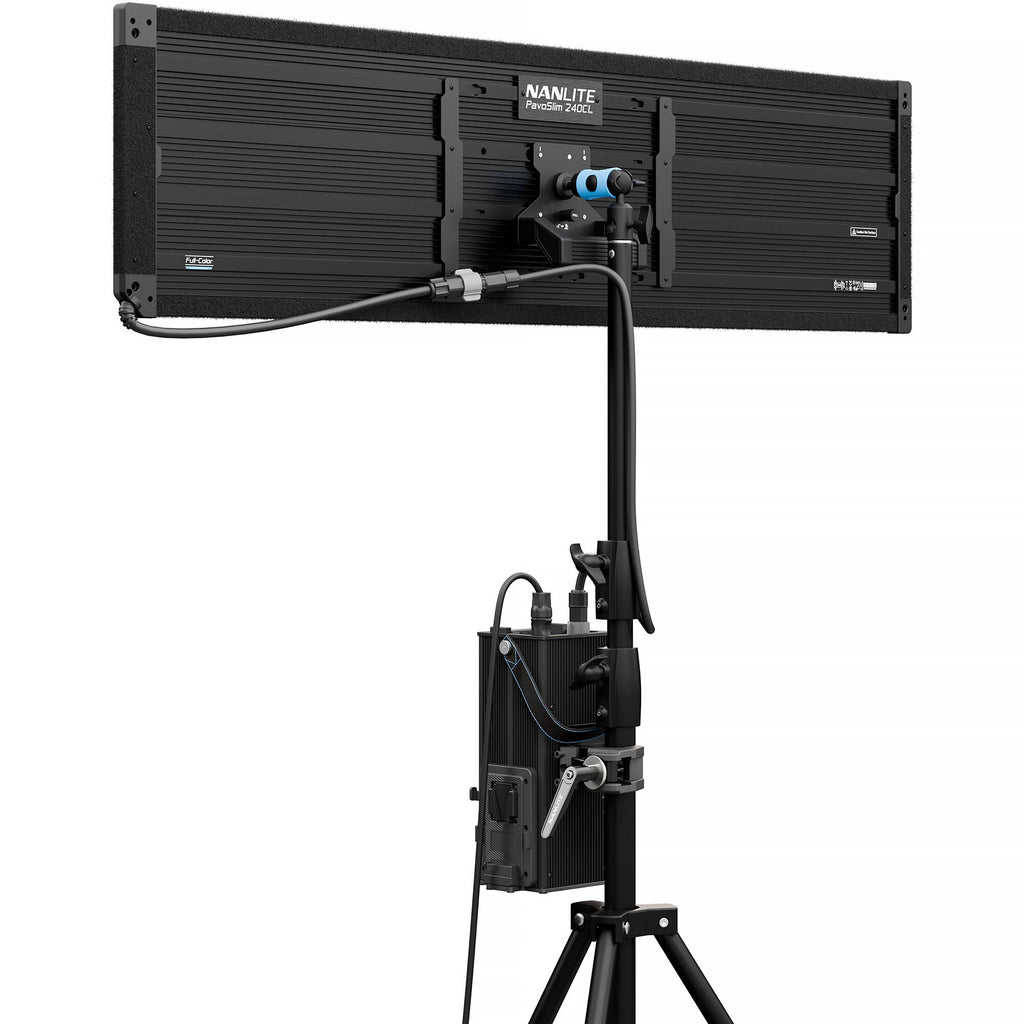

Expanding your mounting possibilities, this version includes a swivel holder, a baby pin mount, and a quick release clamp to attach the control unit to optional stands and trusses. The panel's back features multiple 4-pin locking plates to securely hold the two included mounts to meet your different mounting needs. The panel is also compatible with the separately available Nanlite magnetic base with 1/4"-20 threads.
Expandable System
Use the separately available multi-panel coupler kit to mount two or four 4 x 1 PavoSlim 240CL panels together, expanding your light source. This means you can easily create a larger 2 x 4 or 4 x 4 panel with their light-shaping accessories.
Other Benefits
- Ultrathin at just 0.9"
- 60° beam angle
- Weighs 7.98 lb
- Silent passive cooling operates without a fan for working on sets with sound recording
Items Included
- Nanlite PavoSlim 240CL RGB LED Panel with Pop-Up Softbox
- Control Unit
- Baby Pin Mount
- Swivel Holder
- Quick Release Clamp
- DC Connection Cable (8.5')
- AC Power Cable (14.7')
- Pop-Up Softbox
- Lite Diffuser
- Standard Diffuser
- Egg Crate Grid
- Padded Carry Case
-
Limited 2-Year Manufacturer Warranty
Registration Extension: 1-Year
Additional Resources
No additional resources available
Nanlite PavoSlim 240CL Specs
Key Specs
| Item Type |
1x LED Array LED Light Panel
|
| Included Light Modifier |
1x Softbox
1x Grid/Louver |
| Included Storage Case |
Yes
|
| Photometrics |
3200K:
1818 fc / 19,570 Lux at 3.3' / 1 m 603 fc / 6496 Lux at 6.6' / 2 m 316 fc / 3404 Lux at 9.8' / 3 m 5600K: 1953 fc / 21,030 Lux at 3.3' / 1 m 648 fc / 6985 Lux at 6.6' / 2 m 316 fc / 3404 Lux at 9.8' / 3 m |
| Color Temperature |
2700 to 7500K
|
| Color Modes |
RGB, Daylight, Tungsten
|
| Color Accuracy Standard |
CRI 96
TLCI 97 SSI 84 at 3200K SSI 74 at 5600K |
| Dimming |
App-Controlled / Controller Included / DMX / RDM
� 0 to 100% |
| Front Accessory Mount |
Proprietary
|
| Wireless Remote Control Type |
Bluetooth (Nanlink)
Radio/RF *Remote Not Included Wireless CRMX (LumenRadio) |
| Power Source |
AC Power (Cable Included)
Battery (Not Included) |
| Battery Plate Type |
2x V-Mount (Built-In)
|
| Battery |
2x V-Mount Rechargeable, 14 to 26 VDC (Not Included)
|
| Input Power |
48 VDC
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
240 W
|
| Fixture Mounting |
1x 5/8" Receiver (Via Hardware)
|
Light Fixture
| Item Type |
1x LED Array LED Light Panel
|
| Included Light Modifier |
1x Softbox
1x Grid/Louver |
| Included Filters |
Diffusion, Soft Diffusion
|
| Included Storage Case |
Yes
|
| Lumens |
24,024 (at 3200K)
25,748 (at 5600K) |
| Photometrics |
3200K:
1818 fc / 19,570 Lux at 3.3' / 1 m 603 fc / 6496 Lux at 6.6' / 2 m 316 fc / 3404 Lux at 9.8' / 3 m 5600K: 1953 fc / 21,030 Lux at 3.3' / 1 m 648 fc / 6985 Lux at 6.6' / 2 m 316 fc / 3404 Lux at 9.8' / 3 m |
| Color Temperature |
2700 to 7500K
|
| Color Modes |
RGB, Daylight, Tungsten
|
| Color Accuracy Standard |
CRI 96
TLCI 97 SSI 84 at 3200K SSI 74 at 5600K |
| Dimming |
App-Controlled / Controller Included / DMX / RDM
� 0 to 100% |
| Cooling System |
Passive
|
| Beam Angle |
60° Unmodified
|
| Built-In Flash |
No
|
| Preprogrammed Effects |
Yes
|
| Umbrella Mount |
No
|
| Front Accessory Mount |
Proprietary
|
Connectivity
| Wireless Remote Control Type |
Bluetooth (Nanlink)
Radio/RF *Remote Not Included Wireless CRMX (LumenRadio) |
| Mobile App Compatible |
Yes: Android & iOS
App Name: Nanlink Functionality: Adjust Settings, Remote Control, Setup |
| Wireless Frequency |
2.4 GHz
|
Power & I/O
| Power Source |
AC Power (Cable Included)
Battery (Not Included) |
| Inputs/Outputs |
Light Fixture
To Power Supply/Controller: 1x Built-In Cable with Unspecified Power Input Light Fixture To Power Supply/Controller: 1x Unspecified Power Output 1x 1/8" / 3.5 mm DMX Input *Adapter Required (Not Included) 1x Unspecified AC Power Input 1x Unspecified Power Input (48 VDC) |
| Battery Plate Type |
2x V-Mount (Built-In)
|
| Battery |
2x V-Mount Rechargeable, 14 to 26 VDC (Not Included)
|
| Input Power |
48 VDC
100 to 240 VAC, 50 / 60 Hz |
| Included Adapter / Cable |
Yes
|
| Inline Switch |
No
|
| Power Pass-Thru |
No
|
| Power Consumption |
240 W
|
Mounting
| Fixture Mounting |
1x 5/8" Receiver (Via Hardware)
|
General
| Display |
Yes
|
| Operating Conditions |
-4 to 113°F / -20 to 45°C
|
| Dimensions |
48 x 12 x 0.93" / 121.9 x 30.5 x 2.36 cm (Fixture)
11.14 x 6 x 4.39" / 28.3 x 15.2 x 11.15 cm (Power Supply/Controller) |
| Weight |
7.98 lb / 3.62 kg (Fixture)
6.08 lb / 2.76 kg (Power Supply/Controller) |
Packaging Info
| Package Weight |
38 lb
|
| Box Dimensions (LxWxH) |
52 x 16.5 x 7.75"
|
