Description
Nanlux Evoke 900C Overview
Combining advanced control with RGBLAC capability, the Evoke 900C RGB LED Spot Light from Nanlux is a powerful yet compact fixture with an impressive color temperature range and beam spread of 60°. Its variable 1800 to 20,000K CCT allows you to use it on interiors, exteriors, and mixed lighting environments. The Evoke 900C is dimmable from 0 to 100% in ultra-precise increments of just 0.1%. Besides incorporating lime, amber, and cyan LEDs, the light offers high CRI/TLCI ratings of 96 as your assurance of accuracy in color rendering.
The Evoke 900C is a 940W unit ready to work in the studio plugged into a standard AC outlet. The included power supply ballast operates on a voltage range from 100 to 240 VAC, so it can be used on location anywhere in the world. It can also run on an optional DC battery source when mains current is unavailable. This kit comes with a yoke, a 45° reflector, and a super clamp. A flight carry case is supplied as well for easy portability, making it a complete lighting solution.
Extended Control
Nanlux offers a generous bounty of methods to control the Evoke 900C, supporting both wired and wireless control. Dimming and other adjustments can be made locally, via Bluetooth, over DMX/RDM, or by using other advanced options.
- Onboard, the Nanlink app via Bluetooth, or 2.4 GHz wireless control
- DMX control allows you to adjust your light using an optional DMX console
- You can also use wireless DMX via LumenRadio
- Supports Art-Net/sACN protocols
- Includes remote controller
15 Built-In Effects
One of the many benefits is a library of 15 special effects, including HUE loop, CCT loop, INT loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, fireworks, explosion, and welding.
Quiet Operation
The adjustable fan delivers improved heat dissipation with a noise level of 25 dBA under Smart mode.
- Smart, Full-Speed, Low-Speed, and Off modes
- Full power output under Smart and Full-Speed modes
- Maximum power output is 70% under Low-Speed mode
- Maximum power output is 20% under Off mode
Weather Resistant
With a robust construction and a practical design, this 13 x 9.5 x 8.3" fixture is rated IP55 for weather resistance, so you can use it outdoors or in wet weather.

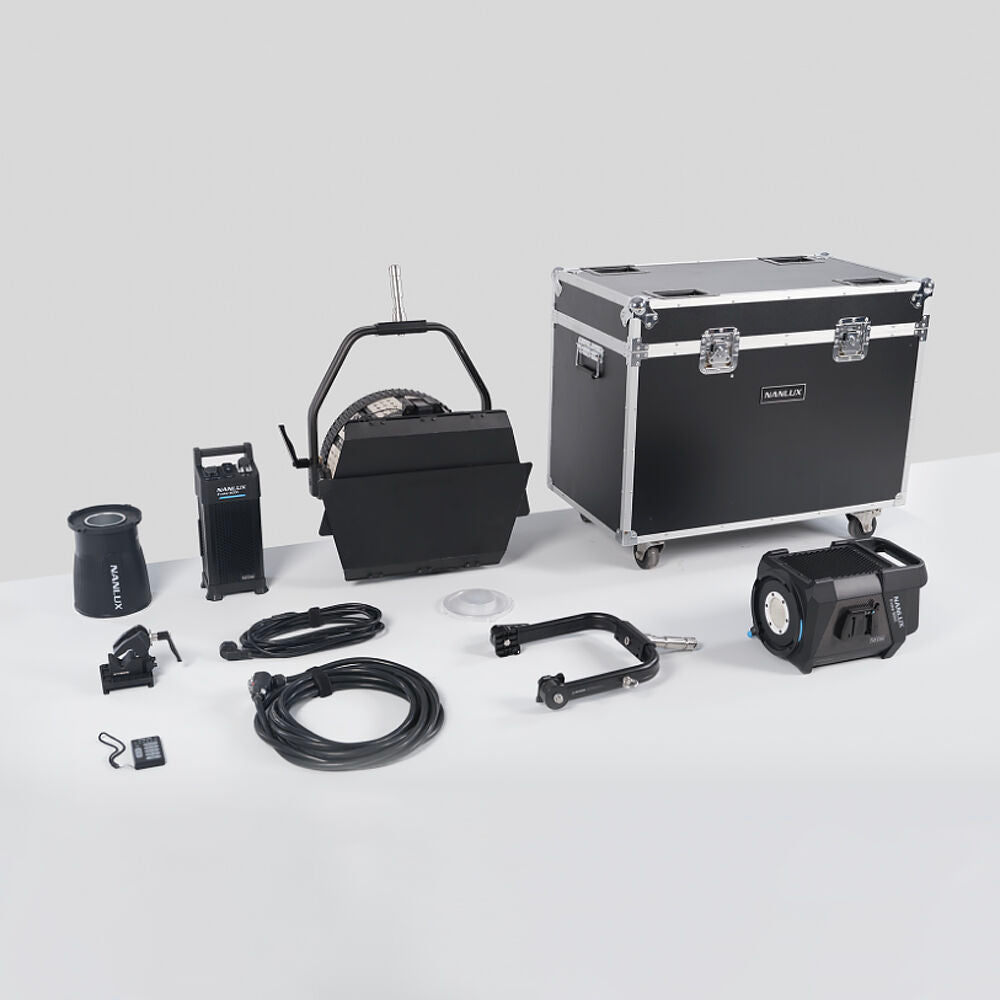

Items Included
- Nanlux Evoke 900C RGB LED Spot Light (Flight Case Kit)
- Yoke
- Power Supply
- Nanlux Reflector for Evoke 1200 (45°)
- DC Connection Cable (24.6')
- AC Power Cable (19.6')
- Nanlux Evoke Quick Release Bracket with Super Clamp
- USB Flash Drive
- Remote Controller
- Nanlux Flight Case for Evoke 1200
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Nanlux Evoke 900C Specs
Key Specs
| Item Type |
1x LED Spot Light
|
| Included Light Modifier |
1x Reflector
|
| Included Storage Case |
Yes
|
| Photometrics |
3200K:
3553 fc / 38,250 Lux at 3.3' / 1 m* 394 fc / 4250 Lux at 9.8' / 3 m 153 fc / 1656 Lux at 16.4' / 5 m 5600K: 3629 fc / 39,069 Lux at 3.3' / 1 m* 403 fc / 4341 Lux at 9.8' / 3 m 156 fc / 1688 Lux at 16.4' / 5 m *Standardized Measurement Calculated Internally Based on Closest Distance |
| Color Temperature |
1800 to 20,000K +/- 200K
|
| Color Modes |
RGB
|
| Color Accuracy Standard |
CRI 96
TLCI 96 TM-30 Rf 94 TM-30 Rg 100 SSI 73 at 5600K SSI 81 at 3200K |
| Dimming |
Built-In Dimmer
� 0 to 100% |
| Wireless Remote Control Type |
Bluetooth
Wireless DMX Radio/RF *Remote Included |
| Power Source |
AC Power (Cable Included)
|
| Input Power |
48 VDC at 18.75 A
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
940 W
|
| Fixture Mounting |
1x 1-1/8" Stud (Via Yoke Mount)
|
Light Fixture
| Item Type |
1x LED Spot Light
|
| Included Light Modifier |
1x Reflector
|
| Included Storage Case |
Yes
|
| Photometrics |
3200K:
3553 fc / 38,250 Lux at 3.3' / 1 m* 394 fc / 4250 Lux at 9.8' / 3 m 153 fc / 1656 Lux at 16.4' / 5 m 5600K: 3629 fc / 39,069 Lux at 3.3' / 1 m* 403 fc / 4341 Lux at 9.8' / 3 m 156 fc / 1688 Lux at 16.4' / 5 m *Standardized Measurement Calculated Internally Based on Closest Distance |
| Color Temperature |
1800 to 20,000K +/- 200K
|
| Color Modes |
RGB
|
| Color Accuracy Standard |
CRI 96
TLCI 96 TM-30 Rf 94 TM-30 Rg 100 SSI 73 at 5600K SSI 81 at 3200K |
| Dimming |
Built-In Dimmer
� 0 to 100% |
| Cooling System |
Fan/Passive Combo
|
| Beam Angle |
60°
|
| Built-In Flash |
No
|
| Preprogrammed Effects |
Yes
|
| Umbrella Mount |
No
|
Connectivity
| Wireless Remote Control Type |
Bluetooth
Wireless DMX Radio/RF *Remote Included |
| Mobile App Compatible |
Yes: Android & iOS
App Name: NANLINK Functionality: Remote Control |
Power & I/O
| Power Source |
AC Power (Cable Included)
|
| Inputs/Outputs |
Light Fixture
2x RJ45 Network Input/Output 1x Unspecified Power Input 1x XLR 5-Pin Male DMX Input 1x XLR 5-Pin Female DMX Output Power Supply/Controller 1x powerCON AC Power Input 1x Unspecified Power Output |
| Input Power |
48 VDC at 18.75 A
100 to 240 VAC, 50 / 60 Hz |
| Included Adapter / Cable |
Yes
|
| Power Consumption |
940 W
|
Mounting
| Yoke Type |
Manually-Operated Yoke
|
| Fixture Mounting |
1x 1-1/8" Stud (Via Yoke Mount)
|
General
| Display |
Yes
|
| Environmental Resistance |
Dust/Water-Resistant (IP55)
|
| Certifications |
CE, UKCA, RoHS, PSE, FCC-ID, Kcc, BIS, ETL, cETL, NCC
|
| Dimensions |
13.5 x 9.5 x 8.3" / 34.3 x 24.1 x 21.1 cm (Fixture)
13.5 x 5.7 x 4.9" / 34.3 x 14.5 x 12.4 cm (Power Supply/Controller) |
| Weight |
17 lb / 7.7 kg (Fixture)
9.9 lb / 4.5 kg (Power Supply/Controller) |
Packaging Info
| Package Weight |
89.5 lb
|
| Box Dimensions (LxWxH) |
25 x 23 x 23"
|
